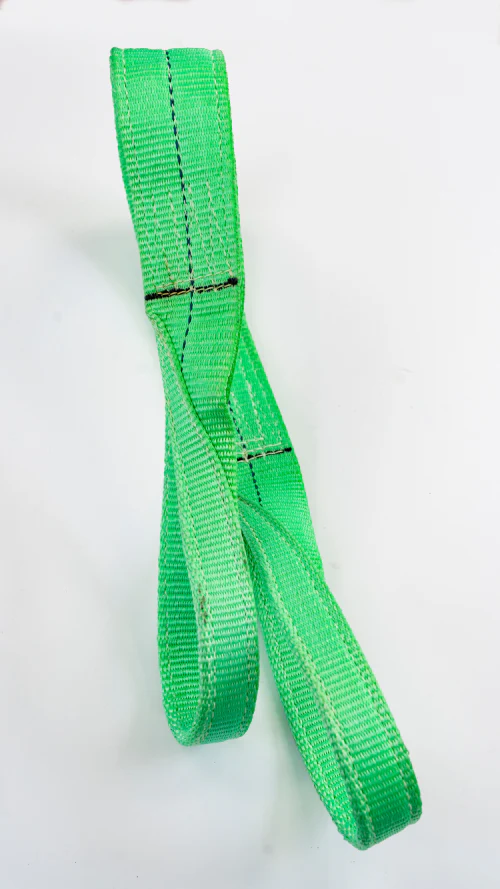

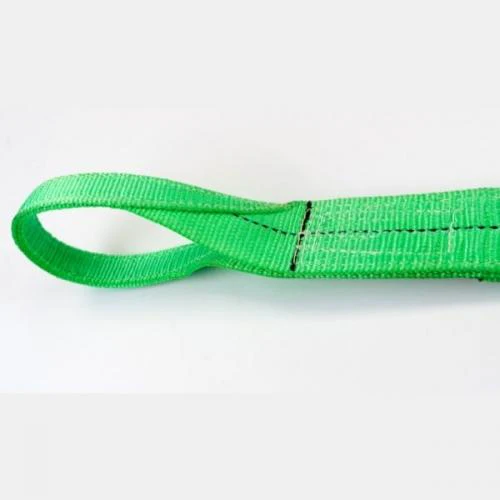

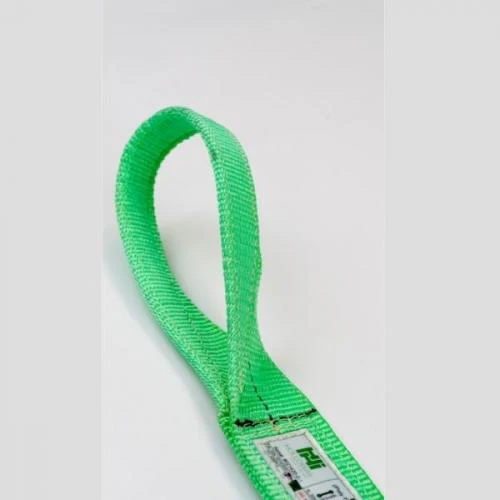

3 Ply Webbing Sling

Heavy-duty eye and eye web sling otherwise known as 3 ply Webbing Slings feature a triplex webbing (triple thickness) ply to provide a heavier capacity than Single Ply Web Slings and Double Ply Web Slings

Proudly manufactured in the USA with lengths up to 20ft (larger offline) and capacities up to 88,000Lbs at 12" width in basket formation. Twisted eyes at both ends, for flat eyes please call.

Web Width	No. of Web Plys	Part Number	Vertical Capacity	Choker Capacity	V.Basket Capacity	Eye Length
1"	3	EE391	4,100Lbs	3,300Lbs	8,200Lbs	12"
2"	3	EE392	8,300Lbs	6,600Lbs	16,600Lbs	12"
3"	3	EE3993	12,500Lbs	10,000Lbs	25,000Lbs	18"
4"	3	EE2394	16,000Lbs	12,800Lbs	32,000Lbs	18"
6"	3	EE396	23,000Lbs	18,400Lbs	46,000Lbs	20"
8"	3	EE398	30,700Lbs	24,560Lbs	61,400Lbs	24"
10"	3	EE3910	36,800Lbs	29,400Lbs	73,600Lbs	28"
12"	3	EE3912	44,000Lbs	35,200Lbs	88,000Lbs	32"

Minimum 5:1 safety design factor.

IMPORTANT: All of our Web Slings and Round Slings are manufactured on demand (extremely quickly) to your exect order, right here in Houston, TX. The date of manufacture is also printed on each sling label, for these reasons all sling sales are final and cannot be returned or exchanged once ordered.

• 3 Ply webbing
• Up to 20ft length
• Up to 88,000Lbs capacity at 12" width (V.Basket formation)
• Twisted eyes at each end
• Made in the USA
