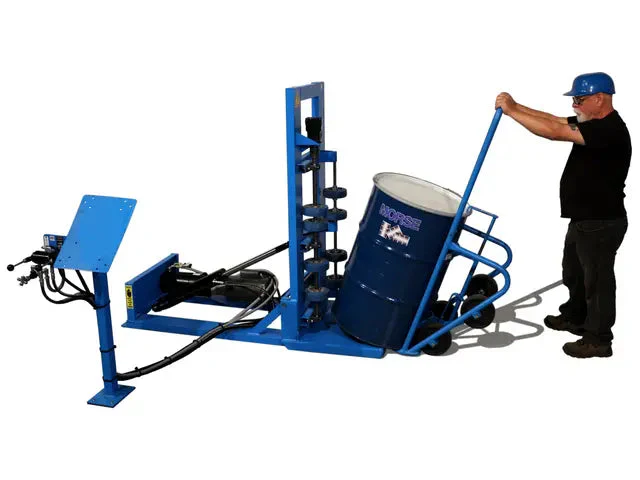

456 Series Hydra-Lift Drum Rollers
- Roll drum to remix settled ingredients
- Eliminate transfer, clean-up, and special vessels
- Use separate drum for each batch
- No container to purge between batches
- Nothing to insert into drum to mix
- Easy to load by hand truck or hoist
- Variable Drum Speed from 5 to 17 RPM (4 to 14 RPM for 50Hz models), based on a 22.5" diameter (57 cm) 55-gallon (210 liter) drum
- Roll a steel drum: 6" to 26" (15 to 66 cm) diameter; maximum 40" (102 cm) length
- To roll a plastic drum, add Option # POLY-456
- To roll 1-to-5 gallon cylindrical can, install Option # 1-5-1 Idler Attachment
- Maximum ambient operating temperature: 130° F (54° C)
- Control Package and Guard Enclosure each sold separately
- IMPORTANT: OSHA requires enclosure with safety interlock
| Motor style | Phase | Voltage / Amp Draw | Explosion proof | Drum RPM | Control Package | Guard Enclosure Kit | Model |
|---|---|---|---|---|---|---|---|
| 60Hz | 1 | 115v / 12.8 208v / 7.0 230v / 6.4 |
N | 5 to 17 RPM
|
CP-456-1-115 CP-456-1-230 |
GEK-456-1 |
456-1 |
| 50Hz | 1 | 220v / 6.2 | N | 4 to 14 RPM
|
CP-456-1-220-50 |
GEK-456-1 |
456-1-50 |
| 50Hz | 1 | 220v / 6.2 | N | 4 to 14 RPM
|
456-1-50-CE | ||
| 60Hz | 3 | 208v / 3.1 230v / 3.0 460v / 1.5 |
N | 5 to 17 RPM
|
CP-456-3-230 CP-456-3-460 |
GEK-456-3 |
456-3 |
| 50Hz | 3 | 230v / 3.1 400v / 1.8 |
N | 4 to 14 RPM
|
CP-456-3-230-50 CP-456-3-400-50 |
GEK-456-3 |
456-3-50 |
| 50Hz | 3 | 400v / 1.8 | N | 4 to 14 RPM
|
456-3-50-CE | ||
| 60Hz | 3 | 575v / 1.2 | N | 5 to 17 RPM
|
CP-456-3-575 |
GEK-456-3 |
456-3-575 |
| - | N | 5 to 17 RPM
|
GEK-456-A |
456-A | |||
| 60Hz | 1 | 115v / 12.4 208v / 6.7 230v / 6.2 |
Y | 5 to 17 RPM
|
CP-456-E1-115 CP-456-E1-208 CP-456-E1-230 |
GEK-456-E1 |
456-E1 |
| 50Hz | 1 | 220v / 6.2 | Y | 4 to 14 RPM
|
CP-456-E1-220-50 |
GEK-456-E1 |
456-E1-50 |
| 60Hz | 3 | 208v / 3.1 230v / 3.0 460v / 1.5 |
Y | 5 to 17 RPM
|
CP-456-E3-208 cp-456-e3-230 CP-456-E3-460 |
GEK-456-E3 |
456-E3 |
| 50Hz | 3 | 230v / 3.5 400v / 2.0 |
Y | 4 to 14 RPM
|
CP-456-E3-230-50 CP-456-E3-400-50 |
GEK-456-E3 |
456-E3-50 |
| 60Hz | 3 | 575v / 1.2 | Y | 5 to 17 RPM
|
CP-456-E3-575 |
GEK-456-E3 |
456-e3-575 |
