Vestil Aluminum Safety Railings

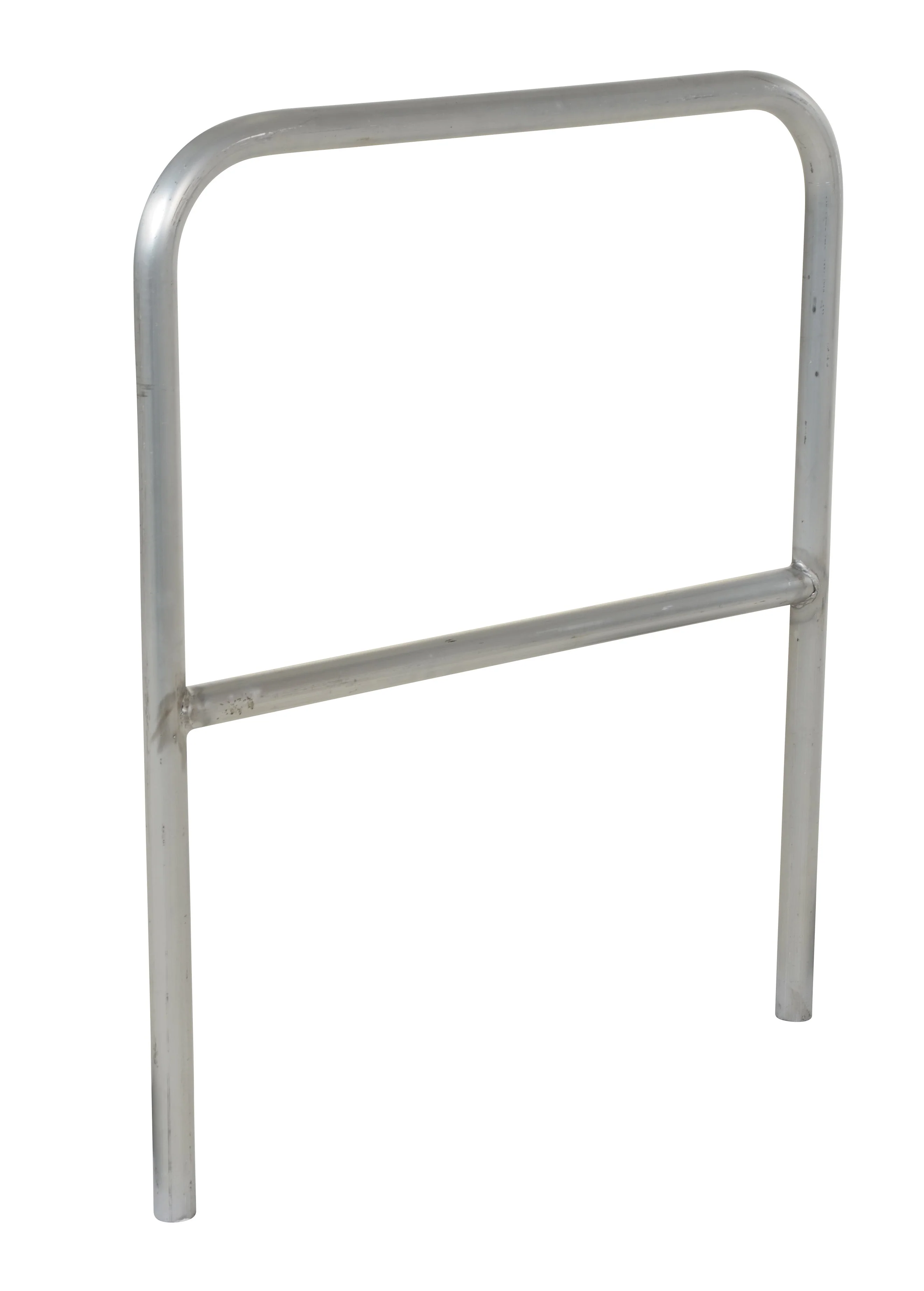

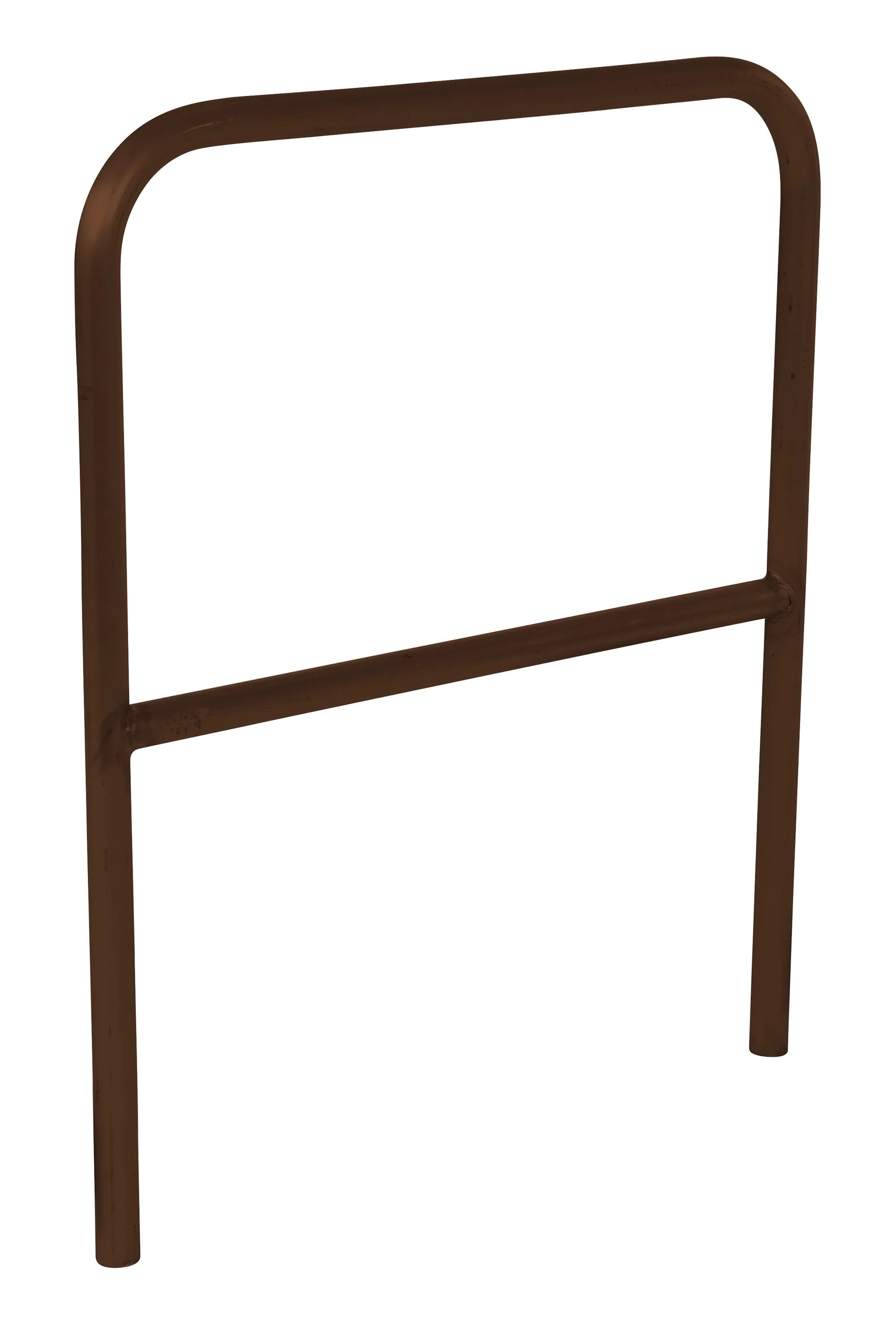

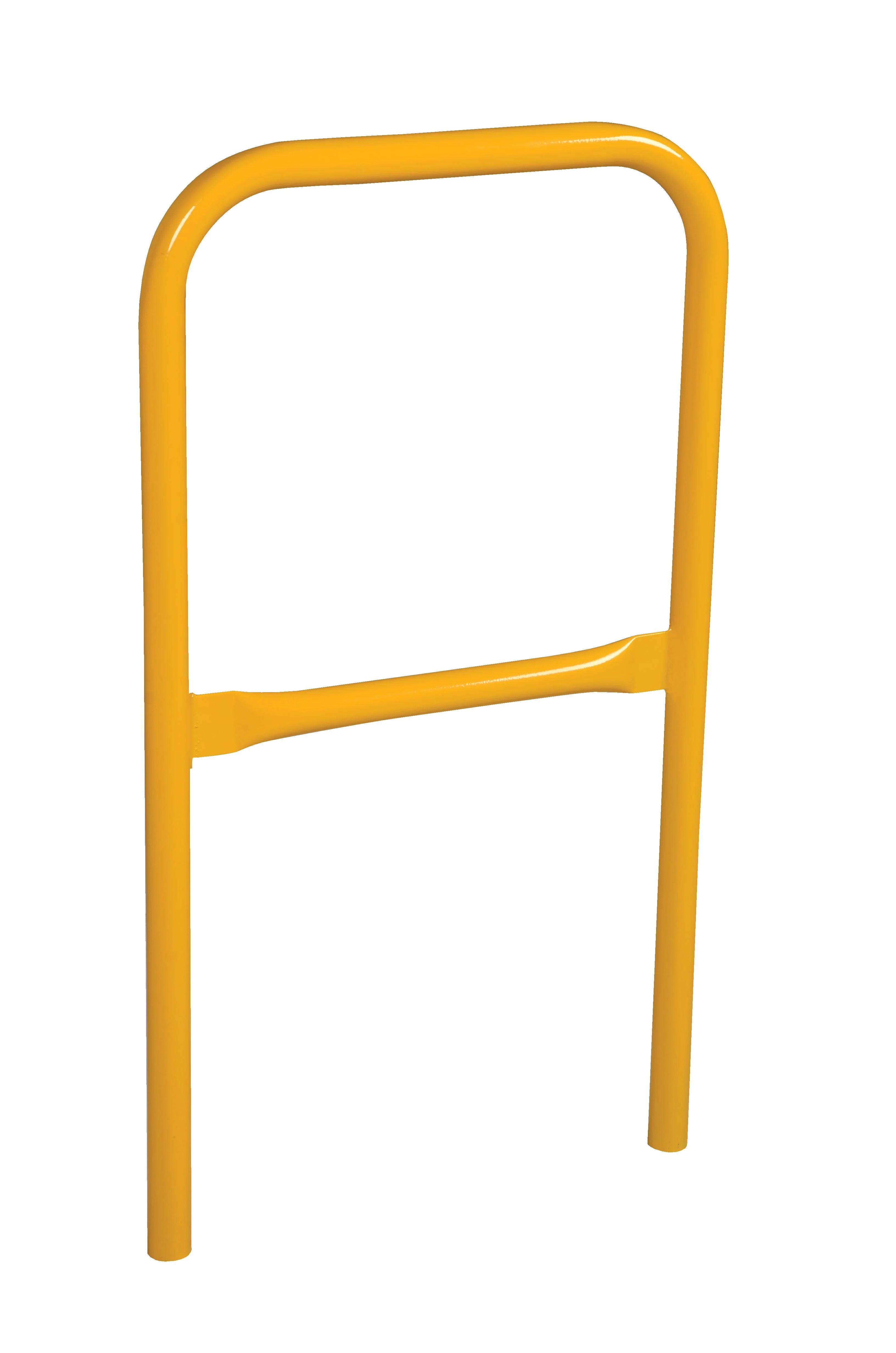

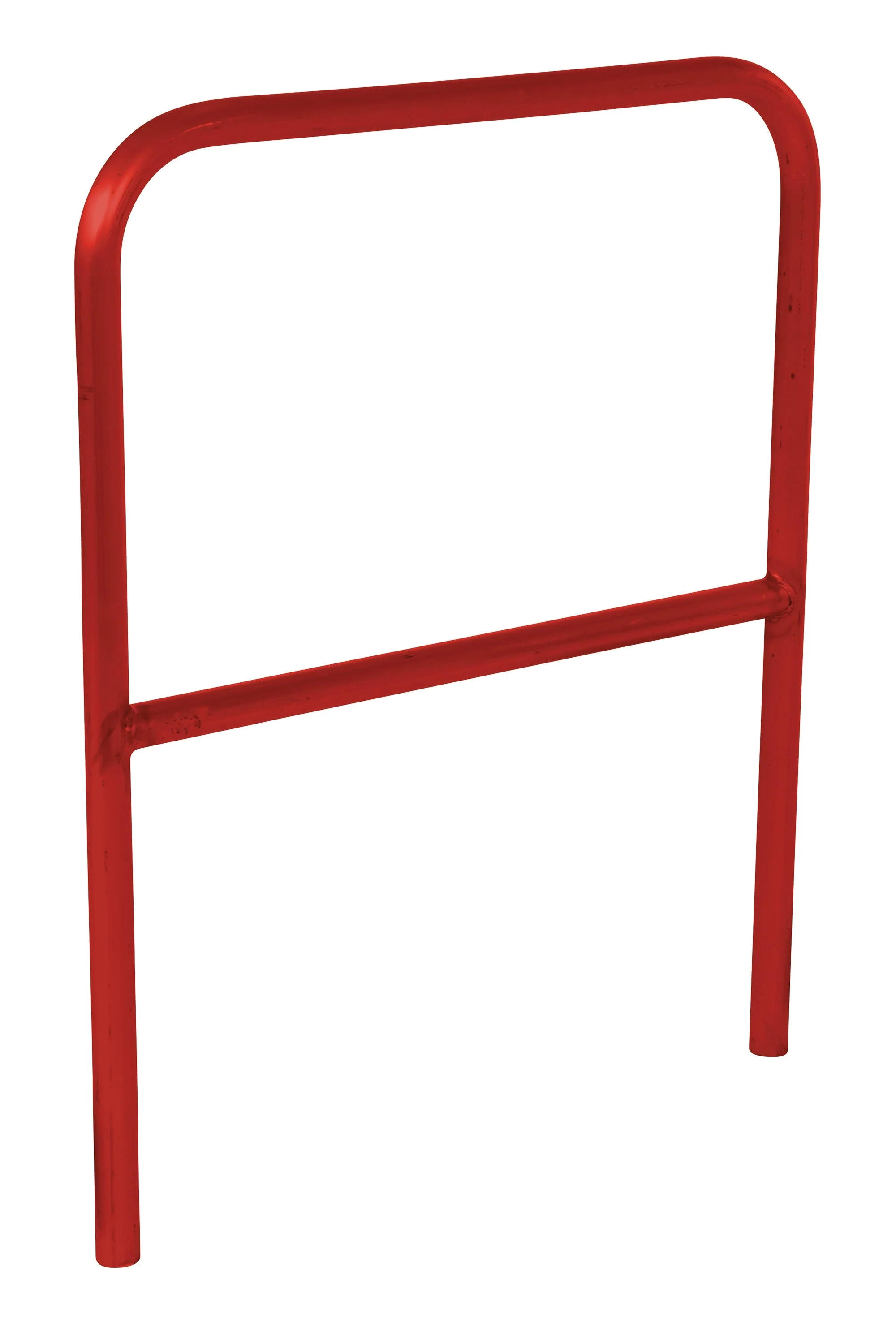

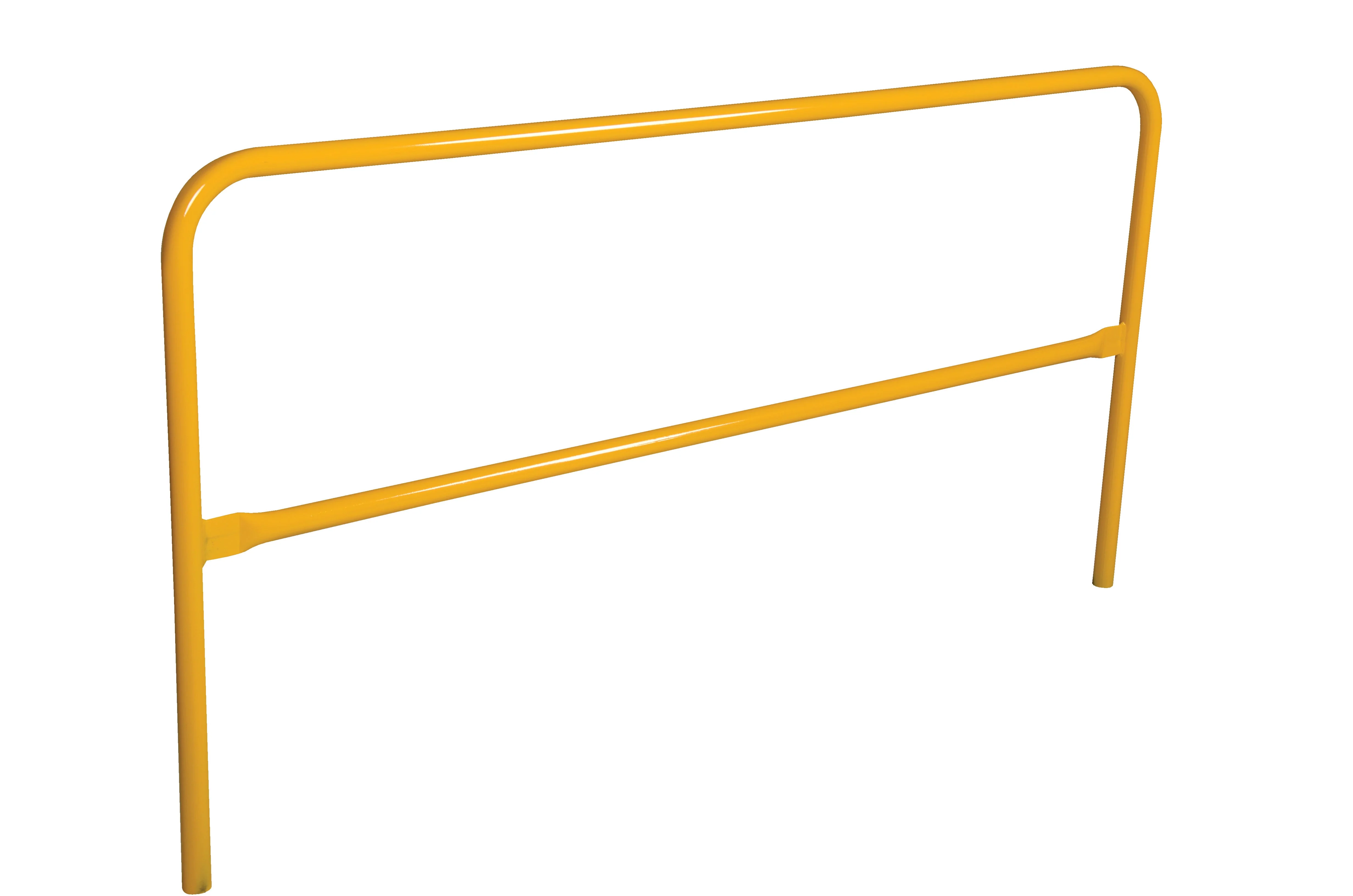

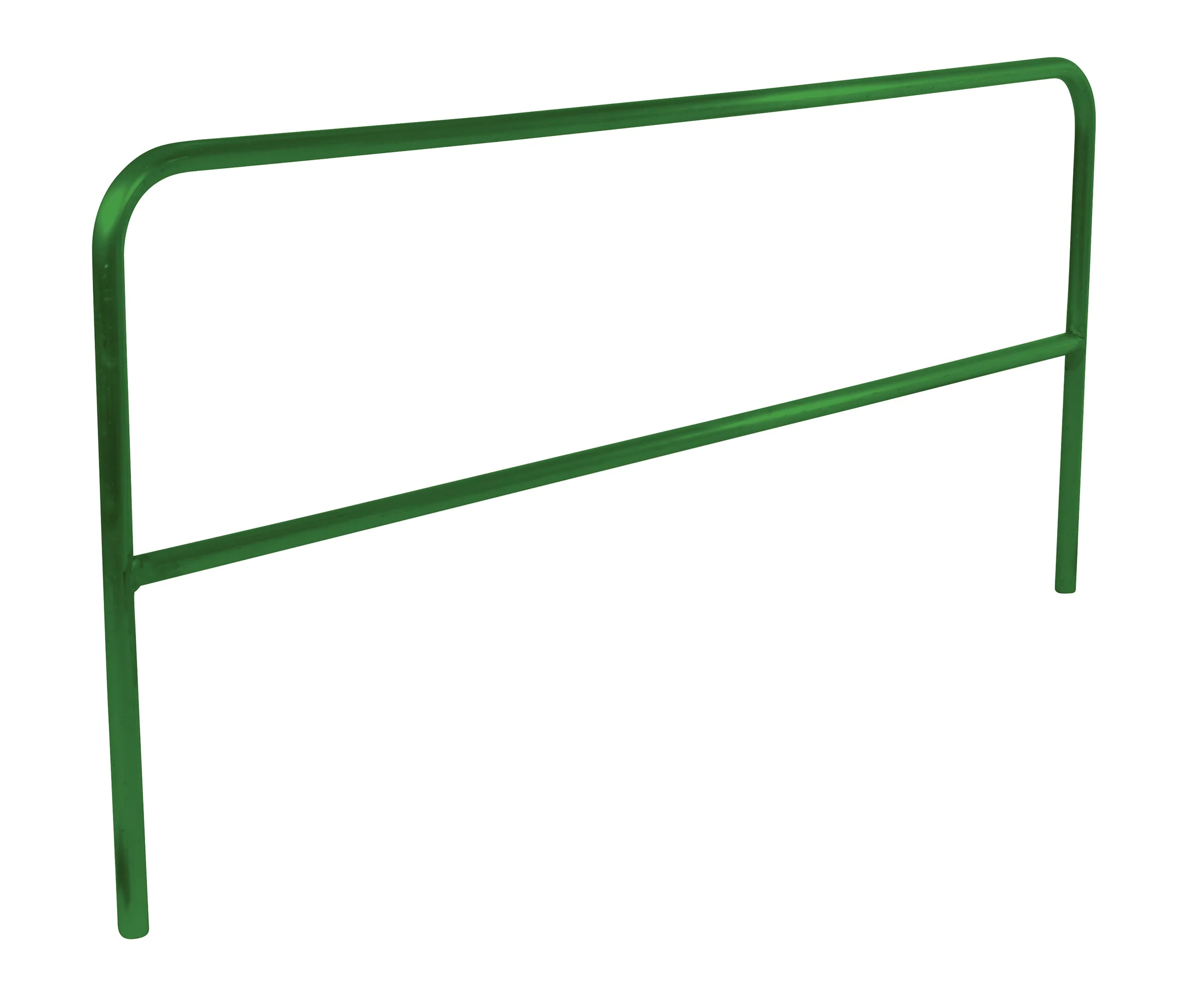

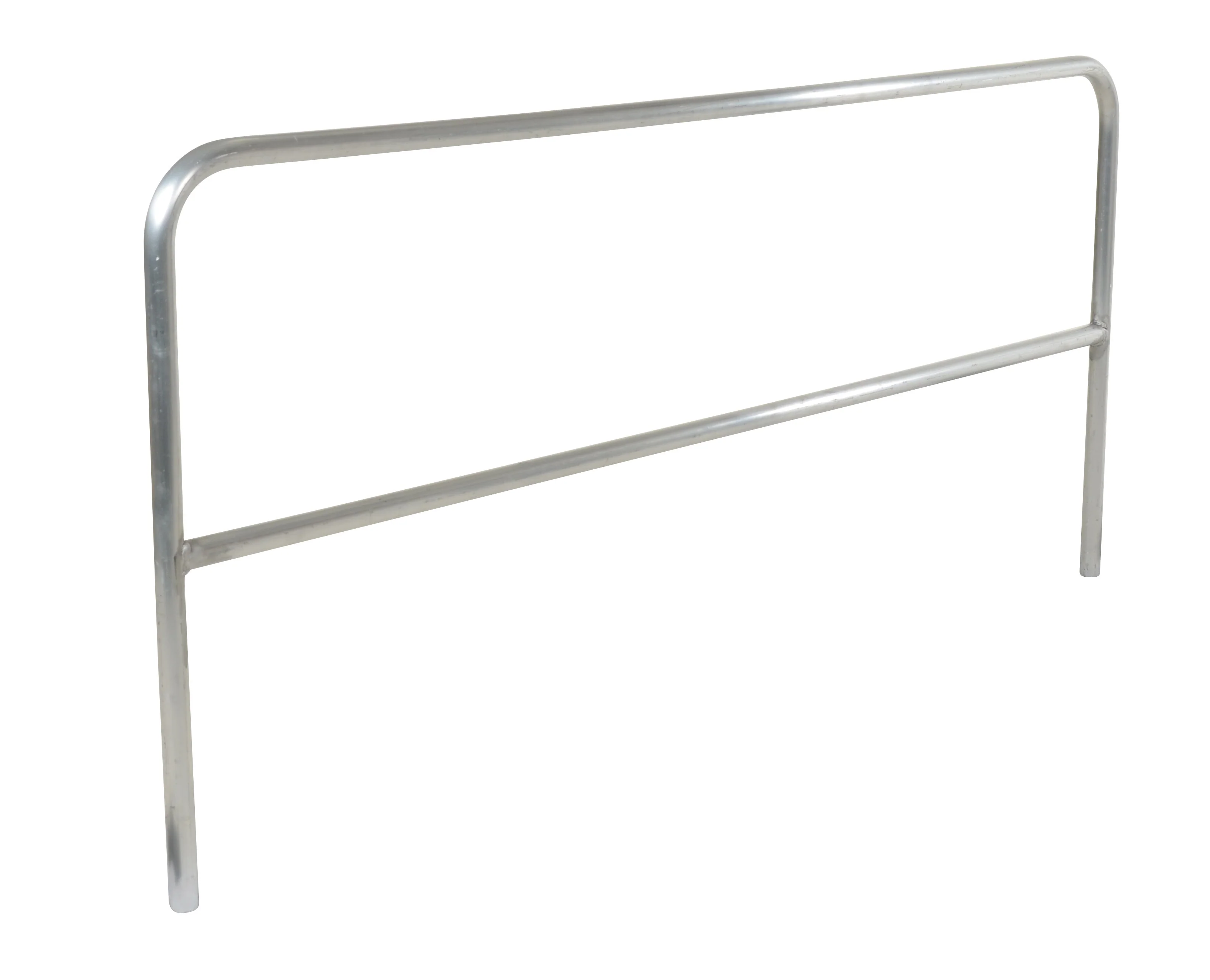

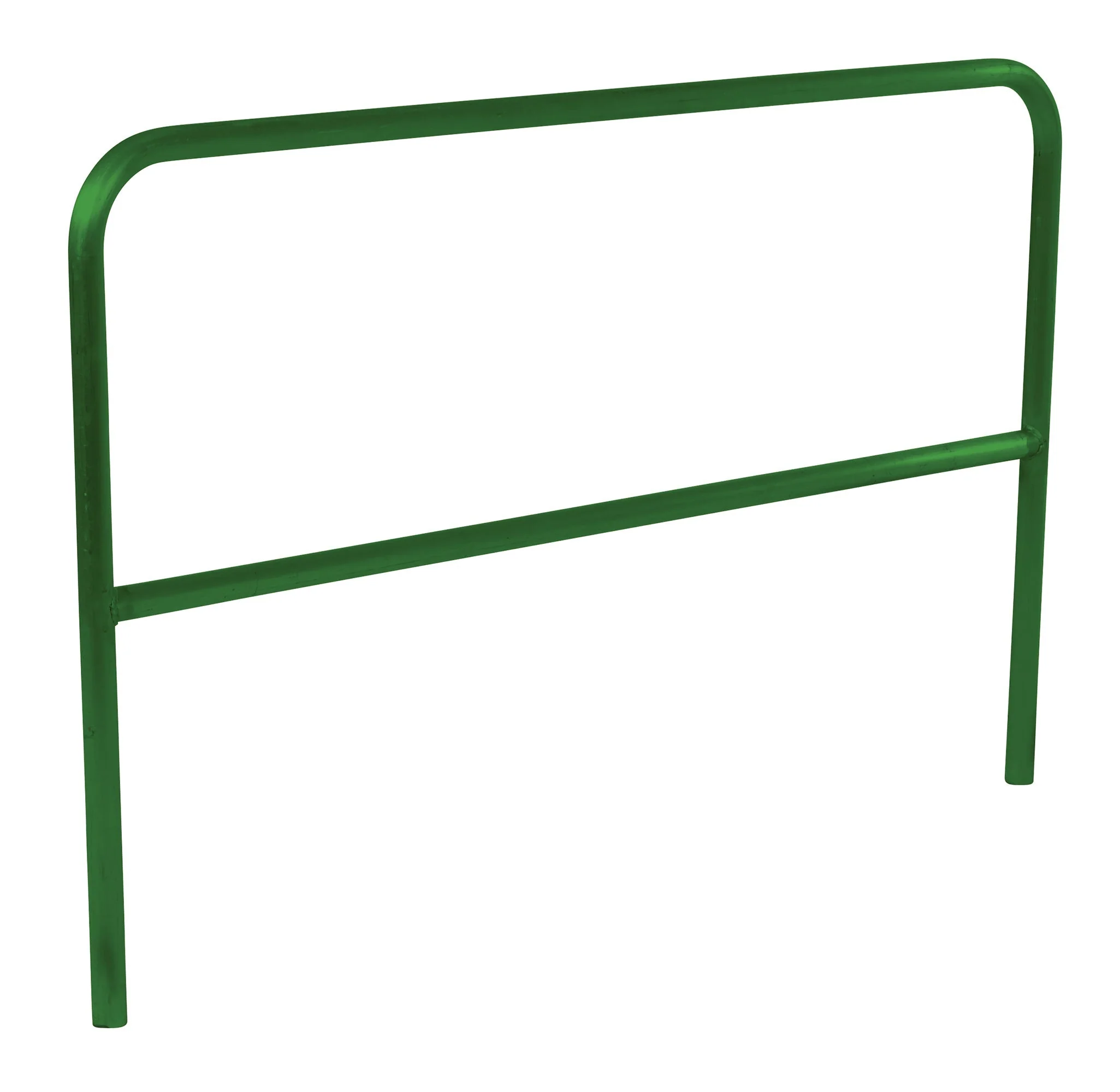

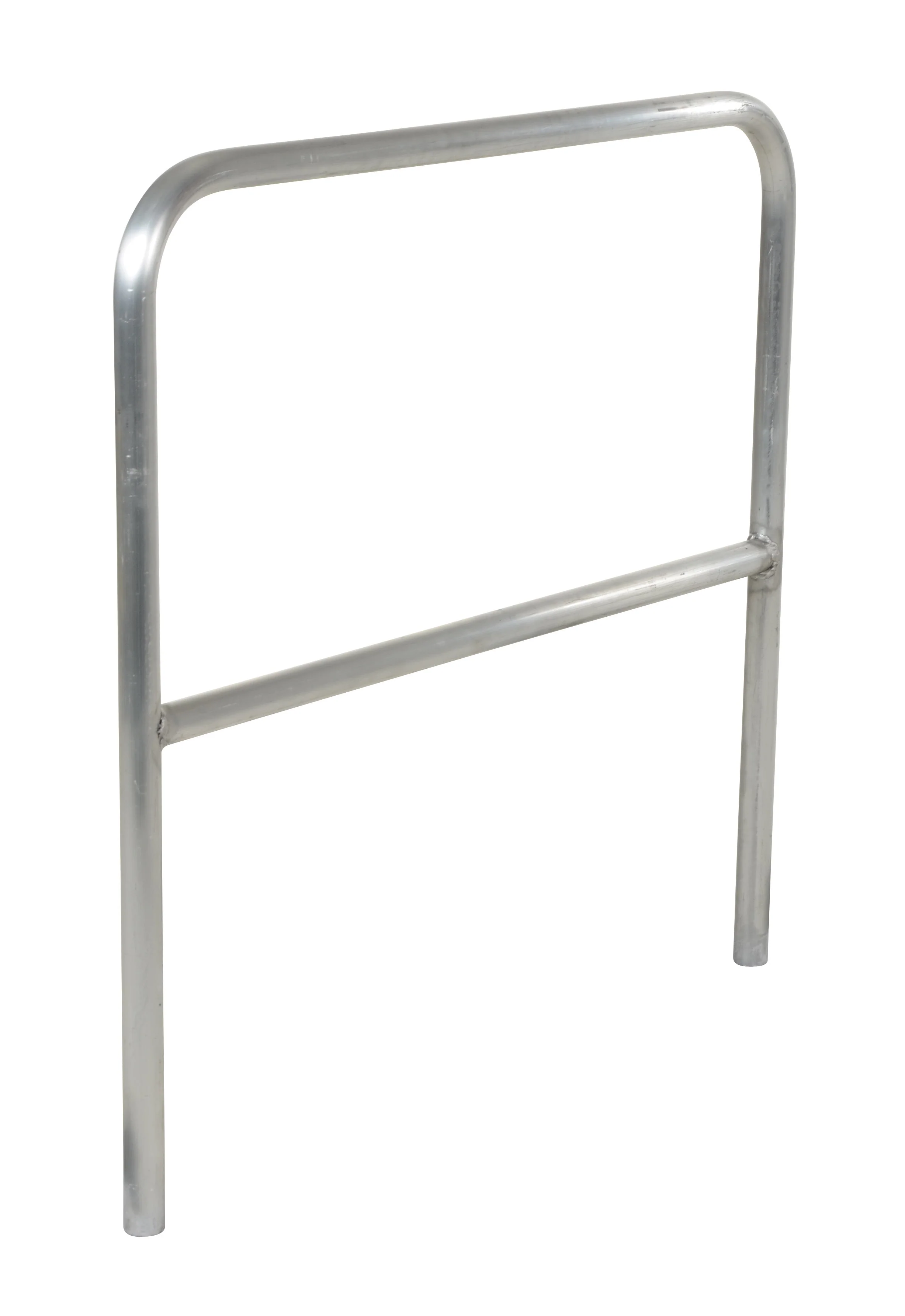

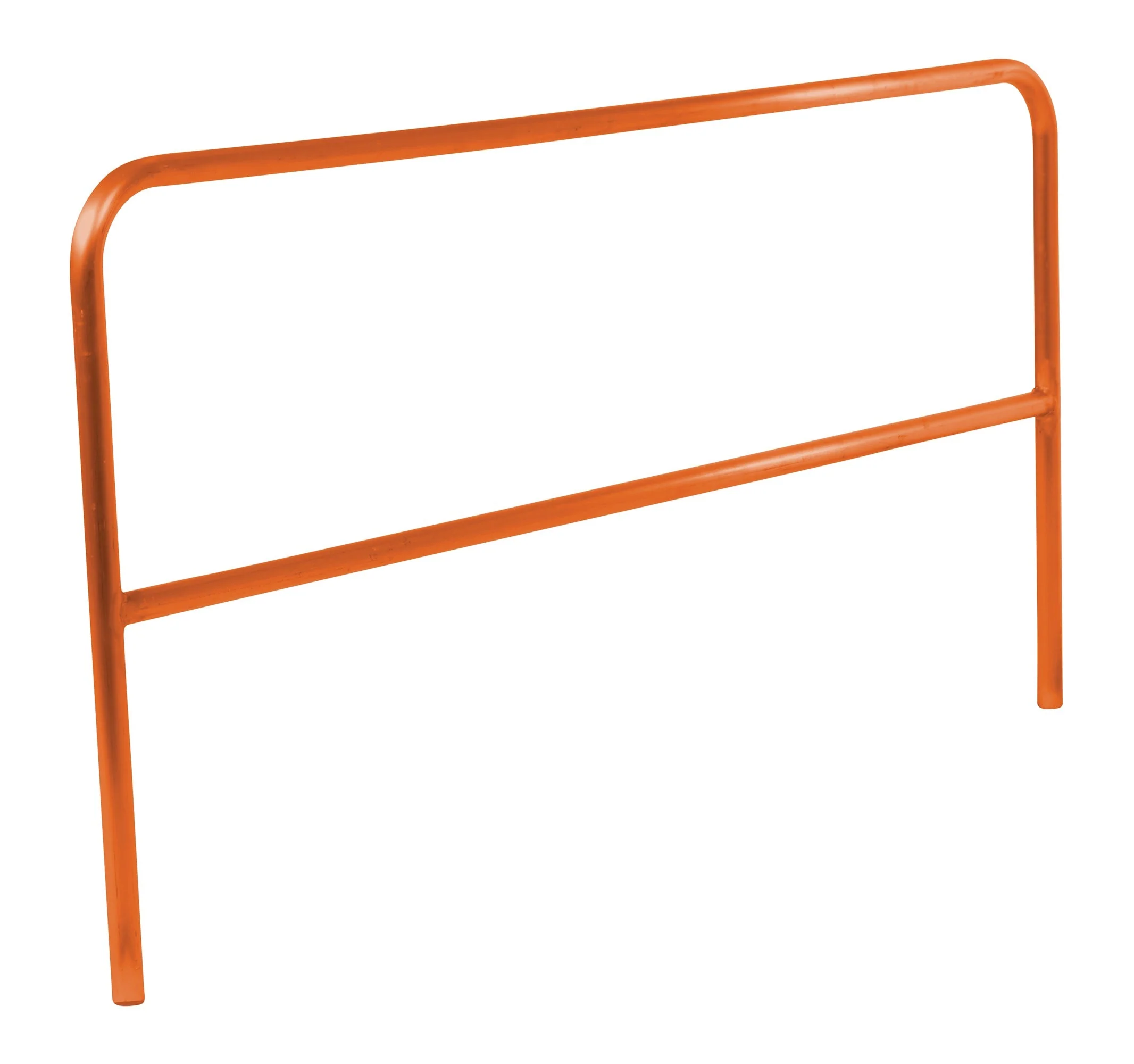

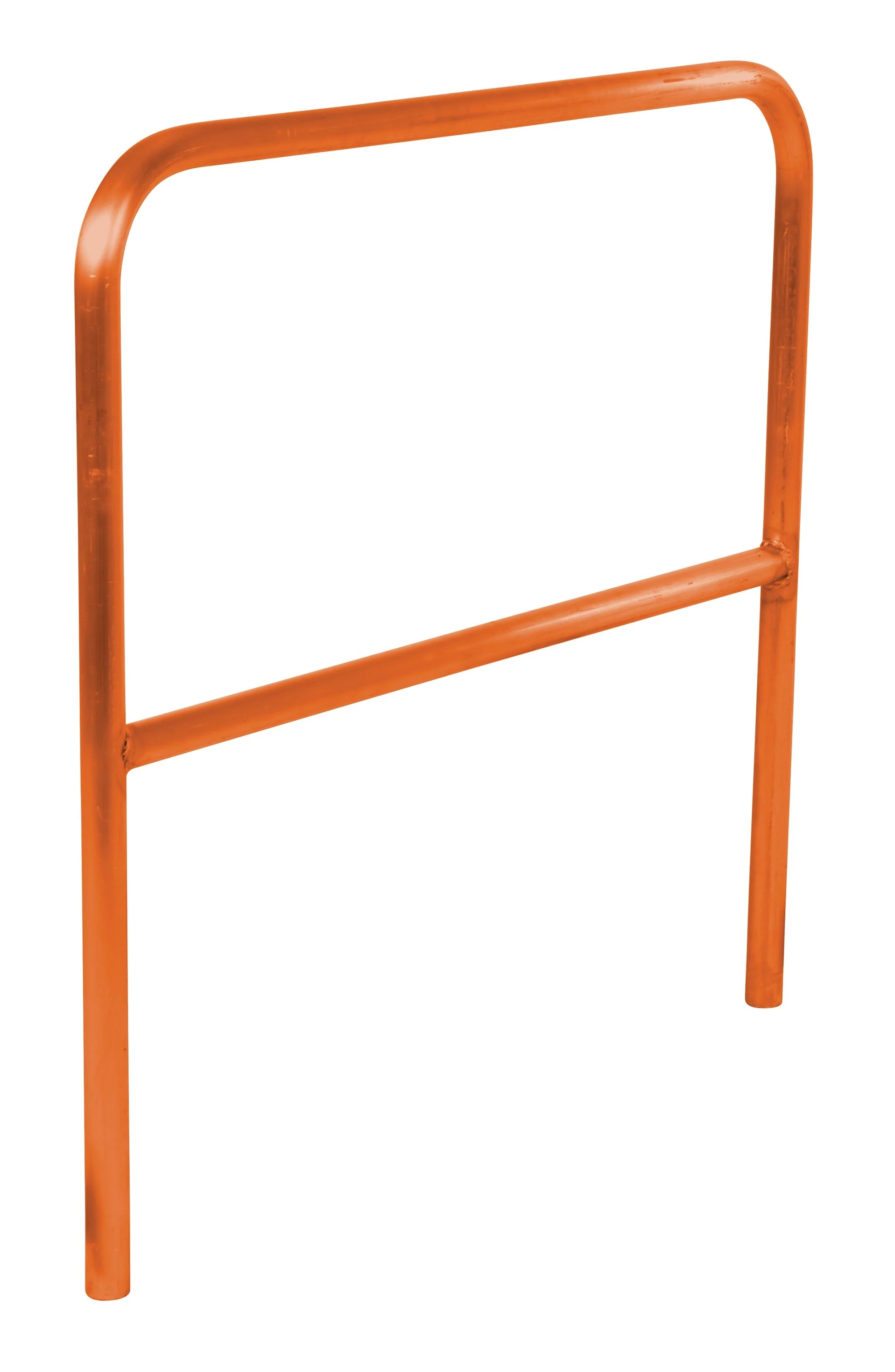

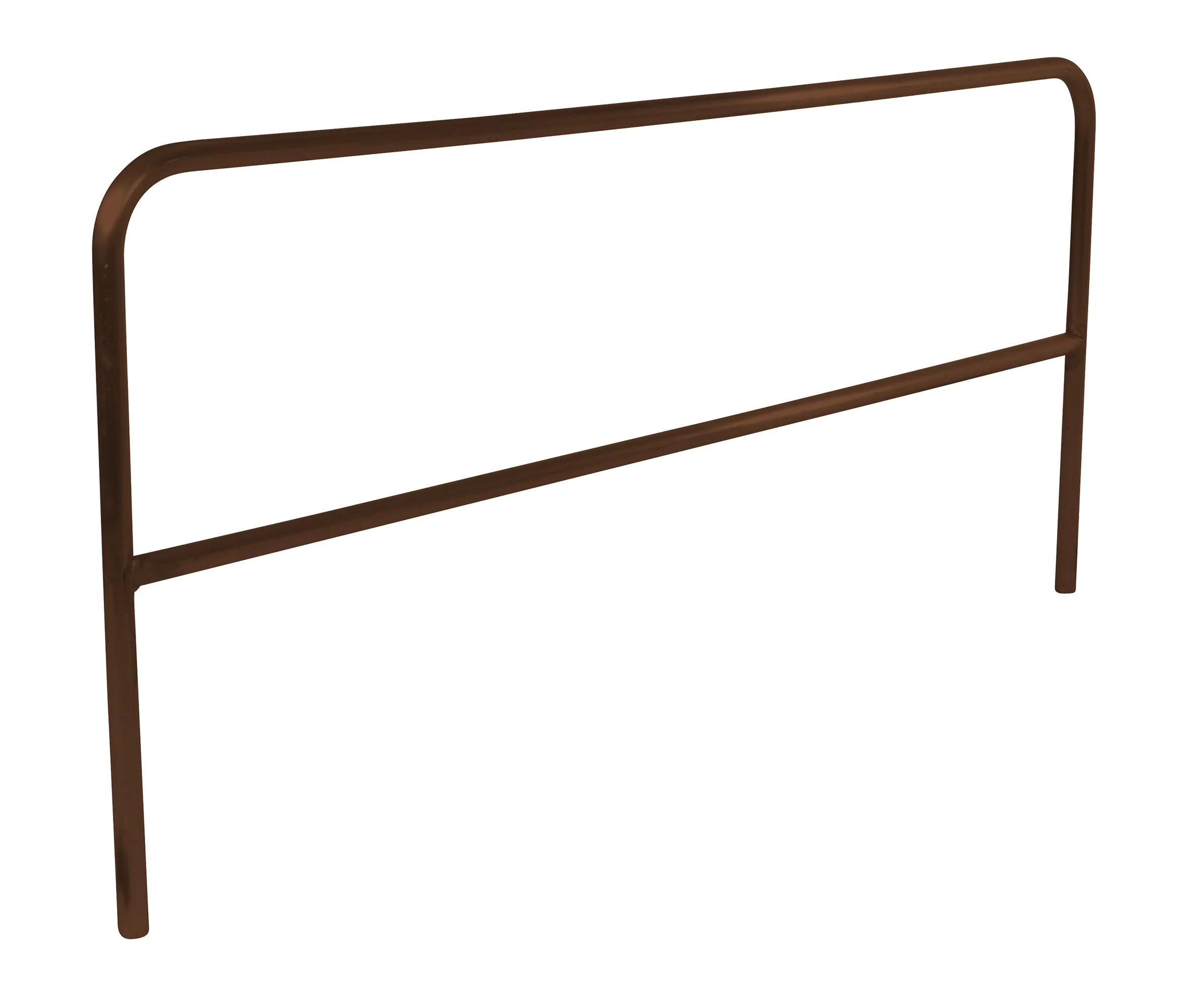

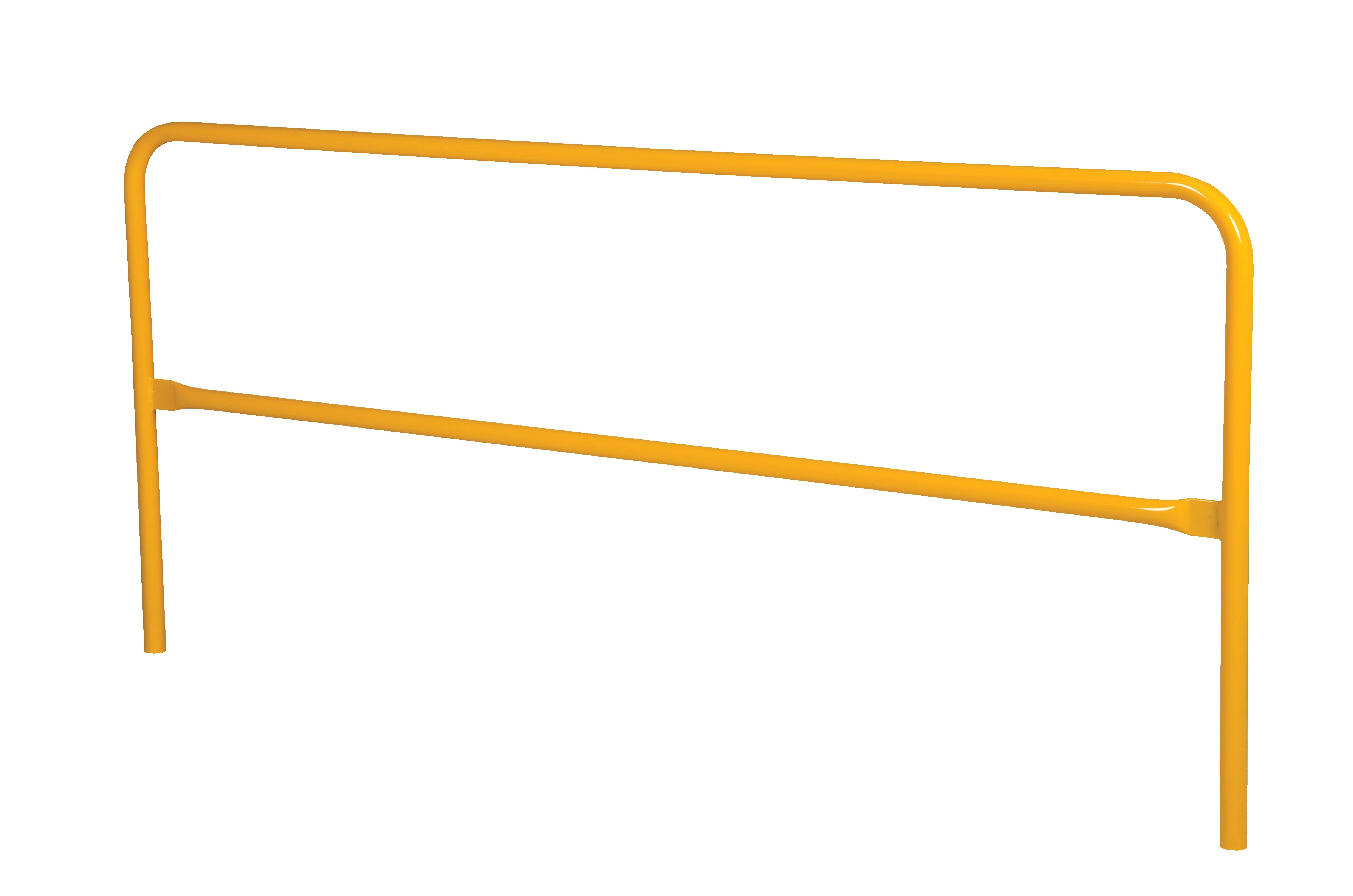

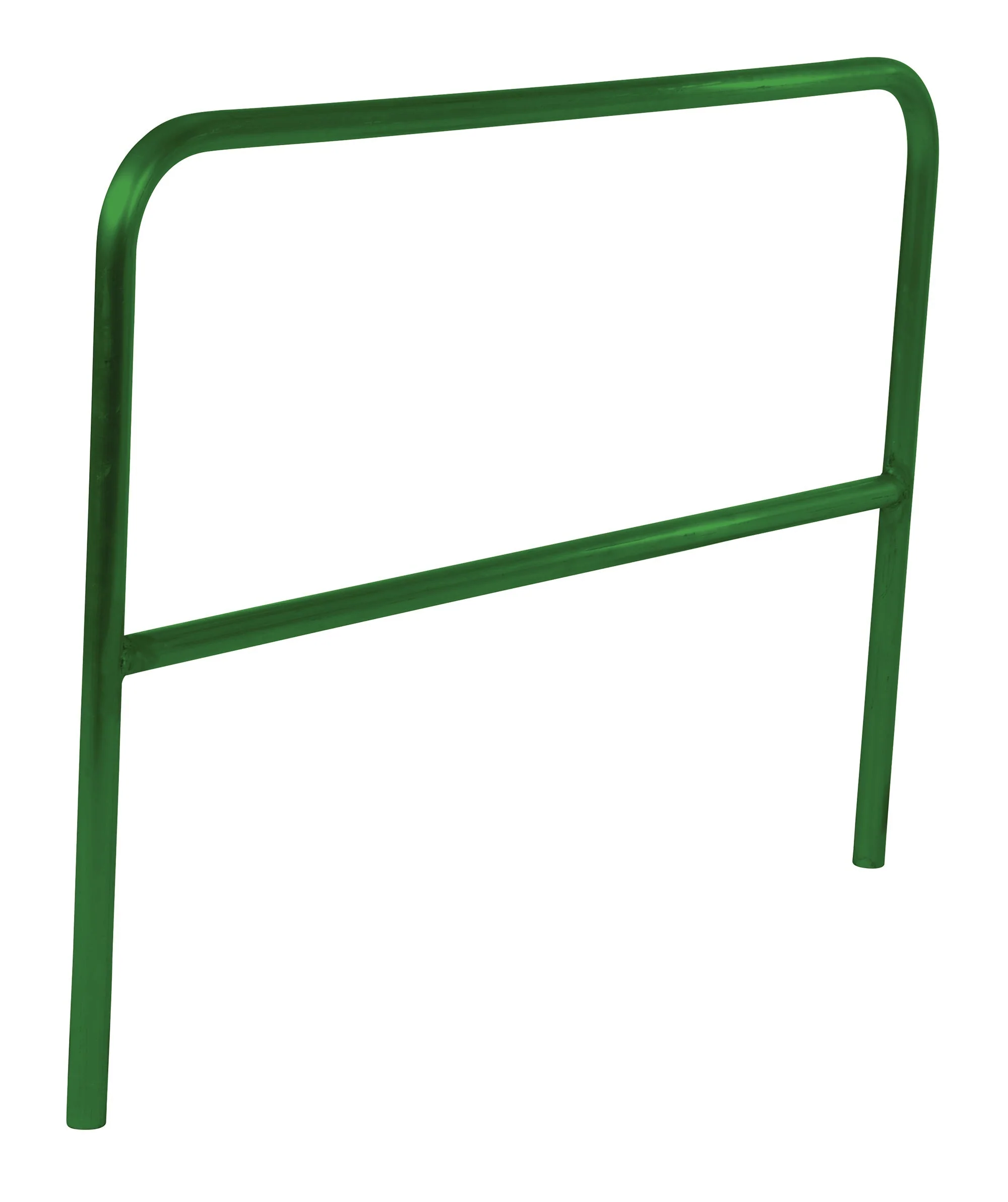

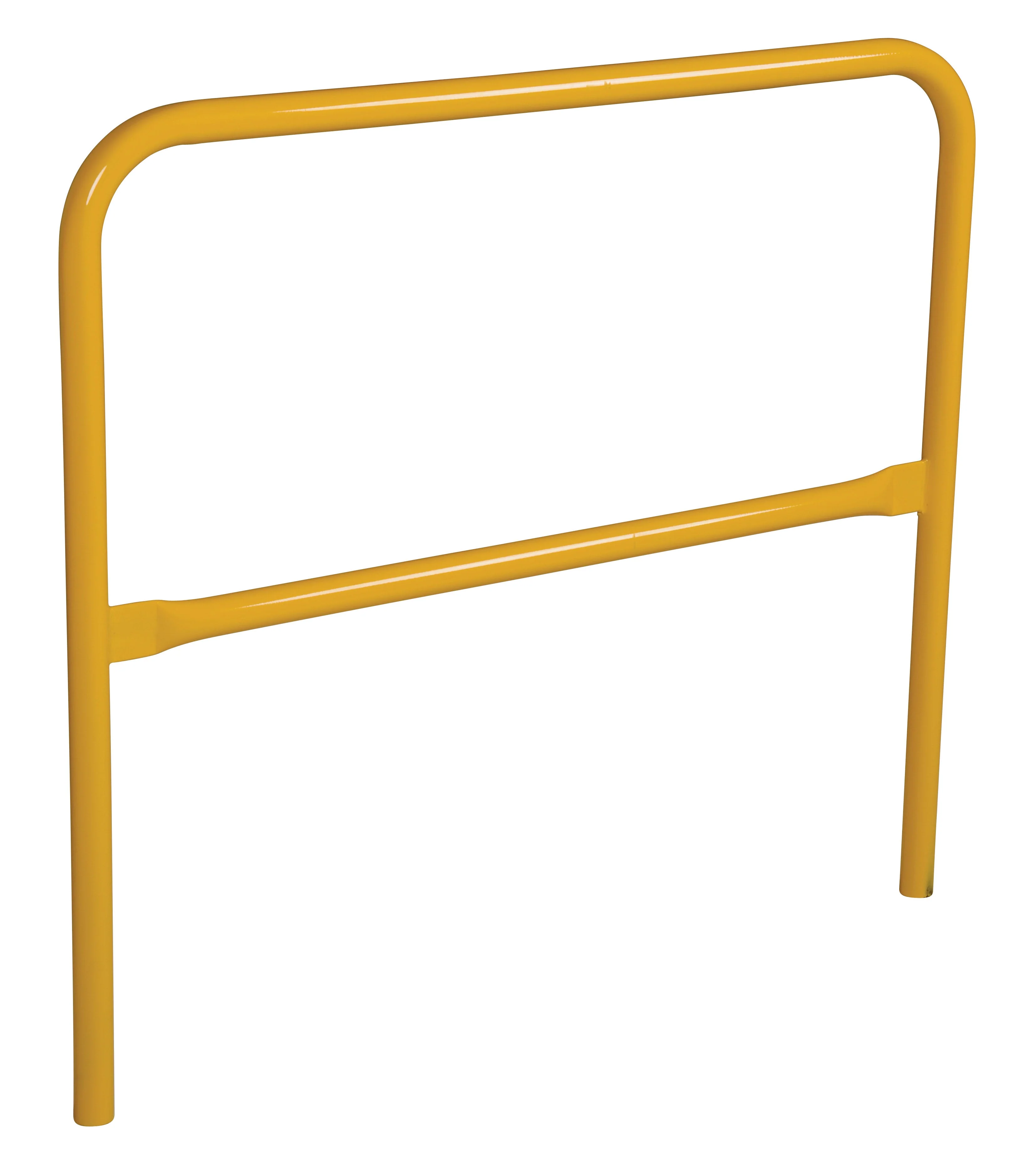

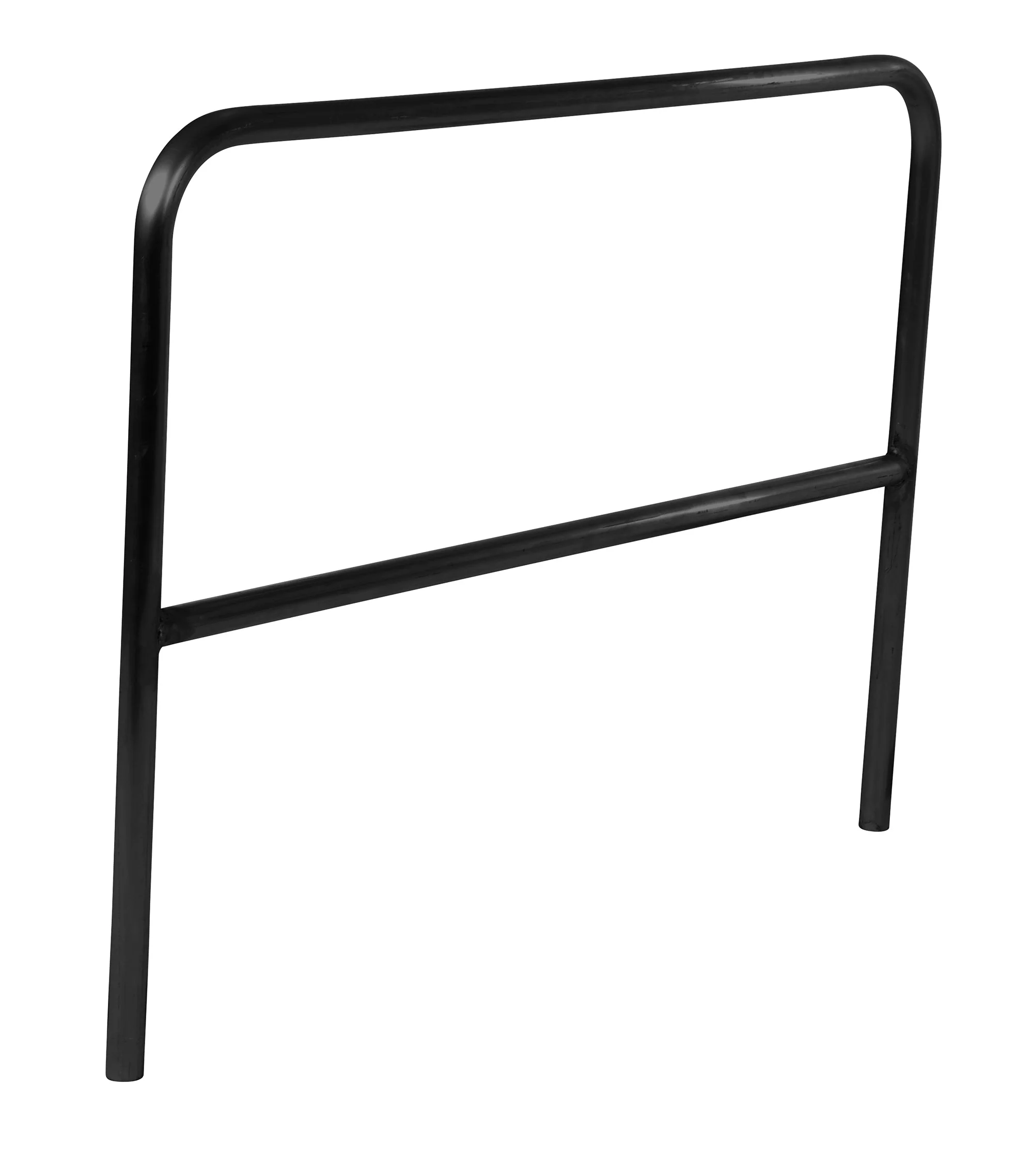

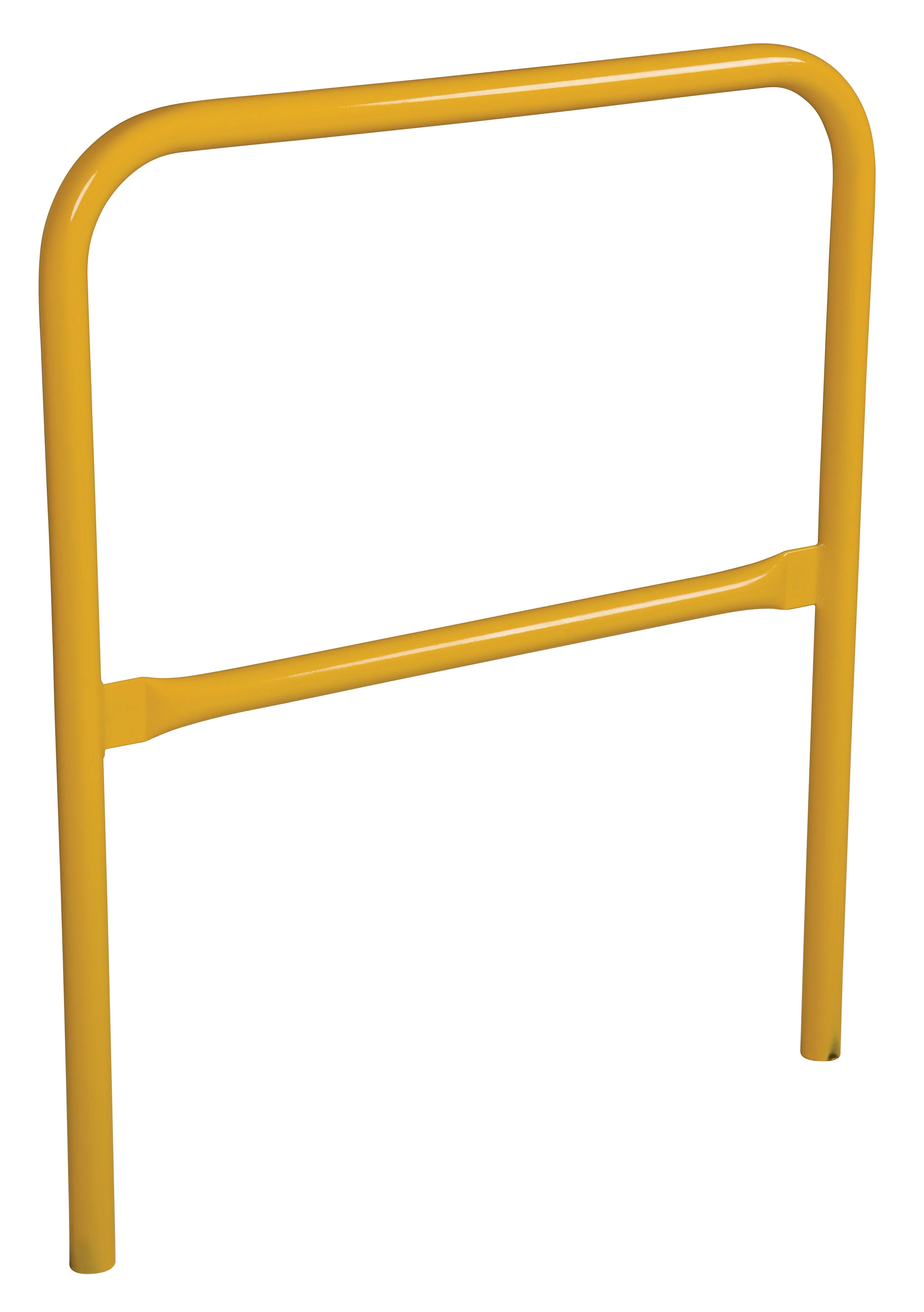

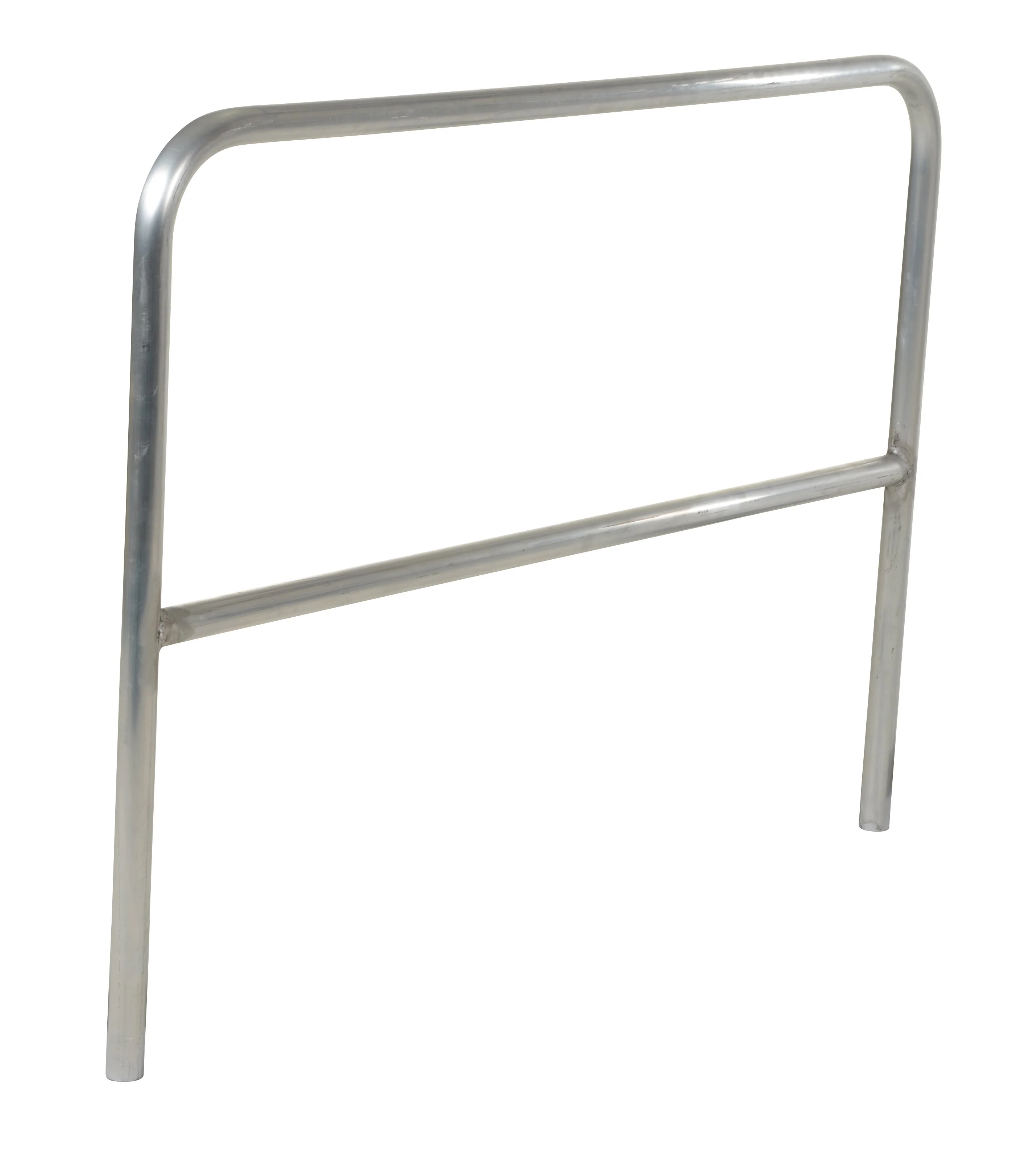

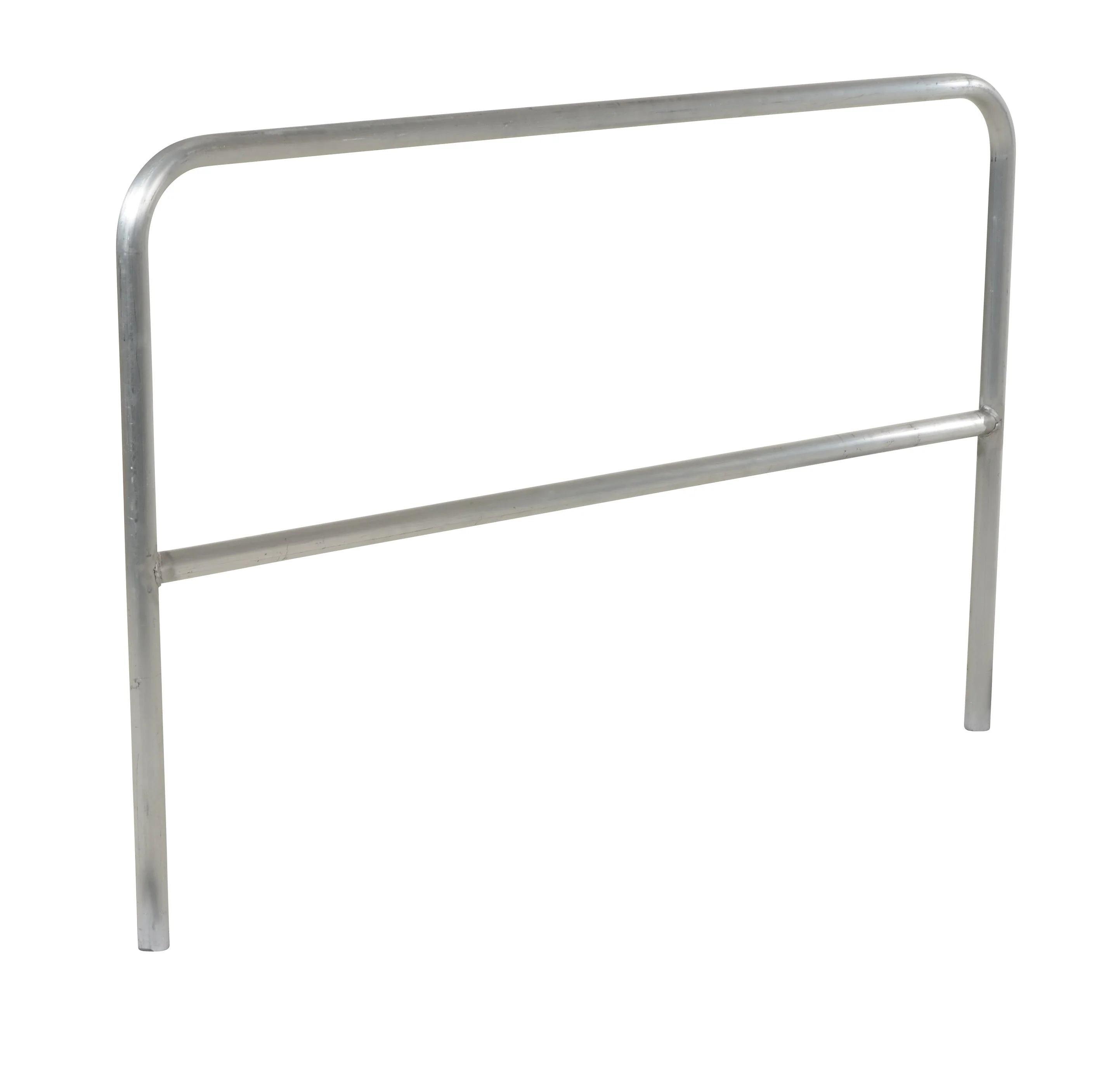

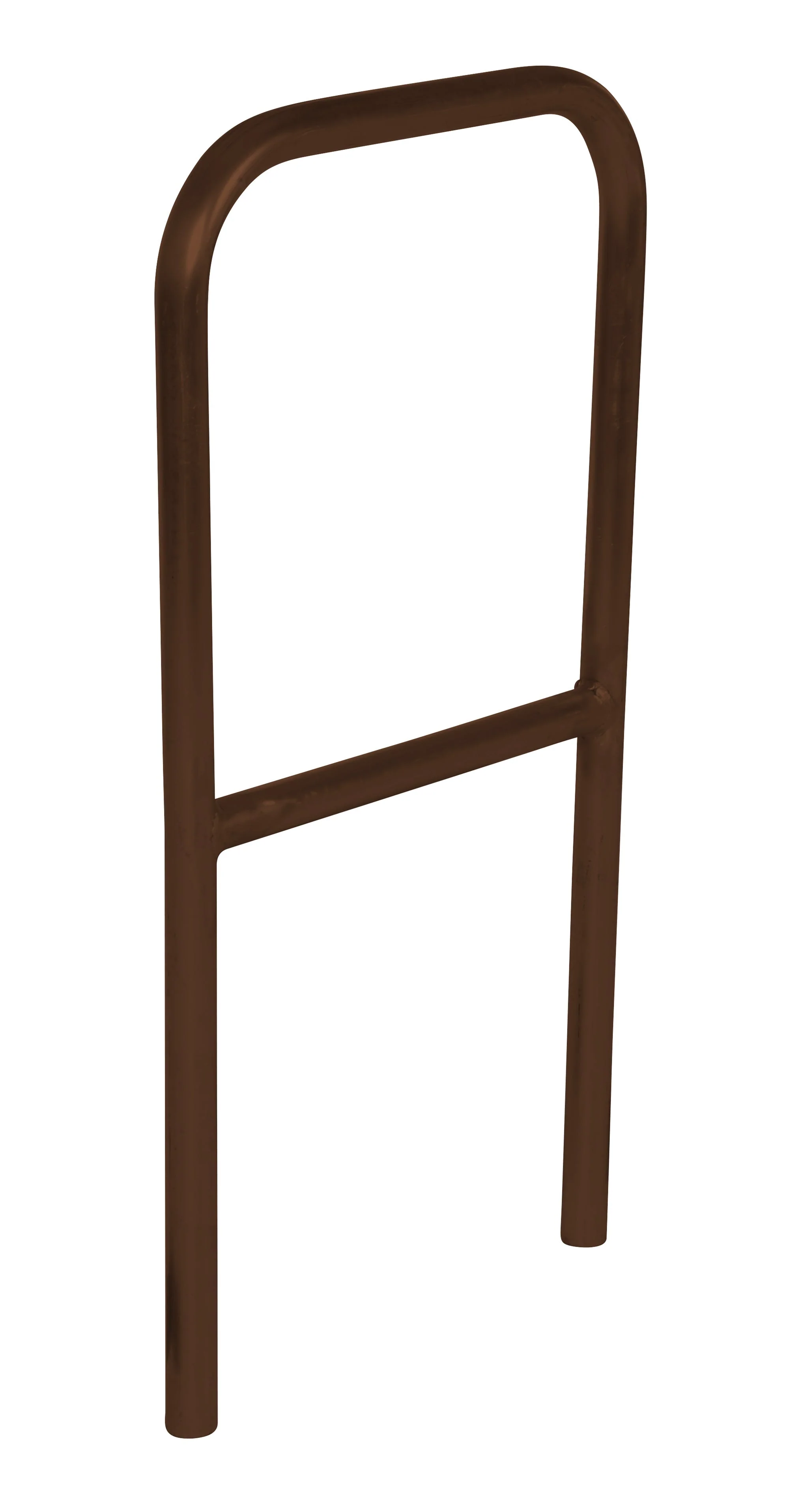

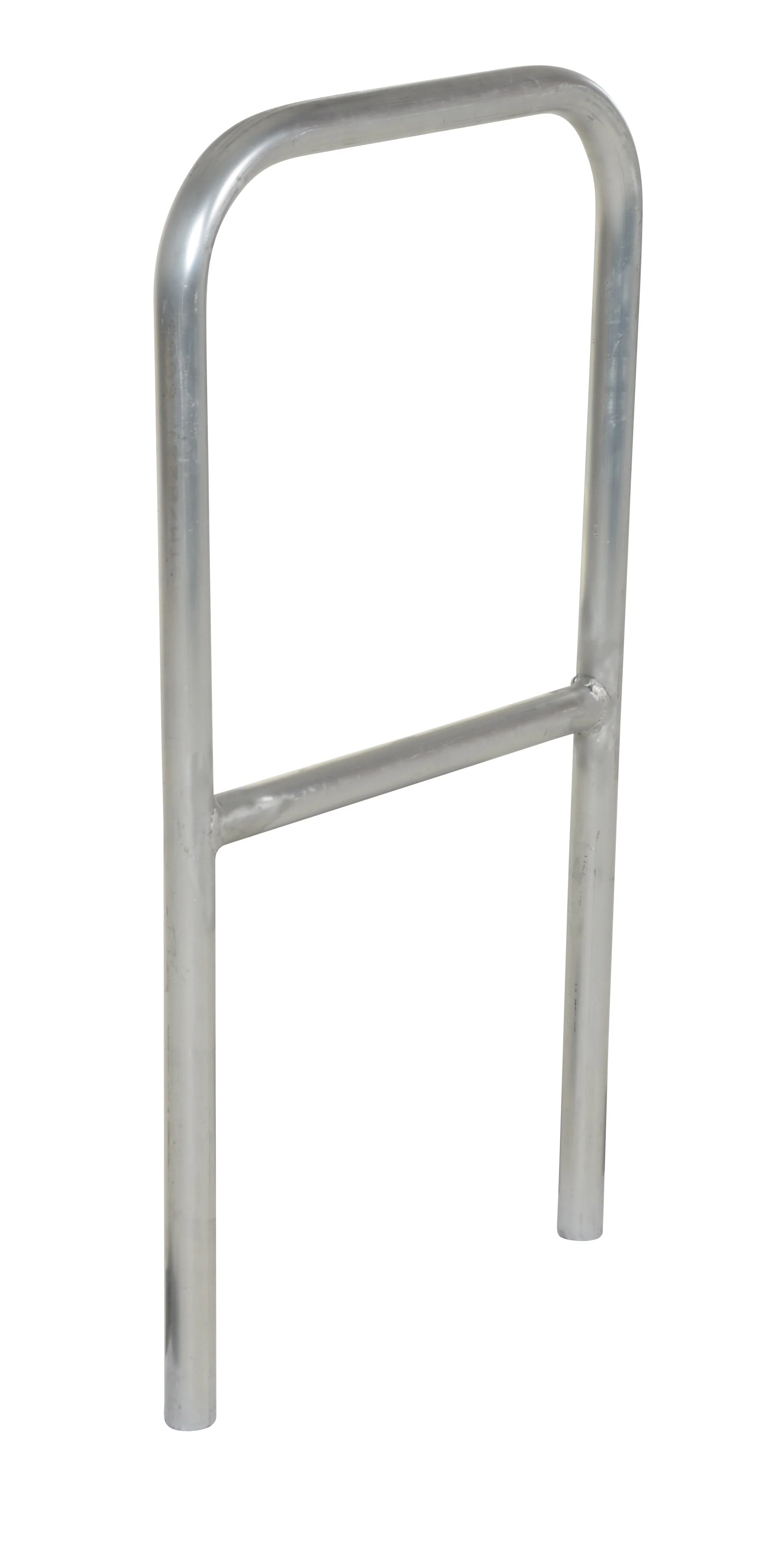

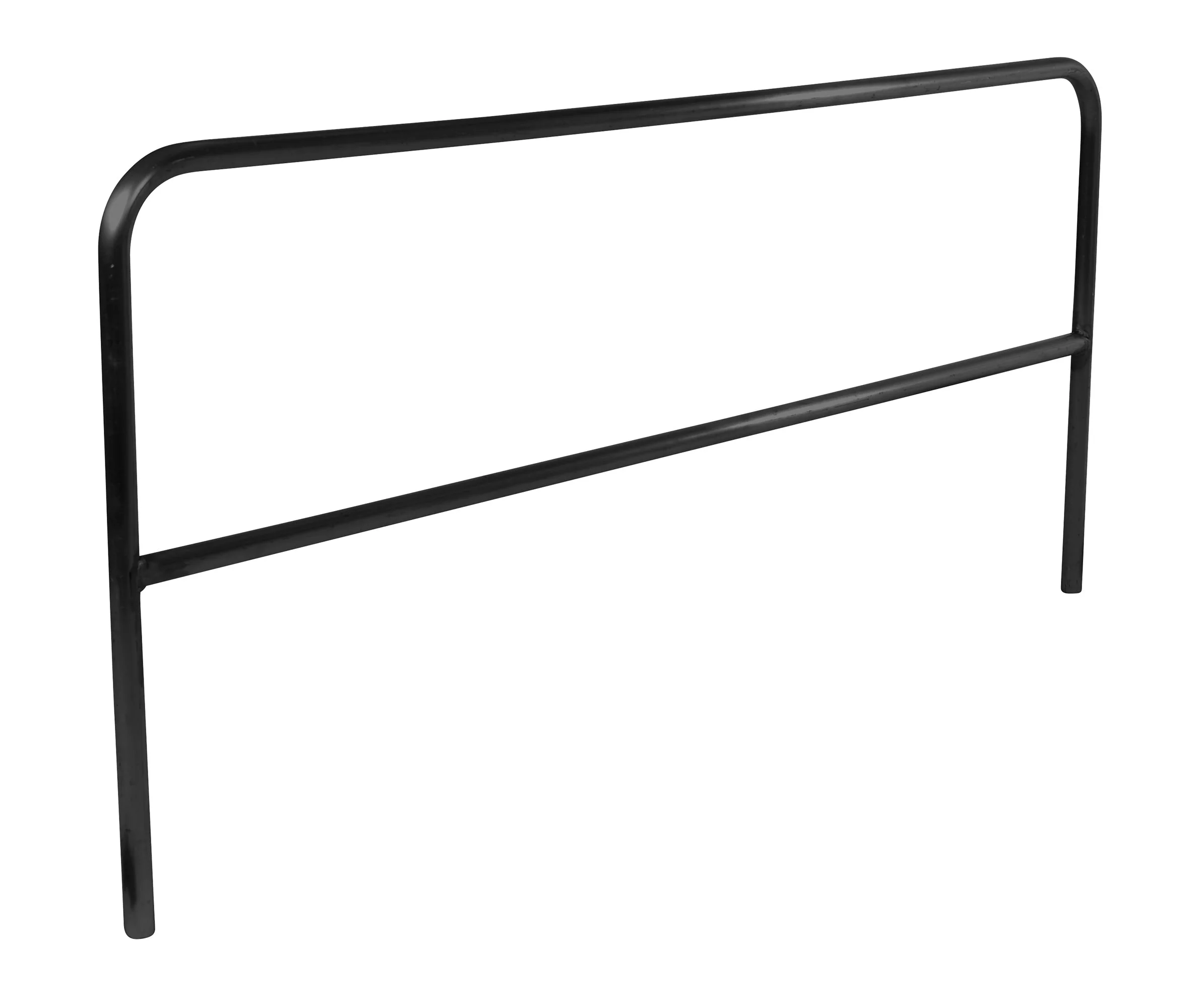

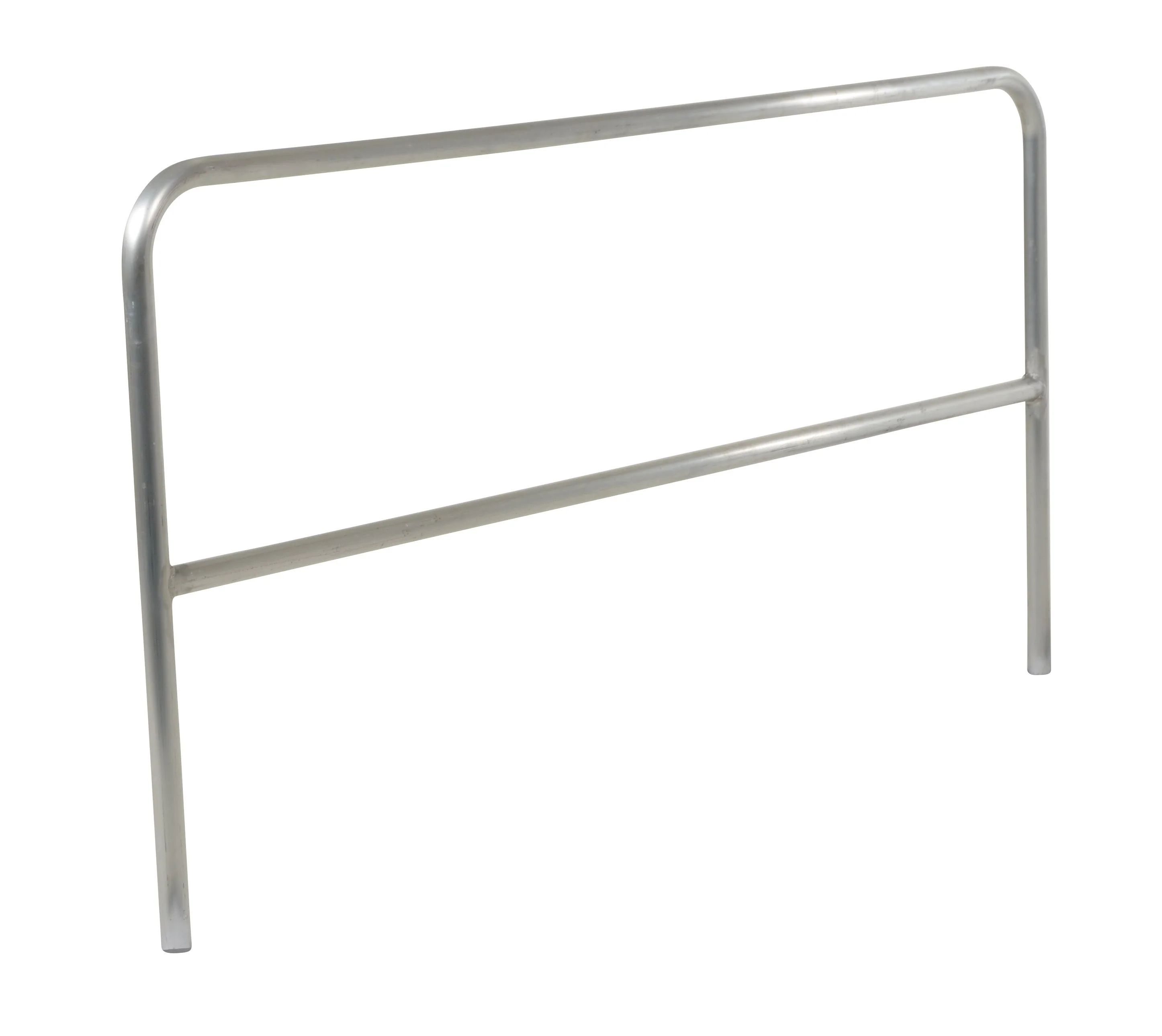

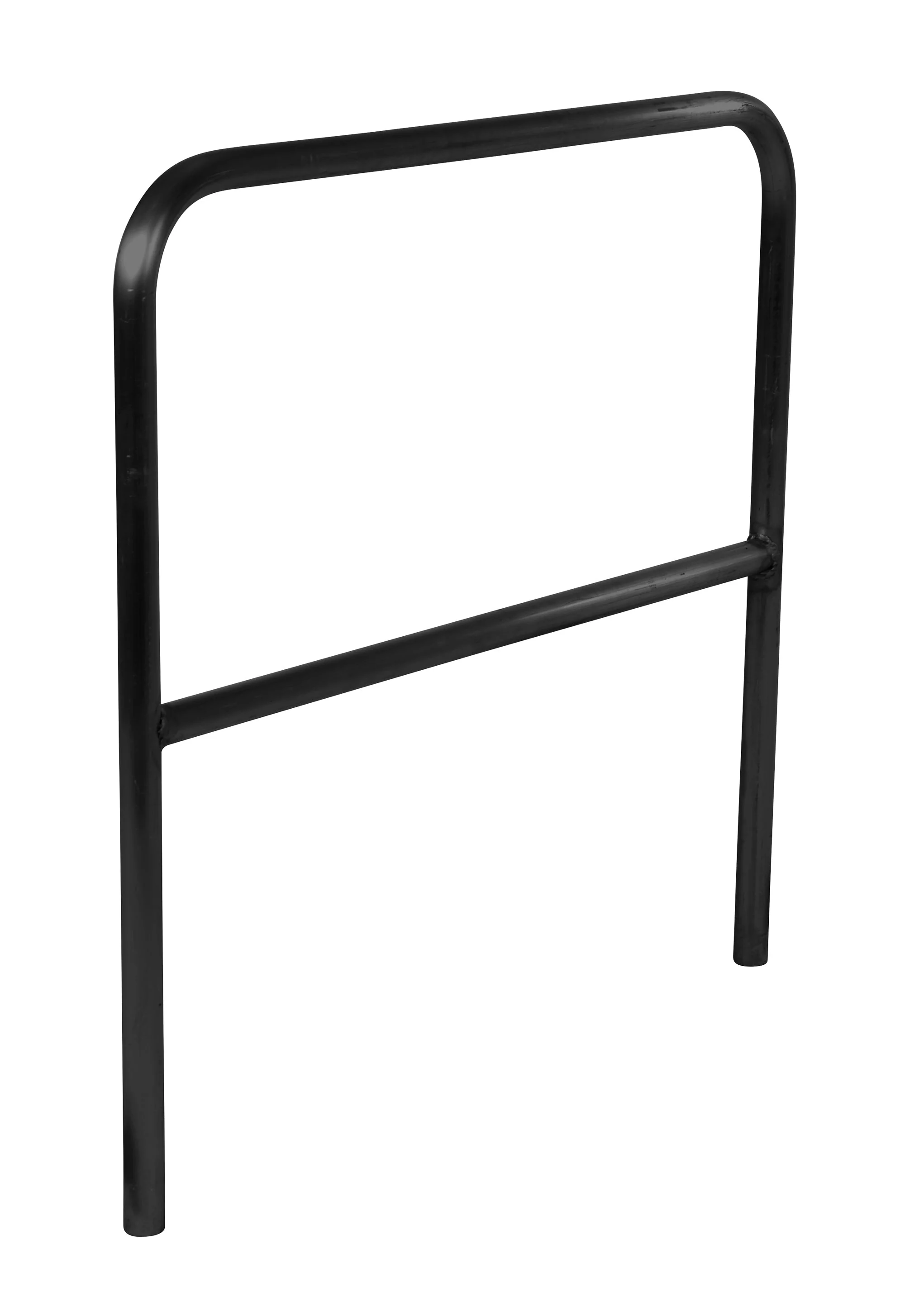

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 40 aluminum. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept 2" x 4" or 2" x 6" wood when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The aluminum models are available in a variety of colors. Add one of the abbreviations, found in the below table, to the end of the model number of your choice to designate the desired color. The ADKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.
|
Pipe Safety Railing |
|||||
| Model | Top Rail Height |
Midrail Height |
Width | Outside Diameter |
Wt. (lbs) |
| Aluminum Construction | |||||
| ADKR-2 | 42" | 21" | 24" | 1-5/8" | 9 |
| ADKR-3 | 42" | 21" | 36" | 1-5/8" | 10 |
| ADKR-4 | 42" | 21" | 48" | 1-5/8" | 60 |
| ADKR-5 | 42" | 21" | 60" | 1-5/8" | 13 |
| ADKR-6 | 42" | 21" | 72" | 1-5/8" | 15 |
| ADKR-7 | 42" | 21" | 84" | 1-5/8" | 16 |
| ADKR-8 | 42" | 21" | 96" | 1-5/8" | 18 |
| ADKR-10 | 42" | 21" | 120" | 1-5/8" | 22 |

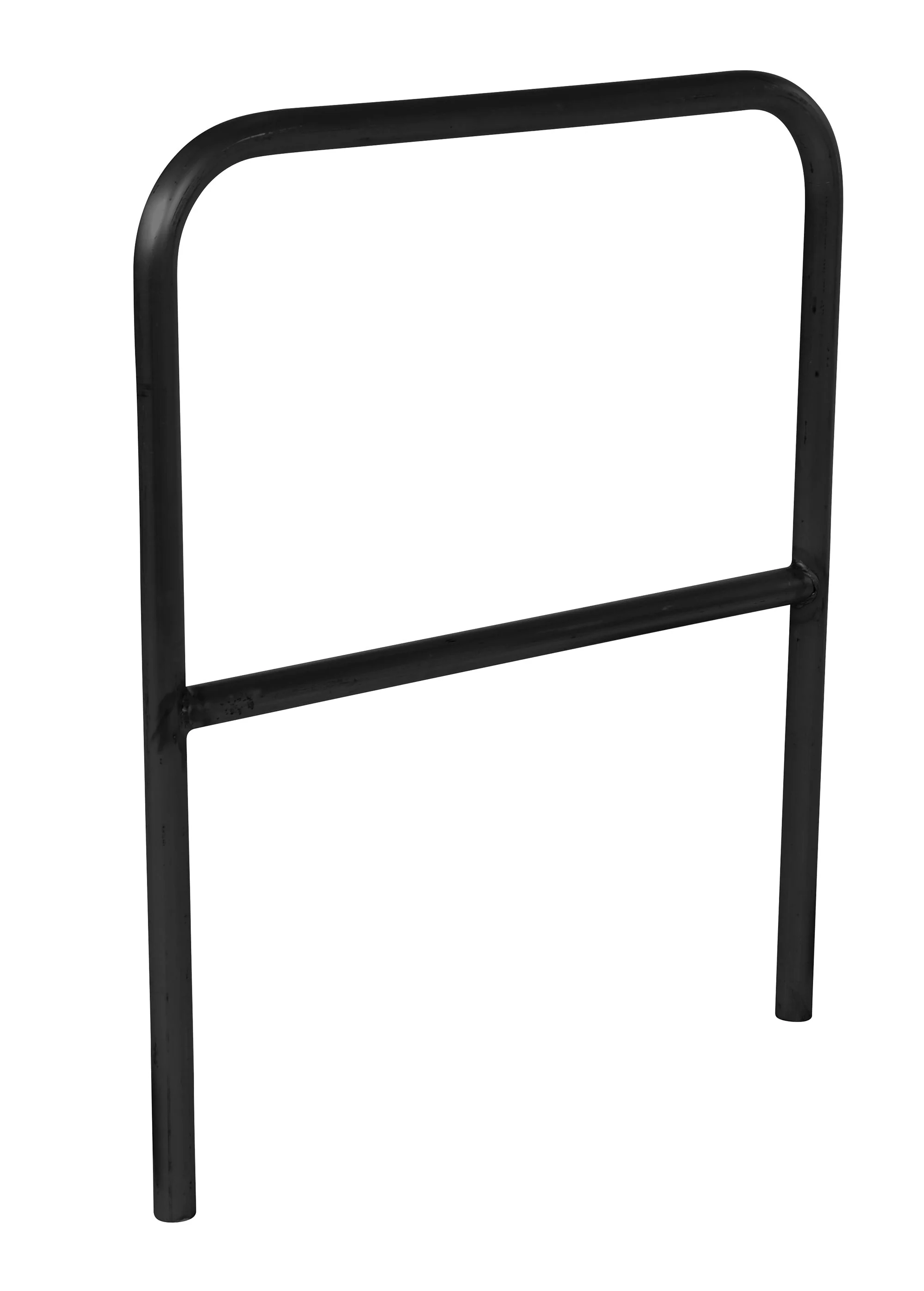

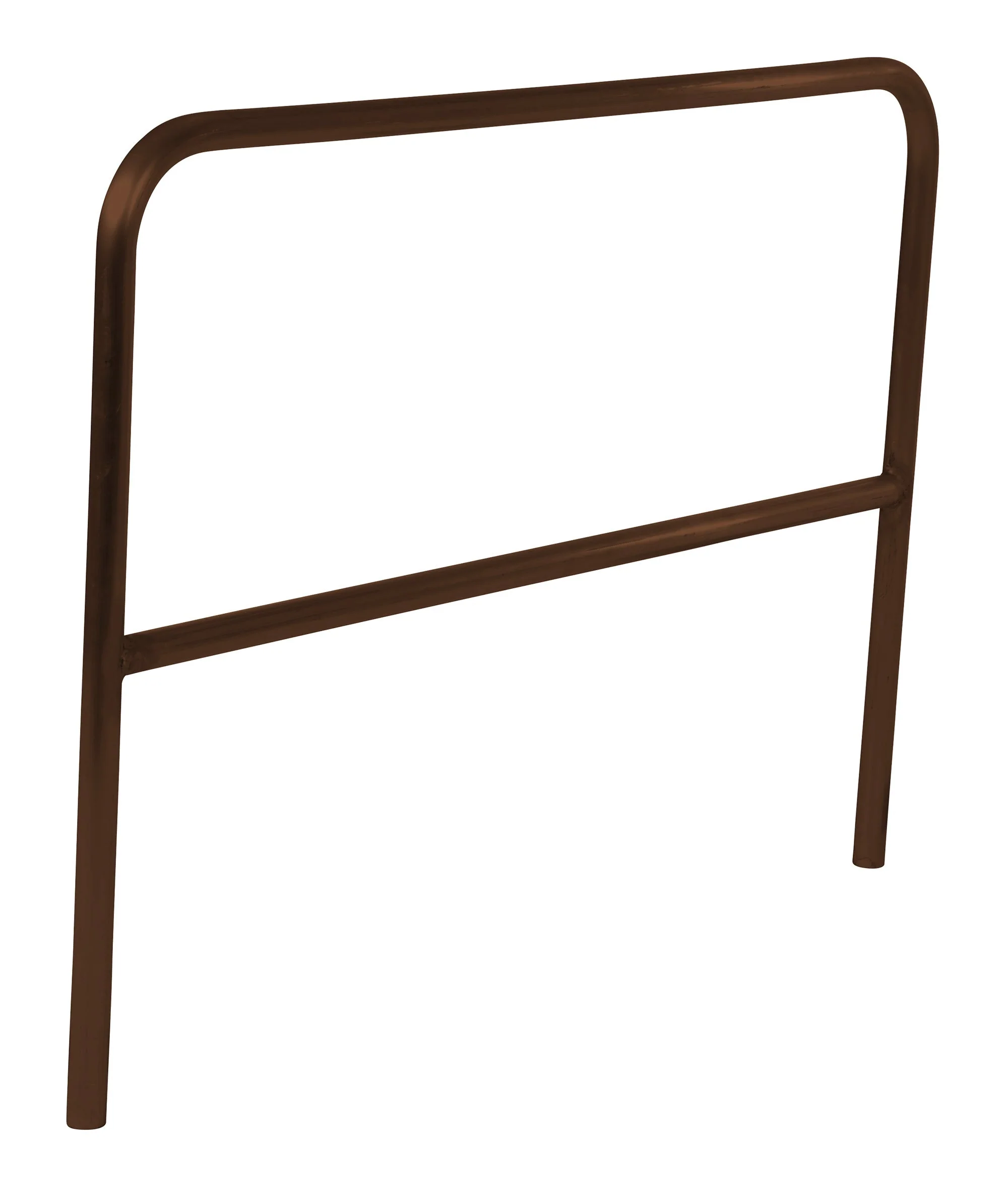

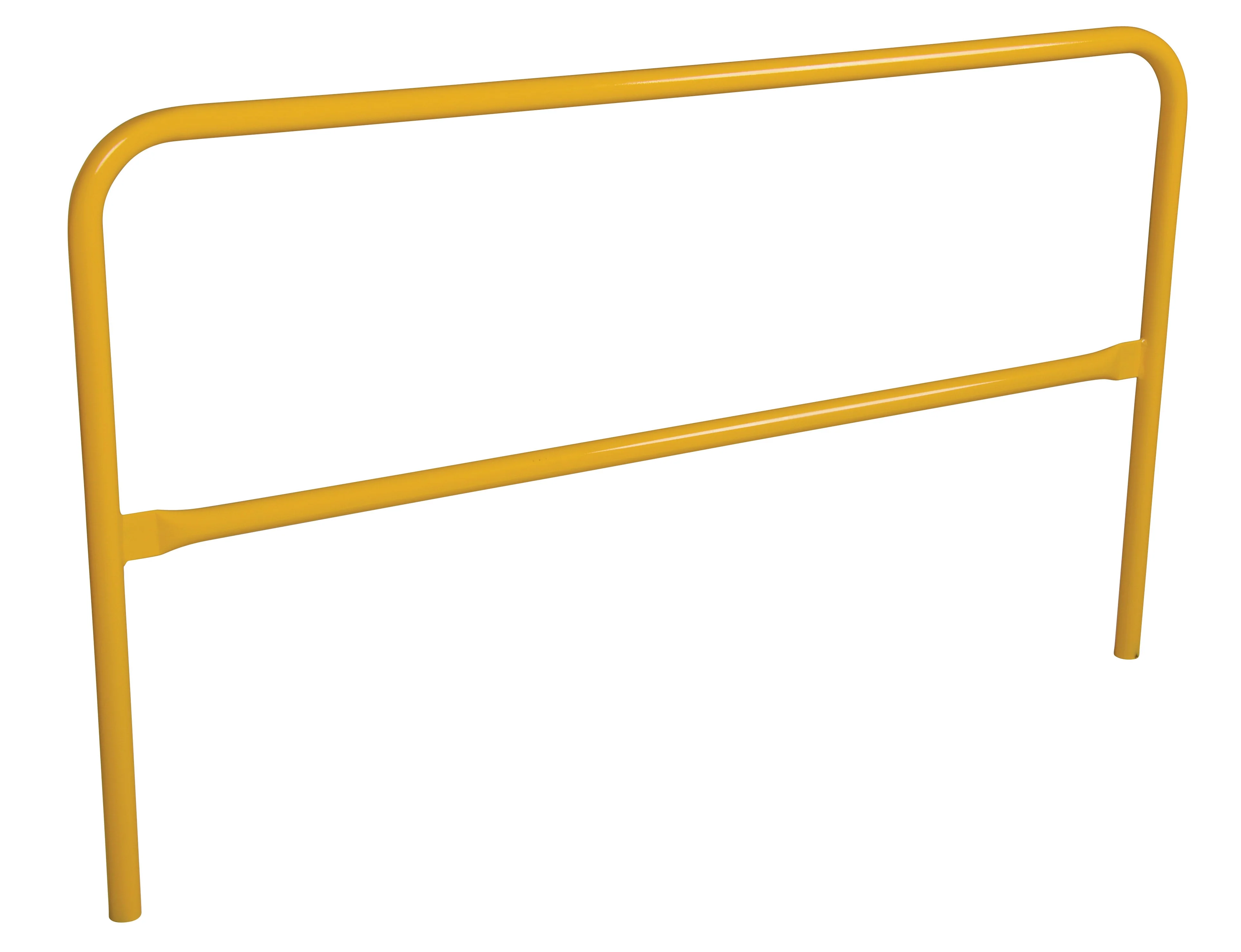

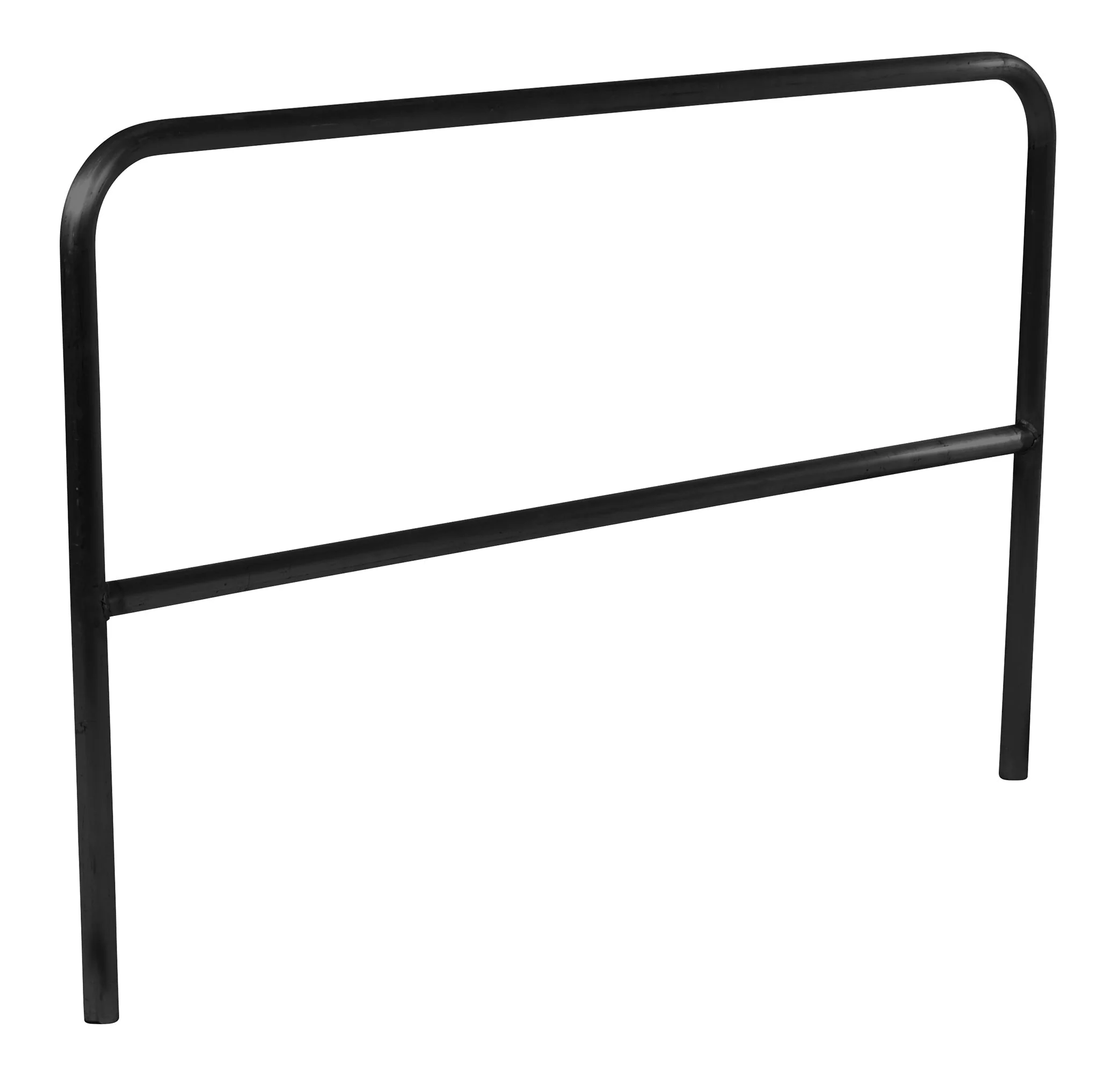

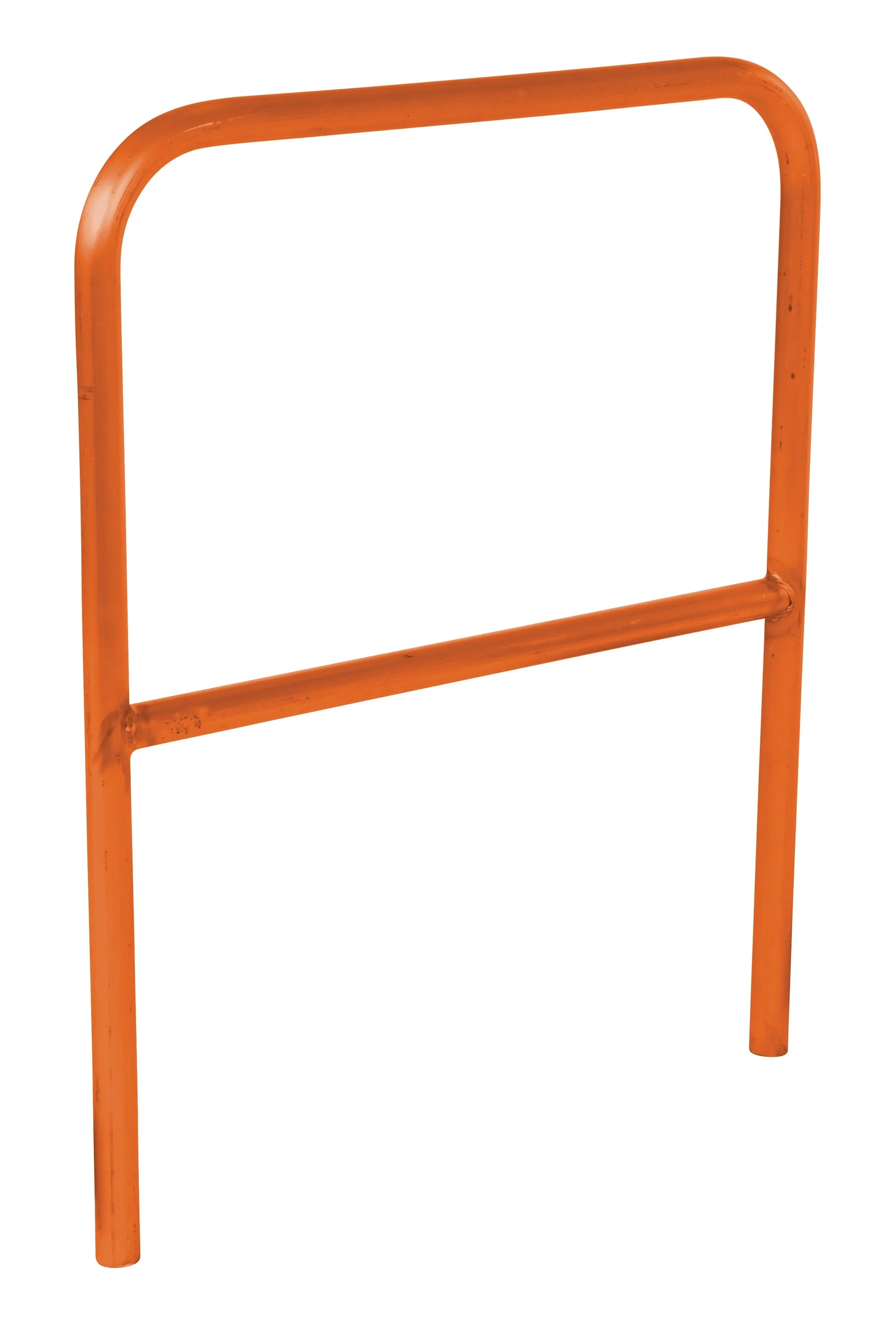

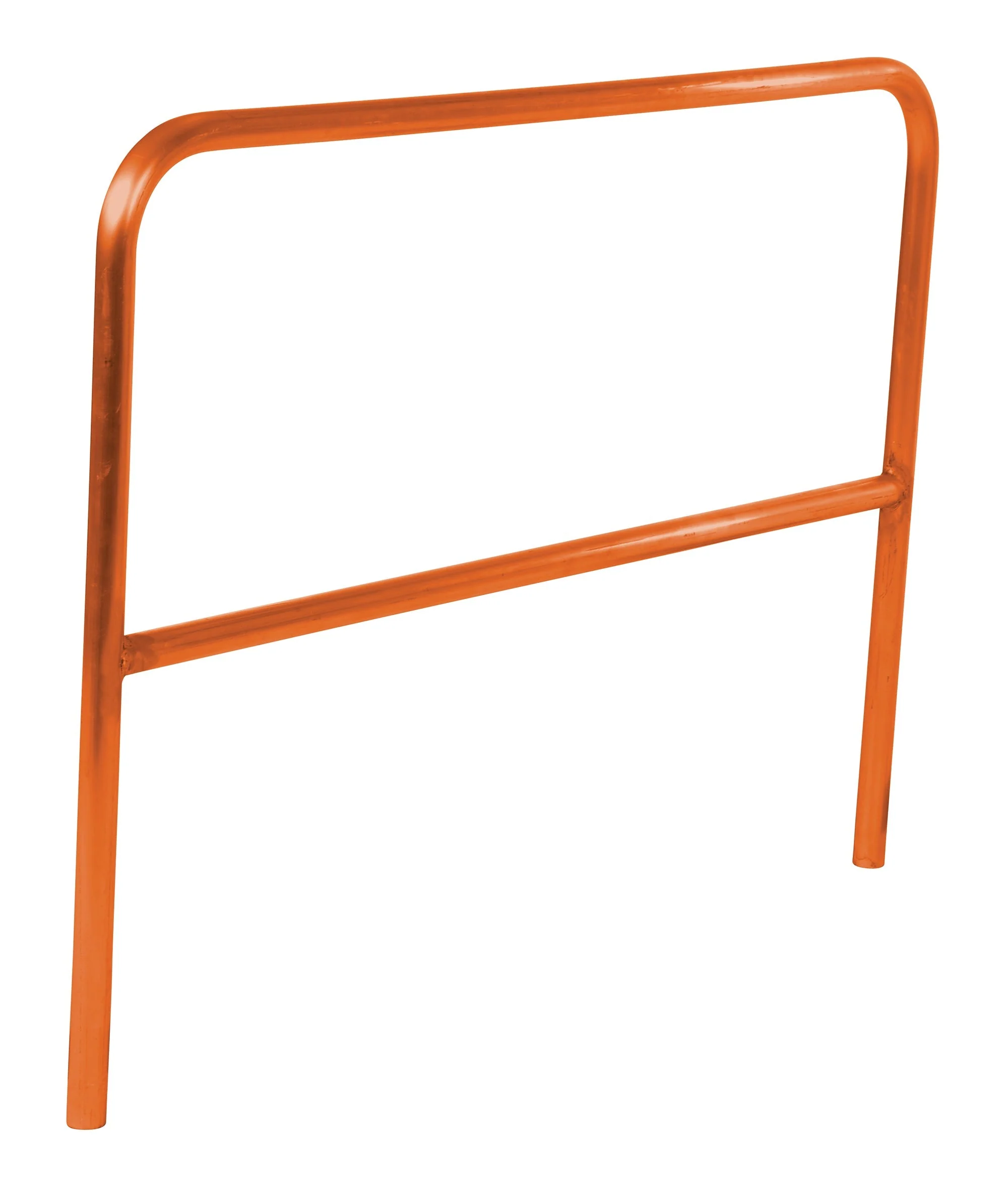

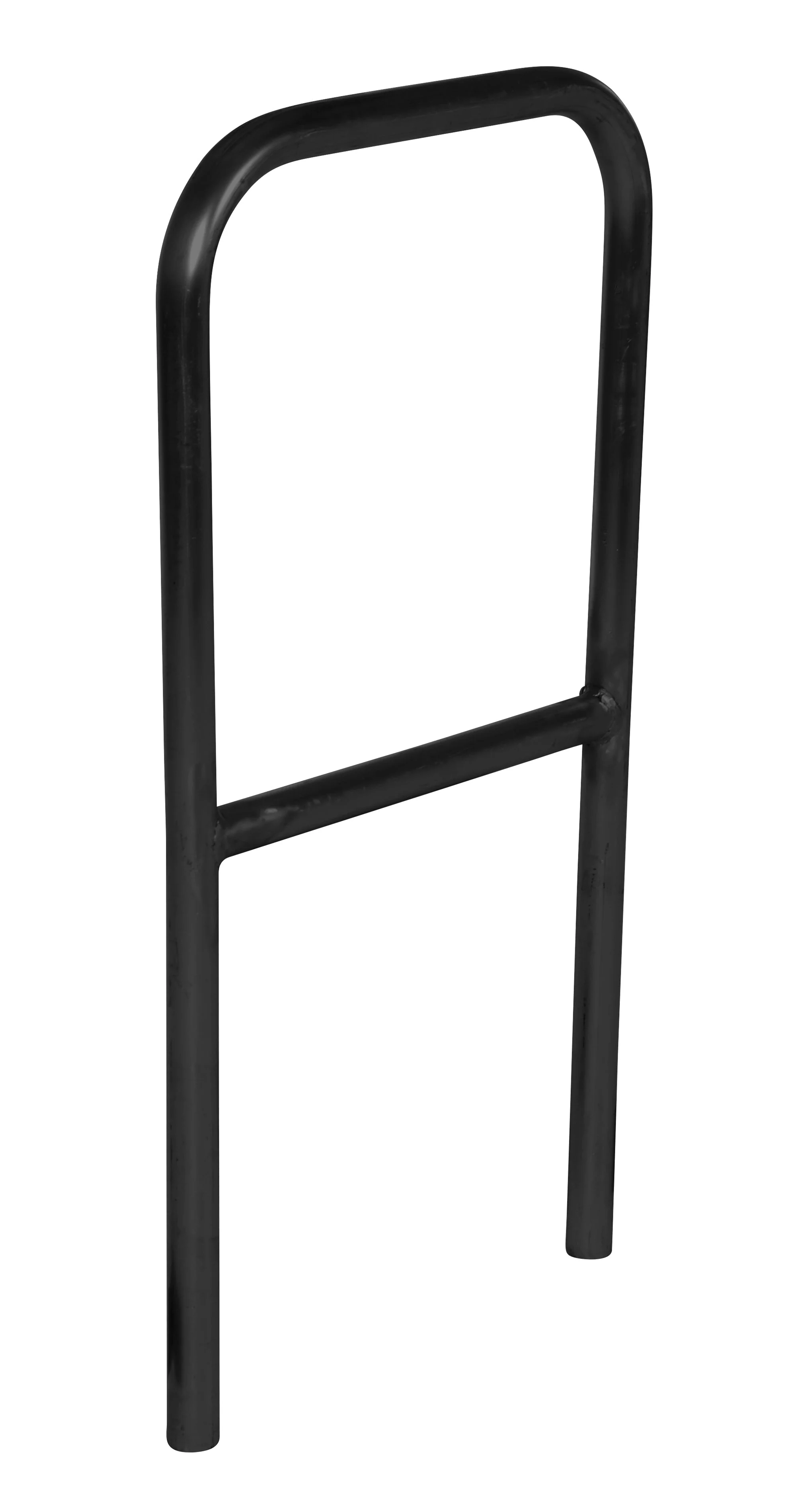

| Available ADKR Colors | |
| Suffix | Color |

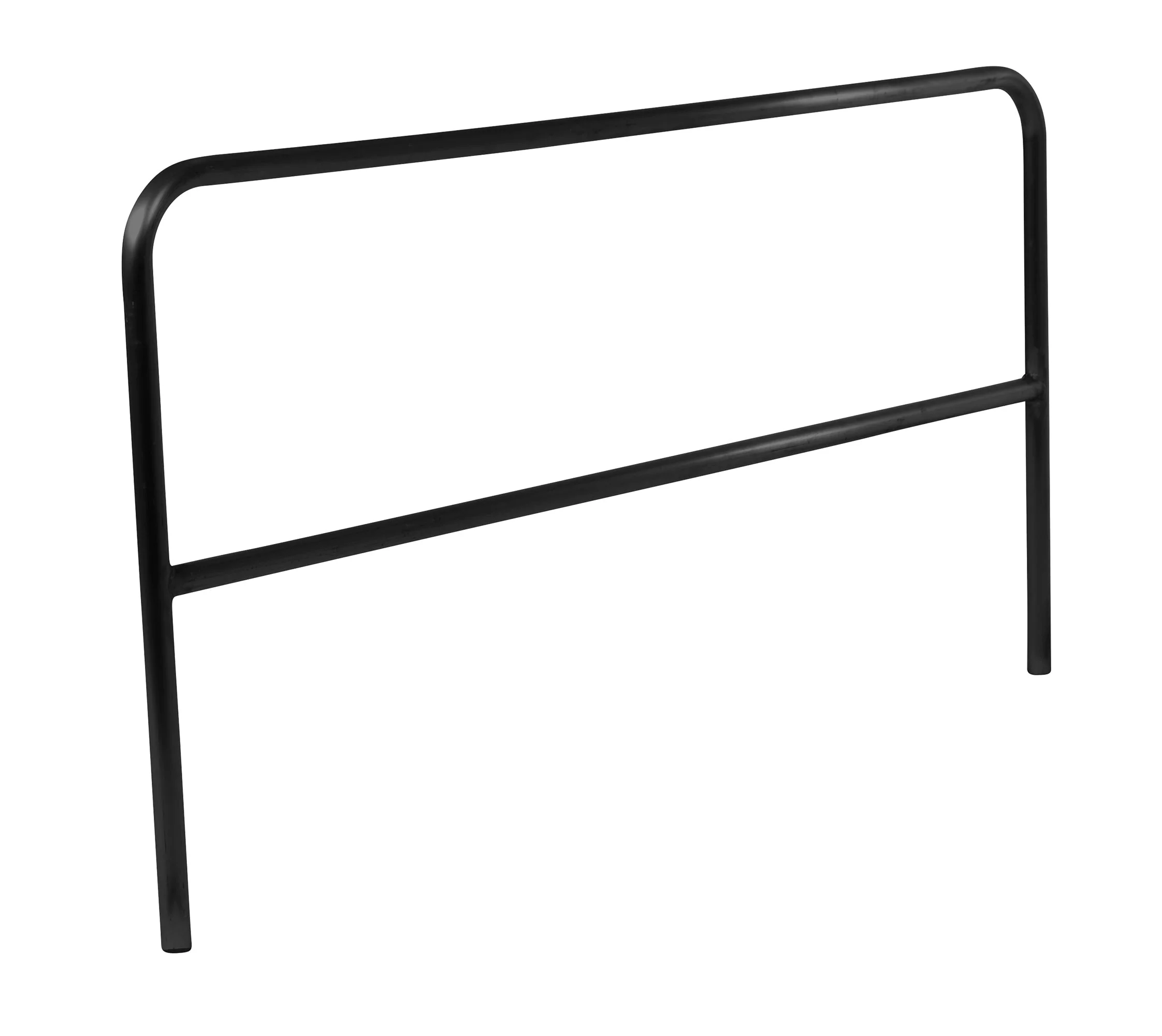

| BK | Black |

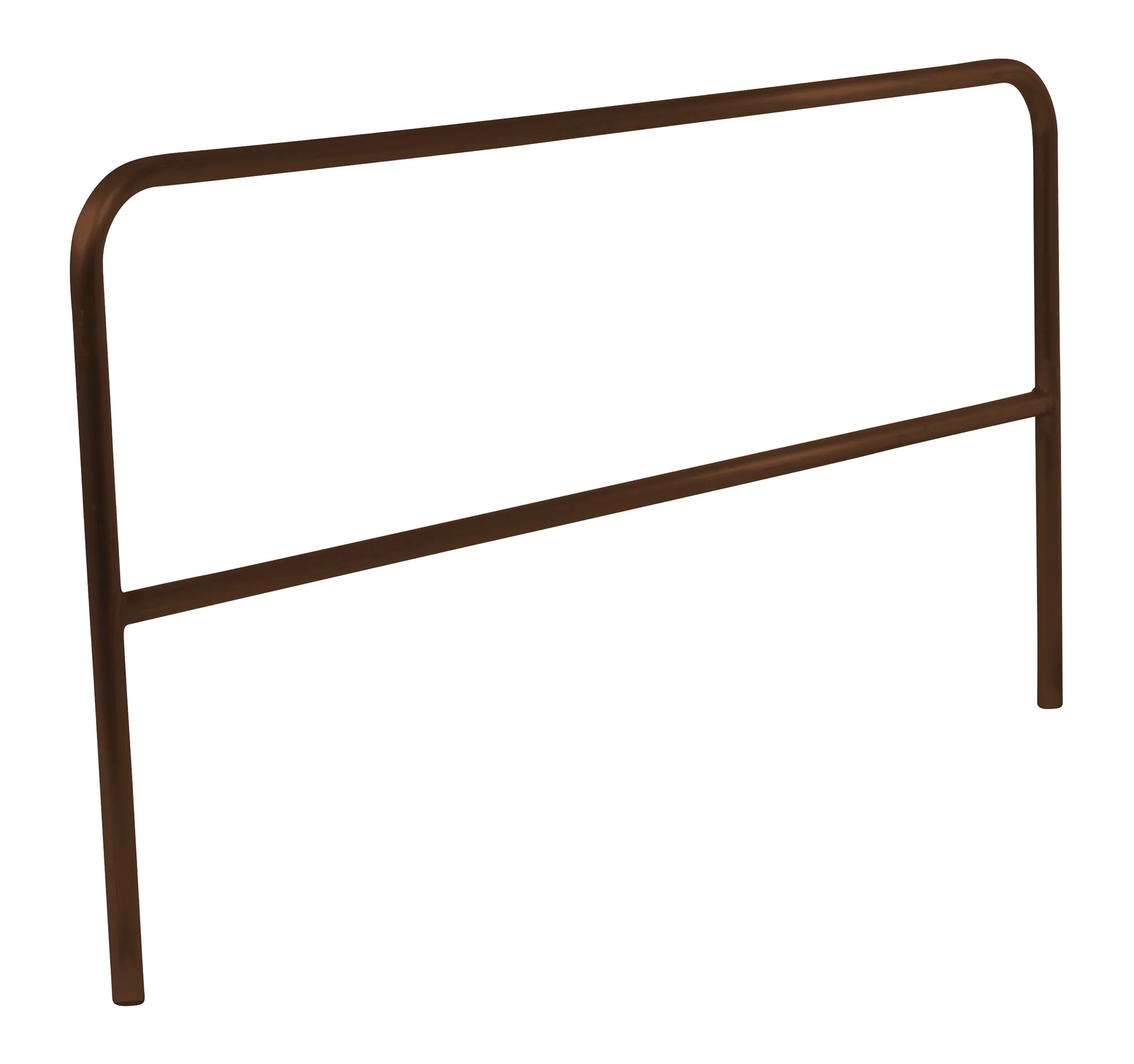

| BN | Brown |

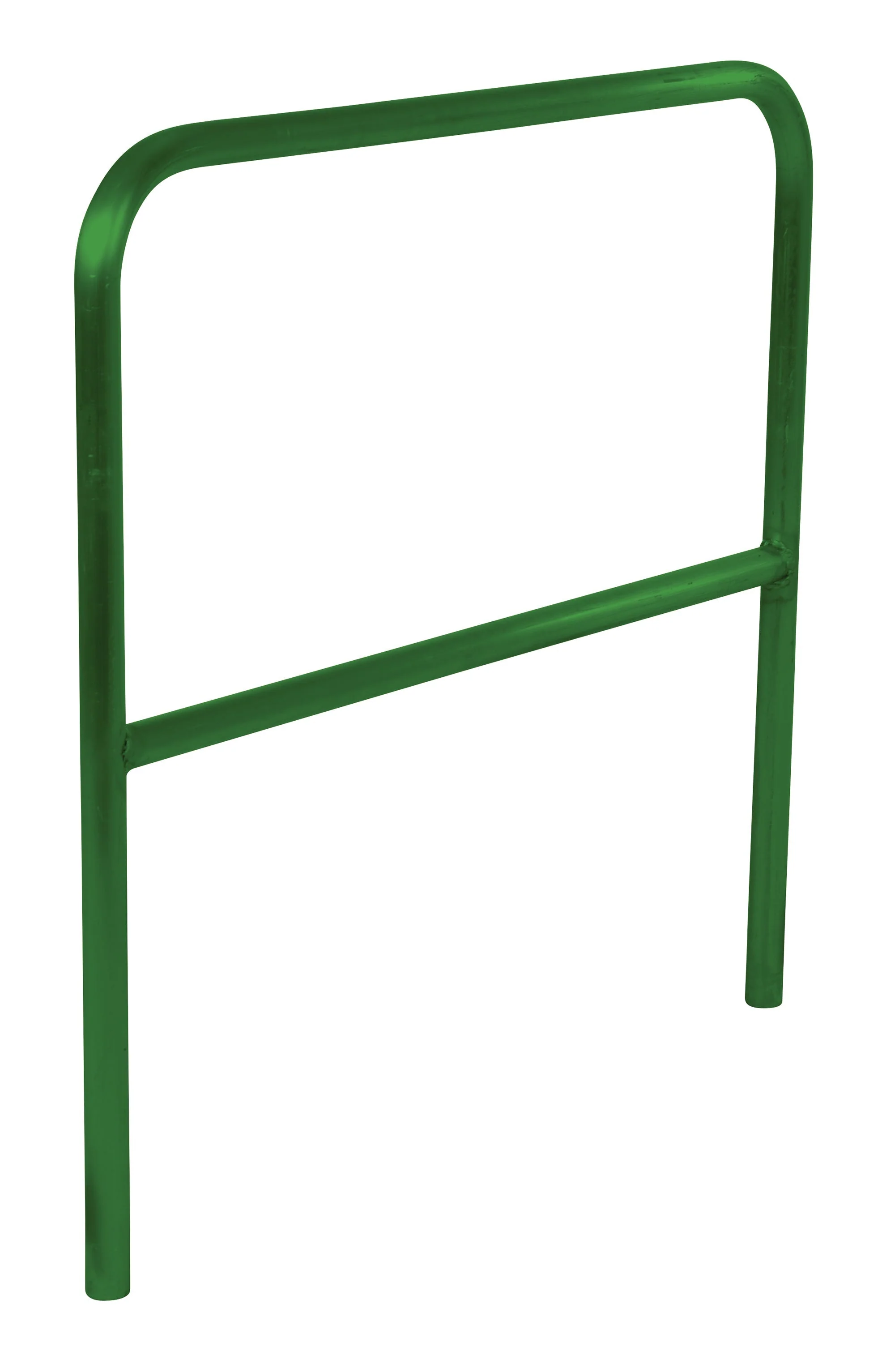

| GN | Green |

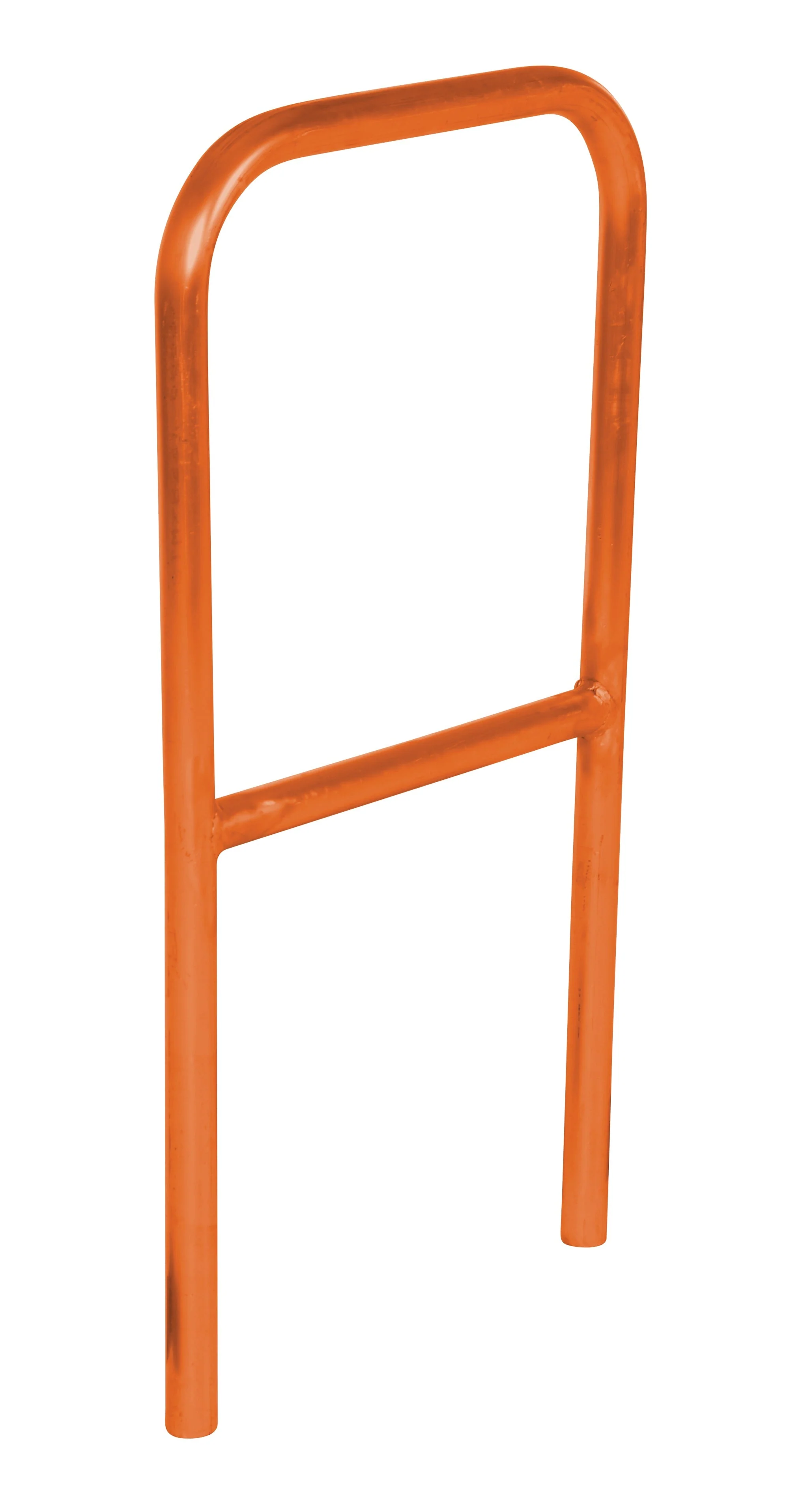

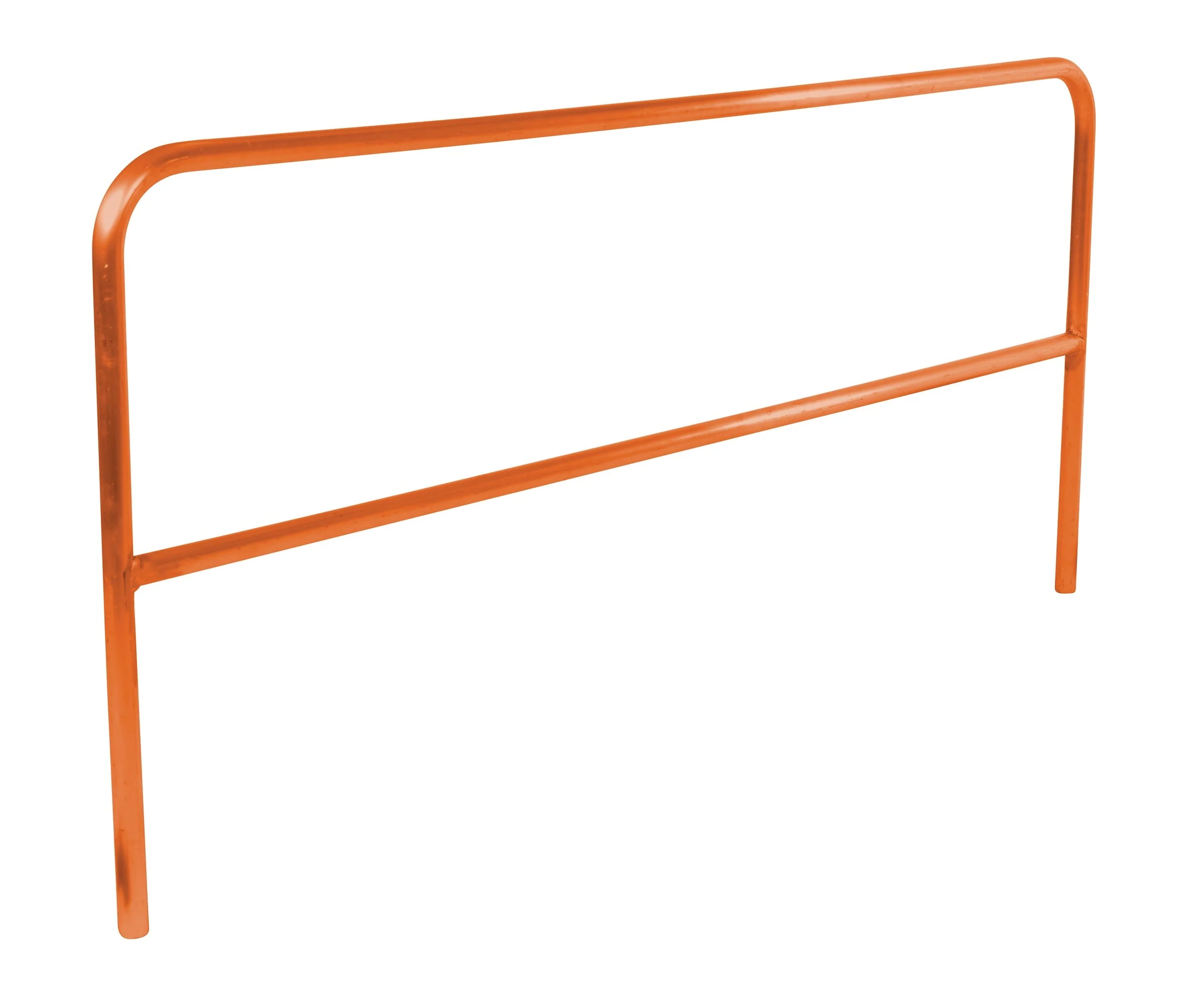

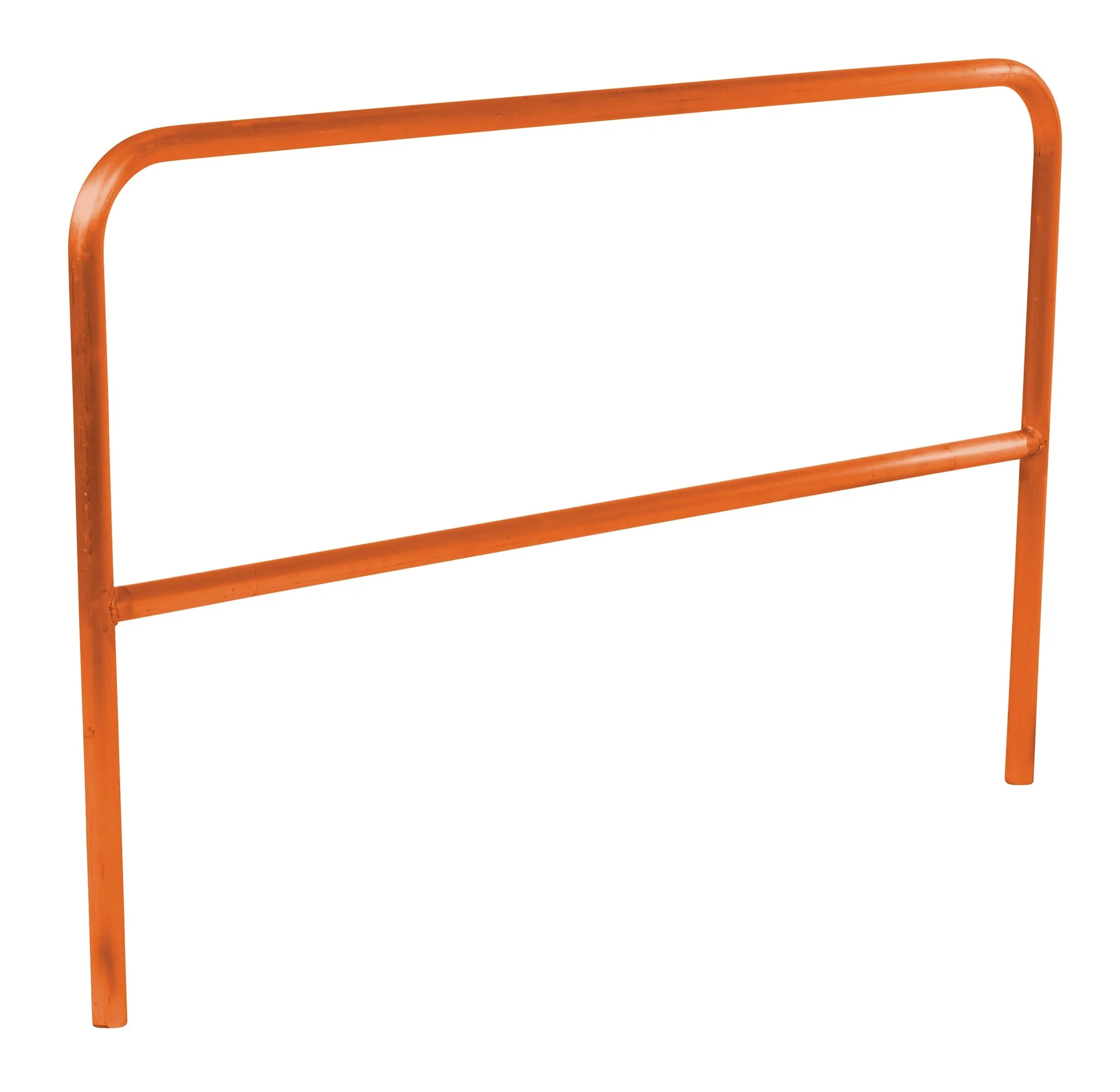

| OR | Orange |
| RD | Red |
Original: $136.37
-65%$136.37
$47.73
