Bison Manual Chain Hoist
The Bison Hand Chain Hoist is a practical solution to lifting and lowering your heavy loads with minimal effort. These hand chain hoists feature a Grade 80 heat-treated steel load chain, automatic double pawl braking system, and forged steel hooks with notched safety latches.
Bison manual chain hoist pulleys comes with a powder-coated finish and an optional galvanized chain to give your chain hoist corrosion protection (please call for galvanized chains). These hoists from Bison are strong, robust, durable, and ready for the toughest environment you might want to put them in!
|
Distribution channel |
Product Code |
Description with capacity |
Package weight/ Item weight (Lb)
|
Shipping dimensions (In) |
Standard Lift (ft) |
Load Chain x Chain Fall lines (mm) |
Net Weights (Ib) |
|
Black Oxide Chain |
CH05-10
|

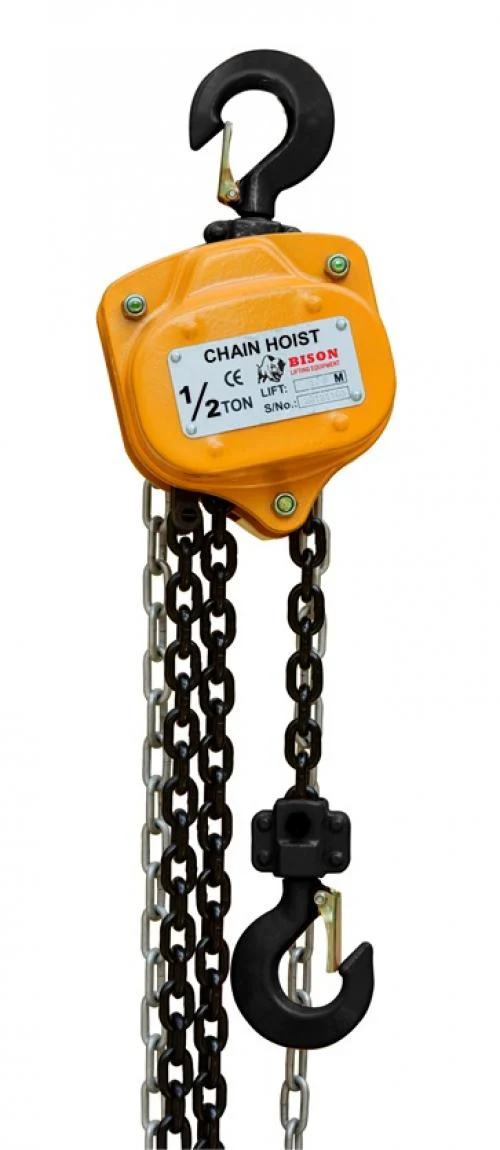

1/2 Ton Manual Chain Hoist 10' Lift
|
17 |
8" x 6-1/2" x 9" |
10 |
5 x1 |
17 |
|
Black Oxide Chain |
CH10-10
|

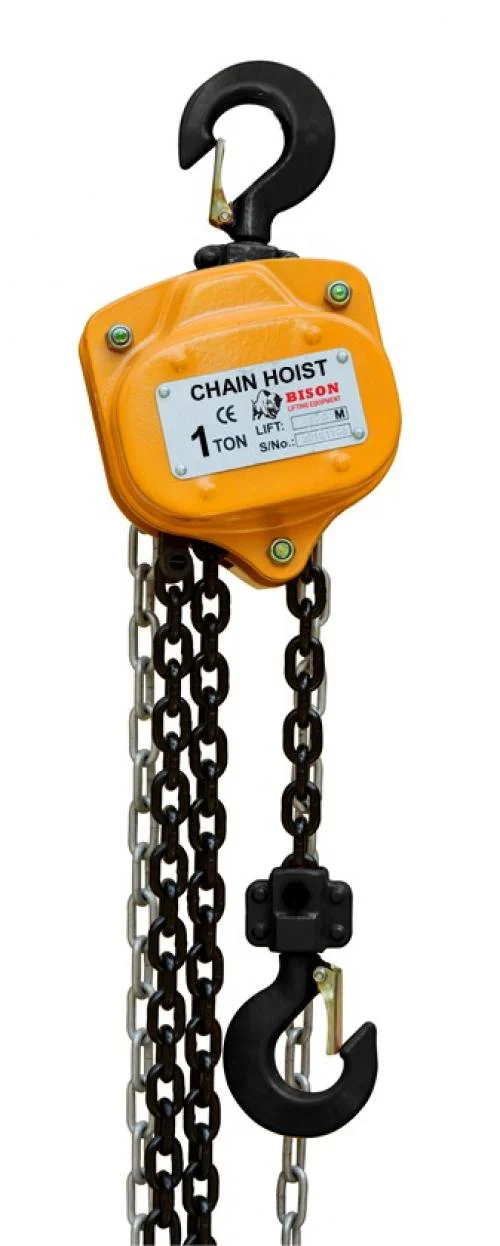

1 Ton Manual Chain Hoist 10' Lift
|
25 |
9-1/2" x 7 1/2" x 9" |
20 |
5 x 1 |
27 |
|
Black Oxide Chain |
CH20-10
|
2 Ton Manual Chain Hoist 10' Lift
|
40 |
11" x 9" x 9"
|
10 |
6 x 1 |
25 |
|
Black Oxide Chain |
CH30-10
|

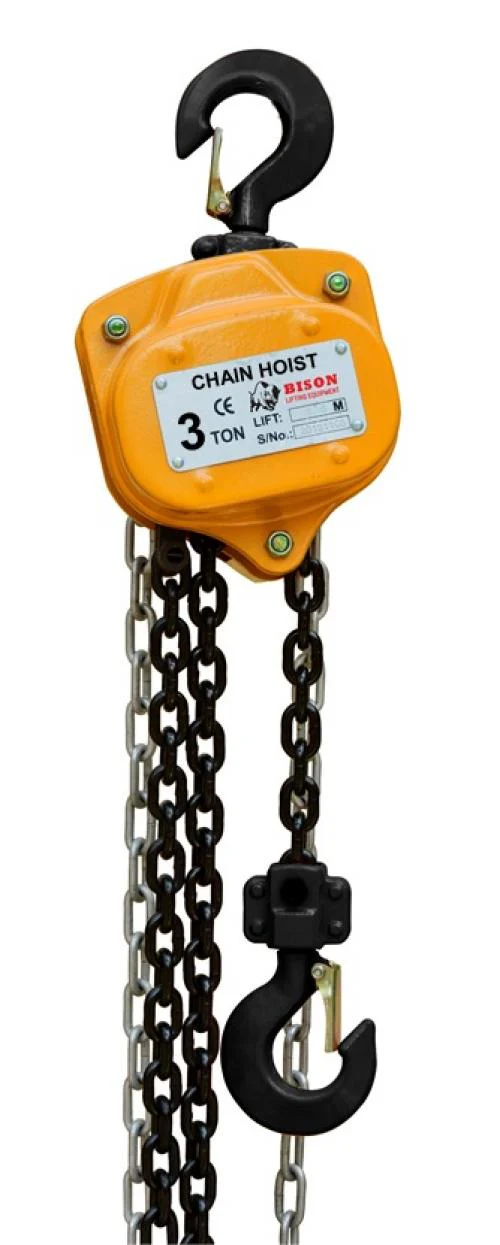

3 Ton Manual Chain Hoist 10' Lift |
49 |
12" x 9 1/2" x 9 1/2" |
20 |
6 x 1 |
37 |
|
Black Oxide Chain |
CH50-10
|

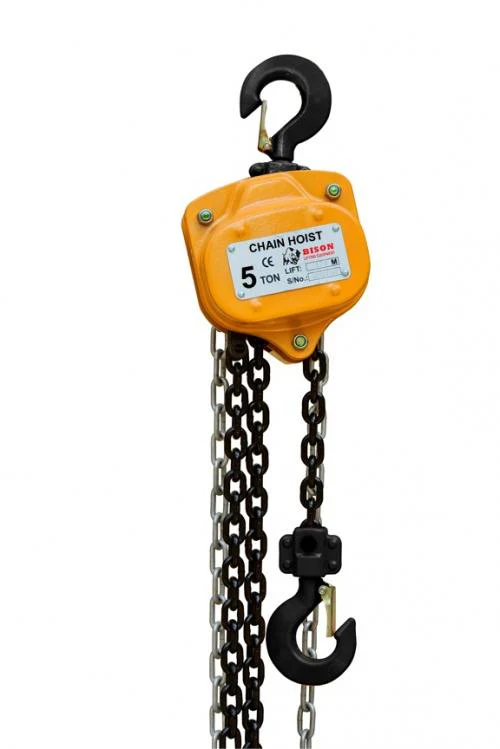

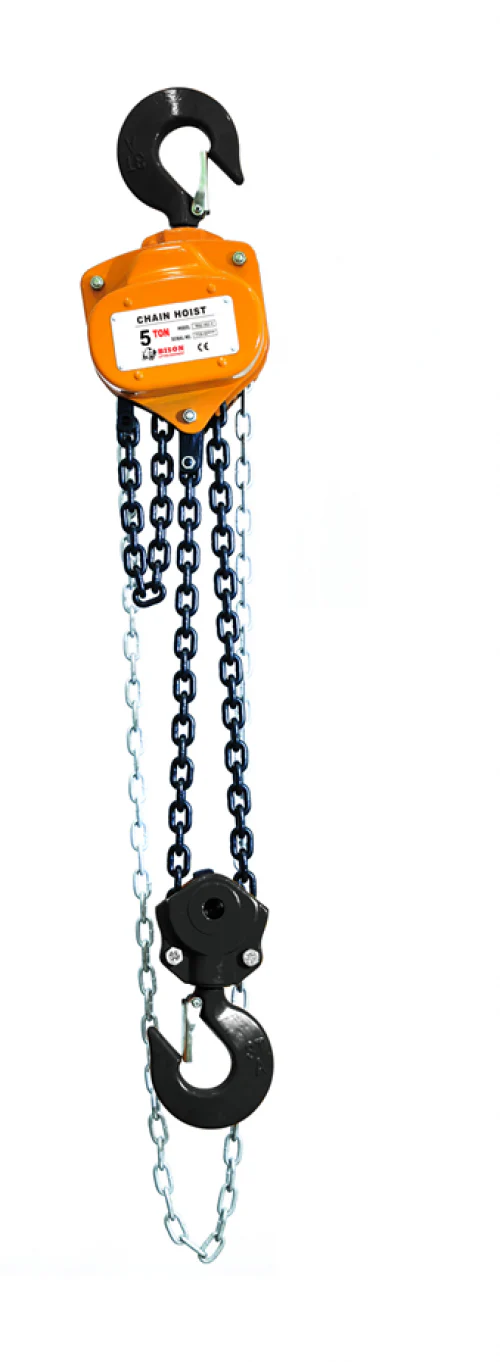

5 Ton Manual Chain Hoist 10' Lift |
88 |
17" x 12" x 10" |
10 |
8 x 1 |
40 |
|
Black Oxide Chain |
CH100-10
|

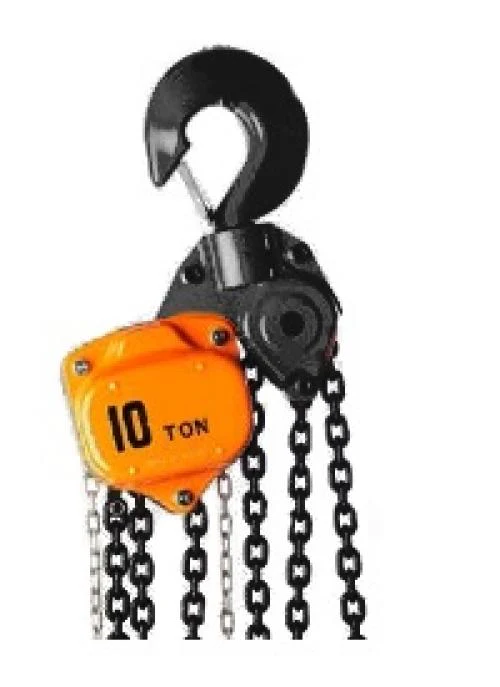

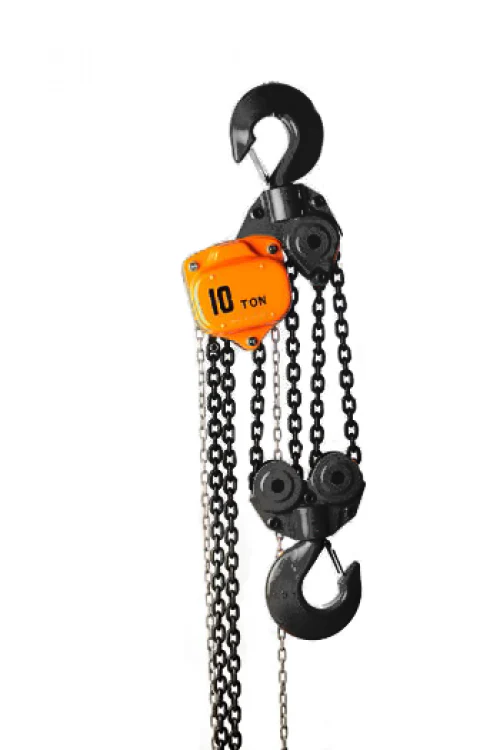

10 Ton Manual Chain Hoist 10' Lift |
154 |
20" x 17" x 11 1/2" |
20 |
8 x 1 |
55 |
|
Black Oxide Chain |
CH05-20 |
1/2 Ton Manual Chain Hoist 20' Lift |
27 |
8" x 6-1/2" x 9" |
10 |
7.1 x 2 |
49 |
|
Black Oxide Chain |
CH10-20
|
1 Ton Manual Chain Hoist 20' Lift |
37 |
9-1/2" x 7 1/2" x 9" |
20 |
7.1 x 2 |
76 |
|
Black Oxide Chain |
CH20-20
|
2 Ton Manual Chain Hoist 20' Lift |
55 |
11" x 9" x 9" |
10 |
9 x 2 |
88 |
|
Black Oxide Chain |
CH30-20
|
3 Ton Manual Chain Hoist 20' Lift |
76 |
12" x 9 1/2" x 9 1/2" |
20 |
9 x 2 |
119 |
|
Black Oxide Chain |
CH50-20 |
5 Ton Manual Chain Hoist 20' Lift |
119 |
17" x 12" x 10" |
10 |
10 x 4 |
154 |
|
Black Oxide Chain |
CH100-20 |
10 Ton Manual Chain Hoist 20' Lift |
219 |
20" x 17" x 11 1/2" |
20 |
10 x 4 |
219 |
Original: $175.00
-65%$175.00
$61.25
