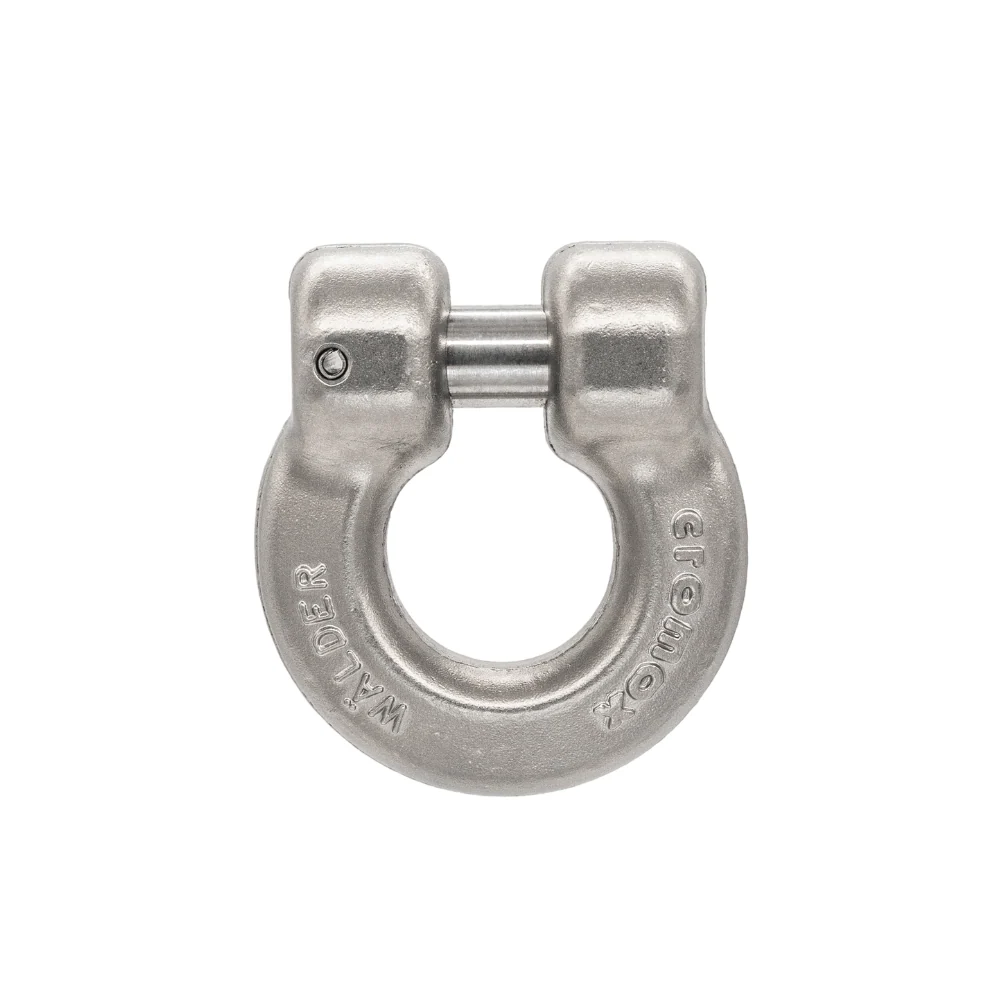

Cromox Grade 60 Stainless Steel Clevis Shackle

Characterized by their exceptional quality inox material, Cromox's Grade 60 Stainless Steel Clevis Shackles provide a robust and reliable connection solution for the most demanding industries.

Renowned for their easy handling, low maintenance, and high load bearing capacities, these Grade 60 Clevis Shackles are available in sizes from 3/16in (5mm) up to 5/8in (16mm), with relative working load limits up to 13,300lbs.

Subjected to rigorous testing to ensure optimal safety and long lifespans, Cromox and Ketten Walder's commitment to quality is reflected right the way through these lifting shackles - from material choice to precise engineering.



ADVANTAGES OF STAINLESS STEEL

Corrosion Resistance: Stainless steel is especially resistant to rust and corrosion, making Cromox Grade 60 components highly suitable for humid environments and the challenges posed by the chemical, maritime, and food industries.

Hygiene: Stainless steel is easy to clean and disinfect, preventing the transmission of germs.

Temperature Resistance: High quality stainless steel can withstand both extremely high and low temperatures.

Durability: Thanks to its high tensile strength and hardness, stainless steel is particularly resistant to wear and tear, having superior lifecycles over other materials.

Low Maintenance: Stainless steel is easy to clean and retains its properties over time.

Environmentally Friendly: Stainless steel is 100% recyclable, contributing to better environmental balance and increasing sustainability.

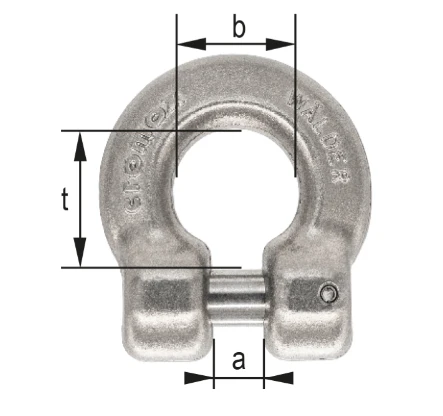

Chain Size	SKU	t	b	a	WLL	Weight
		in.	in.	in.	lbs	lbs
1/8	CGS-04	0.75	0.59	0.26	880	0.13
3/16	CGS-05	0.83	0.67	0.28	1320	0.16
1/4	CGS-06	1.02	0.79	0.28	1980	0.35
9/32	CGS-07	1.18	0.91	0.35	2750	0.51
5/16	CGS-08	1.18	0.91	0.35	3300	0.51
3/8	CGS-10	1.57	1.10	0.43	5400	1.01
1/2	CGS-13	1.89	1.5	0.55	8480	1.05
5/8	CGS-16	2.09	1.65	0.67	13250	2.65
