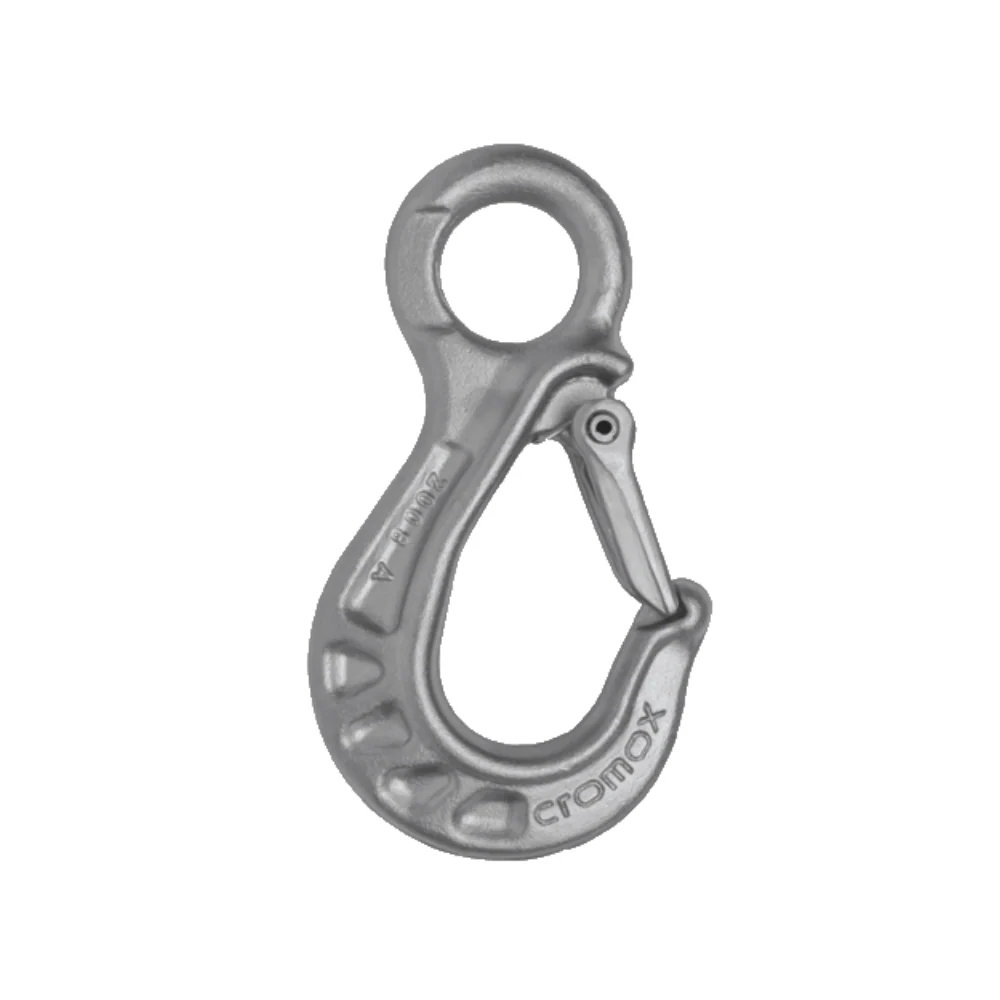

Cromox Grade 60 Stainless Steel Eye Sling Hook w/ Latch

Understanding that safety is imperious in the lifting world, Cromox's range of end fittings go through rigorous testing and inspection procedures to ensure they meet the most relevant standards and requirements.

Coming in sizes from 4mm (1/8") up to 16mm (5/8"), this Eye Sling Hook with Latch is engineered from quality grade 60 stainless steel, offering advantages such as high load bearing capacity (in this case up to 13250lbs), corrosion and rust resistance, and exceptional durability.

ADVANTAGES OF STAINLESS STEEL

Corrosion Resistance: Stainless steel is especially resistant to rust and corrosion, making Cromox Grade 60 components highly suitable for humid environments and the challenges posed by the chemical, maritime, and food industries.

Hygiene: Stainless steel is easy to clean and disinfect, preventing the transmission of germs.

Temperature Resistance: High quality stainless steel can withstand both extremely high and low temperatures.

Durability: Thanks to its high tensile strength and hardness, stainless steel is particularly resistant to wear and tear, having superior lifecycles over other materials.

Low Maintenance: Stainless steel is easy to clean and retains its properties over time.

Environmentally Friendly: Stainless steel is 100% recyclable, contributing to better environmental balance and increasing sustainability.



MATERIAL

• Body: AISI 318LN
• Safety Latch: AISI 318LN
• Bolt: AISI 318LN
• Safety Pin: AISI 301
• Bracket: AISI 318LN
• Nut: AISI 318LN
• Washer: AISI 318LN
• Ball Bearing: AISI 440C

Chain Size	SKU	t	g	b	h	WLL	Weight
in.		in.	in.	in.	in.	lbs	lbs
1/8	COHF-04	2.95	0.79	0.67	0.67	880	0.41
3/16 - 1/4	COHF-05/06	3.94	0.98	0.98	0.87	1980	0.77
9/32 - 5/16	COHF-07/08	4.96	1.26	1.06	1.10	3300	1.74
3/8	COHF-10	6.30	1.57	1.46	1.34	5400	3.02
1/2	COHF-13	7.48	1.97	1.89	1.77	8480	6.61
5/8	COHF-16	9.06	2.60	2.17	2.01	13250	10.58
