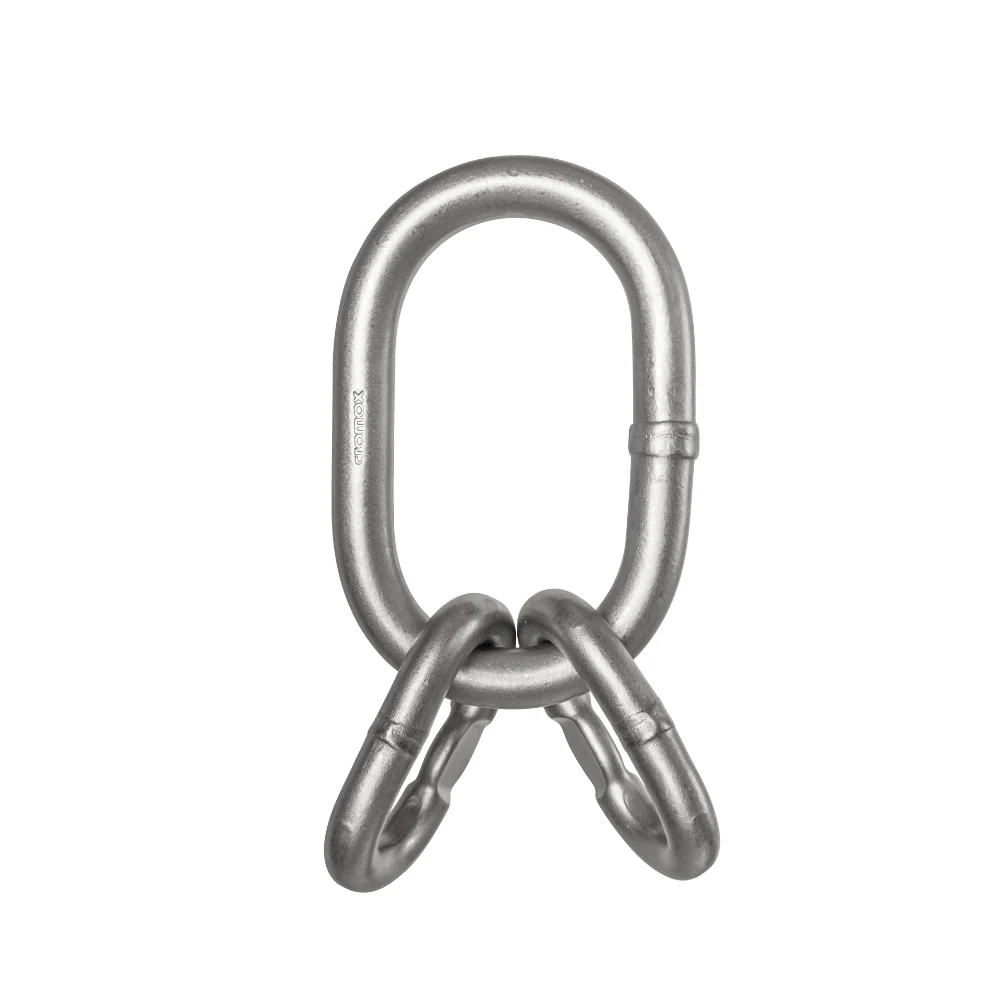

Cromox Grade 60 Stainless Steel Sub-Assembly with Flat Sections

One of the most important components of a chain sling assembly, typically used for connecting to a chain hoist or other means of lifting equipment, Cromox's masterlink sub-assemblies showcase the brands commitment to exceptional quality.

Cromox masterlink sub-assemblies are manufactured by machine with the utmost precision. Engineered from AISI 318LB Duplex stainless steel, these masterlinks have excellent corrosion resistance and quality surfaces, and are super stable, meaning they are suitable for a wide range of industries from food, chemical, and pharmaceutical.

Designed for use in triple (3) or quad (4) leg chain sling assemblies, this Cromox master link sub-assembly is available in diameters from 10mm to 32mm, suitable for chain lengths of 4mm up to 16mm.

his model has the addition of a flattened section to allow for the use of connectors such as the Clevis Shackle (CGS).

ADVANTAGES OF STAINLESS STEEL

Corrosion Resistance: Stainless steel is especially resistant to rust and corrosion, making Cromox Grade 60 components highly suitable for humid environments and the challenges posed by the chemical, maritime, and food industries.

Hygiene: Stainless steel is easy to clean and disinfect, preventing the transmission of germs.

Temperature Resistance: High quality stainless steel can withstand both extremely high and low temperatures.

Durability: Thanks to its high tensile strength and hardness, stainless steel is particularly resistant to wear and tear, having superior lifecycles over other materials.

Low Maintenance: Stainless steel is easy to clean and retains its properties over time.

Environmentally Friendly: Stainless steel is 100% recyclable, contributing to better environmental balance and increasing sustainability.

SKU	For Chain	d	t	b	WLL 45°	WLL 30°	Weight
		in	in	in	lbs	lbs	lbs
CAK-10/8	1/8	A 0.39	A 3.15	A 1.97	1760	1320	0.53
		B 0.31	B 1.38	B 0.75
CAK-13/10	3/16	A 0.51	A 4.33	A 2.36	2865	1980	1.15
		B 0.39	B 1.73	B 0.98
CAK-16/13	1/4 to 9/32	A 0.63	A 4.33	A 2.36	5840	4075	2.14
		B 0.51	B 2.13	B 0.98
CAK-18/16	5/16	A 0.71	A 5.32	A 2.95	7160	5070	3.53
		B 0.63	B 2.76	B 1.34
CAK-22/18	3/8	A 0.87	A 6.30	A 3.54	11350	8045	6.08
		B 0.71	B 3.55	B 1.57
CAK-26/22	1/2	A 1.02	A 7.09	A 3.94	17960	12675	9.81
		B 0.87	B 4.53	B 1.96
CAK-32/26	5/8	A 1.26	A 7.87	A 4.33	27770	19835	16.64
		B 1.02	B 5.51	B 2.56
