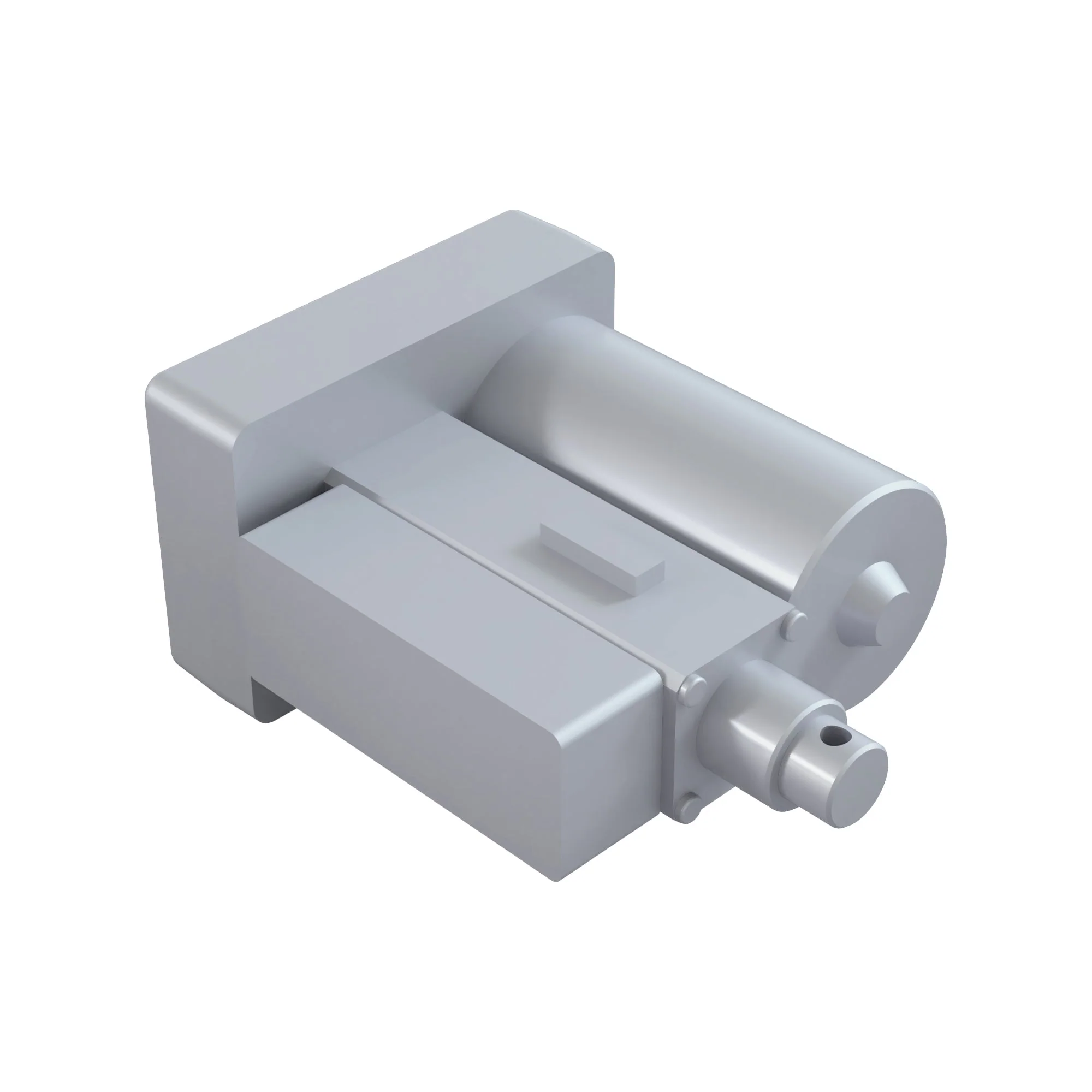

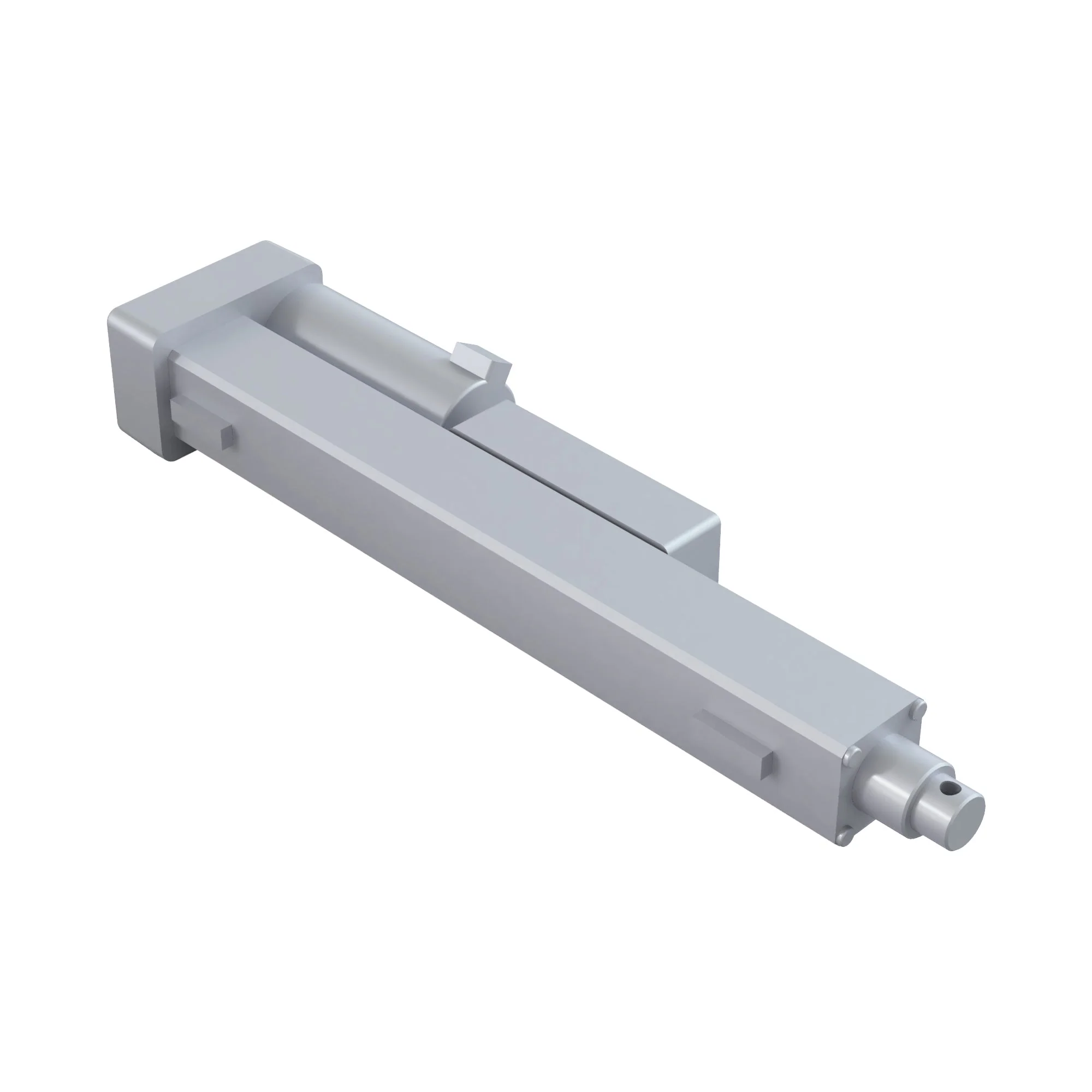

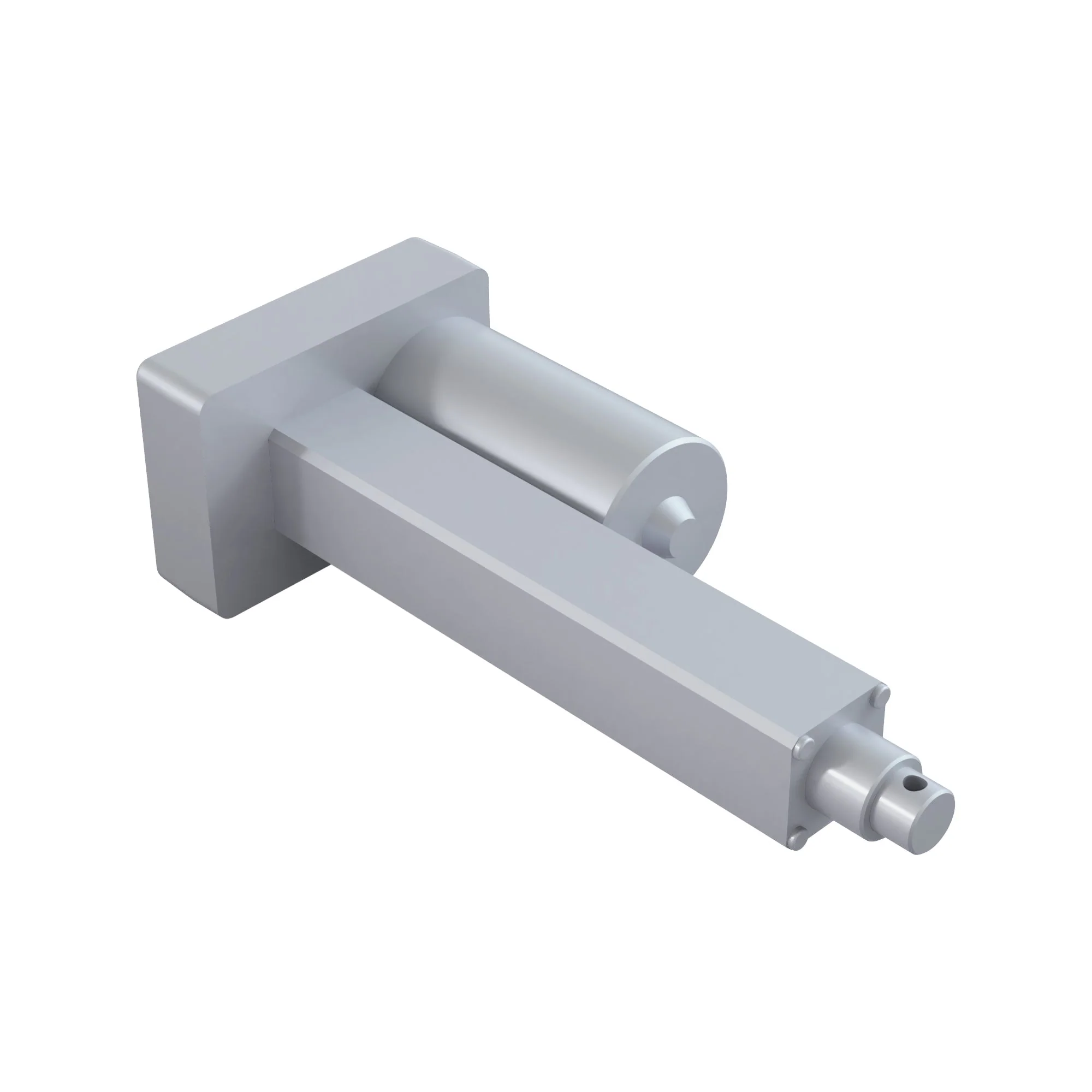

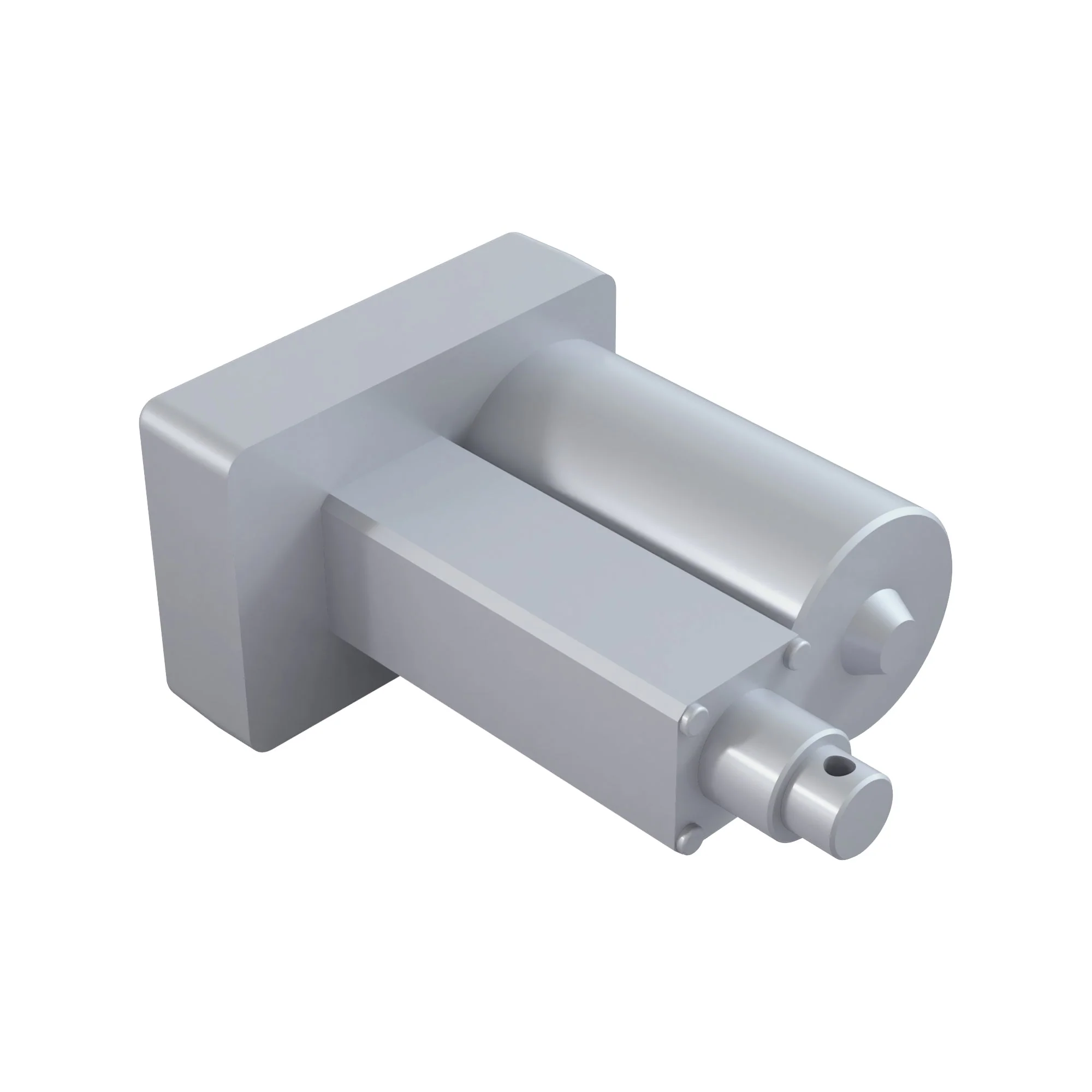

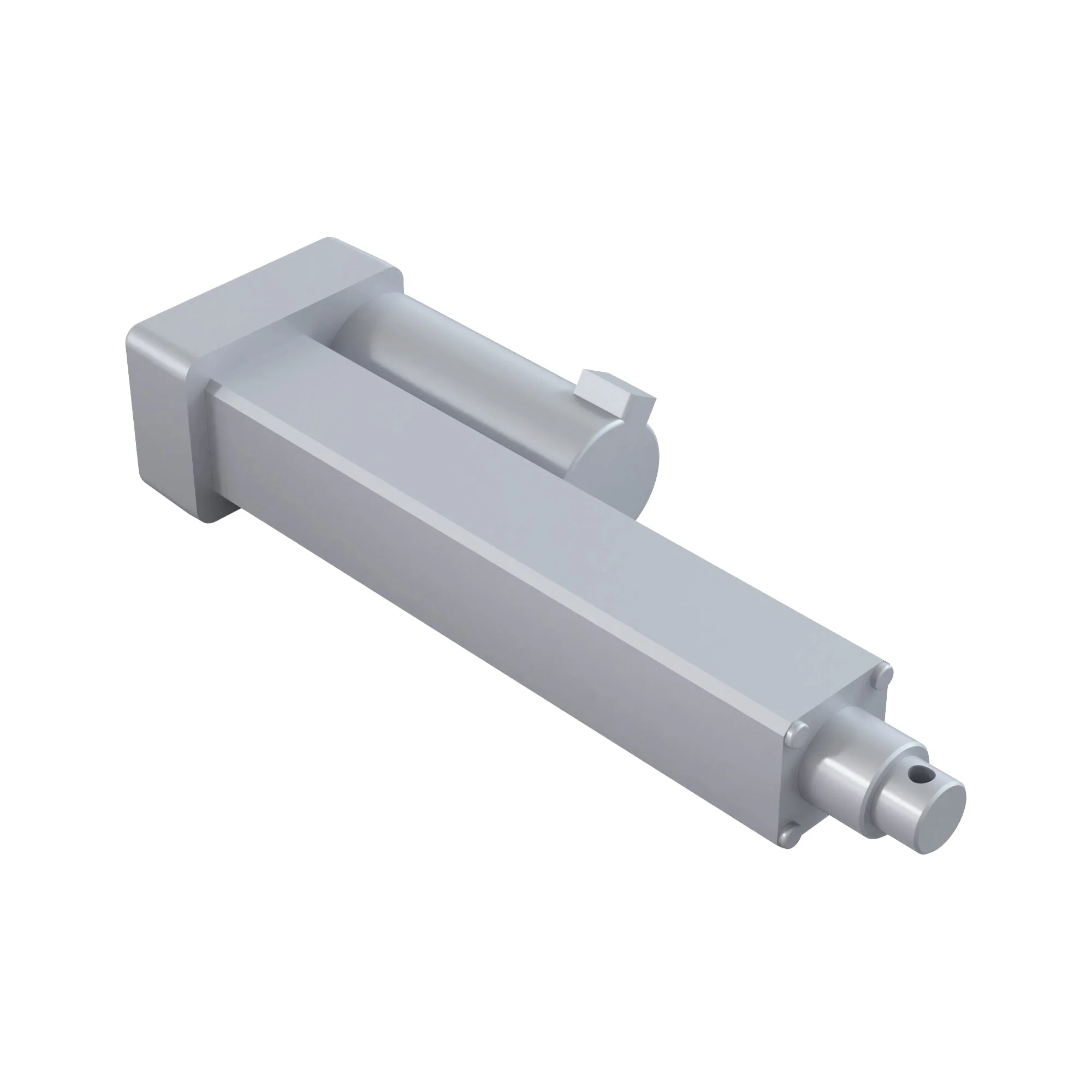

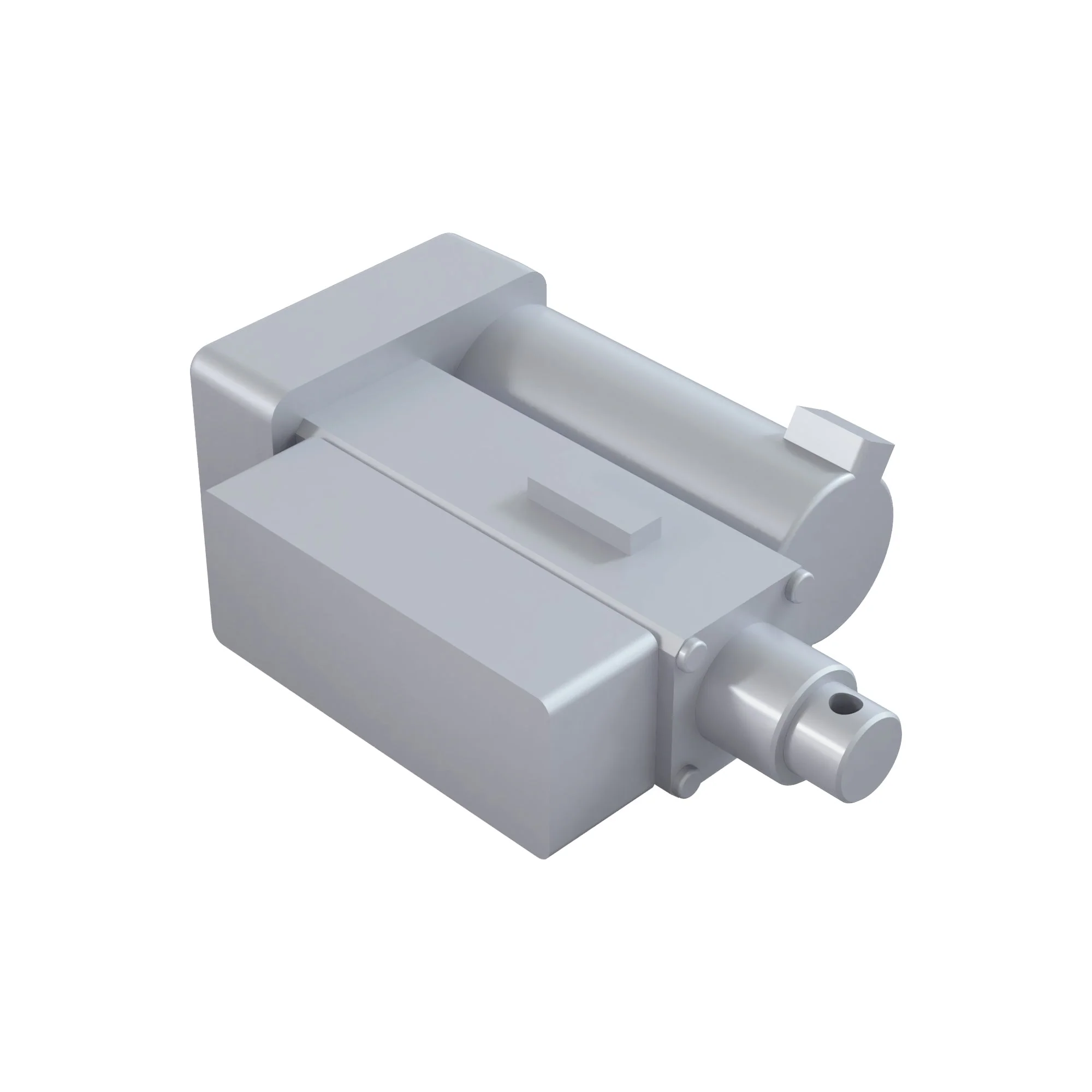

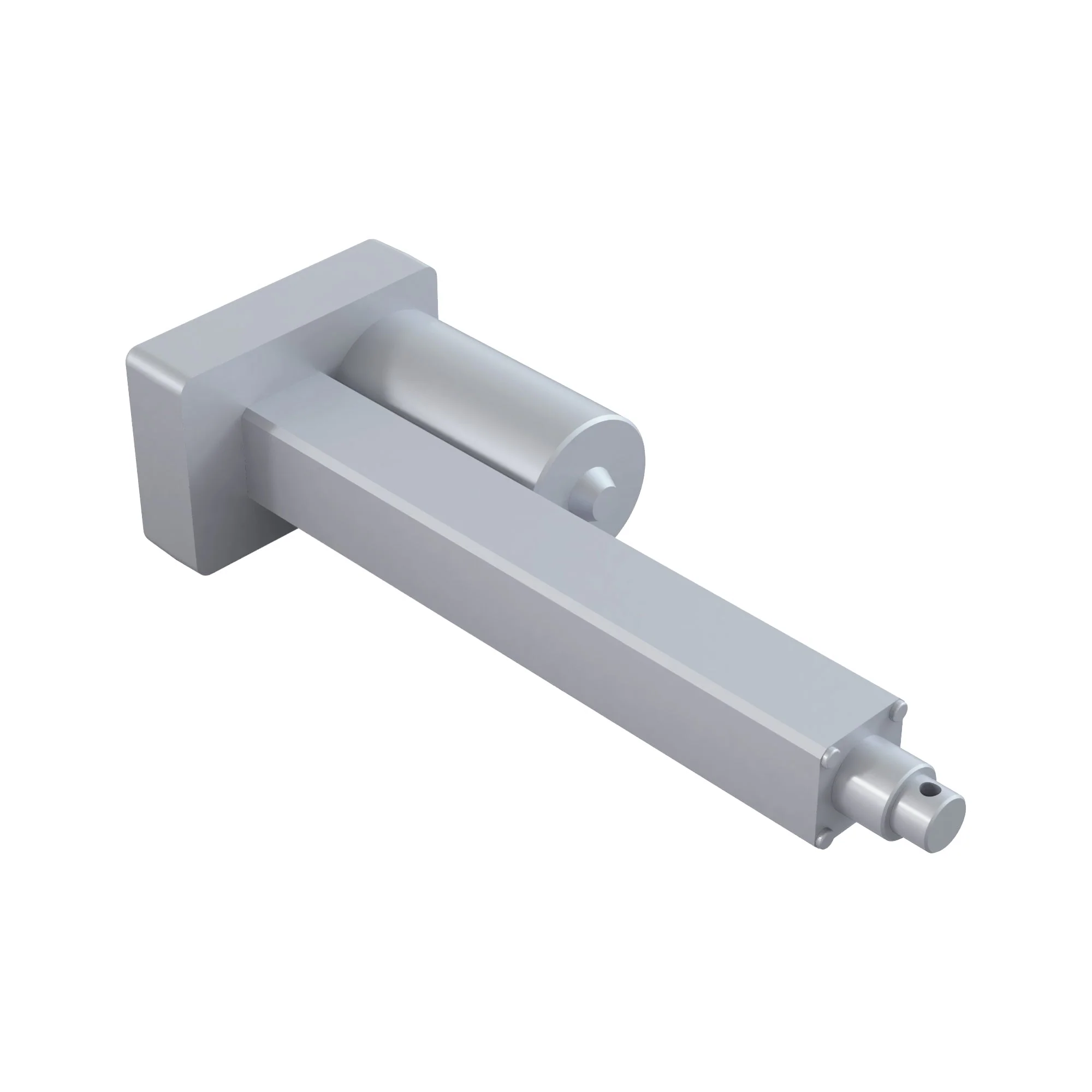

Duff Norton TMD Series Linear Actuator
Duff Norton’s TMD Series Linear Actuators are ideal for applications with light loads and limited spacing, with a keyed translating tube eliminating the need for restraining torque.
Available in both 12 and 24 VDC power voltages, choose between 100lbs or 250lbs capacities, with stroke options from 2” right up to 24”.
The TMD Series has been designed to operate efficiently between temperatures 25°F up to 120°F.
Fitted with a belt drive that delivers super quiet operation, while the exceptionally designed housing boasts corrosion resistant properties. Additionally, each unit is IP50 rated, meaning that it has been categorized as a 5 on the dust resistance scales and a zero in water resistance.
A limit switch option for safe and repeatable positioning is available, with access to a terminal strip for easy integration. We are also able to offer a pulse generator which help deliver precise positioning feedback.
In some configurations, we are pleased to offer the combination of both limit switch and pulse generator. Please see full options via dropdown menu.
| Capacity | 100 - 250lbs (444 - 1112 N) |
| Speed | 0.4 - 1.0 in/s |
| Voltage | 12 or 24 VDC |
| Temperature Range | 25°F - 120°F |
| Environmental Rating | IP50 |
Original: $454.00
-65%$454.00
$158.90
Description
Duff Norton’s TMD Series Linear Actuators are ideal for applications with light loads and limited spacing, with a keyed translating tube eliminating the need for restraining torque.
Available in both 12 and 24 VDC power voltages, choose between 100lbs or 250lbs capacities, with stroke options from 2” right up to 24”.
The TMD Series has been designed to operate efficiently between temperatures 25°F up to 120°F.
Fitted with a belt drive that delivers super quiet operation, while the exceptionally designed housing boasts corrosion resistant properties. Additionally, each unit is IP50 rated, meaning that it has been categorized as a 5 on the dust resistance scales and a zero in water resistance.
A limit switch option for safe and repeatable positioning is available, with access to a terminal strip for easy integration. We are also able to offer a pulse generator which help deliver precise positioning feedback.
In some configurations, we are pleased to offer the combination of both limit switch and pulse generator. Please see full options via dropdown menu.
| Capacity | 100 - 250lbs (444 - 1112 N) |
| Speed | 0.4 - 1.0 in/s |
| Voltage | 12 or 24 VDC |
| Temperature Range | 25°F - 120°F |
| Environmental Rating | IP50 |
