Vestil Galvanized Folding Gates

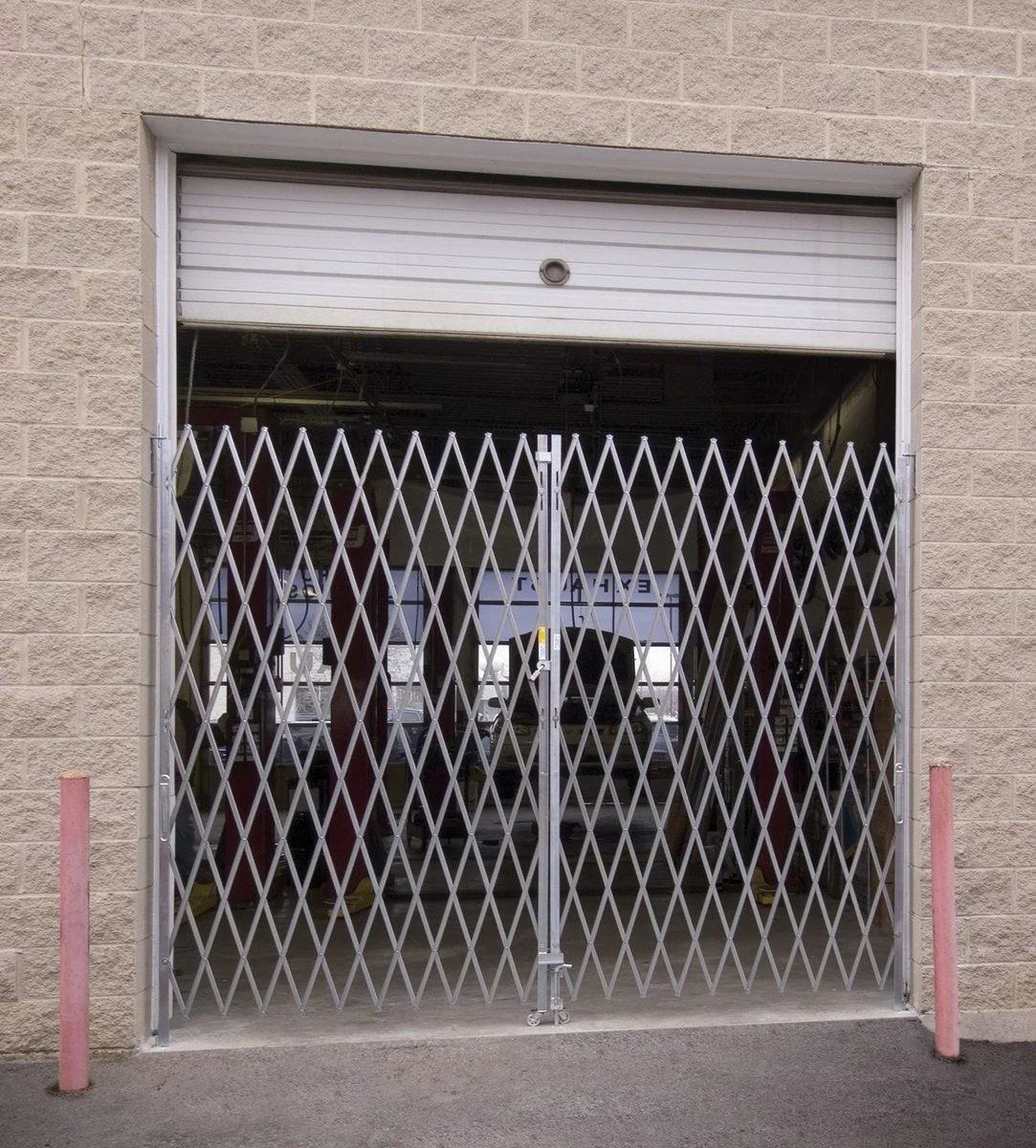

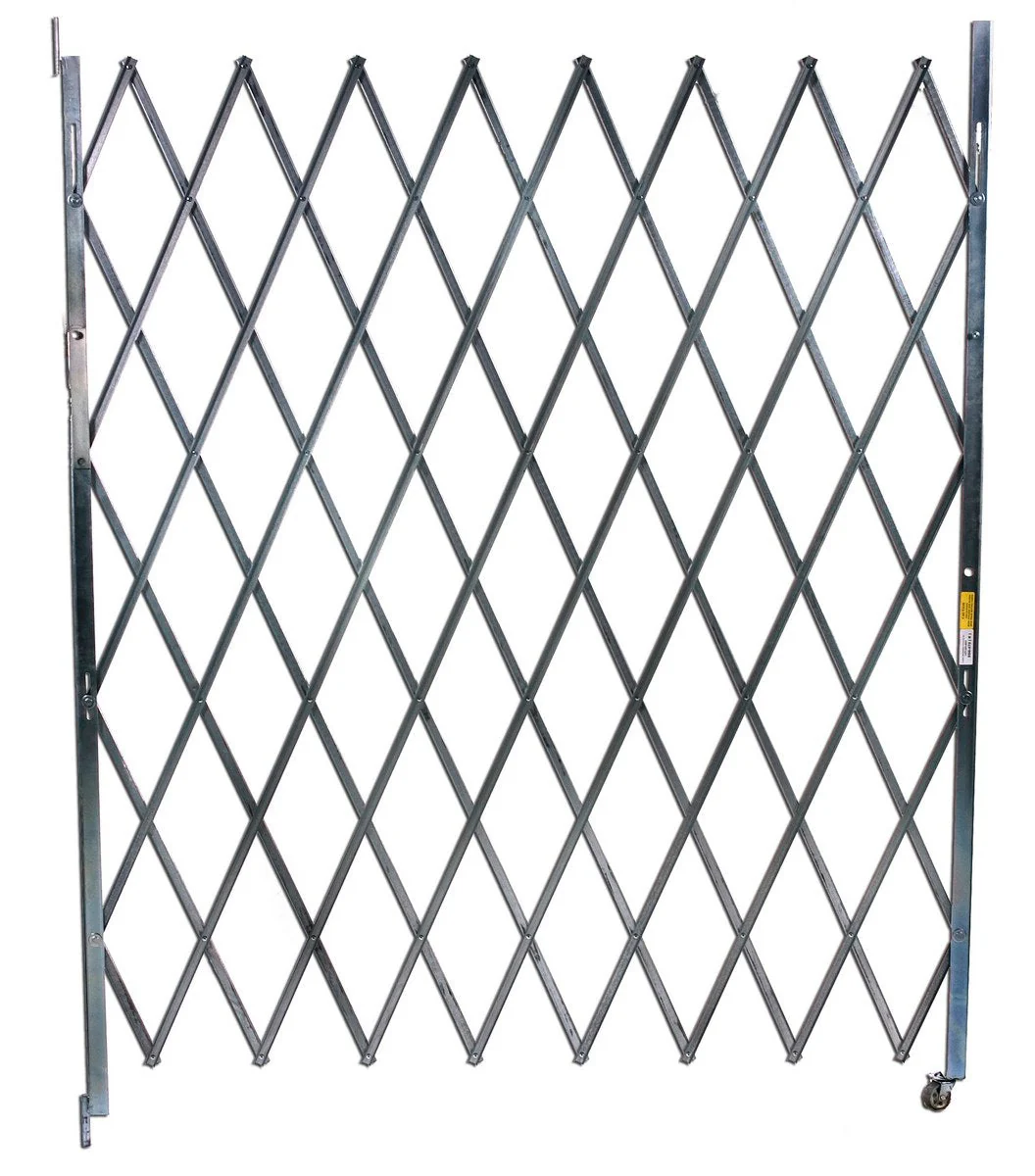

Secure outside access during the day and add security at night with heavy-duty 14 gauge steel folding gates. Durable 2" steel casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates, looking from the outside of the building (lock can be changed to left side, but order needs to be noted of this change). Galvanized for durability. Constructed of steel U-channels riveted back to back using aircraft quality rivets and heavy-duty 1-1/2" x 1-1/2" vertical angles.
|
Folding Gates - Single |
||||
| Model | Width | Collapsed Ht. (FT.) |
In Use Ht. (FT.) |
Wt. (lbs) |
| VSSG-465 | 3' to 4' | 6-1/2 | 6 | 45 |
| VSSG-470 | 3' to 4' | 7 | 6-1/2 | 50 |
| VSSG-475 | 3' to 4' | 7-1/2 | 7 | 88 |
| VSSG-480 | 3' to 4' | 8 | 7-1/2 | 95 |
| VSSG-485 | 3' to 4' | 8-1/2 | 8 | 100 |
| VSSG-565 | 4' to 5' | 6-1/2 | 6 | 50 |
| VSSG-570 | 4' to 5' | 7 | 6-1/2 | 55 |
| VSSG-575 | 4' to 5' | 7-1/2 | 7 | 93 |
| VSSG-580 | 4' to 5' | 8 | 7-1/2 | 100 |
| VSSG-585 | 4' to 5' | 8-1/2 | 8 | 15 |
| VSSG-665 | 5' to 6' | 6-1/2 | 6 | 60 |
| VSSG-670 | 5' to 6' | 7 | 6-1/2 | 65 |
| VSSG-675 | 5' to 6' | 7-1/2 | 7 | 118 |
| VSSG-680 | 5' to 6' | 8 | 7-1/2 | 105 |
| VSSG-685 | 5' to 6' | 8-1/2 | 8 | 110 |
| VSSG-765 | 6' to 7' | 6-1/2 | 6 | 65 |
| VSSG-770 | 6' to 7' | 7 | 6-1/2 | 75 |
| VSSG-775 | 6' to 7' | 7-1/2 | 7 | 113 |
| VSSG-780 | 6' to 7' | 8 | 7-1/2 | 120 |
| VSSG-785 | 6' to 7' | 8-1/2 | 8 | 125 |
| VSSG-865 | 7' to 8' | 6-1/2 | 6 | 75 |
| VSSG-870 | 7' to 8' | 7 | 6-1/2 | 115 |
| VSSG-875 | 7' to 8' | 7-1/2 | 7 | 123 |
| VSSG-880 | 7' to 8' | 8 | 7-1/2 | 130 |
| VSSG-885 | 7' to 8' | 8-1/2 | 8 | 130 |
| VSSG-970 | 8' to 9' | 7 | 6-1/2 | 120 |
| VSSG-975 | 8' to 9' | 7-1/2 | 6 | 128 |
| VSSG-980 | 8' to 9' | 8 | 7-1/2 | 135 |
| VSSG-1070 | 9' to 10' | 7 | 6-1/2 | 135 |
| VSSG-1080 | 9' to 10' | 8 | 7-1/2 | 140 |
| Double Folding Gates | ||||
| Model | Overall Usable Width (FT.) |
Collapsed Ht. (FT.) |
In Use Ht. (FT.) |
Wt. (lbs) |
| VPFG-865 | 6' to 8' | 6-1/2 | 6 | 120 |
| VPFG-870 | 6' to 8' | 7 | 6-1/2 | 125 |
| VPFG-875 | 6' to 8' | 7-1/2 | 7 | 133 |
| VPFG-880 | 6' to 8' | 8 | 7-1/2 | 150 |
| VPFG-885 | 6' to 8' | 8-1/2 | 8 | 153 |
| VPFG-1065 | 8' to 10' | 6-1/2 | 6 | 125 |
| VPFG-1070 | 8' to 10 | 7 | 6-1/2 | 135 |
| VPFG-1075 | 8' to 10 | 7-1/2 | 7 | 176 |
| VPFG-1080 | 8' to 10 | 8 | 7-1/2 | 160 |
| VPFG-1085 | 8' to 10 | 8-1/2 | 8 | 170 |
| VPFG-1265 | 10' to 12' | 6-1/2 | 6 | 140 |
| VPFG-1270 | 10' to 12' | 7 | 6-1/2 | 145 |
| VPFG-1275 | 10' to 12' | 7-1/2 | 7 | 153 |
| VPFG-1280 | 10' to 12' | 8 | 7-1/2 | 175 |
| VPFG-1285 | 10' to 12' | 8-1/2 | 8 | 180 |
| VPFG-1465 | 12' to 14' | 6-1/2 | 6 | 170 |
| VPFG-1470 | 12' to 14' | 7 | 6-1/2 | 185 |
| VPFG-1475 | 12' to 14' | 7-1/2 | 7 | 175 |
| VPFG-1480 | 12' to 14' | 8 | 7-1/2 | 195 |
| VPFG-1485 | 12' to 14' | 8-1/2 | 8 | 200 |
| VPFG-1665 | 14' to 16' | 6-1/2 | 6 | 190 |
| VPFG-1670 | 14' to 16' | 7 | 6-1/2 | 195 |
| VPFG-1675 | 14' to 16' | 7-1/2 | 7 | 200 |
| VPFG-1680 | 14' to 16' | 8 | 7-1/2 | 215 |
| VPFG-1685 | 14' to 16' | 8-1/2 | 8 | 220 |
| VPFG-1870 | 16' to 18' | 7 | 6-1/2 | 210 |
| VPFG-1875 | 16' to 18' | 7-1/2 | 7-1/2 | 218 |
| VPFG-1880 | 16' to 18' | 8 | 7 | 235 |
| VPFG-2070 | 18' to 20' | 7 | 6-1/2 | 210 |
| VPFG-2080 | 18' to 20' | 8 | 7-1/2 | 235 |
