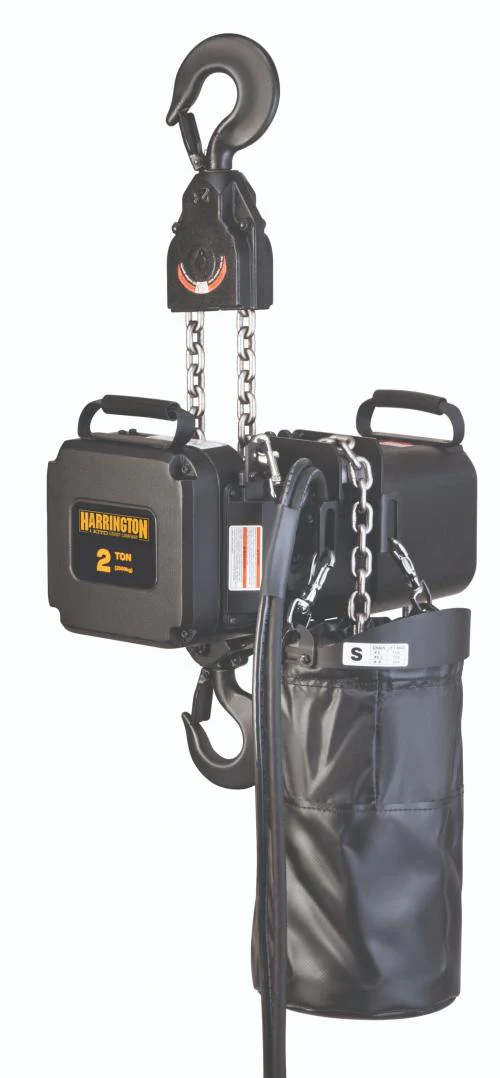

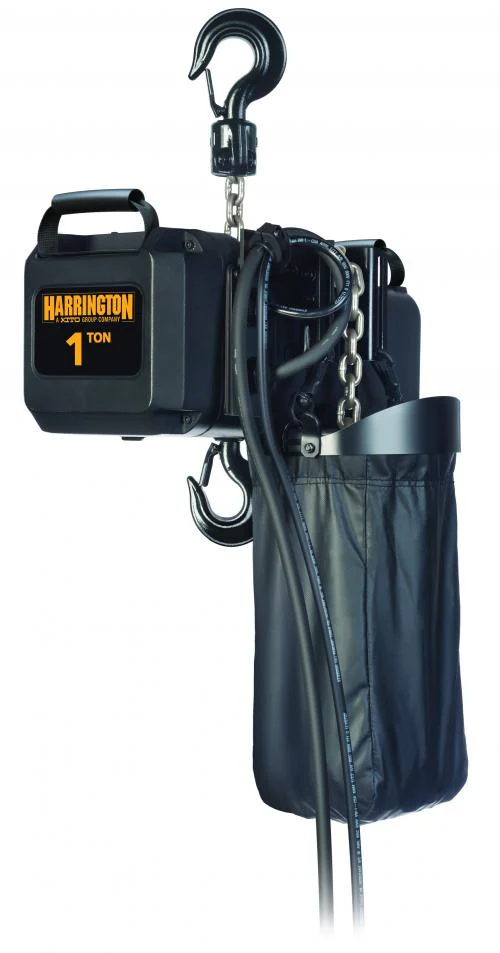

Harrington Black TNER Stage Electric Chain Hoist

Harrington TNER Theatrical 3-phase hoists are industry-leading and designed with safety and compliance in mind. Used throughout the world, and conforming to German BGV-D8 regulations for stage hoists, Harrington TNER's are switchable between 230v and 460v three-phase power making them perfectly universal for multi-site re-location.

A uniquely designed chain guide and wheel provide quiet and smooth operation whilst the high-quality nickel-plated load chain (available in black too) provides one of the many levels of protection against the elements, combined with the compliance to DIN and EN 818-7 standards makes this stage hoist an all-round-winner in theatre applications.

• Pull-rotor motor brake with 5-year warranty
• Nickel-plated load chain
• BGV-D8 Compliance

Optional Extras:

• Pendant/Pickle control
• Chain container (to meet BGV-D8)
• Power supply cord
• Road case
• Black load chain
• Bullard and Shur-Loc Hooks

To discuss optional extras and accessories for your Harrington TNER Series Theatrical Chain Hoist please reach out to our knowledgeable sales team who will be able to provide in-depth assistance with motorized chain hoists within the entertainment and theatre rigging industry.

• 208-230/460v 3phase 60hz (switchable internally)
• 110v Control voltage
• 30 Minutes duty cycle
• ASME H3, JS/ISO M3, FEM 1Bm classifications
• UL/cUL (CSA) listed, IP55 hoist protection (optional pendants are protected to NEMA 4X
• 60' Standard lift, other lengths available on request
• 2.5' Standard power and pendant cord lengths (others on request)

Cap. (Tons)	Product Code	Headroom C (in)	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Lifting Speed Min (ft/min)	Lifting Speed Max (ft/min)	Lifting Motor 3 Phase 60Hz Output (Hp)	Lifting Motor 3 Phase 60Hz Rated Current @208-230V (Amps)	Lifting Motor 3 Phase 60Hz Rated Current @460V (Amps)	Lifting Motor 3 Phase 60Hz Output Min (Hp)	Lifting Motor 3 Phase 60Hz Rated Current @208-230V (Amps) Min	Lifting Motor 3 Phase 60Hz Rated Current @460V (Amps) Min	Lifting Motor 3 Phase 60Hz Output Max (Hp)	Lifting Motor 3 Phase 60Hz Rated Current @208-230V (Amps) Max	Lifting Motor 3 Phase 60Hz Rated Current @460V (Amps) Max	a (in)	b (in)	d (in)	D (in)	e (in)	g (in)	h (in)	i (in)	Load Chain Diameter (mm) x Chain Fall Lines	Net Weight (lbs)	Weight for Add'l One Foot of Lift (lbs)	Net Weight for 10' lift	Net Weight for 60' lift
1/2	TNER005L	13.2	10 or 60	2.5	16	-	-	0.65	3.7	1.8	-	-	-	-	-	-	18.7	14.2	9.6	35.4	9.2	0.9	3.9	4.0	6.3 x 1	-	.57	77	104
1	TNER010L	16.1	10 or 60	2.5	16	-	-	1.3	5.6	2.8	-	-	-	-	-	-	20	15	10.2	37	9.8	1.2	4.1	4.7	8.0 x 1	-	.93	99	146
1	TNER010S	16.1	10 or 60	2.5	32	-	-	2.4	10.4	5.2	-	-	-	-	-	-	20	15	8.8	37	11.2	1.2	4.1	4.7	8.0 x 1	-	.93	108	155
2	TNER020L	22.8	10 or 60	2.5	8	-	-	1.3	5.6	2.8	-	-	-	-	-	-	20	15	10.2	48.8	9.8	1.5	4.1	4.7	8.0 x 2	-	1.9	126	217
2	TNER020S	22.8	10 or 60	2.5	16	-	-	2.4	10.4	5.2	-	-	-	-	-	-	20	15	8.8	48.8	11.2	1.5	4.1	4.7	8.0 x 2	-	1.9	135	225
