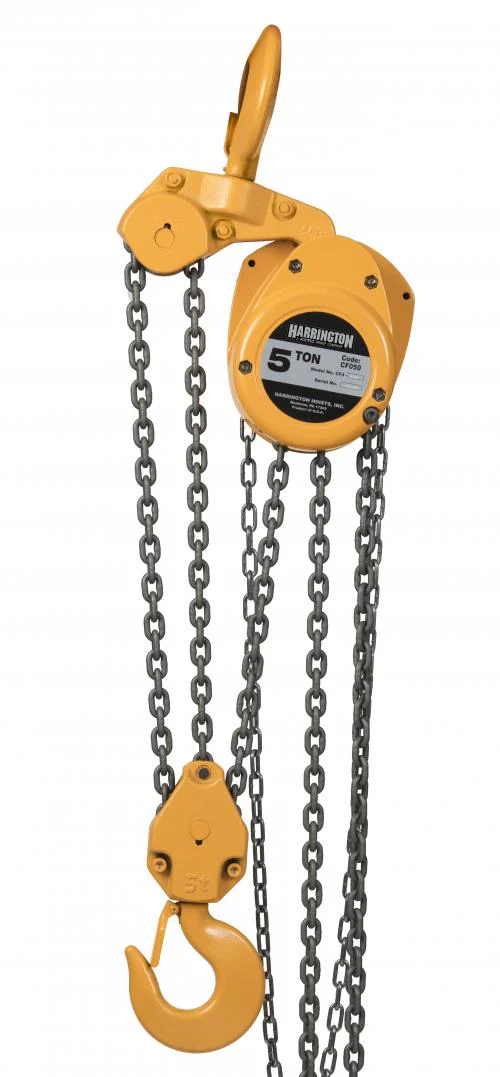

Harrington CF Hand Chain Hoist
Minimalistically designed Harrington CF chain hoists are the perfect manual chain hoist for any demanding lifting activity. The pre-lubricated ball bearings and (Weston-Style) load brake ensure a smooth and consistant lifting experience. The durablity of this product is second to none. The heat treated main pinion shaft and load gear contribute flawlessy to the Harrington CF Chain Hoists high durability, outstanding strength and economical design.
Lifting Equipment Store is a leading distributor of Harrington products and posses elite industry expertise in helping you select the most effective and efficient chain hoist for any lifting requirements. Please contact the Lifting Equipment Store sales team TODAY ! to speak to our friendly and knowledgeable sales executives to supply, advise and fulfill your lifting equipment needs.
Options
- Chain Container
- Corrosion-Resistant Chain
- Inspection Hook
Please contact our sales team to purchase these options.
| Cap. (Tons) | Product Code | Headroom C. (In) | Std. Lift (ft) | Pull to Lift Load (lbs) | Overhaul Ratio | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
| 0.5 | CF005 | 12.8 | 10ft | 60 | 19 | 5.0 x 1 | 24 | 26 | 1.0 |
| 1 | CF010 | 14.6 | 10ft | 72 | 31 | 6.3 x 1 | 29 | 31 | 1.2 |
| 1.5 | CF015 | 17.3 | 10ft | 84 | 41 | 7.1 x 1 | 40 | 42 | 1.4 |
| 2 | CF020 | 20.1 | 10ft | 80 | 63 | 6.3 x 2 | 47 | 49 | 1.8 |
| 3 | CF030 | 23.2 | 10ft | 92 | 81 | 7.1 x 2 | 62 | 66 | 2.1 |
| 5 | CF050 | 24.4 | 10ft | 92 | 134 | 7.1 x 3 | 82 | 86 | 2.9 |
Original: $311.64
-65%$311.64
$109.07
Description
Minimalistically designed Harrington CF chain hoists are the perfect manual chain hoist for any demanding lifting activity. The pre-lubricated ball bearings and (Weston-Style) load brake ensure a smooth and consistant lifting experience. The durablity of this product is second to none. The heat treated main pinion shaft and load gear contribute flawlessy to the Harrington CF Chain Hoists high durability, outstanding strength and economical design.
Lifting Equipment Store is a leading distributor of Harrington products and posses elite industry expertise in helping you select the most effective and efficient chain hoist for any lifting requirements. Please contact the Lifting Equipment Store sales team TODAY ! to speak to our friendly and knowledgeable sales executives to supply, advise and fulfill your lifting equipment needs.
Options
- Chain Container
- Corrosion-Resistant Chain
- Inspection Hook
Please contact our sales team to purchase these options.
| Cap. (Tons) | Product Code | Headroom C. (In) | Std. Lift (ft) | Pull to Lift Load (lbs) | Overhaul Ratio | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
| 0.5 | CF005 | 12.8 | 10ft | 60 | 19 | 5.0 x 1 | 24 | 26 | 1.0 |
| 1 | CF010 | 14.6 | 10ft | 72 | 31 | 6.3 x 1 | 29 | 31 | 1.2 |
| 1.5 | CF015 | 17.3 | 10ft | 84 | 41 | 7.1 x 1 | 40 | 42 | 1.4 |
| 2 | CF020 | 20.1 | 10ft | 80 | 63 | 6.3 x 2 | 47 | 49 | 1.8 |
| 3 | CF030 | 23.2 | 10ft | 92 | 81 | 7.1 x 2 | 62 | 66 | 2.1 |
| 5 | CF050 | 24.4 | 10ft | 92 | 134 | 7.1 x 3 | 82 | 86 | 2.9 |
