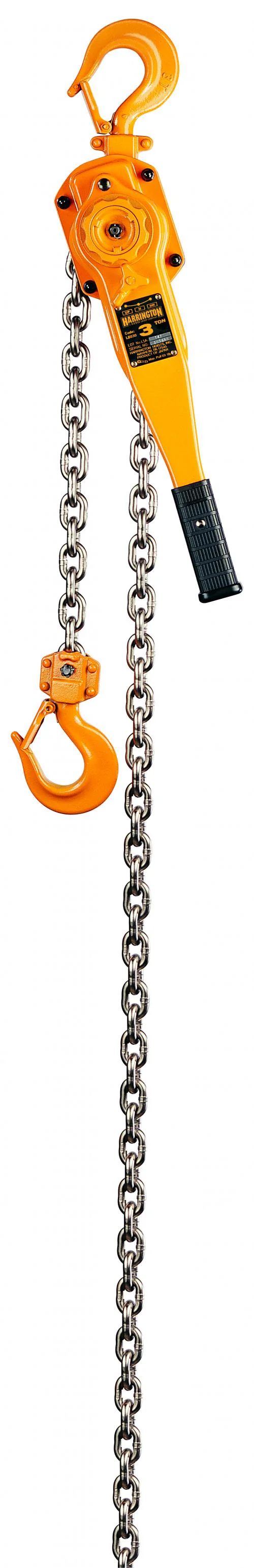

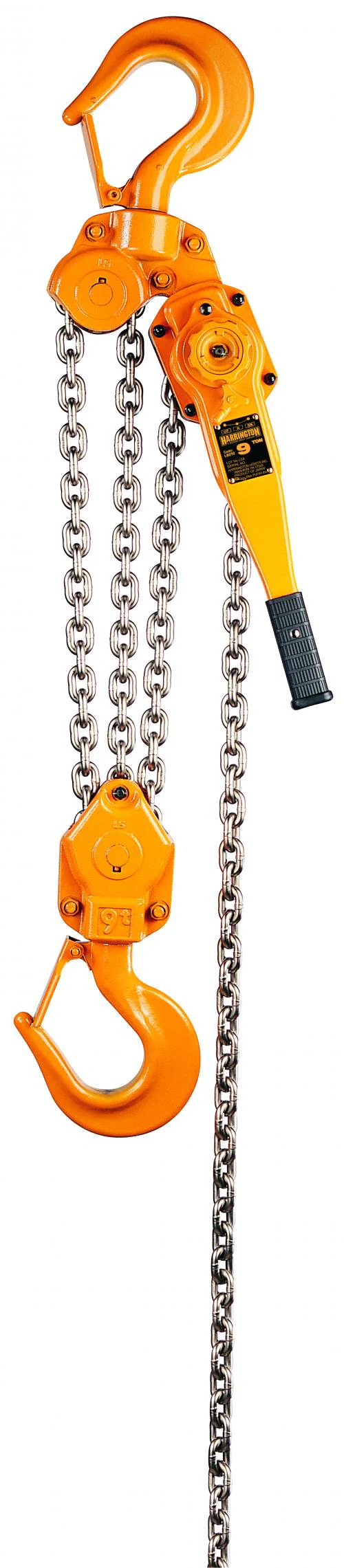

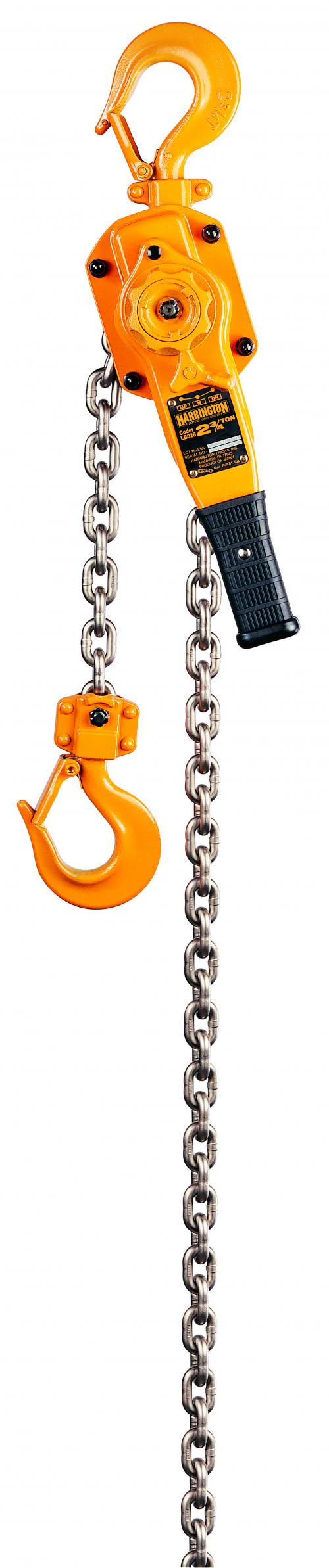

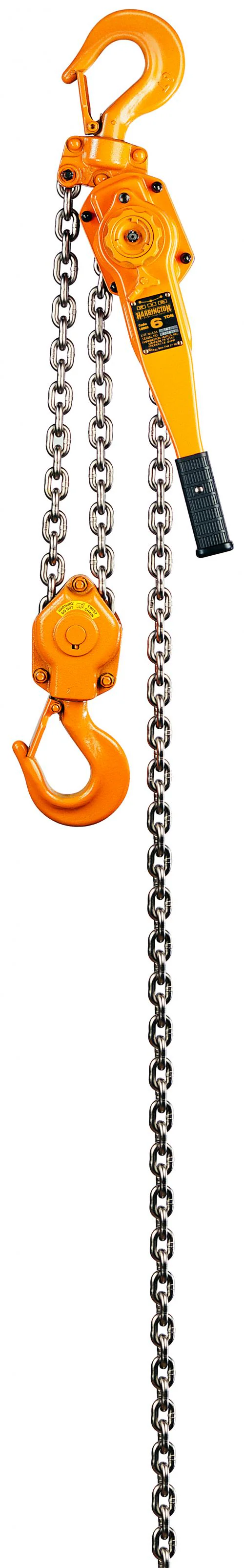

Harrington LB Lever Hoist
A specifically compact, low headroom design to facilitate heavy construction work, manufacturing and a variety of other industry related tasks. The LB series of Lever Hoists have been rated the number one selling lever hoist in the United States. The versatility of these hoists mean they can be used at different load angles with corresponding strength and durability to satisfy your requirements.
Lifting Equipment Store USA is a leading distributor of Harrington products and posses elite industry expertise in helping you select the most effective and efficient Lever Hoists for any lifting requirements. Please contact the Lifting Equipment Store USA sales team TODAY ! to speak to our friendly and knowledgeable sales executives to supply, advise and fulfill your lifting equipment needs.
|
Cap.
(Tons) |
Hoist
Product Code |
Headroom
C (in) |
Std. Lift (ft) |
Pull to
Lift Load* (lbs) |
D*
(in) |
a
(in) |
b
(in) |
e
(in) |
f
(in) |
g
(in) |
Load Chain
Diameter (mm) x Chain Fall Lines |
Net Weight
(lbs) |
Shipping Weight
Approx. (lbs) |
Weight for
Add'l One Foot of Lift (lbs) |
| 3/4 | LB008 | 11.0 | 5 |
54
(36) |
9.6
(14.4) |
5.7 | 4.7 | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 13 | 0.5 |
| 1 | LB010 | 11.8 | 5 |
72
(46) |
9.6
(14.4) |
5.7 | 4.7 | 3.8 | 1.6 | 1.1 | 5.6 x 1 | 13 | 14 | 0.5 |
| 1 1/2 | LB015 | 13.2 | 5 |
64
(45) |
10.4
(14.4) |
6.3 | 5.0 | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 18 | 0.7 |
| 2 | LB020 | 14.8 | 5 |
59
(42) |
10.4
(14.4) |
6.8 | 5.9 | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 2 3/4 | LB028 | 14.8 | 5 |
81
(57) |
10.4
(14.4) |
6.8 | 5.9 | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 3 | LB030 | 15.6 | 5 |
69
(69) |
16.3
(16.9) |
7.5 | 6.3 | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |
| 6 | LB060 | 21.3 | 5 |
72
(72) |
16.3
(16.9) |
7.5 | 8.5 | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 57 | 60 | 3.2 |
| 9 | LB090 | 26.8 | 5 |
78
(78) |
16.3
(16.9) |
7.5 | 12.0 | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 88 | 93 | 4.7 |
Original: $623.96
-65%$623.96
$218.39
Description
A specifically compact, low headroom design to facilitate heavy construction work, manufacturing and a variety of other industry related tasks. The LB series of Lever Hoists have been rated the number one selling lever hoist in the United States. The versatility of these hoists mean they can be used at different load angles with corresponding strength and durability to satisfy your requirements.
Lifting Equipment Store USA is a leading distributor of Harrington products and posses elite industry expertise in helping you select the most effective and efficient Lever Hoists for any lifting requirements. Please contact the Lifting Equipment Store USA sales team TODAY ! to speak to our friendly and knowledgeable sales executives to supply, advise and fulfill your lifting equipment needs.
|
Cap.
(Tons) |
Hoist
Product Code |
Headroom
C (in) |
Std. Lift (ft) |
Pull to
Lift Load* (lbs) |
D*
(in) |
a
(in) |
b
(in) |
e
(in) |
f
(in) |
g
(in) |
Load Chain
Diameter (mm) x Chain Fall Lines |
Net Weight
(lbs) |
Shipping Weight
Approx. (lbs) |
Weight for
Add'l One Foot of Lift (lbs) |
| 3/4 | LB008 | 11.0 | 5 |
54
(36) |
9.6
(14.4) |
5.7 | 4.7 | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 13 | 0.5 |
| 1 | LB010 | 11.8 | 5 |
72
(46) |
9.6
(14.4) |
5.7 | 4.7 | 3.8 | 1.6 | 1.1 | 5.6 x 1 | 13 | 14 | 0.5 |
| 1 1/2 | LB015 | 13.2 | 5 |
64
(45) |
10.4
(14.4) |
6.3 | 5.0 | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 18 | 0.7 |
| 2 | LB020 | 14.8 | 5 |
59
(42) |
10.4
(14.4) |
6.8 | 5.9 | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 2 3/4 | LB028 | 14.8 | 5 |
81
(57) |
10.4
(14.4) |
6.8 | 5.9 | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 3 | LB030 | 15.6 | 5 |
69
(69) |
16.3
(16.9) |
7.5 | 6.3 | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |
| 6 | LB060 | 21.3 | 5 |
72
(72) |
16.3
(16.9) |
7.5 | 8.5 | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 57 | 60 | 3.2 |
| 9 | LB090 | 26.8 | 5 |
78
(78) |
16.3
(16.9) |
7.5 | 12.0 | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 88 | 93 | 4.7 |
