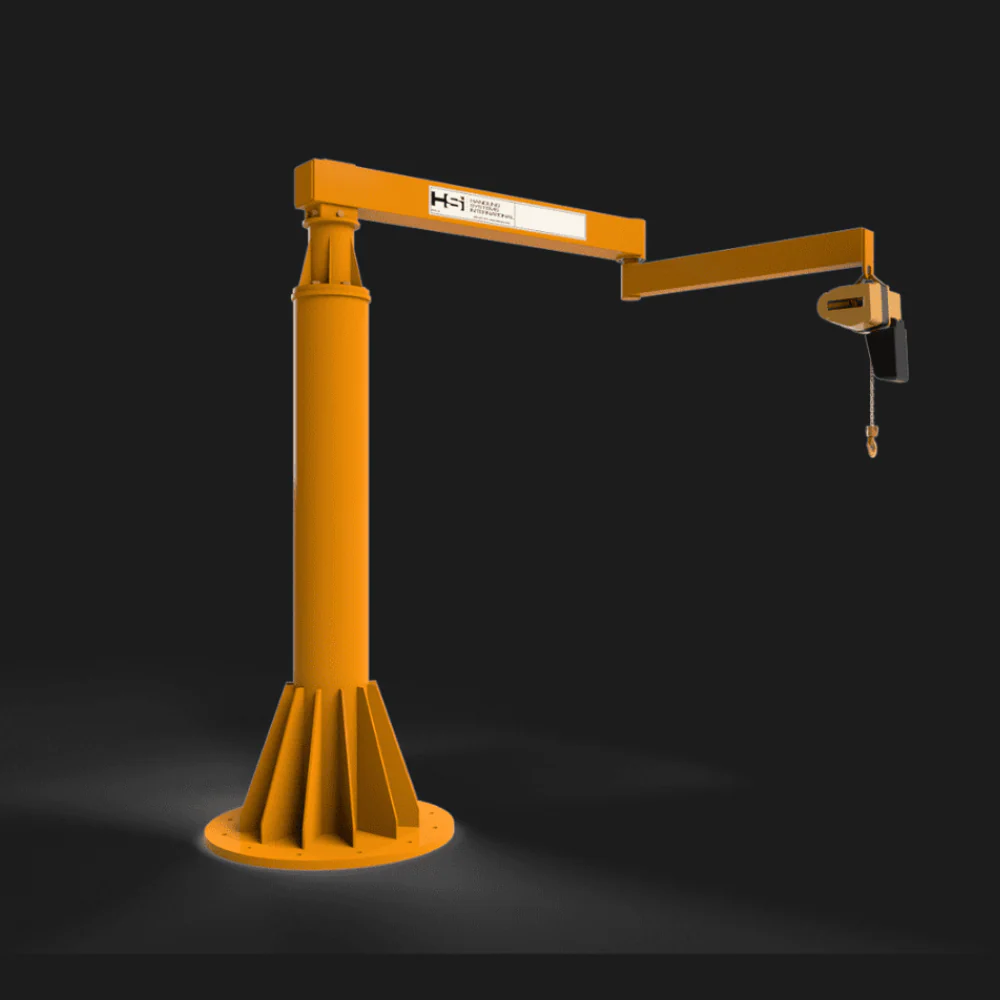

HSI 250lbs Freestanding Articulated Jib Cranes
Manoeuvring heavy loads into tight spaces or around columns in facilities can be a pain, but thanks to HSI’s ingenuity, your problems are now solved.
Designed to easily navigate loads around columns, corners, and throughout narrow passageways, with this Freestanding Articulating Jib Crane, you can now effortless position your loads in those previously hard to reach destinations.
Offering true 360-degree articulation, this freestanding swing jib boasts a large coverage area from boom mast to tip of the outer arm, and work seamlessly with any hoist, manipulator, balancer, or vacuum lifter.
Easy to install, the full plate style gussets provide maximum load distribution. Capable of handling loads of 250lbs, a wide range of variations are available with overall spans from 8ft to 16ft, and height under boom ranges from 8ft-3in. to 14ft-3in.
This jib crane simply mounts to the floor using HSI recommended anchor bolts and can be installed on an existing floor depending on crane specifications. We advise speaking to a qualified engineer before installing.
All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.
For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.
NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Jib Crane ONLY! Please see related products below.
Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist
|
Model Number |
CAPACITY LBS. |
OVERALL SPAN |
INNER ARM LENGTH |
OUTER ARM LENGTH |
BEARING WIDTH |
CLEVIS HEIGHT |
HEIGHT UNDER BEAM |
OUTER ARM HEIGHT |
OVERALL HEIGHT |
MAST DIA. |
GUSSET HEIGHT |
HOOK DIA. |
Bolt Circle Diam. |
Base Plate Diam. |
# Bolts |
Approx. Weight |
|
350FAJ-250-8-8 |
250 |
8 |
4’ 6” |
3’ 6” |
4-5/8” |
8 |
8’ 3” |
8’ 8” |
9’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
427 lbs. |
|
350FAJ-250-10-8 |
250 |
10 |
5’ 6” |
4’ 6” |
4-5/8” |
8 |
8’ 3” |
8’ 8” |
9’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
447 lbs. |
|
350FAJ-250-12-8 |
250 |
12 |
6’ 6” |
5’ 6” |
4-5/8” |
8 |
8’ 3” |
8’ 8” |
9’ 4-3/8” |
12-3/4” |
20” |
2” |
1'-9" |
2'-0" |
8 |
584 lbs. |
|
350FAJ-250-14-8 |
250 |
14 |
7’ 6” |
6’ 6” |
4-5/8” |
8 |
8’ 3” |
8’ 9” |
9’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
928 lbs. |
|
350FAJ-250-16-8 |
250 |
16 |
8’ 8” |
7’ 6” |
4-5/8” |
8 |
8’ 3” |
8’ 9” |
9’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
966 lbs. |
|
350FAJ-250-8-10 |
250 |
8 |
4’ 6” |
3’ 6” |
4-5/8” |
10 |
10’ 3” |
10’ 8” |
11’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
472 lbs. |
|
350FAJ-250-10-10 |
250 |
10 |
5’ 6” |
4’ 6” |
4-5/8” |
10 |
10’ 3” |
10’ 8” |
11’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
492 lbs. |
|
350FAJ-250-12-10 |
250 |
12 |
6’ 6” |
5’ 6” |
4-5/8” |
10 |
10’ 3” |
10’ 8” |
11’ 4-3/8” |
12-3/4” |
20” |
2” |
1'-9" |
2'-0" |
8 |
651 lbs. |
|
350FAJ-250-14-10 |
250 |
14 |
7’ 6” |
6’ 6” |
4-5/8” |
10 |
10’ 3” |
10’ 9” |
11’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
995 lbs. |
|
350FAJ-250-16-10 |
250 |
16 |
8’ 8” |
7’ 6” |
4-5/8” |
10 |
10’ 3” |
10’ 9” |
11’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
1,033 lbs. |
|
350FAJ-250-8-12 |
250 |
8 |
4’ 6” |
3’ 6” |
4-5/8” |
12 |
12’ 3” |
12’ 8” |
13’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
517 lbs. |
|
350FAJ-250-10-12 |
250 |
10 |
5’ 6” |
4’ 6” |
4-5/8” |
12 |
12’ 3” |
12’ 8” |
13’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
537 lbs. |
|
350FAJ-250-12-12 |
250 |
12 |
6’ 6” |
5’ 6” |
4-5/8” |
12 |
12’ 3” |
12’ 8” |
13’ 4-3/8” |
12-3/4” |
20” |
2” |
1'-9" |
2'-0" |
8 |
718 lbs. |
|
350FAJ-250-14-12 |
250 |
14 |
7’ 6” |
6’ 6” |
4-5/8” |
12 |
12’ 3” |
12’ 3” |
13’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
1,062 lbs. |
|
350FAJ-250-16-12 |
250 |
16 |
8’ 8” |
7’ 6” |
4-5/8” |
12 |
12’ 3” |
12’ 3” |
13’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
1,100 lbs. |
|
350FAJ-250-8-14 |
250 |
8 |
4’ 6” |
3’ 6” |
4-5/8” |
14 |
14’ 3” |
14’ 8” |
15’ 4-3/8” |
8-5/8” |
18-3/8” |
2” |
1'-9" |
2'-0" |
8 |
562 lbs. |
|
350FAJ-250-10-14 |
250 |
10 |
5’ 6” |
4’ 6” |
4-5/8” |
14 |
14’ 3” |
14’ 8” |
15’ 4-3/8” |
12-3/4” |
20” |
2” |
1'-9" |
2'-0" |
8 |
766 lbs. |
|
350FAJ-250-12-14 |
250 |
12 |
6’ 6” |
5’ 6” |
4-5/8” |
14 |
14’ 3” |
14’ 8” |
15’ 4-3/8” |
12-3/4” |
20” |
2” |
1'-9" |
2'-0" |
8 |
785 lbs. |
|
350FAJ-250-14-14 |
250 |
14 |
7’ 6” |
6’ 6” |
4-5/8” |
14 |
14’ 3” |
14’ 9” |
15’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
1,129 lbs. |
|
350FAJ-250-16-14 |
250 |
16 |
8’ 8” |
7’ 6” |
4-5/8” |
14 |
14’ 3” |
14’ 9” |
15’ 10-11/16” |
12-3/4” |
20” |
2-1/2” |
1'-9" |
2'-0" |
8 |
1,167 lbs. |
Original: $9,834.12
-65%$9,834.12
$3,441.94
