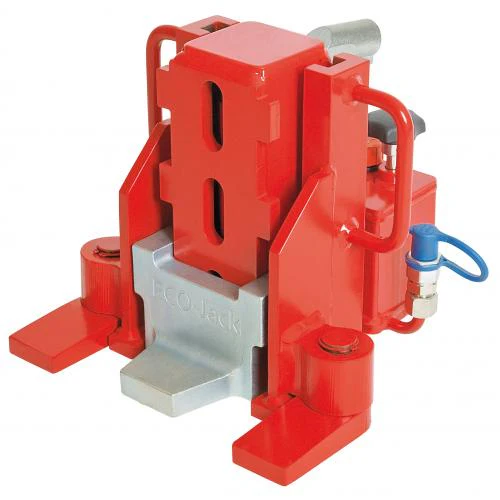

HTS ECO-Jack S-Series 10 Ton Hydraulic Toe Jack
The HTS ECO-Jack S-Series has been designed and manufactured in Germany to a very high specification. Incorporating many quality features including fully adjustable feet positions, Adjustable toe which can be positioned in 4 places, single handed operation done simply and it boasts an integrated pump making the user independent from any additional equipment.
With the HTS ECO-Jack you simply grip the claw, remove it and place it in the desired position.
Possible to operate using an external hand pump and an electric pump
When there is no space for the swivelling legs a head support is available.
| Type | EJ100-4S |
|---|---|
| Part number | 01 100 31 10 |
| Capacity (lbs.) | 22,000 |
| Working pressure (bar/psi) | 520/7,425 |
| Claw height (inch) | 0.8" |
| Adjustability (inch) | 3 x 2.9" |
| Stroke (inch) | 5.5" |
| Dimensions L x W x H (inch) | 8.5" X 9.0" X 9.9" |
| Weight (lbs.) | 42 |
