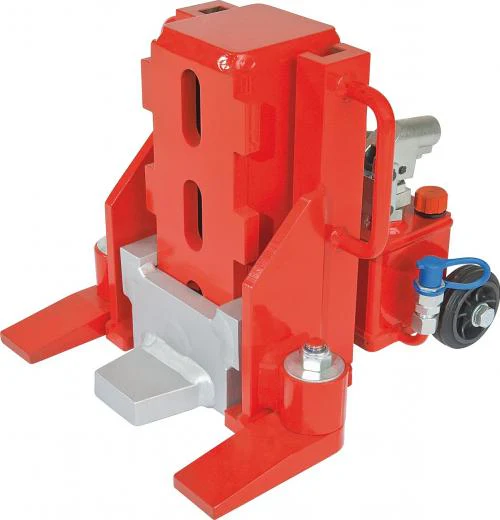

HTS ECO-Jack S-Series 25 Ton Hydraulic Toe Jack

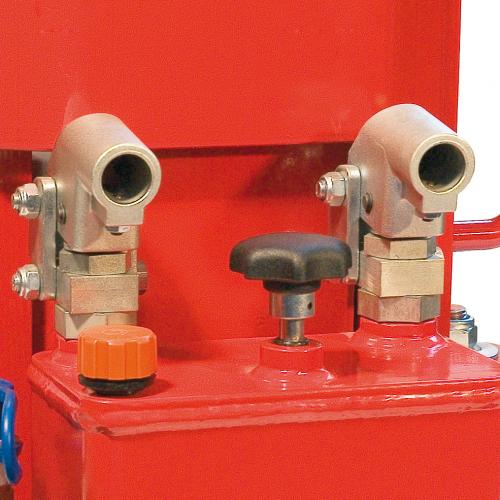

The HTS ECO-Jack S-Series has been designed and manufactured in Germany to a very high specification. Incorporating many quality features including fully adjustable feet positions, Adjustable toe which can be positioned in 4 places, single handed operation done simply and it boasts an integrated pump making the user independent from any additional equipment. The ECO-Jack 25 Ton Toe Jack is equipped with a second hydraulic pump.HTS was the first company that introduced a fast stroke on a 15.000 kg capacity jack in response to market demand. This enables the jack to be lifted up to three times faster than normal, when not under load, followed by precise lifting with the working hydraulic.

With the HTS ECO-Jack you simply grip the claw, remove it and place it in the desired position.

Possible to operate with an external hand pump or an electric pump.

Type	EJ100-4S
Part number	01 250 31 10
Capacity (lbs.)	55,000
Working pressure (bar/psi)	520/7,425
Claw height (inch)	1.2"
Adjustability (inch)	3 x 3.9"
Stroke (inch)	5.5"
Dimensions L x W x H (inch)	8.5" X 9.0" X 9.9"
Weight (lbs.)	42
