HTS ECO-Skate 24 Ton Ideal Load Moving Skate Kits i-Series

The ECO-Skate IDEAL 24 Ton load moving skate kits are compact and easy to use, with an innovative design making them virtually maintenance free. Engineering and manufactured in Germany. Used for production lines, transporting heavy loads and moving containers.

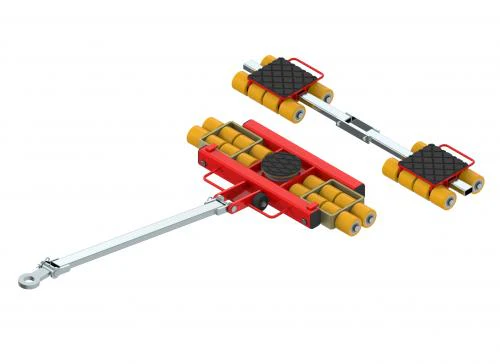

Supplied with the i120L Front Steerable Skate 26,400 lb and the i120S Adjustable Rear Trailling Skate 2 x 13,200 lb offering a combined capacity as a set of 52,800 lb - 24 Ton

• Solutions to suit your specification are also available - contact us with your specification.
• Folding Alignment Bar with this model

Type	i120L	i120S	i120S and i120L Set
Part number	10.120.00.10	10.120.00.20
Capacity (lbs.)	26,400	2 x 13,200	52,800
Wheels size (inch)	3.3" X 3.4"	3.3" X 3.4"
Number of wheels	16	2 x 8
Load area (inch)	6.7"	7.9" X 8.7"
Dimensions L x W x H (inch)	20.8" X 38.6" X 4.3"	11.5" X 15" X 4.3"
Handle length (inch)	47.2"	-
Adjustability (inch)	-	22" to 43.3"
Weight (lbs.)	150	99
