HTS ECO-Skate i-Series XL Load Moving Skate System with Polyurethane Wheels
HTS' ECO-Skate XL Load Moving Skate Systems are perfect for those heavy-duty load moving scenarios, with working load limits of up to 96 Tonnes available - select from dropdown menu.
Fitted with reliable, non-marking polyurethane wheels/rollers, which are individually supported to avoid any risk of axle flexing, the i-Series XL skate systems come complete with pulling and alignment bars.
NOTE: We supply the HTS ECO-Skate XL Load Moving Skates as a complete system, but if you only require a side model, please call our sales team and quote the individual part number you require.
|
Model |

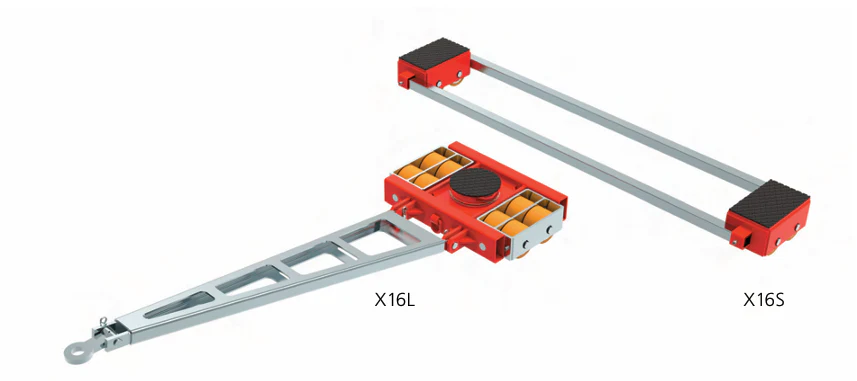

X16L |
X16S |

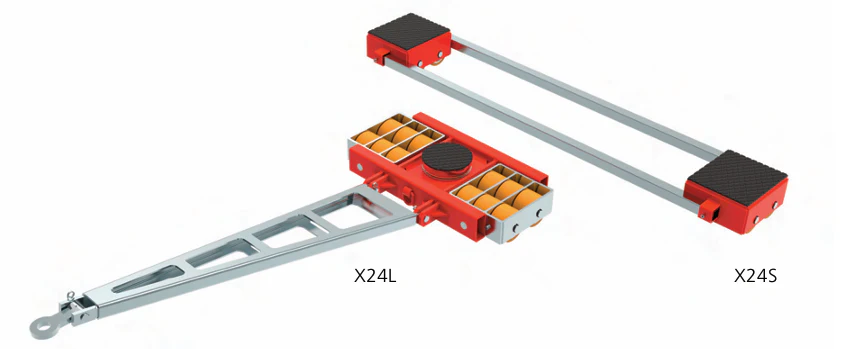

X24L |
X24S |

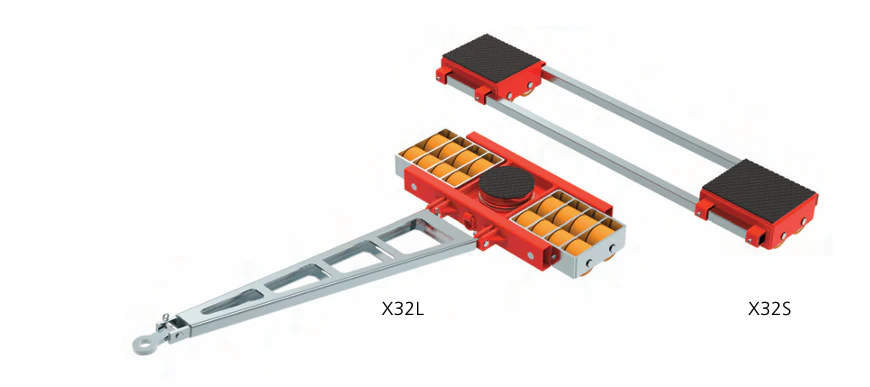

X32L |
X32S |

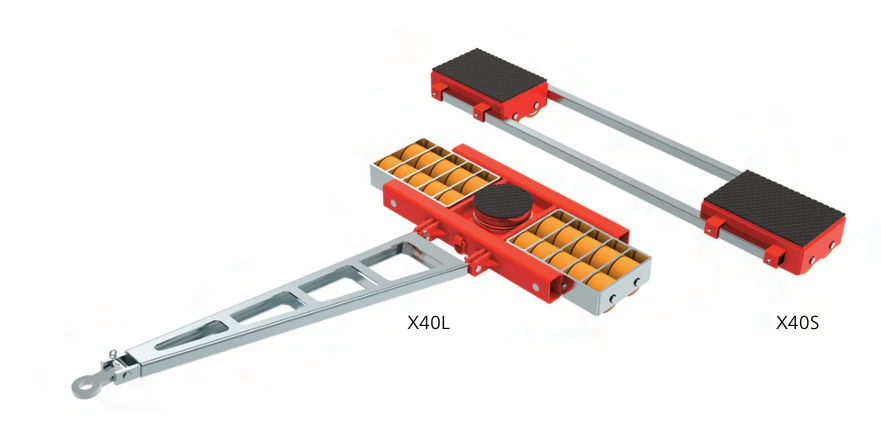

X40L |
X40S |

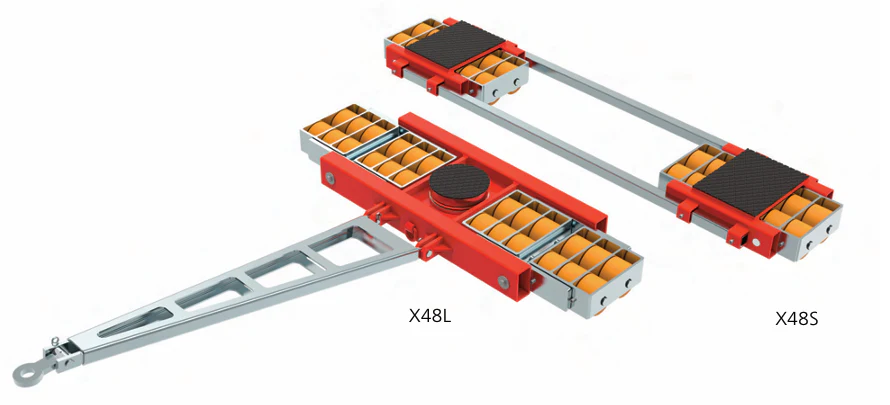

X48L |
X48S |
|---|---|---|---|---|---|---|---|---|---|---|
|
Part Code |
10.160.02.10 |
10.160.02.20 |
10.240.02.10 |
10.240.02.20 |
10.320.02.10 |
10.320.02.20 |
10.400.02.10 |
10.400.02.20 |
10.480.02.10 |
10.480.02.20 |
|
Capacity (lbs) |
35200 |
2 x 17600 |
52800 |
2 x 26400 |
70400 |
2 x 35200 |
88800 |
2 x 44000 |
105600 |
2 x 52800 |
|
Capacity as Set (lbs) |
70400 |
105600 |
140800 |
176000 |
211200 |
|||||
|
Wheel Size (in) |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
|
Number of Wheels |
8 |
2 x 4 |
12 |
2 x 6 |
16 |
2 x 8 |
20 |
2 x 10 |
24 |
2 x 12 |
|
Load Area (in) |
8.7 |
12.5 x 7.5 |
8.7 |
12.5 x 11.2 |
9.8 |
12.5 x 15 |
9.8 |
12.5 x 18.9 |
9.8 |
5.7 x 11.8 |
|
Dimensions (in) |
22.4 x 28.5 x 7.1 |
17.9 x 8.5 x 7.1 |
22.4 x 36.7 x 7.1 |
17.9 x 12.3 x 7.1 |
22.4 x 44.8 x 7.1 |
17.9 x 16.1 x 7.1 |
23.9 x 52.6 x 7.1 |
17.9 x 19.9 x 7.1 |
26 x 65.7 x 7.1 |
22.8 x 27.2 x 7.1 |
|
Handle Length (in) |
63.8 |
- |
63.8 |
- |
63.8 |
- |
63.8 |
- |
63.8 |
- |
|
Adjustability (in) |
- |
8.6 - 76.3 |
- |
12.6 -76.4 |
- |
16.5- 65.4 |
- |
21.6- 65 |
- |
27.5- 66.5 |
|
Weight (lbs) |
294.8 |
204.2 |
354.2 |
273.2 |
426.8 |
345.4 |
506 |
422 |
702 |
581 |
Original: $8,269.66
-65%$8,269.66
$2,894.38
