HTS ECO-Skate iN-Series DUO Load Moving Skates with Nylon Wheels
Designed to easily transport those longer and wider machines, HTS' ECO-Skate iN-Series Duo offer super-smooth movement thanks to the low rolling resistant nylon wheels.
Available in 8Ton and 16Ton models, the iN-Series DUO load moving skate system come complete with sufficient pulling and alignment bars, giving you all you need to make moving those awkward machines a doddle.
Furthermore, all DUO Series skate systems can be combined with other DUO, ROTO, and IDEAL skates and trolleys to create a 4-point load moving system. Please note that the total load capacity results are formed by the sum of the individual load rated capacities.
Ā
|
Model |

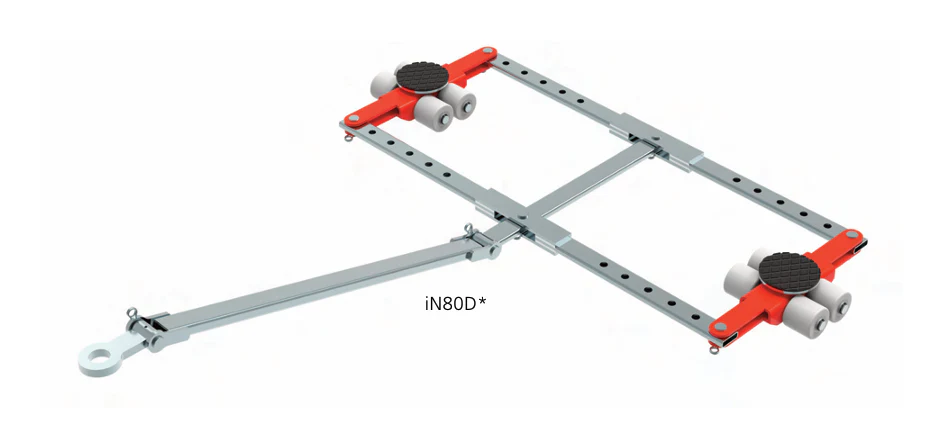

iN80D |

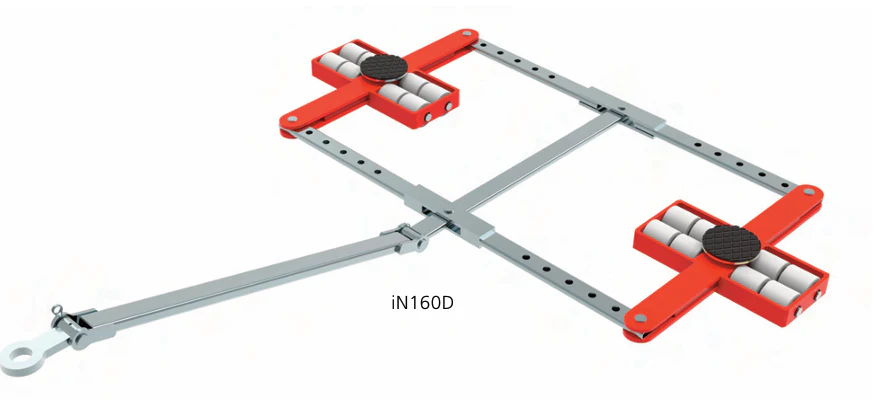

iN160D |
|---|---|---|
|
Product Code |
10.080.01.30 |
10.160.01.30 |
|
Capacity (lbs) |
2 x 8,800 |
2 x 17,600 |
|
Wheel Size (in) |
3.3 x 3.4 |
3.3 x 3.4 |
|
Number of Wheels |
2 x 4 |
2 x 8 |
|
Load Area (in) |
2 x Ć 5.9 |
2 x Ć 5.9 |
|
Dimensions (in) |
28.2 x 62.2 x 4.3 |
37.9 x 70.2 x 4.3 |
|
Handle Length (in) |
46.1 |
46.1 |
|
Adjustability (in) |
6 x 22-51 |
6 x 22-51 |
|
Weight (lbs) |
104 |
176 |
Original: $1,754.33
-65%$1,754.33
$614.02
Description
Designed to easily transport those longer and wider machines, HTS' ECO-Skate iN-Series Duo offer super-smooth movement thanks to the low rolling resistant nylon wheels.
Available in 8Ton and 16Ton models, the iN-Series DUO load moving skate system come complete with sufficient pulling and alignment bars, giving you all you need to make moving those awkward machines a doddle.
Furthermore, all DUO Series skate systems can be combined with other DUO, ROTO, and IDEAL skates and trolleys to create a 4-point load moving system. Please note that the total load capacity results are formed by the sum of the individual load rated capacities.
Ā
|
Model |
iN80D |
iN160D |
|---|---|---|
|
Product Code |
10.080.01.30 |
10.160.01.30 |
|
Capacity (lbs) |
2 x 8,800 |
2 x 17,600 |
|
Wheel Size (in) |
3.3 x 3.4 |
3.3 x 3.4 |
|
Number of Wheels |
2 x 4 |
2 x 8 |
|
Load Area (in) |
2 x Ć 5.9 |
2 x Ć 5.9 |
|
Dimensions (in) |
28.2 x 62.2 x 4.3 |
37.9 x 70.2 x 4.3 |
|
Handle Length (in) |
46.1 |
46.1 |
|
Adjustability (in) |
6 x 22-51 |
6 x 22-51 |
|
Weight (lbs) |
104 |
176 |
