HTS ECO-Skate iN-Series XL Load Moving Skate System with Nylon Wheels
HTS' ECO-Skate XL Load Moving Skate Systems are perfect for those heavy-duty load moving scenarios, with working load limits of up to 100 Tonnes available - select from dropdown menu.
Fitted with individually supported nylon wheels, avoiding any flexing of the axle under short-term stress, the non-marking rollers have a very low rolling resistance. Additionally, as they are made from solid material and not produced through injection molding, they are resistant to abrasion.
Comes as a complete set, including pulling and alignment bars.
NOTE: We supply the HTS ECO-Skate XL Load Moving Skates as a complete system, but if you only require a side model, please call our sales team and quote the individual part number you require.
|
Model |

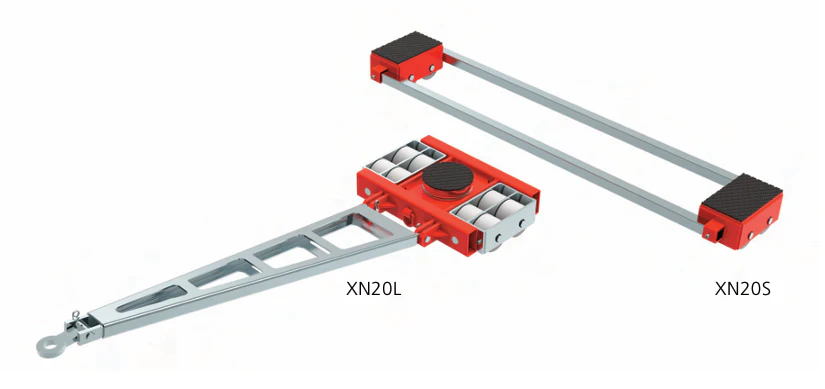

XN20L |
XN20S |

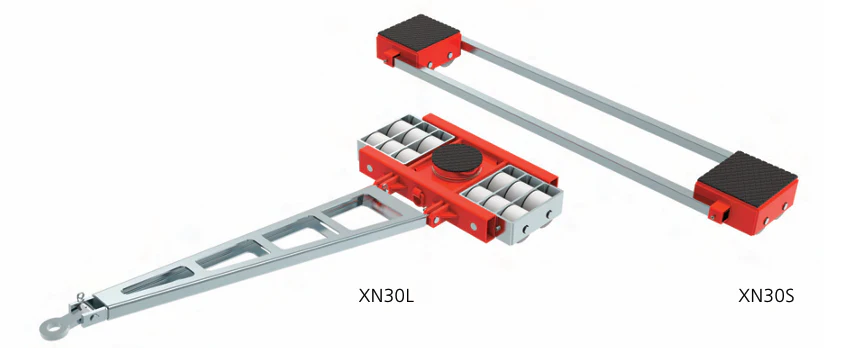

XN30L |
XN30S |

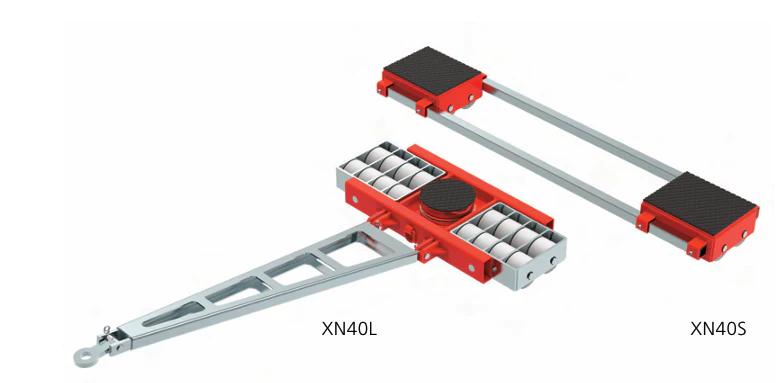

XN40L |
XN40S |

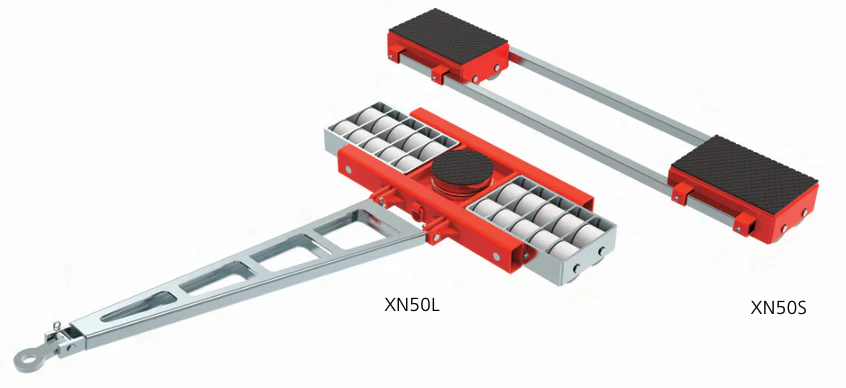

XN50L |
XN50S |
|---|---|---|---|---|---|---|---|---|
|
Part Code |
10.200.03.10 | 10.200.03.20 | 10.300.03.10 | 10.300.03.20 | 10.400.03.10 | 10.400.03.20 |
10.500.03.10 |
10.500.03.20 |
|
Capacity (lbs) |
44000 |
2 x 22000 |
66100 |
2 x 33000 |
88100 |
2 x 44000 |
110200 |
2 x 55100 |
|
Capacity as Set (lbs) |
88100 |
132200 |
176300 |
220400 |
||||
|
Wheel Size (in) |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
5.5 x 3.3 |
|
Number of Wheels |
8 |
2 x 4 |
12 |
2 x 6 |
16 |
2 x 8 |
20 |
2 x 10 |
|
Load Area (in) |
8.7 |
12.5 x 7.5 |
8.7 |
12.5 x 11.2 |
8.7 |
12.5 x 15 |
8.7 |
12.5 x 18.9 |
|
Dimensions (in) |
22.4 x 28.5 x 7.1 |
17.9 x 8.5 x 7.1 |
22.4 x 28.5 x 7.1 |
17.9 x 8.5 x 7.1 |
22.4 x 44.8 x 7.1 |
17.9 x 16.1 x 7.1 |
23.9 x 52.6 x 7.1 |
17.9 x 19.9 x 7.1 |
|
Handle Length (in) |
63.8 |
- |
63.8 |
- |
63.8 |
- |
63.8 |
- |
|
Adjustability (in) |
- |
8.7-76.4 |
- |
12.6-76.4 |
- |
16.5-65.4 |
- |
21.6-65 |
|
Weight (lbs) |
279 |
178 |
328 |
238 |
400 |
297 |
472 |
383 |
Original: $9,304.66
-65%$9,304.66
$3,256.63
