HTS ECO-Skate ISOCON Container Machine Skates Systems
Designed specifically for the easy movement of ISO containers, the HTS ECO-Skate ISOCON Container Moving Systems are available in safe working loads up to 140,800lbs (64 Tonnes).
Equipped with exceptionally high quality non-marking polyurethane wheels/rollers, models with wheels sizes of Ø 85mm have container cones to prevent slipping, while systems with wheels sizes of Ø 140mm, slipping is prevented via an innovative Twist-Lock system.
Made in Germany, these user-friendly and robust skate systems are virtually maintenance free.
NOTE: We supply the HTS ECO-Skate ISOCON Container Skates as a complete system, but if you only require a side model, please call our sales team and quote the individual part number you require.
|
Model |
IC60D |
IC60S |
IC120D |
IC120S |

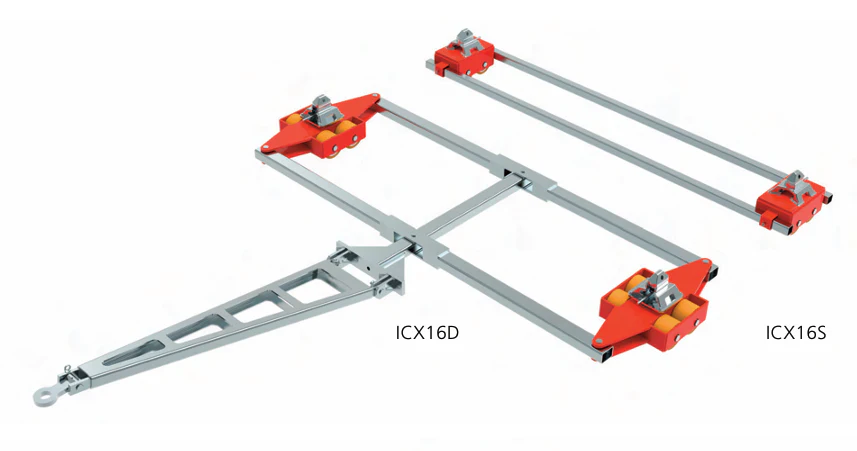

ICX16D |
ICX16S |

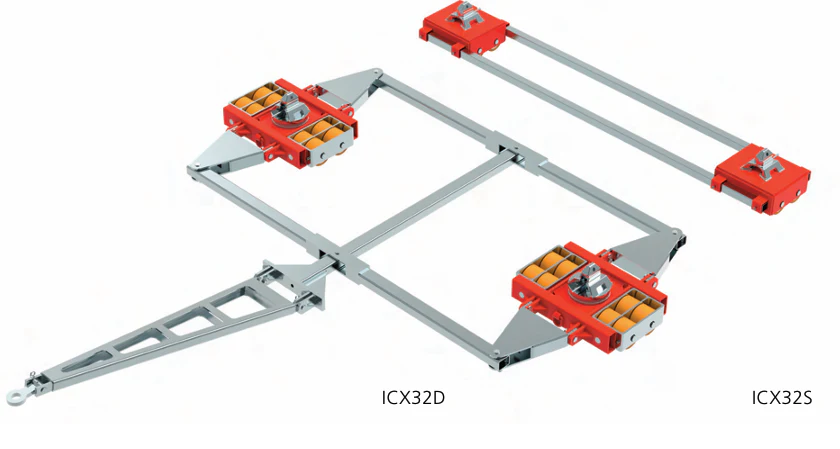

ICX32D |
ICX32S |
|---|---|---|---|---|---|---|---|---|
|
Part Code |
10.030.00.35 |
10.060.00.25 |
10.120.00.35 |
10.120.00.25 |
10.160.02.35 |
10.160.02.25 |
10.320.02.35 |
10.320.02.25 |
|
Capacity (lbs) |
2 x 6600 |
2 x 6600 |
2 x 13225 |
2 x 13225 |
2 x 17630 |
2 x 17630 |
2 x 35200 |
2 x 35200 |
|
Capacity as Set (lbs) |
26400 |
52900 |
70500 |
140800 |
||||
|
Wheel Size (in) |
3.3 x 3.4 |
3.3 x 3.4 |
3.3 x 3.4 |
3.3 x 3.4 |
Ø 5.5 x 3.3 |
Ø 5.5 x 3.3 |
Ø 5.5 x 3.3 |
Ø 5.5 x 3.3 |
|
Number of Wheels |
2 x 4 |
2 x 4 |
2 x 8 |
2 x 8 |
2 x 4 |
2 x 4 |
2 x 8 |
2 x 8 |
|
Load Area (in) |
Ø 5.9 + cone |
4.7 x 8.7 + cone |
Ø 5.9 + cone |
4.7 x 8.7 + cone |
Ø 6.7 + TLS* |
12.5 x 7.7 + TLS* |
Ø 8.7 + TLS* |
12.5 x 15 + TLS* |
|
Dimensions (in) |
28.2 x 100 x 4/6.4 |
11.5 x 98.4 x 4/6.4 |
37.9 x 107.9 x 4/6.4 |
11.5 x 104 x 4/6.4 |
50.2 x 103.8 x 9.4/11.7 |
18 x 97.4 x 9.4/11.7 |
57 x 117.4 x 9.4/11.7 |
18 x 105.1 x 9.4/11.7 |
|
Handle Length (in) |
49.2 |
- |
49.2 |
- |
63.8 |
- |
63.8 |
- |
|
Distance Cone Center (in) |
88.9 |
88.9 |
88.9 |
88.9 |
88.9 |
88.9 |
88.9 |
88.9 |
|
Weight (lbs) |
132 |
77 |
194 |
110 |
473 |
229 |
913 |
374 |
Original: $4,647.16
-65%$4,647.16
$1,626.51
