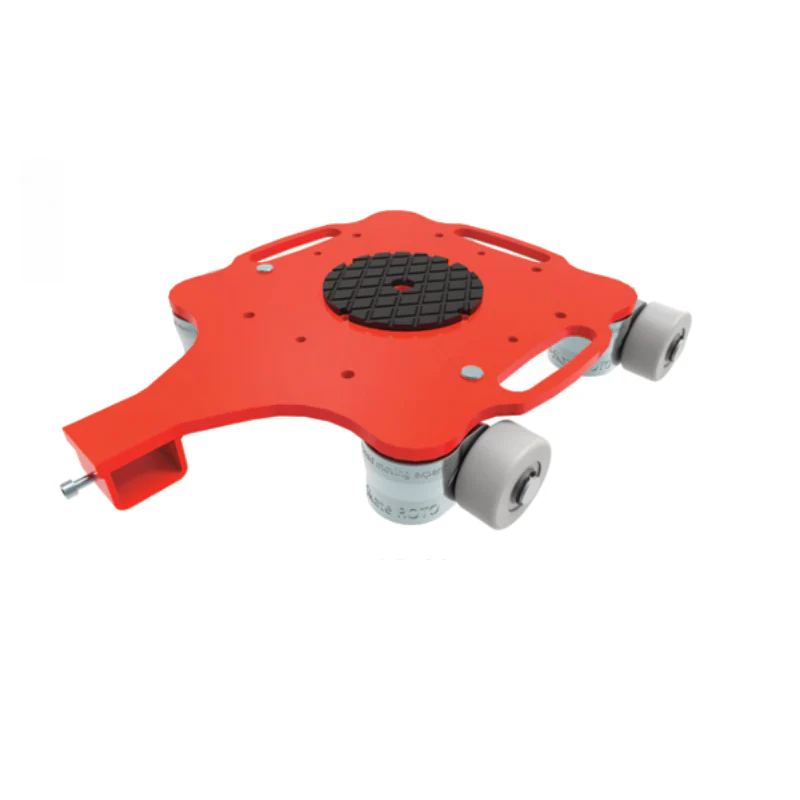

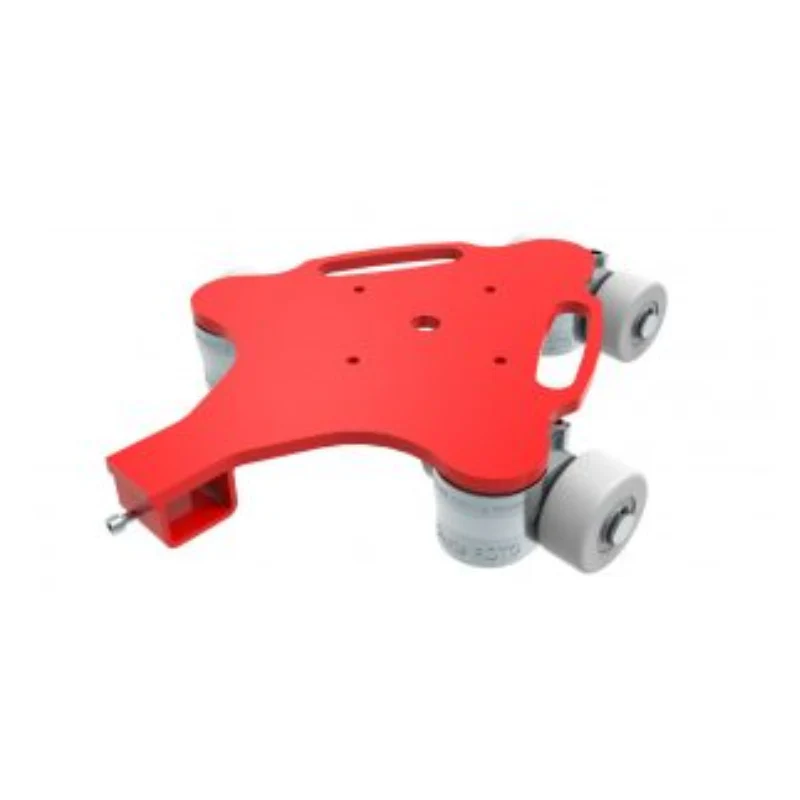

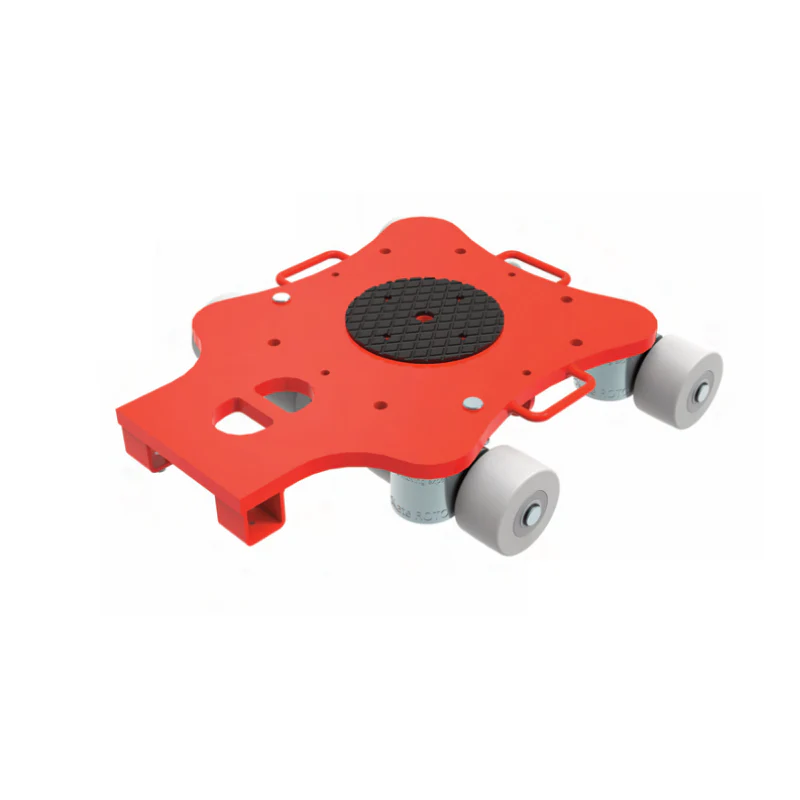

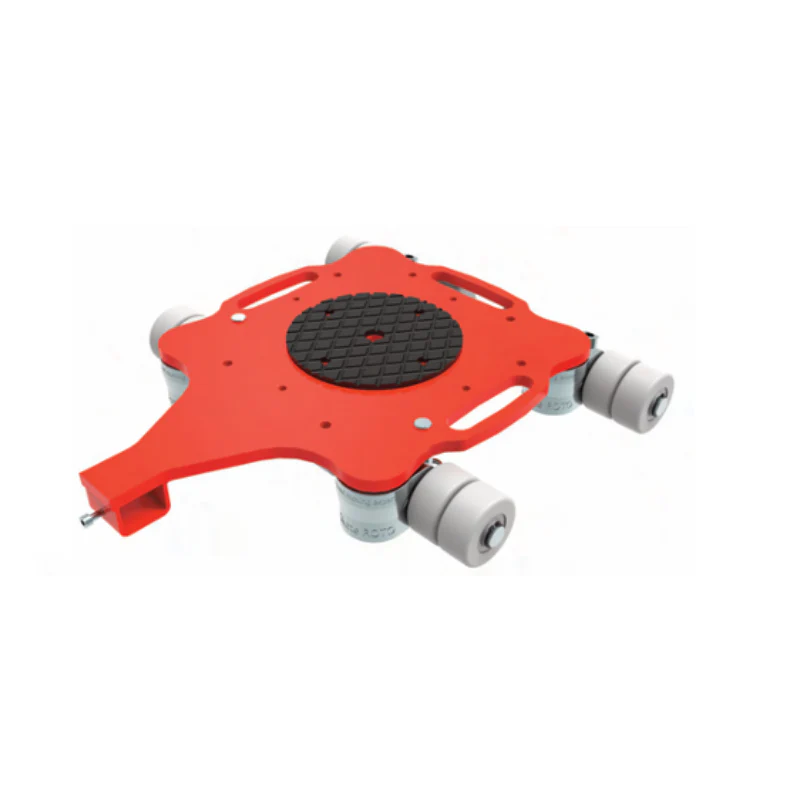

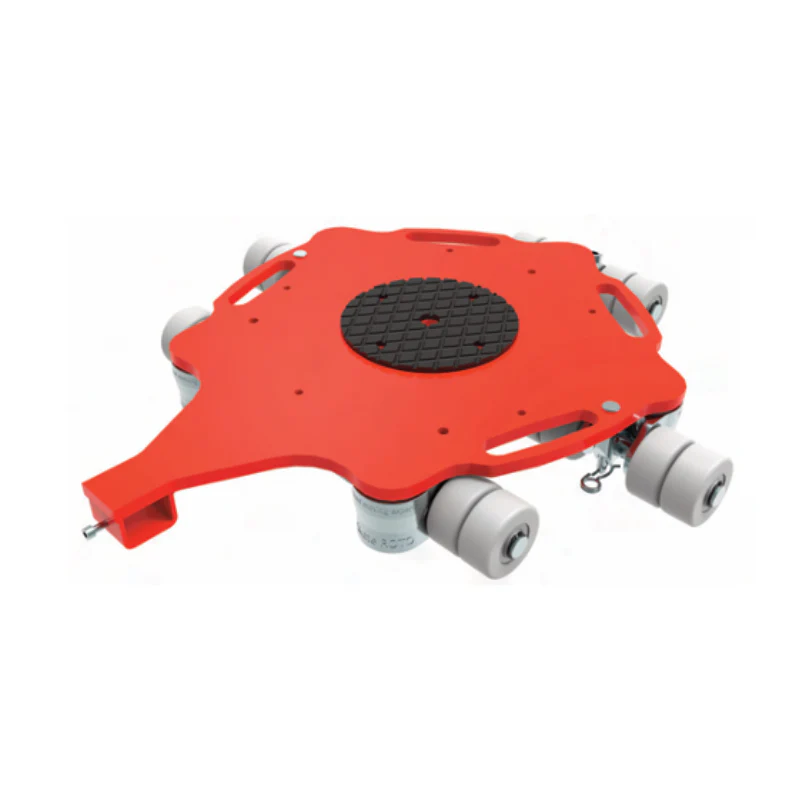

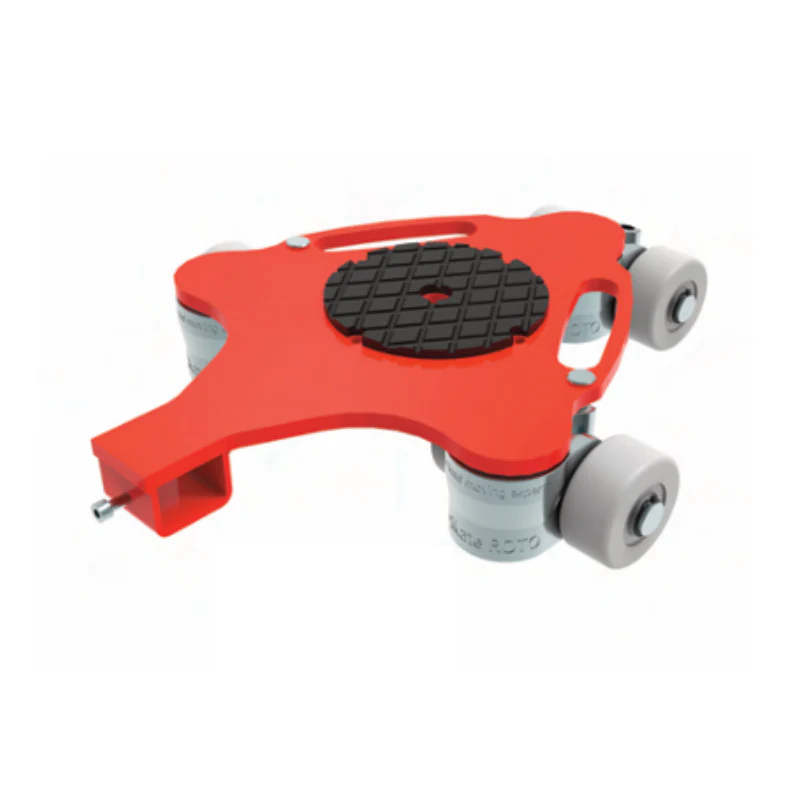

HTS ECO-Skate ROTOflex Rotational Machine Skate with Nylon Wheels

Struggling to move loads in and out of tight, inconvenient spaces? Then look no further than HTS' ECO-Skate ROTOflex series.

Boasting a smooth full 360-degree rotatable profile for optimal positioning accuracy, the ECO-Skate ROTO comes in a wide range of safe working loads from 1,980lbs right up to 26,400lbs. There are also models available either with or without central rubber pad.

This particular model series is equipped with HTS nylon wheels that have a very low rolling resistance, meaning getting those heavy loads on the move really isn't that difficult.

HTS nylon wheels are made from solid material rather than conventional injection molding, meaning they are very high quality and resistant to abrasions.

Furthermore, as with most HTS Skate Systems, the ROTO can be combined with IDEAL, DUO, and other ROTO devices to create a multi-wheel systems. Total load results are obtained by adding the sum of the individual component load capacities.





Model	RMN9	RFN18	RFN18-G	RFN30	RFN30-G	RFN60	RFN60-G	RFN80	RFN80-G	RFXN12	RFXN12-G
Part Code	10.009.08.40	10.018.09.41	10.018.09.40	10.030.09.41	10.030.09.40	10.060.09.41	10.060.09.40	10.080.09.41	10.080.09.40	10.120.03.41	10.120.03.40
Capacity (lbs)	1980	3960	3960	6600	6600	13200	13200	17600	17600	26400	26400
Wheel Size (in)	1.9 x 1.8	5.9	5.9	6.7	6.7	3.3 x 1.7	3.3 x 1.7	3.3 x 1.7	3.3 x 1.7	5.5 x 3.3	5.5 x 3.3
Number of Wheels	4	6	6	8	8	16	16	20	20	8	8
Load Area (in)	3 x 3	5.9	5.9	6.7	6.7	8.6	8.6	8.6	8.6	8.6	8.6
Dimensions (in)	11.3 x 9.9 x 3.4	21.7 x 18.4 x 4.3	21.7 x 18.4 x 4	23.1 x 18.4 x 4.3	23.1 x 18.4 x 4	25.6 x 23 x 4.3	25.6 x 23 x 4	32.6 x 31 x 4.3	32.6 x 31 x 4	32.7 x 28 x 7.1	32.7 x 28 x 7.1
Weight (lbs)	13.9	48.4	48.4	73	73	95	95	129.4	129.4	264	264
Rubber Pad	Yes	Yes	No	Yes	No	Yes	No	Yes	No	Yes	No
