Kinedyne 1" 90-Degree Strap End Bolt Plate

Kinedyne 1" 90-Degree Strap End Bolt Plate

Designed for securing anchor points to corners, this 1-inch 90-degree strap end bolt plate from Kinedyne boasts industrial strength thanks to its heat-treated carbon steel construction.

Fitted with a standard 0.26-inch hole to attach the plate, this simple yet convenient unit boasts a working load limit range of 1670lbs - 2167lbs, depending on fixed angle.

1" 90-Degree Strap End Bolt Plate – 34109-6 Quick Specs:

  • 0 Degree Working Load Limit: 2,167 Lbs. / 985 Kgs.
  • 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
  • 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.

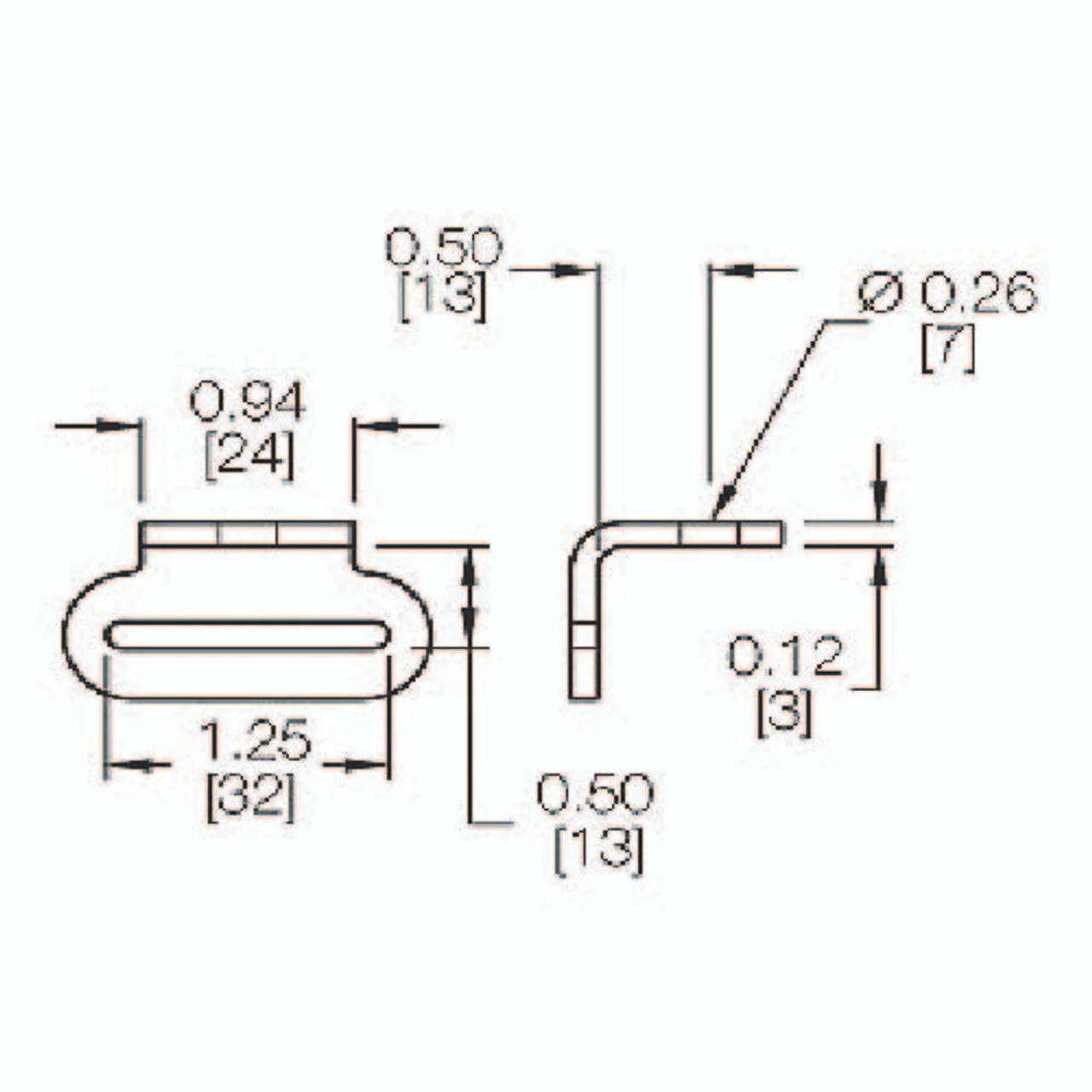

  • Width of Webbing Slot: 1.25 Inches
  • Overall Height: 0.12 Inch
  • Overall Width: 1.40 Inches
  • Overall Length: 1 Inch
  • Type of Hole: Standard Hole to Attach Plate
  • Dimension of Hole: 0.26 Inch
$1.42

Original: $4.07

-65%
Kinedyne 1" 90-Degree Strap End Bolt Plate—

$4.07

$1.42
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Description

Designed for securing anchor points to corners, this 1-inch 90-degree strap end bolt plate from Kinedyne boasts industrial strength thanks to its heat-treated carbon steel construction.

Fitted with a standard 0.26-inch hole to attach the plate, this simple yet convenient unit boasts a working load limit range of 1670lbs - 2167lbs, depending on fixed angle.

1" 90-Degree Strap End Bolt Plate – 34109-6 Quick Specs:

  • 0 Degree Working Load Limit: 2,167 Lbs. / 985 Kgs.
  • 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
  • 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
  • Width of Webbing Slot: 1.25 Inches
  • Overall Height: 0.12 Inch
  • Overall Width: 1.40 Inches
  • Overall Length: 1 Inch
  • Type of Hole: Standard Hole to Attach Plate
  • Dimension of Hole: 0.26 Inch
