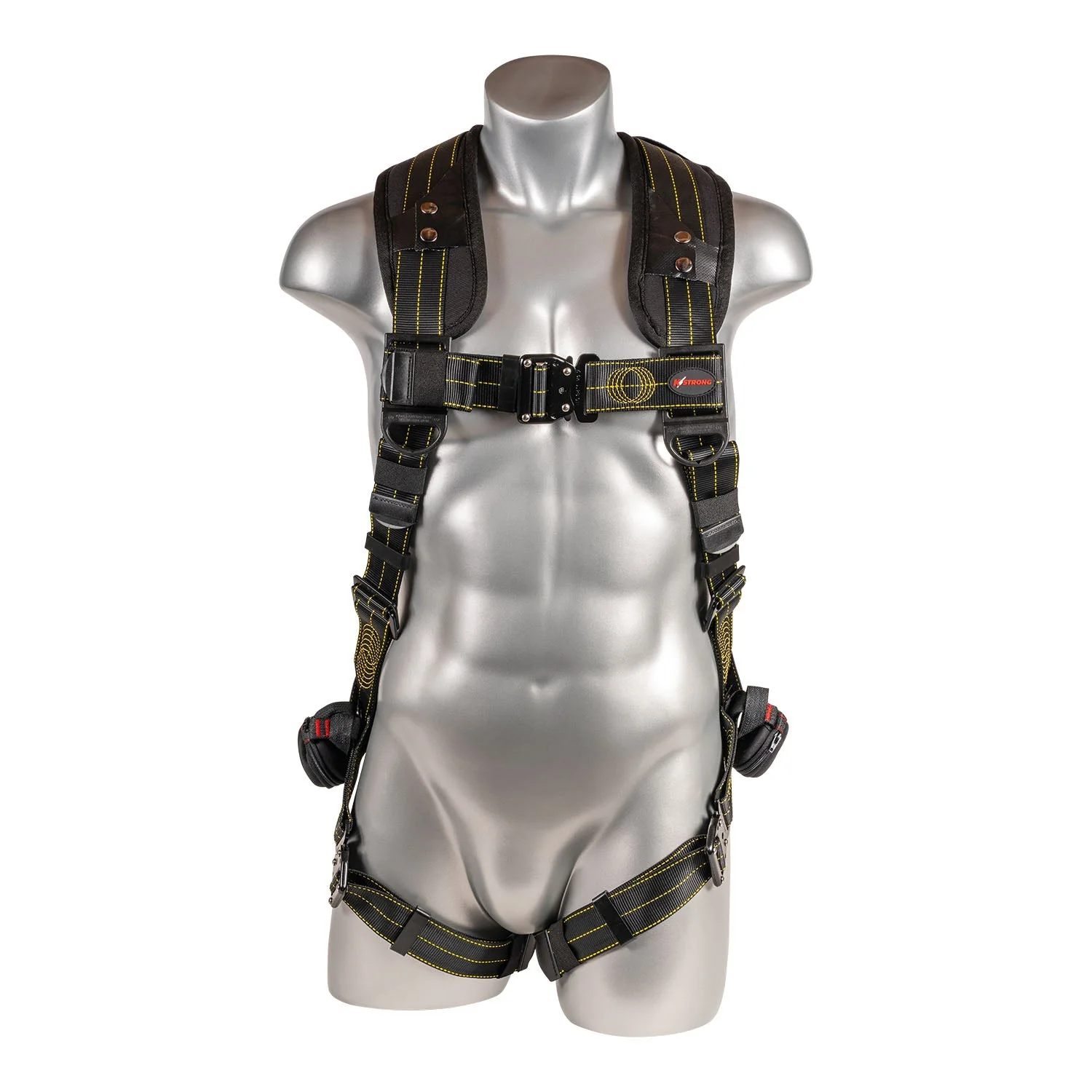

KStrong® Kapture™ Element 5-Point Full Body Harness with Revolta™ Oil and Water Repellent Webbing, 1 Enhanced Dorsal D-ring Plus™, Back/Shoulder Pad, Trauma Relief Straps, QC Chest and Legs (ANSI)

KStrong® Kapture™ Element 5-Point Full Body Harness with Revolta™ Oil and Water Repellent Webbing, D-Ring Plus™, Back/Shoulder Pad, and Trauma Relief Straps

Engineered for comfort, safety, and high performance, the KStrong® Kapture™ Element 5-Point Full Body Harness is ideal for demanding work environments such as construction, utilities, oil & gas, and industrial maintenance.

This premium harness is built with Revolta™ polyester webbing, specially coated to resist oil, water, and dust. It features a 5-point adjustment system, quick-connect chest and leg straps, and a sub-pelvic strap for a secure and ergonomic fit. A removable back/shoulder pad enhances comfort during extended wear, while the included UFZ850100 Trauma Relief Straps offer critical post-fall suspension relief.

A high-strength Enhanced Dorsal D-ring Plus™ provides a reliable fall arrest point, and the rugged alloy steel components are finished in PCB for durability.

Webbing width is 1.73 in. (44mm), with a breaking strength of 5,000 lbs., and the harness is ANSI-rated for users between 130–310 lbs. It meets or exceeds ANSI Z359.11-2014 standards for full-body fall protection.

Available Sizes & Weights:

S-M: 3.68 lbs. (1670 gm)

M-L: 3.79 lbs. (1720 gm)

L-XL: 3.90 lbs. (1770 gm)

XL-2XL: 4.01 lbs. (1820 gm)

Whether working at height or in hazardous conditions, the Kapture™ Element harness offers unmatched protection, comfort, and durability.



DESIGN:
•    5-Point adjustable full body harness with quick connect leg straps and quick connect chest
•    Constructed from unique polyester webbing with specialized coating that repels oil, dust, and water
•    Equipped with removable shoulder pad
•    One dorsal attachment enhanced D-ring Plus™
•    UFZ850100 Trauma Relief Straps Included
•    Equipped with sub-pelvic strap
WEBBING:
Material: Polyester with Specialized Coating
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.
STITCHING THREAD:
Material: High-tenacity Polyester
METAL COMPONENT:
Material: Alloy Steel;
Finish: PCB
CAPACITY RANGE:
ANSI: 130 – 310 lbs.
RELEVANT STANDARDS:
Meets or Exceeds ANSI ANSI Z359.11-2014
WEIGHT:
•    Model: UFH10802Q(S-M)
Size: Small to Medium
Weight: 3.68 lbs. ± 0.02 lbs. (1670 gm ±10 gm)
•    Model: UFH10802Q(M-L)
Size: Medium to Large
Weight: 3.79 lbs. ± 0.02 lbs. (1720 gm ±10 gm)
•    Model: UFH10802Q(L-XL)
Size: Large to X-Large
Weight: 3.90 lbs. ± 0.02 lbs. (1770 gm ±10 gm)
•    Model: UFH10802Q(XL-2XL)
Size: X-Large to 2XL
Weight: 4.01 lbs. ± 0.02 lbs. (1820 gm ±10 gm)
