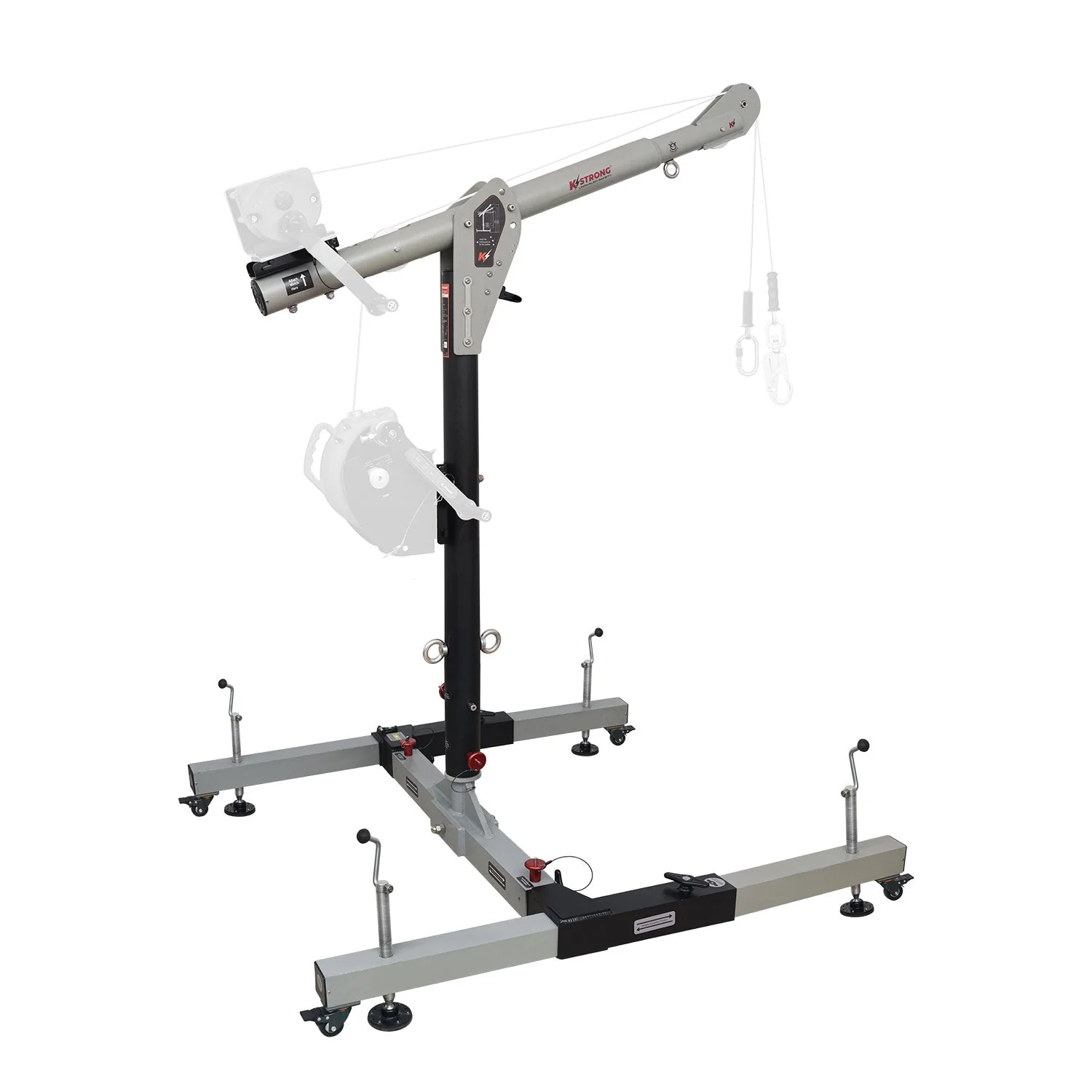

KStrong® Megadavit™ H-Base Basic Kit.

The KStrong® Megadavit™ H-Base Basic Kit offers a reliable and efficient anchorage solution for confined space access and rescue operations. Designed with portability and ease of use in mind, this system breaks down into five lightweight components, enabling quick, tool-free assembly and compact storage.

Crafted from high-strength, durable aluminum alloy with an ED-coated grey finish, the kit ensures lasting durability and corrosion resistance. Its modular design supports various fixed and portable bases, along with optional mast extensions to meet diverse operational requirements. The cantilever boom arm features three adjustable height positions, allowing users to customize reach for optimal performance in large holes or confined spaces.

The H-base frame offers a flexible opening ranging from 43.3 inches to 59.44 inches, accommodating different site conditions. Foldable and removable legs simplify transportation and installation. Multiple anchorage points enable versatile rescue applications, while the inbuilt swivel allows the davit column to rotate a full 360°, enhancing maneuverability.

With a maximum load capacity of 1102 lbs (500 kg) and a system strength rated at 15 kN (3300 lbs), the Megadavit™ H-Base Basic Kit complies with EN795:2012 Type B and AS/NZS 5532:2013 standards. Weighing approximately 138 lbs (62.7 kg), this kit strikes an excellent balance between strength and portability.

Ideal for professionals seeking a dependable, easy-to-deploy anchorage system, the KStrong® Megadavit™ H-Base Basic Kit is your trusted partner for safe confined space operations.

DESIGN:
•    The KStrong® Megadavit™ breaks down into five components for easy storage, transport and setup. No tools are required for assembly.
•    The modular design allows the use of various fixed and portable bases and an optional mast with extensions.
•    Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement.
•    An ideal choice to provide overhead anchorages in large holes of confined space.
•    Removable legs for easy transportation and installation purpose.
•    Multiple anchorage points for rescue applications.
•    Foldable legs for easy transportation and installation purpose.
•    Inbuilt swivel feature, davit column assembly can be rotated up to 360° by removing the locking pins provided to lock column.
MATERIAL:
High Strength and Durable Aluminum Alloy
OPENING OF H-BASE:
Minimum Opening Ø43.3 in. (1100mm) & Maximum Opening Ø59.44 in. (1500mm)
MAXIMUM LOAD CAPACITY:
1102 lbs. (500kgs)
FINISH:
ED coated grey.
SYSTEM STRENGTH:
15 kN (3300 lbs).
WEIGHT:
138.28 lbs ± 0.22 lbs (62.72kgs ± 0.10kgs).
RELEVANT STANDARDS:
Conforms to EN795:2012 Type B, AS/NZS 5532:2013
HEIGHT ADJUSTMENT AND REACH:

Upper: Distance from Column – 26.57 in. (0.675 m) – Height of Arm – 89.76 in. (2.28 m)

Middle: Distance from Column – 33.27 in. (0.845 m) – Height of Arm – 78.74 in. (2.0 m)

Lower: Distance from Column – 36.22 in. (0.92 m) – Height of Arm – 65.35 in. (1.66 m)
