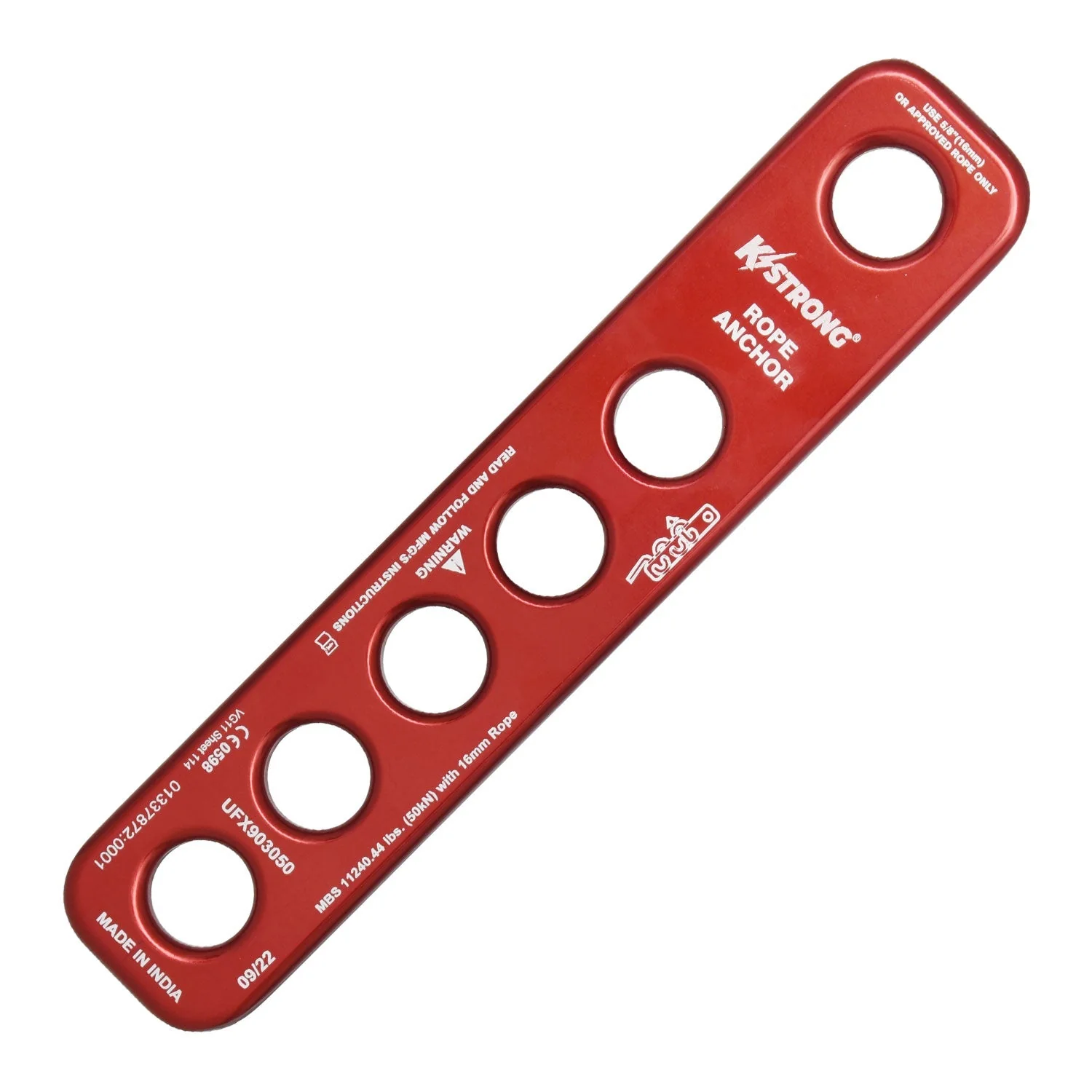

KStrong® Rope Termination Anchor
KStrong® Rope Termination Anchor – Versatile, Durable, and Field-Ready
The KStrong® Rope Termination Anchor is a compact, high-strength solution for integrating an anchor connector with your vertical lifeline system. Designed for versatility and ease of use, this innovative anchorage device allows you to create a secure, self-sufficient system by threading the rope through the termination plate and either connecting it to another anchor point with a carabiner or looping it around a fixed anchor.
Ideal for challenging worksites and hard-to-reach anchor points, the Rope Termination Anchor eliminates the need for knots, splices, or factory terminations—making field setups faster, safer, and more efficient. It’s compatible with 5/8” (16mm) 3-strand double braid rope or 7/16” (11mm) kernmantle rope lifelines.
Constructed from high-strength aluminum alloy and powder-coated for durability, it boasts a minimum breaking strength of 23 kN (5,000 lbs.) while weighing just 0.55 lbs. Designed for emergency scenarios as well, it allows for quick descents or lowerings to a level below using an escape rope and connector.
Key Benefits:
Quick, reusable rope terminations
Lightweight yet incredibly strong
Meets OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012
From jobsite anchoring to emergency rope access, the KStrong® Rope Termination Anchor is a reliable, field-friendly addition to your fall protection system.
DESIGN:
• Provides an anchor point for lifelines using the top hole for connecting to anchorage and the others for threading the rope.
• Quick emergency exits, lowering from one level to another level below using an escape rope and connecting hardware.
• Suitable to use with 5/8” (16mm) 3-strand double braid Rope or 7/16” (11mm) kernmantle rope lifeline.
• The plate provides a quick reusable field termination that eliminates the need for knots, splices, eyes or factory terminations on your ropes
MINIMUM BREAKING STRENGTH:
23 kN (5000 lbs.)
MATERIAL:
High Strength Aluminum Alloy
FINISH:
Powder coated
WEIGHT:
0.55 lbs. ± 0.02 lbs. (248.5gm ± 10gm)
RELEVANT STANDARDS:
Meets or Exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012.
Original: $61.75
-65%$61.75
$21.61
Description
KStrong® Rope Termination Anchor – Versatile, Durable, and Field-Ready
The KStrong® Rope Termination Anchor is a compact, high-strength solution for integrating an anchor connector with your vertical lifeline system. Designed for versatility and ease of use, this innovative anchorage device allows you to create a secure, self-sufficient system by threading the rope through the termination plate and either connecting it to another anchor point with a carabiner or looping it around a fixed anchor.
Ideal for challenging worksites and hard-to-reach anchor points, the Rope Termination Anchor eliminates the need for knots, splices, or factory terminations—making field setups faster, safer, and more efficient. It’s compatible with 5/8” (16mm) 3-strand double braid rope or 7/16” (11mm) kernmantle rope lifelines.
Constructed from high-strength aluminum alloy and powder-coated for durability, it boasts a minimum breaking strength of 23 kN (5,000 lbs.) while weighing just 0.55 lbs. Designed for emergency scenarios as well, it allows for quick descents or lowerings to a level below using an escape rope and connector.
Key Benefits:
Quick, reusable rope terminations
Lightweight yet incredibly strong
Meets OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012
From jobsite anchoring to emergency rope access, the KStrong® Rope Termination Anchor is a reliable, field-friendly addition to your fall protection system.
DESIGN:
• Provides an anchor point for lifelines using the top hole for connecting to anchorage and the others for threading the rope.
• Quick emergency exits, lowering from one level to another level below using an escape rope and connecting hardware.
• Suitable to use with 5/8” (16mm) 3-strand double braid Rope or 7/16” (11mm) kernmantle rope lifeline.
• The plate provides a quick reusable field termination that eliminates the need for knots, splices, eyes or factory terminations on your ropes
MINIMUM BREAKING STRENGTH:
23 kN (5000 lbs.)
MATERIAL:
High Strength Aluminum Alloy
FINISH:
Powder coated
WEIGHT:
0.55 lbs. ± 0.02 lbs. (248.5gm ± 10gm)
RELEVANT STANDARDS:
Meets or Exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012.
