MagMate BasicLift Permanent Ceramic Lifting Magnets
If youâre in the market for an excellent value magnetic lifter, MagMateâs BasicLift is just the ticket.
Described as a no frills lifting magnet, designed to be easy to use offering basic lifting features, thereâs no doubt that the BasicLift offers great bang for your buck, with three lifting capacities (400lbs, 1000lbs & 1500lbs) available to order today.
But donât let the âno frillsâ tag deter you from its powerful nature. Specifically designed to effortlessly lift flat steel, angle iron, square tubing and many other lifting applications, this lightweight and durable stainless steel lifting magnetic features a full width cam enabling the effortless release of the magnetic from surfaces, and a tall lift lug allowing it to be easily attached and operated we crane hooks and slings.
- Working Load Limit range: 400lbs to 1500lbs
- 2:1 design factor
- Lightweight design
- Durable stainless steel casing
- Heat resistant up to 300°F (148°C)
- Large lift lug
- Made in the USA
| Basic Lift Magnets | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Working Load Limit (lbs) | Overall Ln. (in) | Overall (in) | Overall (in) | Magnet Ln. (in) | Magnet Wd. (in) | Magnet Ht. (in) | Weight (lbs) | ||

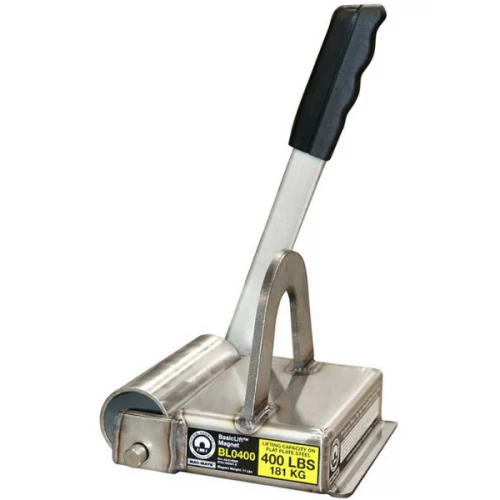

| 400 (BL0400) | 7-1/2 | 5-5/8 | 5 | 3 | 4-1/2 | 1-5/8 | 11 | ||

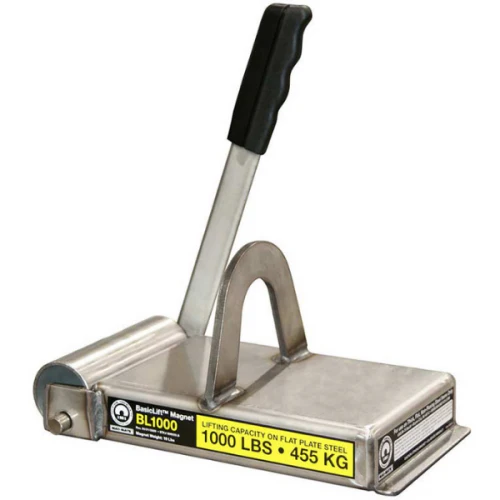

| 1000 (BL1000) | 11 | 5-5/8 | 5 | 6-1/2 | 4-1/2 | 1-5/8 | 17 | ||

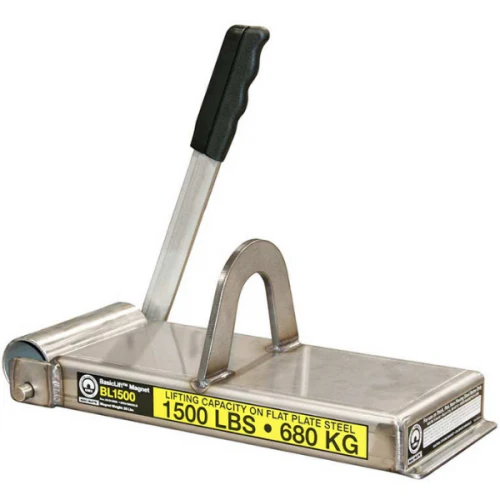

| 1500 (BL1500) | 14-1/2 | 5-5/8 | 5 | 10 | 4-1/2 | 1-5/8 | 24 | ||
| Working Load Limit in lbs & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use | |||||||
|---|---|---|---|---|---|---|---|
| Part No. | 3/16 Inch Thick (6 Feet Long) | 1/4 Inch Thick (6 Feet Long) | 3/8 Inch Thick (8 Feet Long) | 1/2 Inch Thick (8 Feet Long) | 3/4 Inch Thick (8 Feet Long) | 1 Inch Thick (10 Feet Long) | 3 Inch Thick (10 Feet Long) |
| BL0400 | 375 | 400 | 400 | 400 | 400 | 400 | 400 |
| BL1000 | 725 | 800 | 875 | 975 | 1000 | 1000 | 1000 |
| BL1500 | 875 | 1000 | 1400 | 1400 | 1500 | 1500 | 1500 |
| Working Load Limit (WLL) Values for the BasicLift⢠Magnets are stated at 50% of the actual value. We recommend when lifting sheets over 8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round WLL Values are based on ideal conditions. Consult the factory before specifying these magnets for use on round materials. *Max. sheet lengths are selected due to sag characteristics of specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles and roller cam to properly engage and release the part. | |||||||
Original: $442.00
-65%$442.00
$154.70
Description
If youâre in the market for an excellent value magnetic lifter, MagMateâs BasicLift is just the ticket.
Described as a no frills lifting magnet, designed to be easy to use offering basic lifting features, thereâs no doubt that the BasicLift offers great bang for your buck, with three lifting capacities (400lbs, 1000lbs & 1500lbs) available to order today.
But donât let the âno frillsâ tag deter you from its powerful nature. Specifically designed to effortlessly lift flat steel, angle iron, square tubing and many other lifting applications, this lightweight and durable stainless steel lifting magnetic features a full width cam enabling the effortless release of the magnetic from surfaces, and a tall lift lug allowing it to be easily attached and operated we crane hooks and slings.
- Working Load Limit range: 400lbs to 1500lbs
- 2:1 design factor
- Lightweight design
- Durable stainless steel casing
- Heat resistant up to 300°F (148°C)
- Large lift lug
- Made in the USA
| Basic Lift Magnets | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Working Load Limit (lbs) | Overall Ln. (in) | Overall (in) | Overall (in) | Magnet Ln. (in) | Magnet Wd. (in) | Magnet Ht. (in) | Weight (lbs) | ||
| 400 (BL0400) | 7-1/2 | 5-5/8 | 5 | 3 | 4-1/2 | 1-5/8 | 11 | ||
| 1000 (BL1000) | 11 | 5-5/8 | 5 | 6-1/2 | 4-1/2 | 1-5/8 | 17 | ||
| 1500 (BL1500) | 14-1/2 | 5-5/8 | 5 | 10 | 4-1/2 | 1-5/8 | 24 | ||
| Working Load Limit in lbs & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use | |||||||
|---|---|---|---|---|---|---|---|
| Part No. | 3/16 Inch Thick (6 Feet Long) | 1/4 Inch Thick (6 Feet Long) | 3/8 Inch Thick (8 Feet Long) | 1/2 Inch Thick (8 Feet Long) | 3/4 Inch Thick (8 Feet Long) | 1 Inch Thick (10 Feet Long) | 3 Inch Thick (10 Feet Long) |
| BL0400 | 375 | 400 | 400 | 400 | 400 | 400 | 400 |
| BL1000 | 725 | 800 | 875 | 975 | 1000 | 1000 | 1000 |
| BL1500 | 875 | 1000 | 1400 | 1400 | 1500 | 1500 | 1500 |
| Working Load Limit (WLL) Values for the BasicLift⢠Magnets are stated at 50% of the actual value. We recommend when lifting sheets over 8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round WLL Values are based on ideal conditions. Consult the factory before specifying these magnets for use on round materials. *Max. sheet lengths are selected due to sag characteristics of specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles and roller cam to properly engage and release the part. | |||||||
