Morse Heavy-Duty Drum Lifting Chain Sling

Morse model 42 Drum Lifing Chain Slings are similar to a set of 'brothers' yet they are equipped specially for handling 55-gallon steel drums. With a capacity up to 2000Lb, the Heavy-Duty Drum Lifting Chain Sling can be used to lift drums horizontally and to upend a downending drum by 'off-vertical' mode.

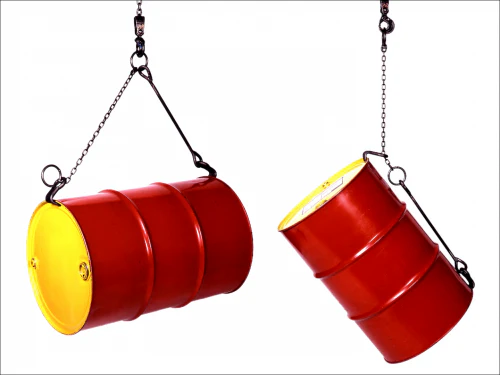

Off-vertical mode is achieved by the following steps:

• Use lifting ring on outer end of alloy chain
• Lift horizontal drum and have it hang off-vertical
• Lift vertical drum by placing rod end hook under bottom rim of drum.
  As upright drum leaves floor it tilts to off-vertical position.
• Lower drum until its bottom corner meets floor, then guide drum to settle upright or allow it to tilt down to horizontal

• Alloy or galvanized finish
• Lift 55-galllon open top or tight headed drums and 85-gallon steel drums
• 2000Lb (907kg) Capacity
• Load tested to 200% of the rated capacity as per American National Standard ASME B30.9
• Includes Load Test Certificate
• Lift in horizontal and off-vertical positions to upend a downending drum

Model #	Description	Capacity	Domestic Ship Weight	Domestic Ship Dimensions
42	Heavy-Duty Drum Lifter	2000 Lb. (907 kg)	10 Lb. (4.5 kg)	L26" W5" H4" (66 x 13 x 10 cm)
42-G	Heavy-Duty Drum Lifter with Galvanized Finish	2000 Lb. (907 kg)	9 Lb. (4.1  kg)	L26" W5" H4" (66 x 13 x 10 cm)
