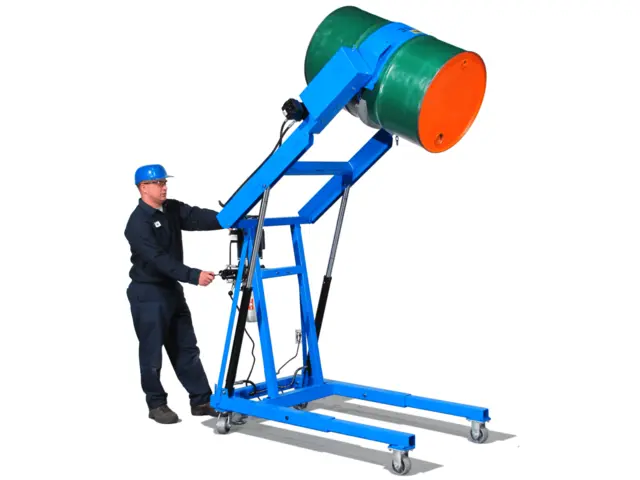

Morse Heavy-Duty Hydra-Lift Karrier with AC Power Lift & Tilt

Specific to Model 410-117

• Model 410-117 has a single-phase 50Hz AC motor for power lift and tilt
• ONLY for use in country with 50Hz power supply
• Ships without switch, cord and plug. Electrician to install according to local codes.
• Momentary switch and lift valve raises drum. Second valve controls hydraulically-driven drum tilt. Manual release valve lowers drum.
• Lift, move, and pour a 55-gallon (210 liter) steel drum from up to 72" (183 cm) high
• MORcinch drum holder adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
• To handle other varieties of drums, install the correct MORCINCH^TM options for your particular size and type of drum
• 360-degree tilt control in either direction
• Dual heavy-duty hydraulic cylinders with built-in flow control for uniform, controlled speed of descent
• Raise and control dispensing as necessary: increase pouring angle for full discharge; reduce to control pour rate; reverse to stop pouring and deliver partial drum contents
• Material is discharged straight forward directly from drum
• Faucets, pipe, or valve extensions may be attached to drum
• Hydra-Lift Karriers can also be used to lift drums onto or off scales, platforms, conveyors or trucks; move drums to or from storage; charge high tanks; or position drums of parts for hand access at work stations

All Heavy-Duty Hydra-Lift Drum Karriers

• Heavy-Duty Hydra-Lift Karriers Lift, Move and Dispense a drum
• Reinforced frame and heavy-duty cylinders for safe drum handling up to 1200 Lb. (544 kg)
• Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer, etc.
• Dispense at up to 72" (183 cm) high
• Dual hydraulic cylinders have built-in flow control for uniform, controlled speed of descent
• MORCINCH^TM Drum Handling System
  • Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
  • Install correct MORCINCH^TM Kit to handle plastic or fiber drum
  • Insert correct size Diameter Adapter for each smaller drum
