Morse Hydra-Lift Drum Roller Exp-Proof 1-Phase 115/208/230V 60Hz Motor 456-E1

Specific to model 456-E1...

• Model 456-E1 has explosion-proof single-phase 115/208/230V 60Hz motor
• Adjust drum rotation speed
• REQUIRES Electric Control Box to Start / Stop Rotator
• Electric Control Package sold separately
  • Model CP-456-E1-115 for 115V single-phase 60Hz power supply
  • Model CP-456-E1-208 for 208V single-phase 60Hz power supply
  • Model CP-456-E1-230 for 230V single-phase 60Hz power supply
• Guard Enclosure Kit sold separately as model GEK-456-E1

All 456 Series Hydra-Lift Drum Rollers...

• IMPORTANT: OSHA, CSA and EU require enclosure with safety interlock

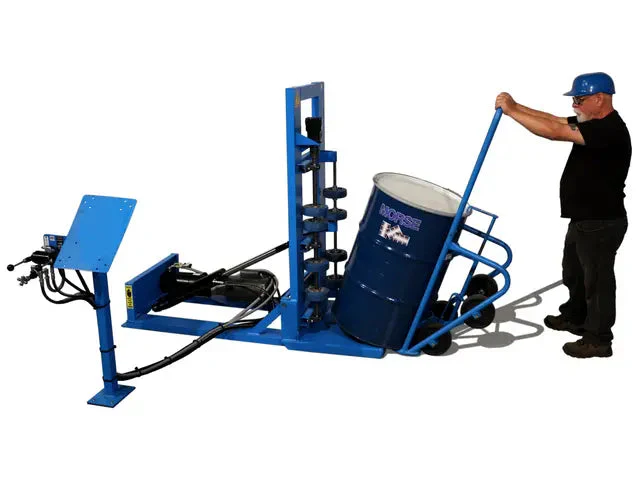

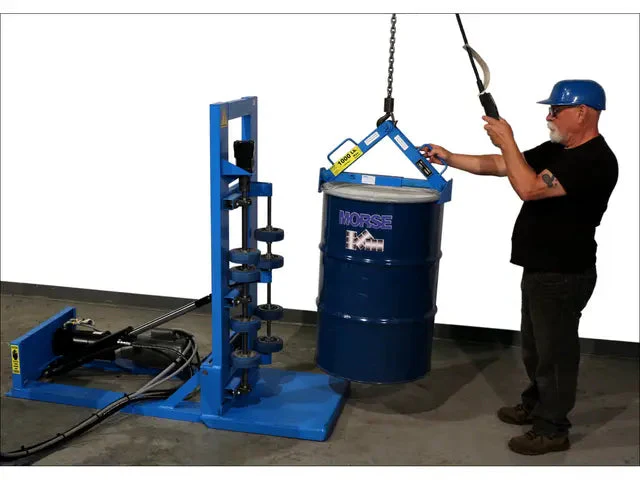

• Load upright drum at floor level with drum truck, or with below-hook drum lifter and your crane

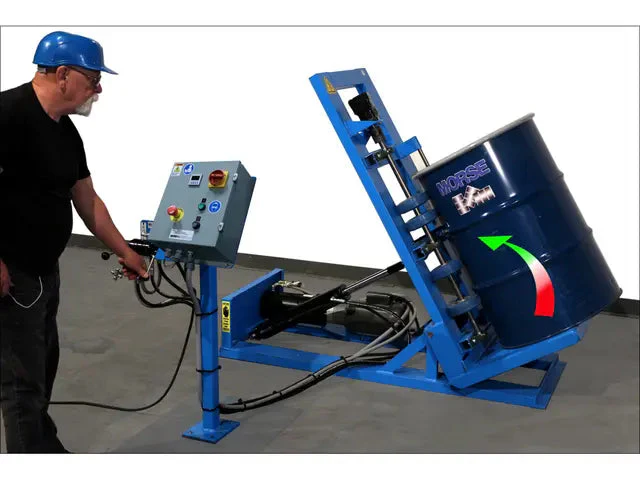

• Hydraulic Power-Tilt drum over onto roller wheels

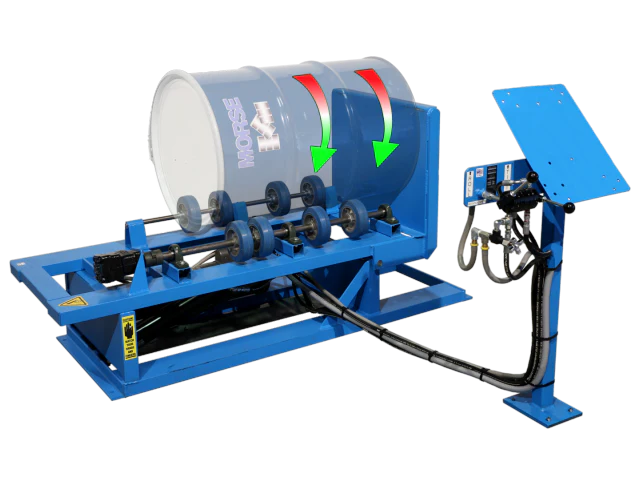

• Roll STEEL drum with 6" to 26" (15 to 66 cm) diameter, and maximum 40" (102 cm) length
  • To roll a PLASTIC drum, add Option POLY-456
  • To roll 1-to-5 gallon cylindrical can, install Idler Attachment 1-5-1
• Maximum ambient operating temperature: 130°F (54°C)
