Morse Hydra-Lift Drum Roller Exp-Proof 230/400V 50Hz Motor

Specific to model 456-E3-50...

• Model 456-E3-50 has explosion-proof 3-phase 230/400V 50Hz motor
• ONLY for country with 50Hz power
• Adjust drum rotation speed
• REQUIRES Electric Control Box to Start / Stop Rotator
• Electric Control Package sold separately
  • Model CP-456-E3-230-50 for 3-phase 230V 50Hz power supply
  • Model CP-456-E3-400-50 for 3-phase 400V 50Hz power supply
• Guard Enclosure Kit sold separately as model GEK-456-E3

All 456 Series Hydra-Lift Drum Rollers...

• IMPORTANT: OSHA, CSA and EU require enclosure with safety interlock

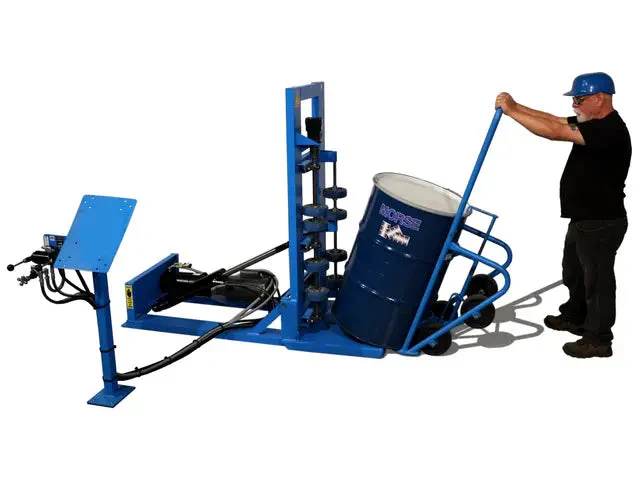

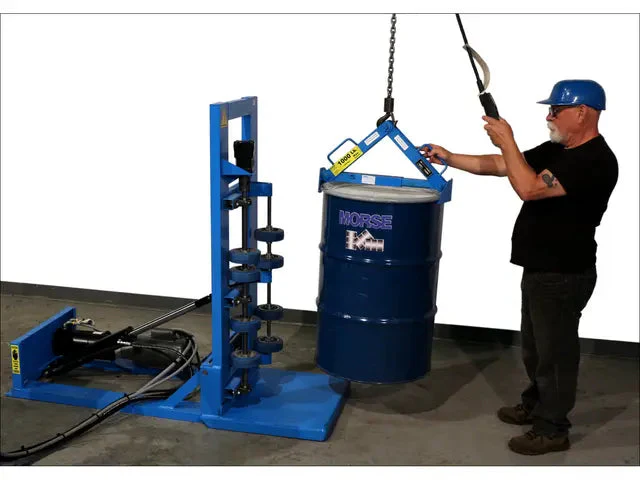

• Load upright drum at floor level with drum truck, or with below-hook drum lifter and your crane

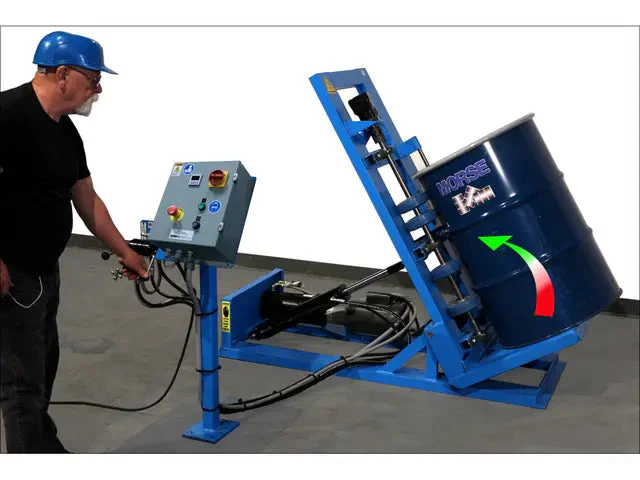

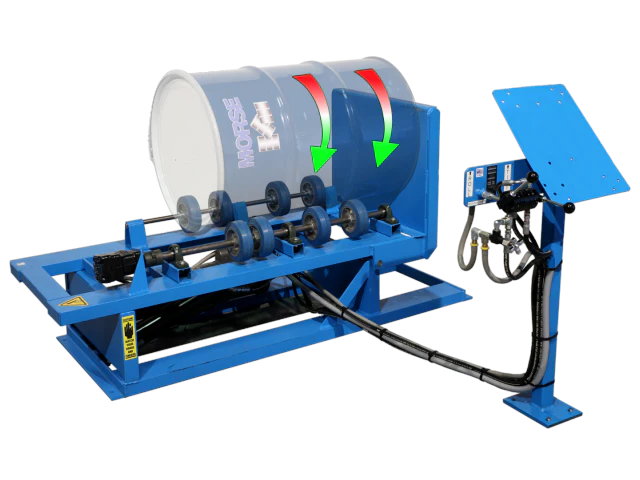

• Hydraulic Power-Tilt drum over onto roller wheels

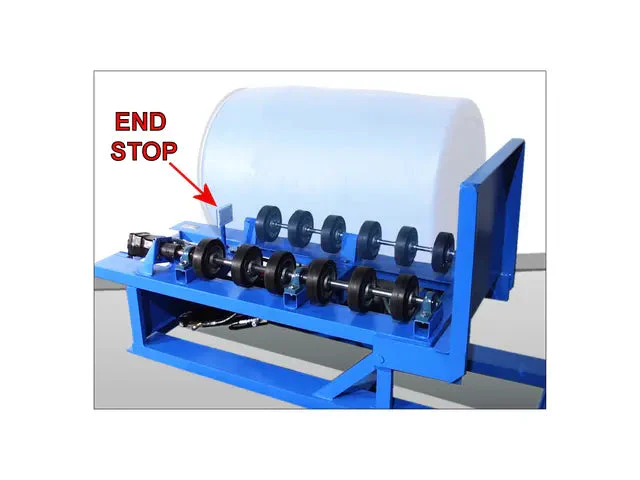

• Roll STEEL drum with 6" to 26" (15 to 66 cm) diameter, and maximum 40" (102 cm) length
  • To roll a PLASTIC drum, add Option POLY-456
  • To roll 1-to-5 gallon cylindrical can, install Idler Attachment 1-5-1
• Maximum ambient operating temperature: 130°F (54°C)
