Morse Manual Pouring Drum Trolley

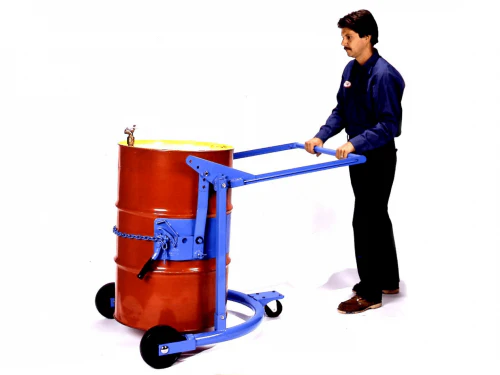

The Morse Manual Pouring Drum Trolley, otherwise known as a Morse 'Drum Karrier' provides the ultimate essential drum carrier for transporting, agitating and dispensing from steel 55-gallon (210litre) drums. Easy movement is achieved via two 8" front wheels on MORtuf polyolefin roller bearing wheels and a 4" rear swivel caster.

Available alternative versions can be supplied to suit 55-gallon plastic and steel drums, drums with 21-23" diameter as well as a specialist spark resistant variation.

Handle Provides 6:1 Advantage to Lift Drum
Drum Weight	Approx. Handle Pull-Down Force
800 Lb. (363 kg)	133 Lb. (60 kg)
600 Lb. (272 kg)	100 Lb. (45 kg)
400 Lb. (181 kg)	67 Lb. (30 kg)
200 Lb. (91 kg)	33 Lb. (15 kg)

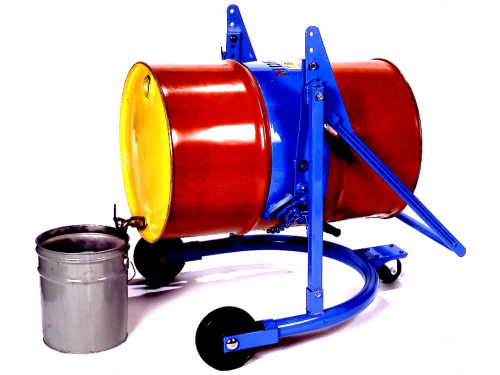

Effort to Tilt Drum
Effort required to tilt drum depends on several factors. A balanced 600 Lb. (272 kg) drum will pivot on the fulcrum far easier than a bottom heavy unbalanced drum of the same weight.

• 800Lb Capacity
• Shipped partly assembled to save on freight costs
• Easy to move and steer
• Fitted with MORtuf polyolefin roller bearing wheels and 4" diameter swivel caster
• Handle 55-gallon steel drums
• 80AM model is available with spark resistant parts

Model #	Mobile Drum Carrier / Dispenser Description	Handle Drum Type	Domestic Ship Weight	Domestic Ship Dimensions
80A	Mobile-Karrier	Steel 55-gallon drum 22.5" diameter between ribs	95 Lb. (43 kg)	41" x 36" x 9" (104 x 91 x 23 cm)
80AM	Mobile-Karrier with spark resistant parts	Steel 55-gallon drum 22.5" diameter between ribs	97 Lb. (44 kg)	41" x 36" x 9" (104 x 91 x 23 cm)
80APS	Mobile-Karrier for 55-gallon plastic or steel drum	55-gallon plastic drum 22.5" to 24" (57 to 61 cm) diameter, 34" to 36" (86-92 cm) tall. Also standard steel 55-gallon drum.	97 Lb. (44 kg)	41" x 36" x 9" (104 x 91 x 23 cm)
80C	Mobile-Karrier for 21" to 23" diameter	21" to 23" (53.3 to 58.4 cm) diameter fiber, straight wall steel, or cylinders (includes 55-gallon steel drum)	97 Lb. (44 kg)	41" x 36" x 9" (104 x 91 x 23 cm)
