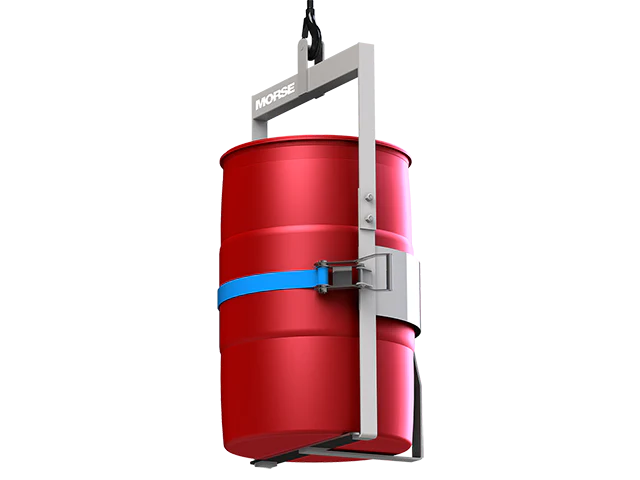

Morse Stainless Steel Below-Hook Drum Lift w/ No Tilt

When lifting heavy drums in sanitary or corrosive environments, the last thing you want to compromise on is safety or material integrity. Traditional lifting devices can fall short — leading to dangerous tilting, improper grips, or materials that corrode over time. That’s where the Model 86-SS Stainless Steel Drum Lifter from Morse comes in.

Designed specifically for clean environments and rugged applications, the Model 86-SS is a precision-engineered, below-the-hook drum lifting device that gives you the strength of 304 stainless steel, the security of load-tested performance, and the confidence of ANSI/ASME compliance — all in one reliable unit.



KEY FEATURES OF MODEL 86-SS

Hygienic, Heavy-Duty Stainless Steel Construction

Built from Type 304 stainless steel and a bead-blast finish, the 86-SS is ideal for applications in food, pharmaceutical, chemical, and washdown environments.

• Corrosion-resistant frame: Long-lasting performance in harsh or sanitary settings
• Bead-blast finish: Clean look, reduced surface contamination risk
• Certified welds: Welds comply with ANSI/AWS D14.1 and ASME BTH-1, performed by certified welders
• Not ground or polished welds: For those who value structural integrity over cosmetic appearance



Safe, Upright Drum Handling
The model 86-ss is purpose-built for vertical drum lifting—no tilt function means better control and stability during the lift.

• Supports drum from underneath: Adds another layer of security during elevation
• Web strap with positive grip: Adjustable, secure hold on plastic, steel, or fiber drums
• Handles multiple drum sizes: Diameter 22" - 23.5" & Height 23" - 38"



Tested. Proven. Certified.
Every Model 86-SS drum lifter is individually load tested at 125% of its rated capacity and comes with a factory-issued load test certificate. You're not just buying equipment—you’re buying verified lifting performance.

• ANSI/ASME B30.20 Compliant
• Rated load markings and identification
• Safety factor of 3 on structural components
• Built to meet the strictest mechanical lifting standards



Why Choose the Model 86-SS?

If your facility depends on clean, safe, and code-compliant lifting solutions, the Morse Model 86-SS checks every box. It’s a durable, purpose-built solution for lifting steel, plastic, or fiber drums upright using your crane or hoist — with the confidence that comes from decades of Morse engineering.
