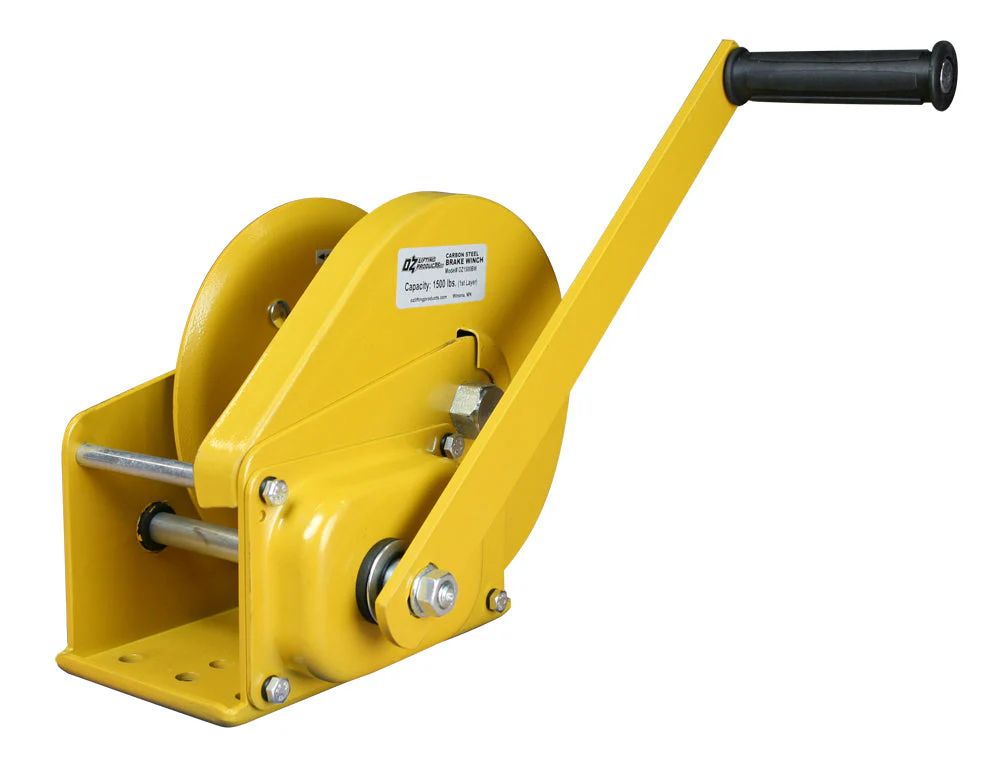

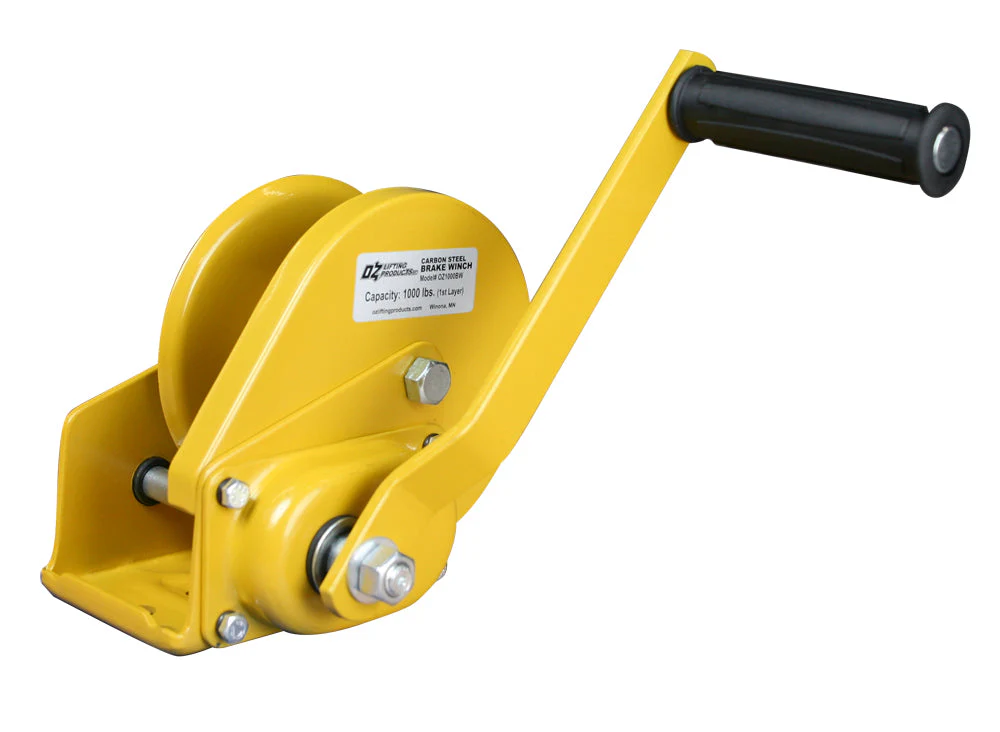

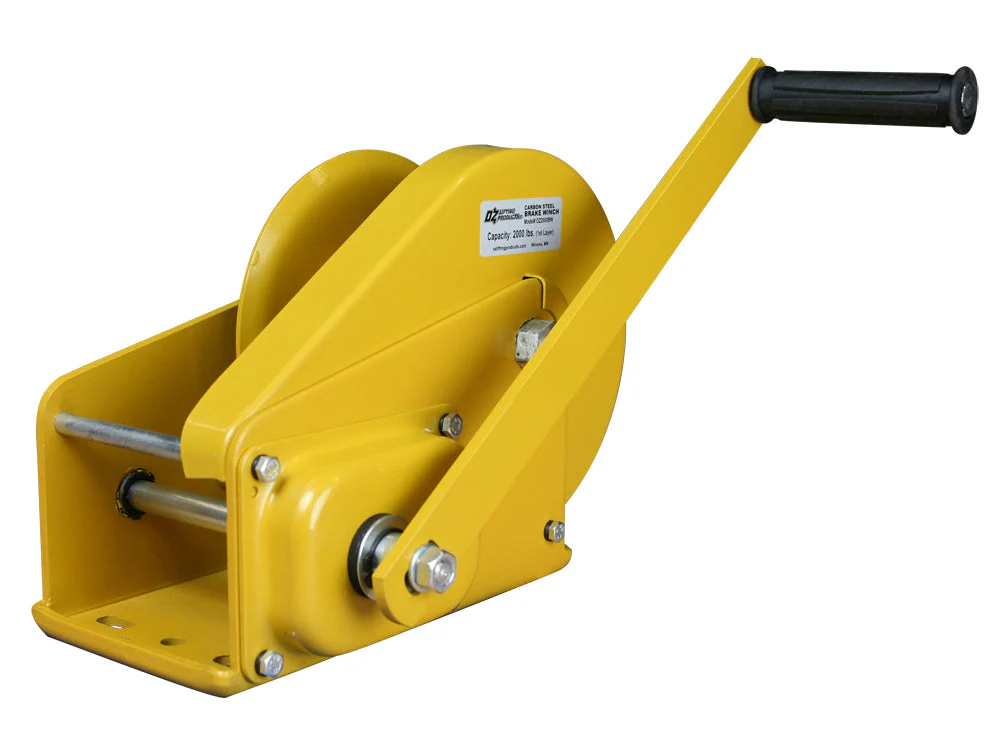

OZ Lifting Carbon Steel Brake Winch
If you've been scouring the market for a robust and reliable hand winch but had no joy, we can confidently say that you're now in the right place.
From OZ Lifting, this carbon steel hand winch is available in 1000lbs, 1500lbs, and 2000lbs safe working limits, making it suitable for a wide range of applications.
Boasting an all steel construction, these models feature a dual cable anchor point, large diameter drum, solid machined gear, and a high gear ratio.
Furthermore, neatly built into the compact design is an automatic weatherproof Weston brake and a fully-enclosed gearing system, meaning its suitable for a wide range of operating environments - for long term use.
Fully tested to the highest standards, each unit is fitted with an ergonomic rubber handle for comfortable use.
NOTE: Wire rope assemblies are sold separately
| Cable/Drum Capacity | 1st Layer (ft) | Mid Drum (ft) | Full Drum (ft) |
| OZ1000BW - 1/8" wire rope | 7 | 74 | 140 |
| OZ1000BW - 3/16" wire rope | 5 | 34 | 75 |
| OZ1500BW - 3/16" wire rope | 7 | 66 | 140 |
| OZ1500BW - 1/4" wire rope | 5 | 27 | 89 |
| OZ2000BW - 1/4" wire rope | 8 | 36 | 85 |
| OZ2000BW - 5/16" wire rope | 7 | 22 | 52 |
| Load Rating (Lbs) | |||
| OZ1000BW | 1000 | 750 | 500 |
| OZ1500BW | 1500 | 1250 | 750 |
| OZ2000BW | 2000 | 1500 | 1000 |
| OZ1000BW | OZ1500BW | OZ2000BW | |
| Safe Working Load (lbs) | 1000 | 1500 | 2000 |
| Gear Ratio | 4.2:1 | 5:1 | 10:1 |
| A (in.) | 6.22 | 7.73 | 8.35 |
| B (in.) | 7.20 | 9.36 | 11.10 |
| C (in.) | 3.46 | 4.21 | 5.00 |
| D (in.) | 8.26 | 12.68 | 12.99 |
| E (in.) | 1.06 | 1.06 | 1.06 |
| F (in.) | 10.43 | 10.63 | 11.81 |
| G (in.) | 1.98 | 2.30 | 2.52 |
| H (in.) | 4.29 | 4.29 | 4.29 |
| I (in.) | 1.90 | 2.38 | 3.00 |
| J (in.) | 5.33 | 7.00 | 7.09 |
| K (in.) | 10.20 | 15.31 | 15.35 |
| L (in.) | 5.98 | 6.89 | 7.87 |
| M (in.) | 0.12 | 0.14 | 0.16 |
| Net Weight (lbs) | 8.15 | 16.97 | 22.06 |
