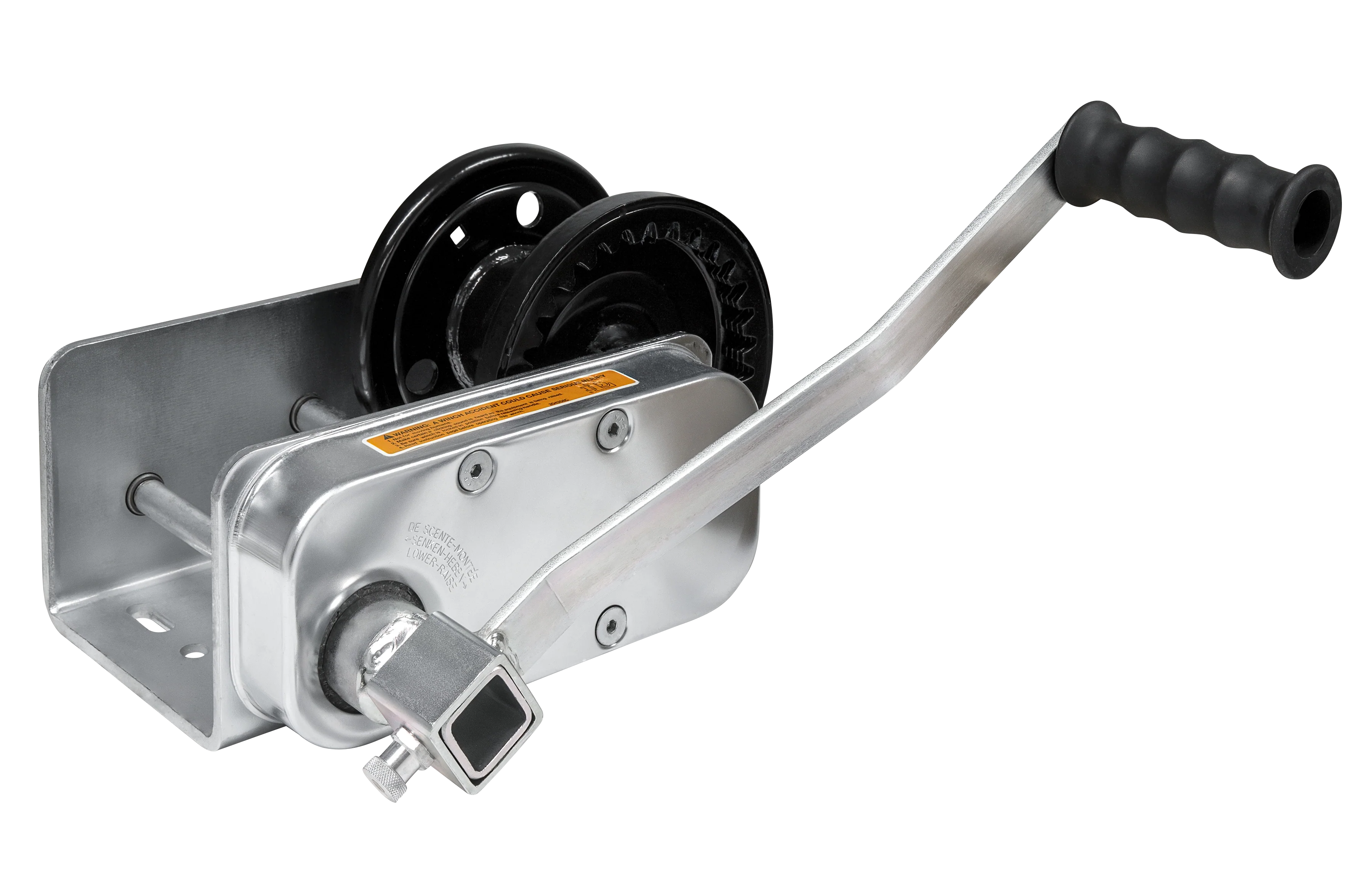

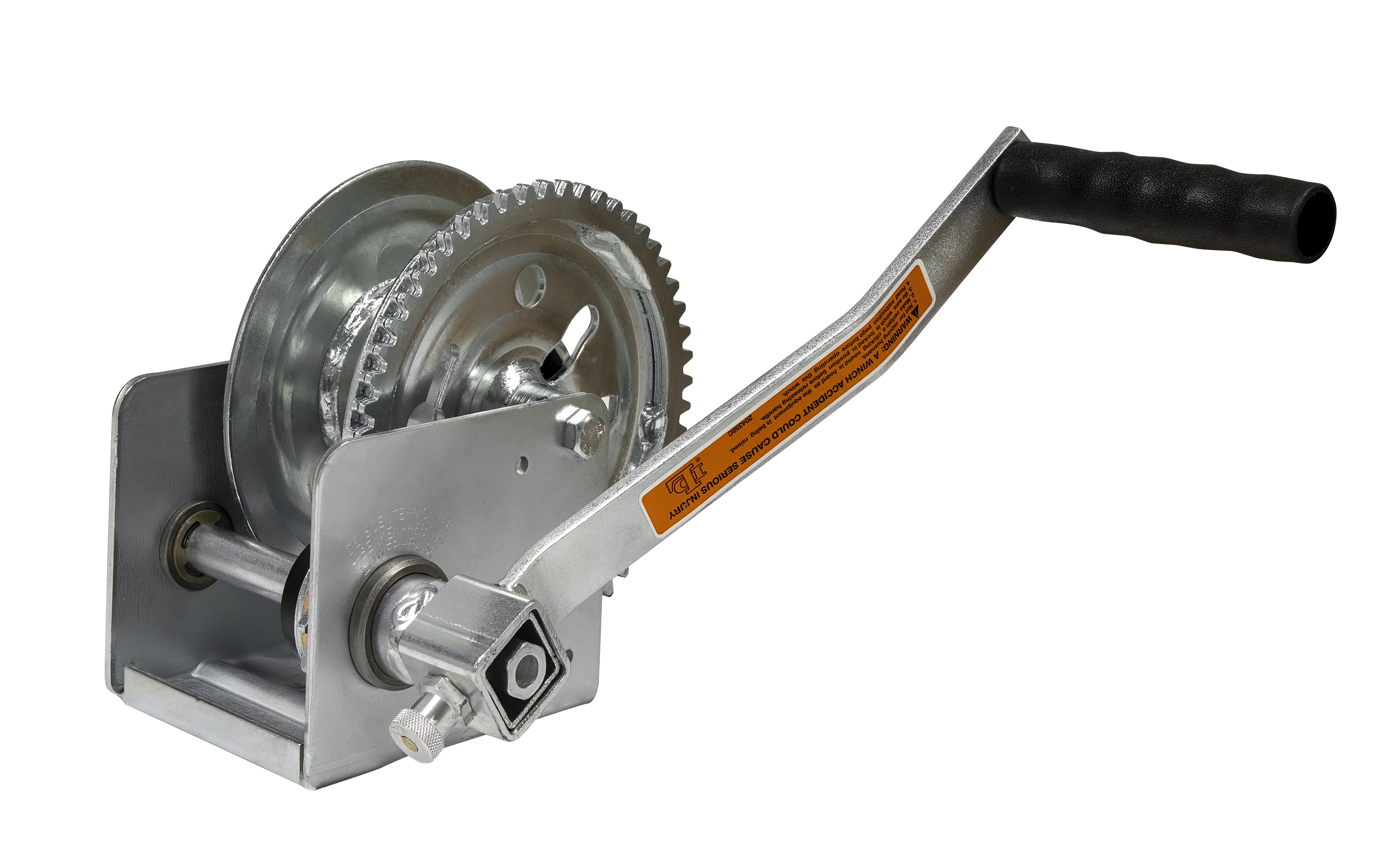

OZ Lifting Carbon Steel Hand Winch

Engineered right here in the USA with an all steel construction for maximum durability, you'll find it difficult to find such a reliable hand winch on the market for such an excellent price.

Fully tested and compliant, the compact design of OZ Lifting's Carbon Steel Hand Winch features an automatic weatherproof Weston Brake, dual cable anchor point, large drum diameter, and fully enclosed gearing system.

Available in 1200lbs and 2500lbs safe working capacities, this winch is also fitted with an ergonomic rubber handle for comfortable and easy use - every time.

NOTE: Wire Rope Assemblies Sold Separately



Cable/Drum Capacity	1st Layer (ft)	Mid Drum (ft)	Full Drum (ft)
OZWINHND1 - 3/16" wire rope	11	40	80
OZWINHND1 - 1/4" wire rope	8	27	55
OZWINHND2 - 5/16" wire rope	7	42	45



Load Rating (lbs)
OZWINHND1	1200	875	550
OZWINHND2	2500	2000	1550





	OZWINHND1	OZWINHND2
Safe Working Load (lbs)	1200	2500
Gear Ratio	5.4:1	17.3:1
A (in.)	6.75	6.95
B (in.)	7.50	11.42
C (in.)	3.89	5.56
D (in.)	7.00	12.33
E (in.)	1.15	1.39
F (in.)	10.72	13.64
G (in.)	2.03	2.42
H (in.)	4.00	4.00
I (in.)	2.50	2.50
J (in.)	6.17	6.16
K (in.)	11.89	17.48
L (in.)	5.61	8.86
M (in.)	0.15	0.25
Net Weight (lbs)	10.00	24.00
