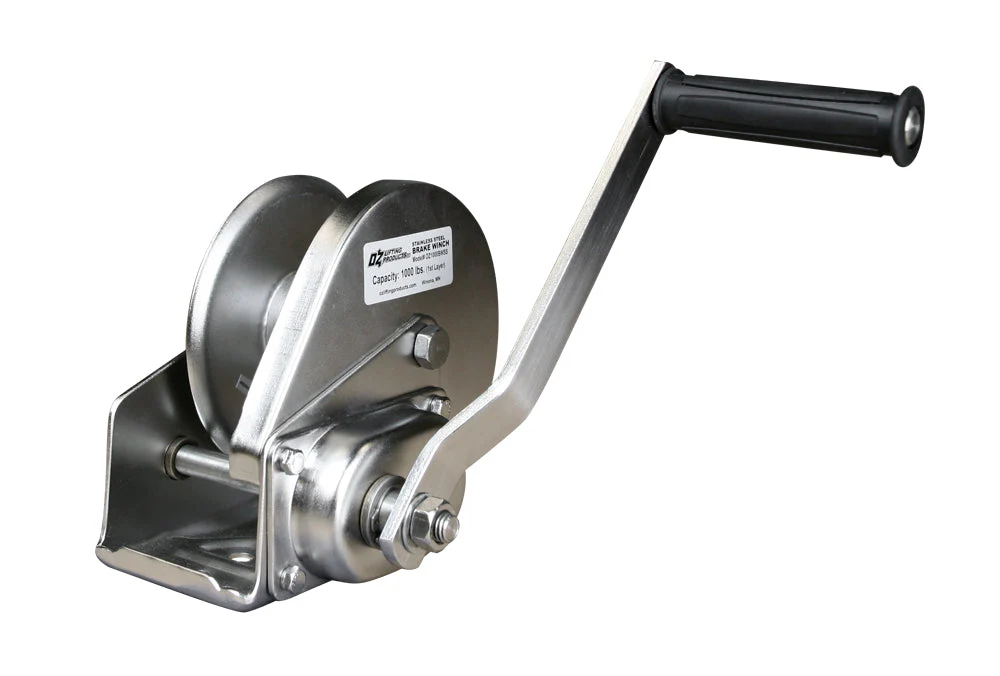

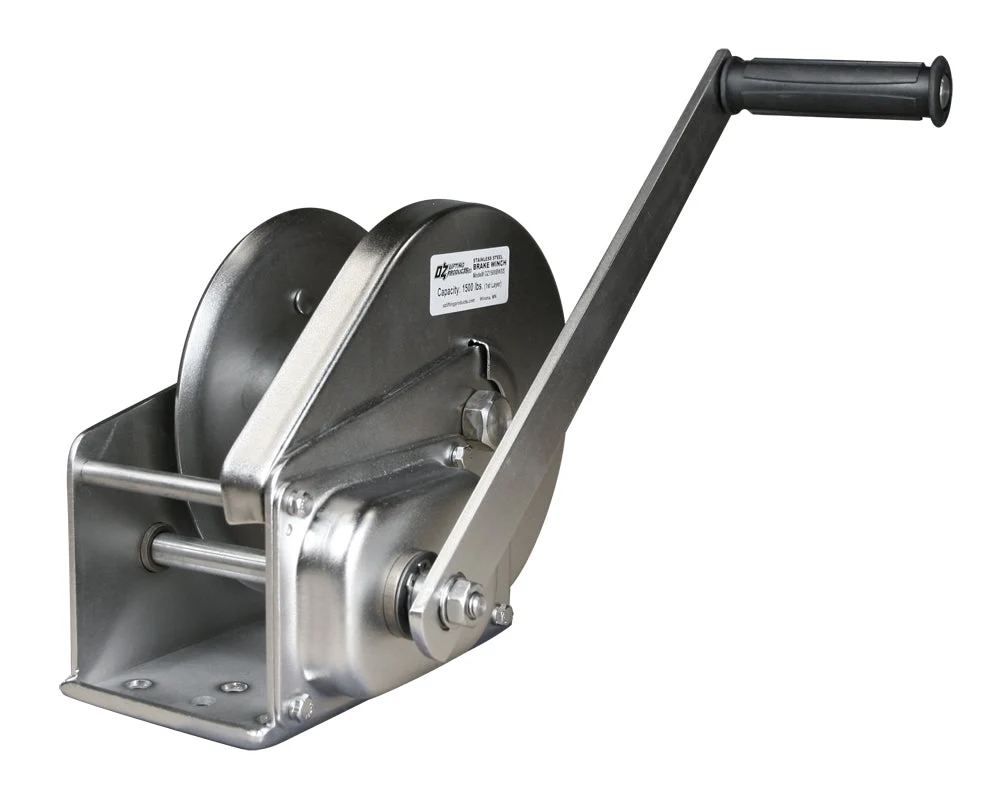

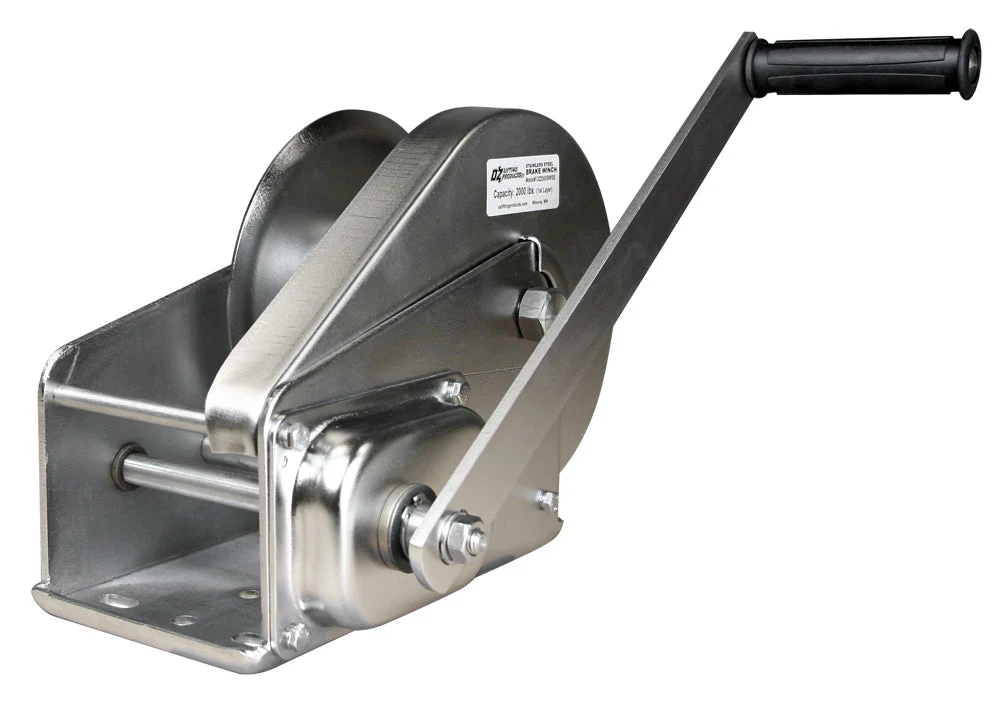

OZ Lifting Stainless Steel Brake Winch

Manufactured from high grade stainless steel ensuring maximum durability and lifecycle, this brake winch from OZ Lifting is available in 1000lbs, 1500lbs, and 2000lbs safe working capacities (with a left handed operated version available for 1000lbs only).

Fitted with an automatic weatherproof Weston brake, this compact winch has a high gear ratio, dual cable anchor point, fully-enclosed gearing system, and a large diameter drum.

Furthermore, comfortable usage has been guaranteed thanks to the ergonomic rubber operating handle.

NOTE: Wire Rope Assemblies Sold Separately



Cable/Drum Capacity	1st Layer (ft)	Mid Drum (ft)	Full Drum (ft)
OZ1000BWSS - 1/8" wire rope	7	74	140
OZ1000BWSS - 3/16" wire rope	5	34	75
OZ1500BWSS - 3/16" wire rope	7	66	140
OZ1500BWSS - 1/4" wire rope	5	27	89
OZ2000BWSS - 1/4" wire rope	8	36	85
OZ2000BWSS - 5/16" wire rope	7	22	52



Load Rating (lbs)
OZ1000BWSS	1000	750	500
OZ1500BWSS	1500	1250	750
OZ2000BWSS	2000	1500	1000





	OZ1000BWSS	OZ1500BWSS	OZ2000BWSS
Safe Working Load (lbs)	1000	1500	2000
Gear Ratio	4.2:1	5:1	10:1
A (in.)	6.22	7.73	8.35
B (in.)	7.20	9.36	11.10
C (in.)	3.46	4.21	5.00
D (in.)	8.26	12.68	12.99
E (in.)	1.06	1.06	1.06
F (in.)	10.43	10.63	11.81
G (in.)	1.98	2.30	2.52
H (in.)	4.29	4.29	4.00
I (in.)	1.60	2.38	3.00
J (in.)	5.33	7.00	7.09
K (in.)	10.20	15.31	15.35
L (in.)	5.98	6.89	7.87
M (in.)	0.12	0.14	0.16
Net Weight (lbs)	8.15	16.97	22.06
