OZ Lifting Stainless Steel Lever Hoist
From OZ Lifting's stainless steel range, this lever hoist will deliver the reliability and lifting power needed for those applications in truly demanding environments.
Available in working load limits of 0.25t, 0.75t, 1.5t and 3t, in height of lift from 5ft to 20ft, this stainless steel lever hoist provides users with super smooth operation every time, even after extended periods of inactivity and exposure to harsh corrosive conditions.
Engineered from type 304 stainless steel, these hoists boast unmatched corrosion-resistance properties, ensuring optimal lifecycles and top-end performance. Fitted with an enclosed gearing system, protecting internal components from dust and debris, these lever hoists are fitted with a weston-style brake system that guarantees secure load control and exceptional safety for users.
Highly suitable for wastewater treatment plants, pharmaceutical and food production, oil refineries, and mining operations.
|
OZSS025LH |
OZSS075LH |
OZSS150LH |
OZSS300LH |
|
| Safe Working Load (tons) |
0.25 |
0.75 |

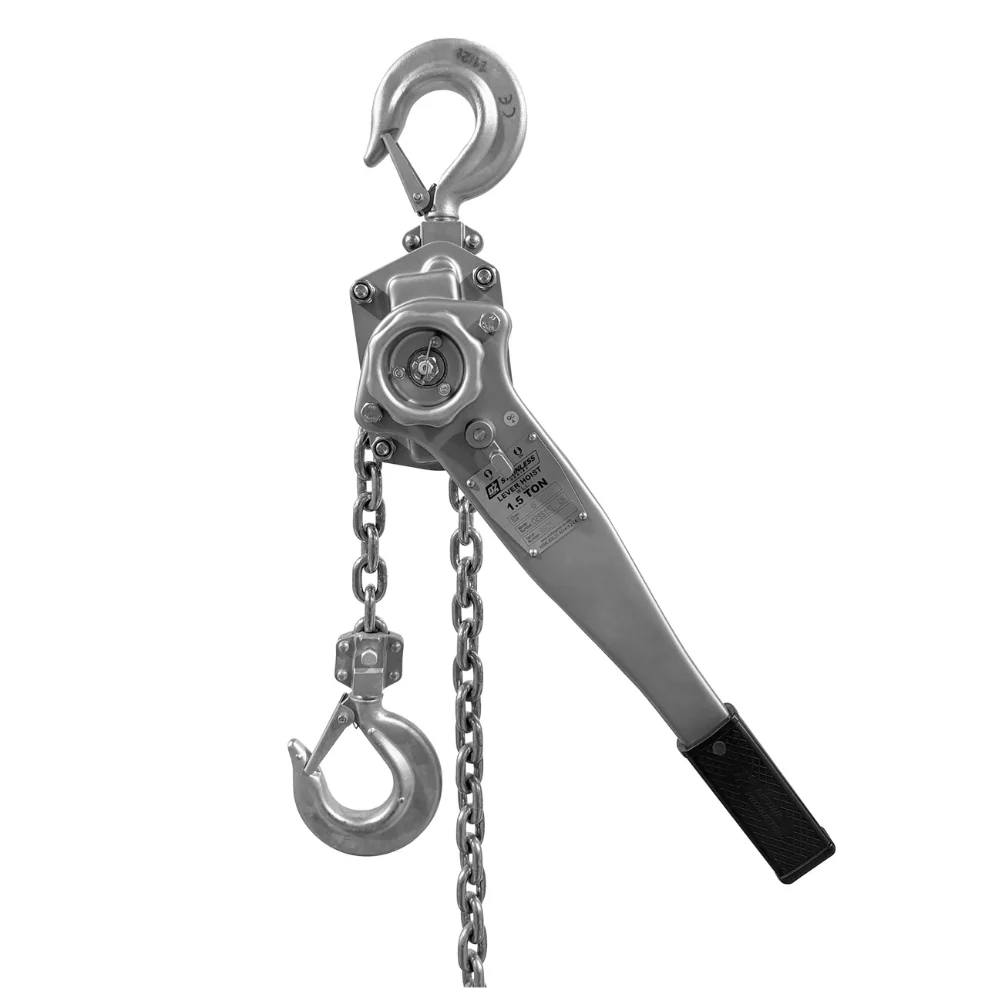

1.5 |
3 |
| Headroom (inch) |
11.22 |
14.96 |
16.73 |
19.76 |
| Effort on Lever to Lift Full Load (lbs) |
20.20 |
28.10 |
41.50 |
42.70 |
| Falls of Chain |
1 |
1 |
1 |

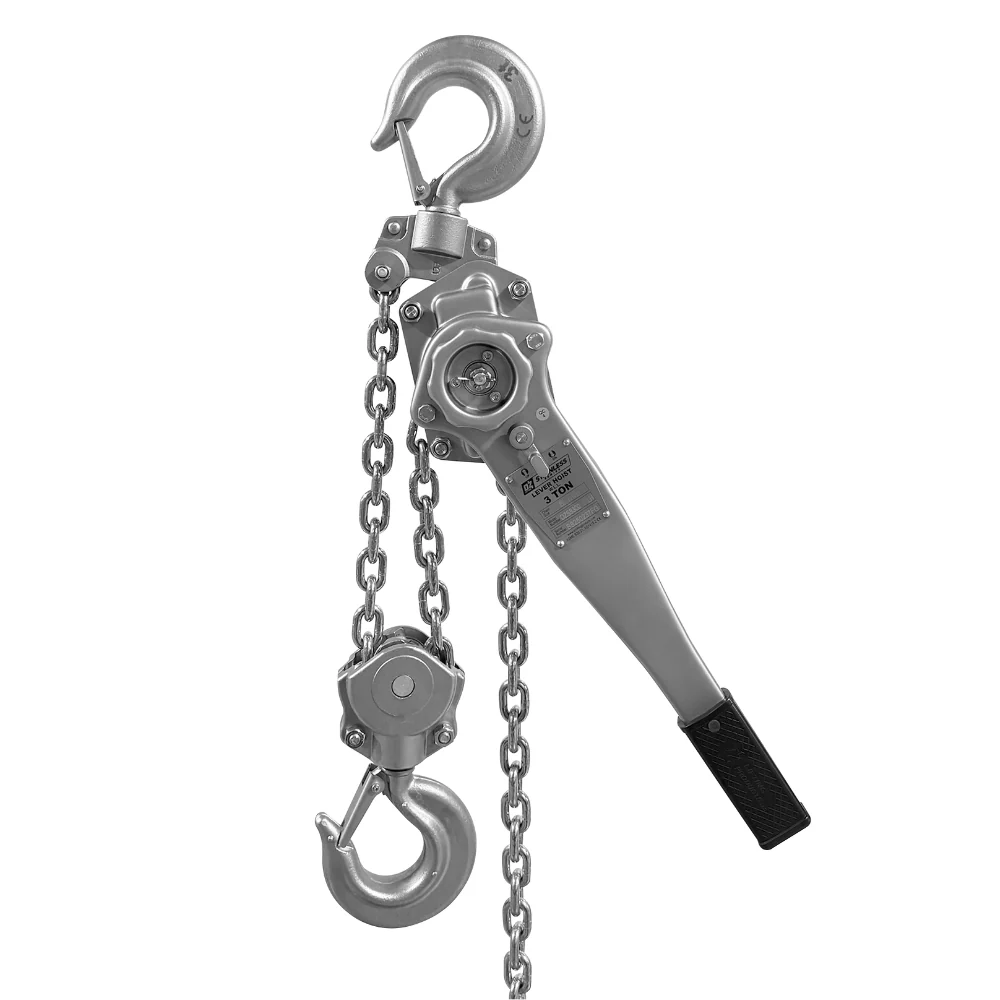

2 |
| Load Chain Diameter (inch) |
0.16 |
0.24 |
0.31 |
0.31 |
| Dimensional Information (inch) A |
1.22 |
14.96 |
16.73 |
19.76 |
|
B |
3.86 |
5.83 |
5.91 |
7.68 |
|
C |
3.94 |
5.67 |
6.61 |
6.61 |
|
D |
6.10 |
11.42 |
16.34 |
16.34 |
|
E |
2.40 |
3.43 |
3.74 |
3.74 |
| Hook Opening, Upper & Lower (inch) F |
0.92 |
1.21 |
1.38 |
1.52 |
| Nett Weight of Head Only (lbs) |
4.84 |
12.54 |
20.35 |
28.71 |
Original: $934.00
-65%$934.00
$326.90
