RUD ACP-Turnado Max, Metric Thread

Available in working load limits from 12.5t to 27t (M36 - M56), RUD's ACP-Turnado Max, Metric Thread boltable lifting point boasts safety factors of 4:1 and 5:1 (depending on model).

The innovative design features a protected internal spring mechanism that prevents the lift bail from stopping with traversing load, as well a smooth swivel joint in the lifting ring axis.

Designed and manufactured in accordance with ASME B30.26 each unit has an integrated RFID transponder to make checks even easier, while the deflector disc is stamped with angle markings, WLL information in tons and lbs, safety factors, and torque moment - giving you total peace of mind that you are using the most suitable lifting point.

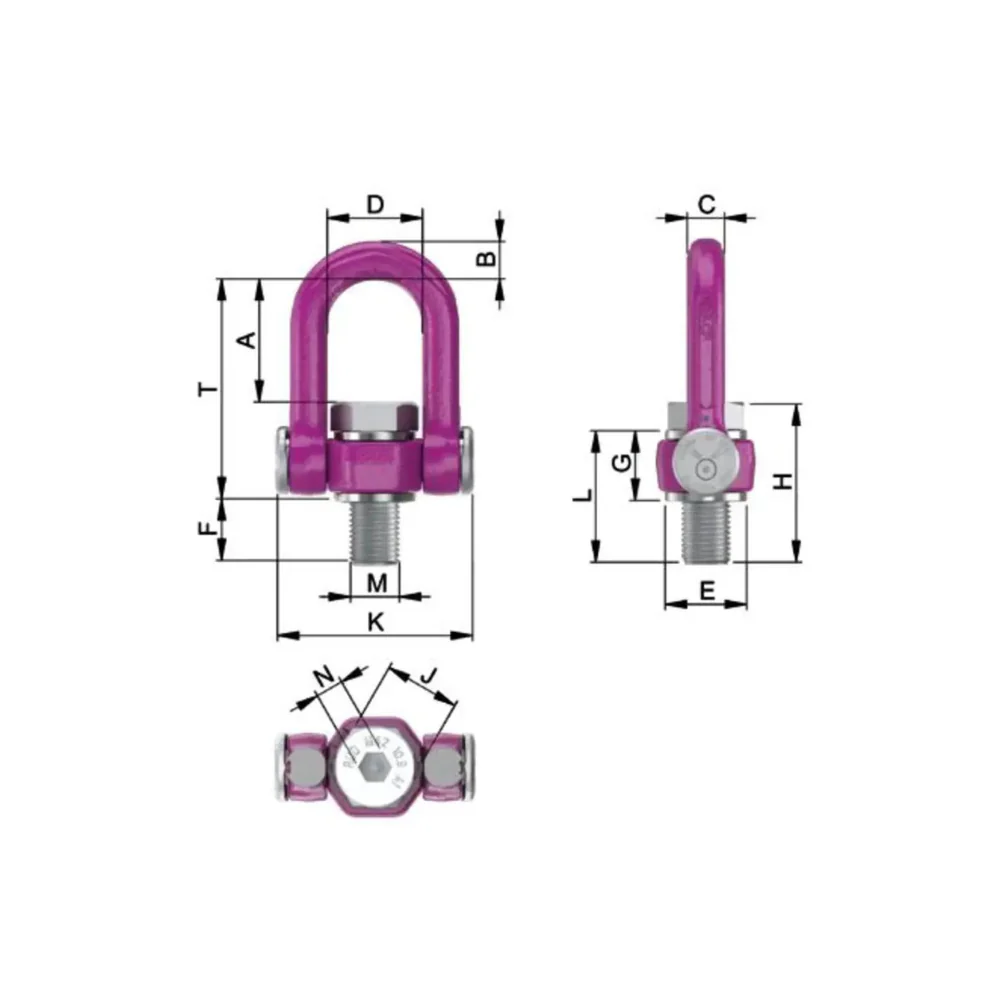

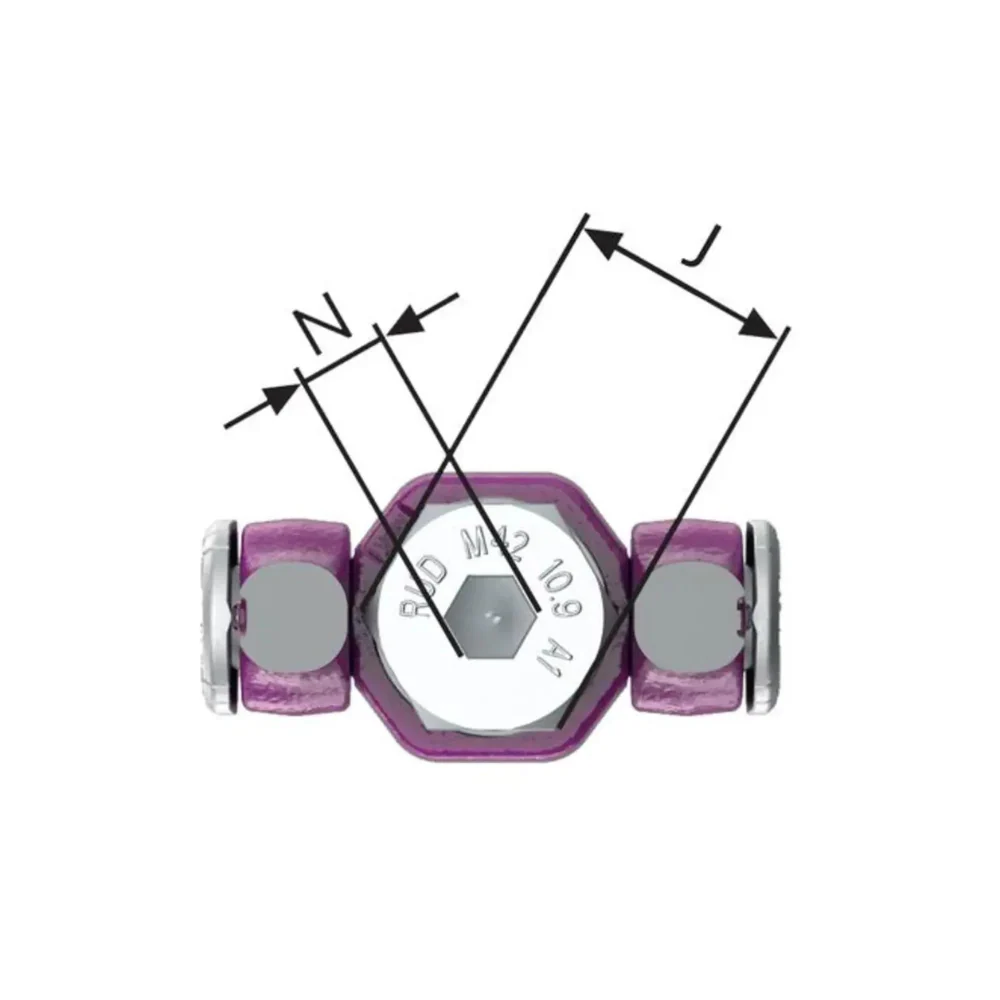

SKU	WLL (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	K (mm)	L (mm)	M (mm)	N (mm)	Pitch T (mm)
7911052	12.5	106	32	32	82	70	45	60	128	55	168	105	M36	22	189
7911053	16	106	32	32	82	70	53	60	136	65	168	113	M42	24	189
7912630	20	127	40	40	103	90	61	78.5	169	75	204	139	M48	24	235
7912631	24	123.5	40	40	103	95	65	108	173	75	204	0	M52	24	232
7912632	27	123.5	40	40	103	95	70	108	178	75	204	0	M56	24	232
