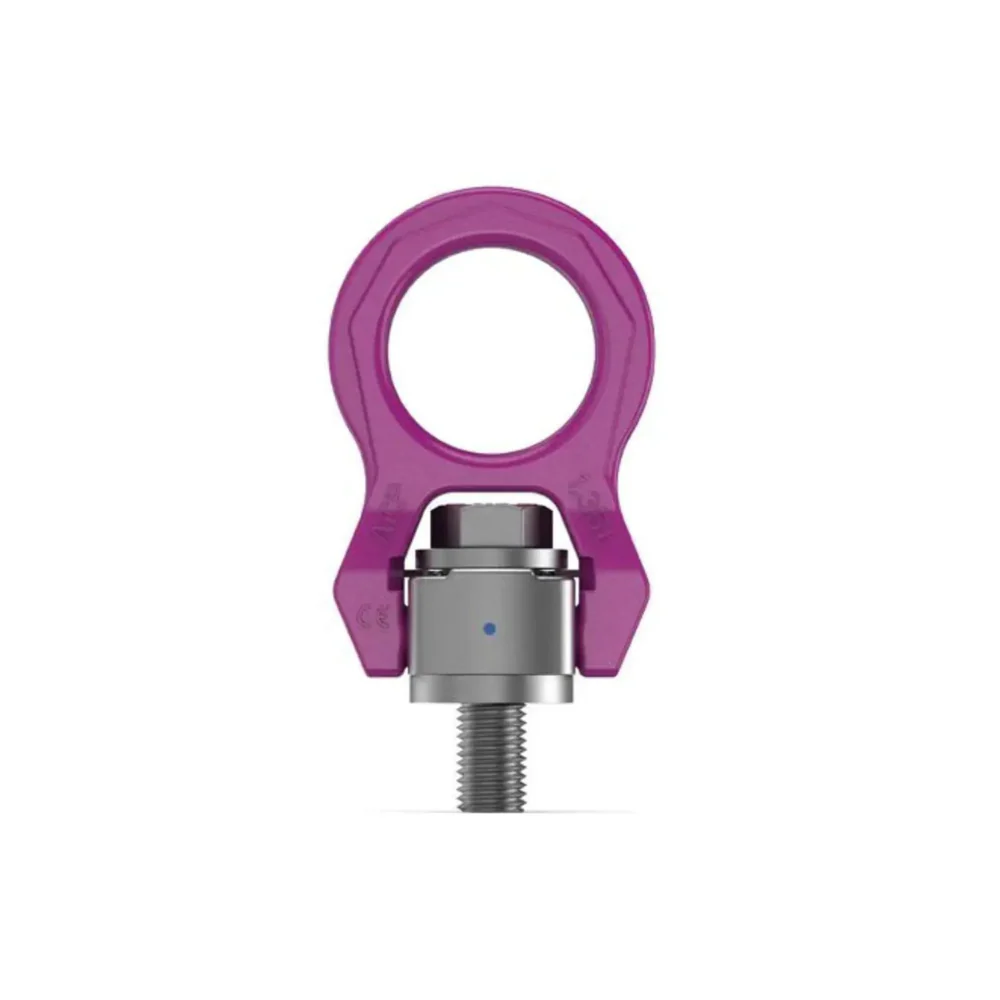

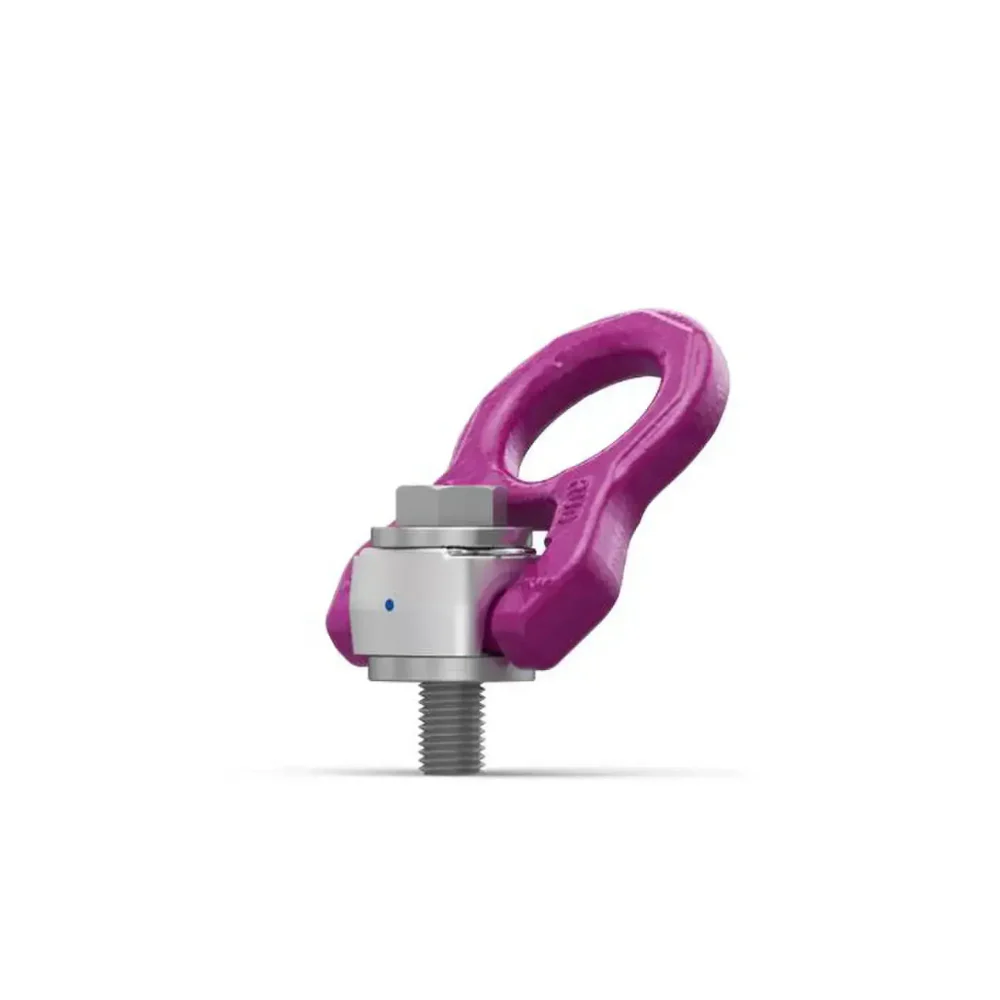

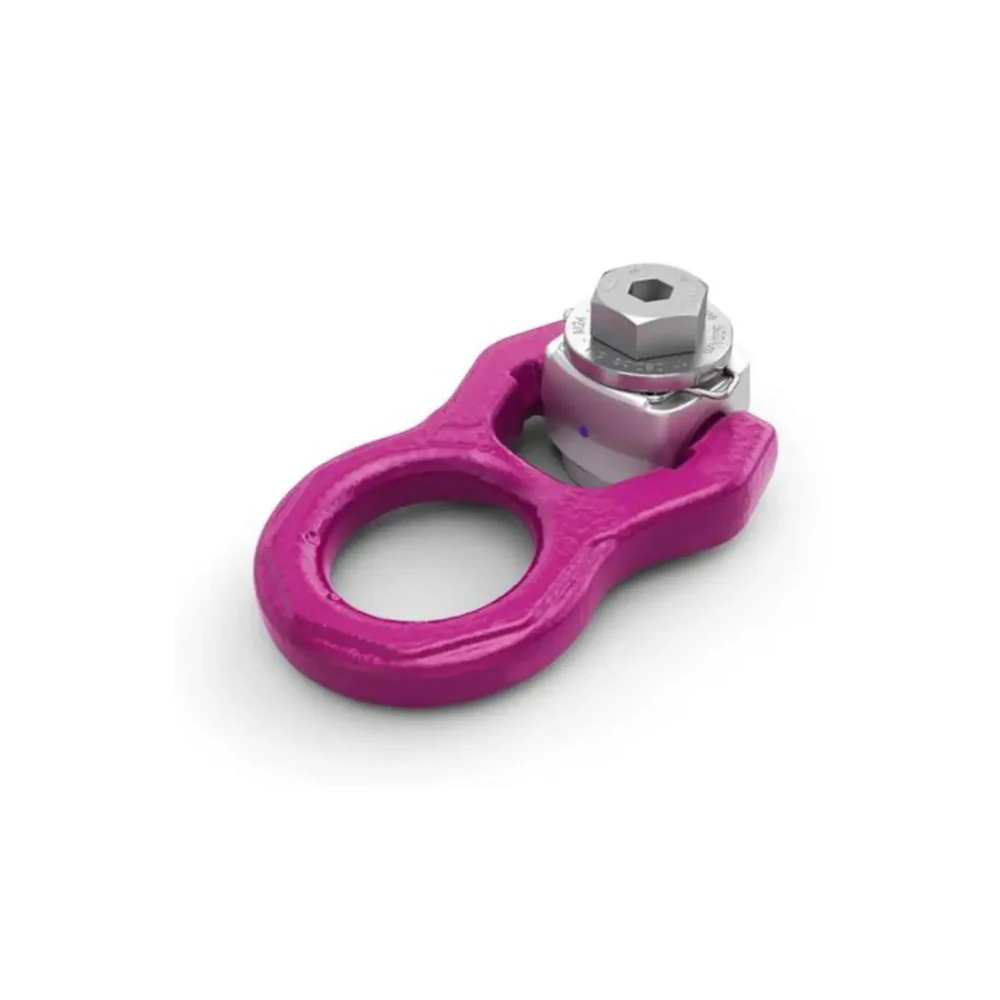

RUD ACP-Turnado, Metric Thread
A true RUD favorite, the ACP-Turnado, Metric Thread, screw type lifting point is available in thread sizes from M8 up to M30 (0.7t - 6.3t)
Boasting safety factors of 4:1 and 5:1, each unit meets/exceeds the requirements of American stand ASME B30.26.
Fitted with an innovative exterior spring mechanism that prevents the lift bail from stopping with traversing loads, these boltable lifting points feature integrated RFID technology to make checks even easier.
NOTE: For sizes up to M24 use an Ice Bolt, for larger sizes use a Standard Bolt
|

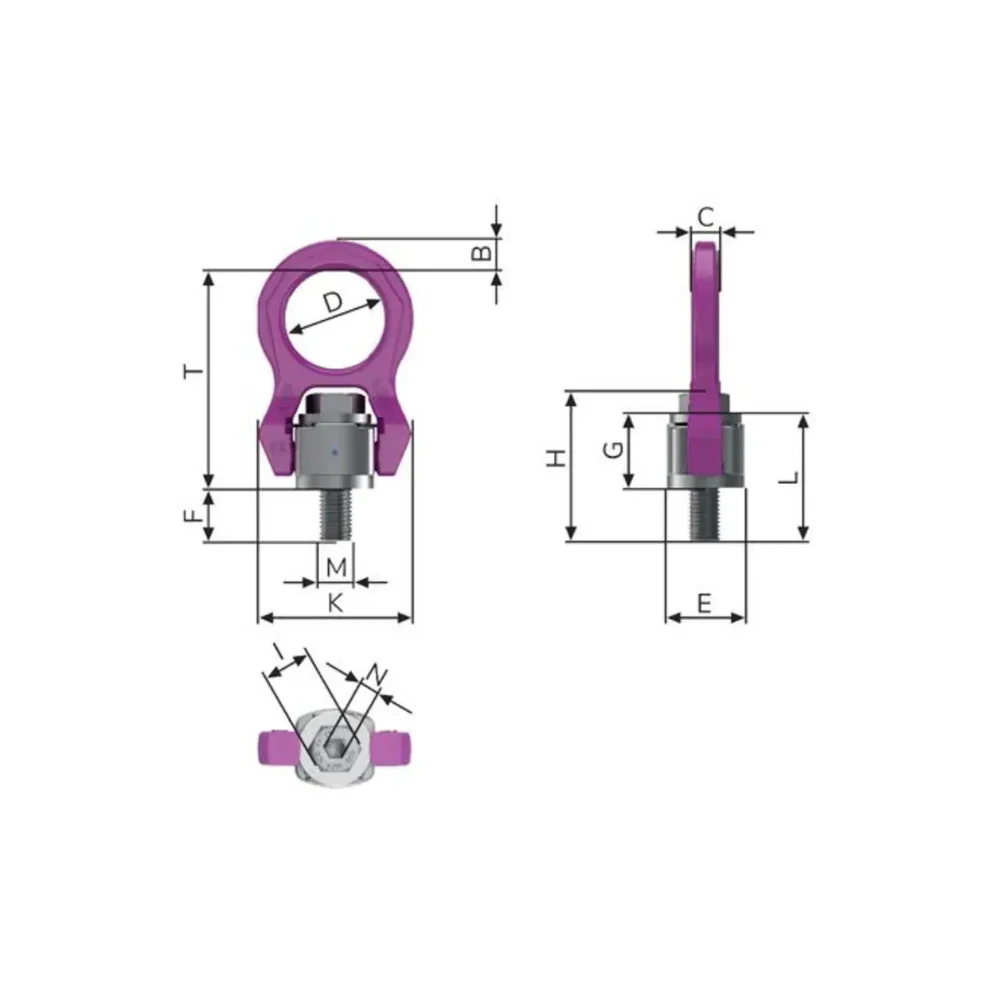

SKU |
WLL (tons) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
Pitch T (mm) |
|
7912061 |
0.7 |
11 |
10.5 |
38 |
30 |
12 |
28 |
45 |
13 |
58 |
40 |
M8 |
5 |
83 |
|
7909314 |
1.35 |
11 |
10.5 |
38 |
30 |
19 |
28 |
54.5 |
19 |
58 |
47 |
M12 |
8 |
83 |
|
7912064 |
1 |
11 |
10.5 |
38 |
30 |
16 |
28 |
50.4 |
17 |
58 |
44 |
M10 |
6 |
83 |
|
7909316 |
2.5 |
14 |
14 |
50 |
40 |
22 |
36 |
68 |
24 |
76 |
58 |
M16 |
10 |
107 |
|
7909317 |
4 |
17 |
17 |
50 |
45 |
26.5 |
43.5 |
82.5 |
30 |
89 |
70 |
M20 |
12 |
118 |
|
7909318 |
6.3 |
23 |
23 |
66 |
60 |
34 |
55 |
104 |
36 |
121 |
89 |
M24 |
14 |
154 |
|
7909319 |
8 |
29 |
27 |
75 |
75 |
41.5 |
68.5 |
129 |
46 |
148 |
110 |
M30 |
17 |
183 |
Ā
Original: $226.00
-65%$226.00
$79.10
