RUD ACP-Turnado, Metric Thread with Max. Length

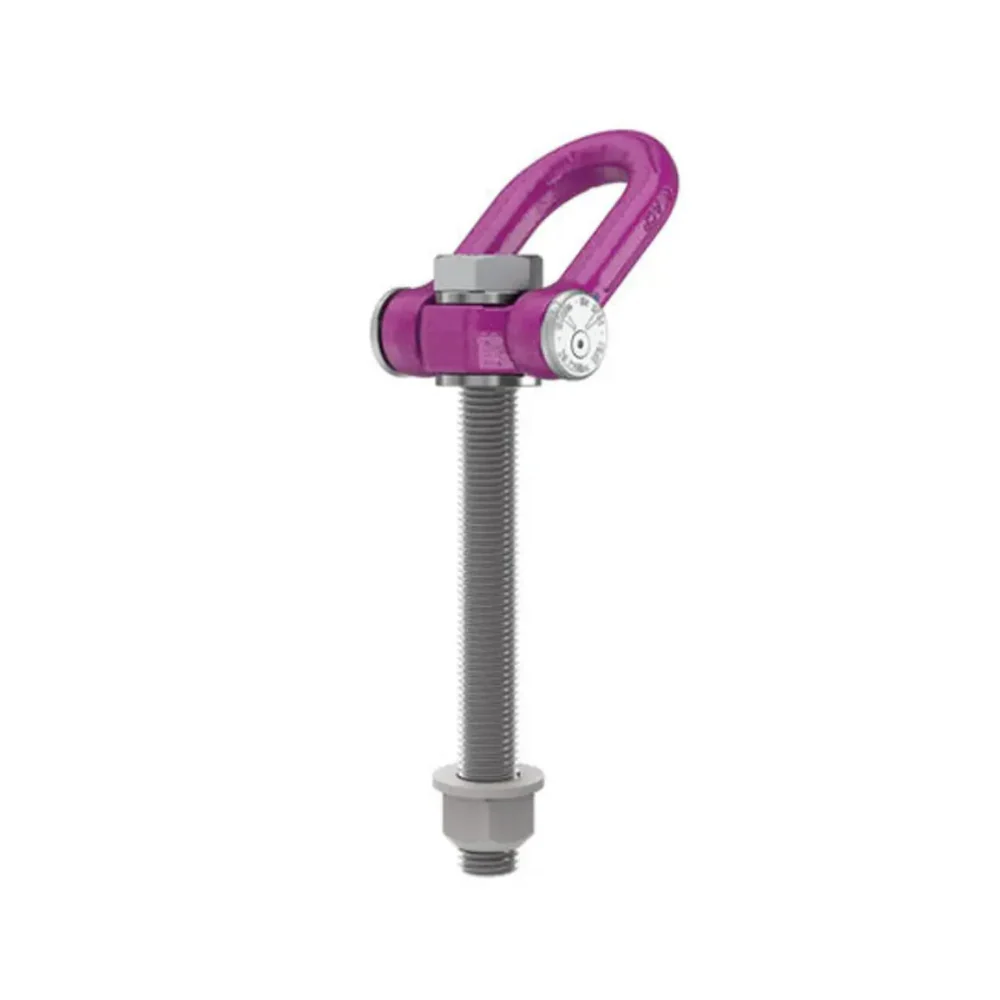

Offering the same superior qualities as the standard ACP-Turnado, Metric Thread Lifting Point, this max. length version comes in lengths up to 290mm.

Delivered complete with a locknut and washer, thread diameters for M12 up to M42 are available, all fitted with integrated RFID transponders for effortless traceability checks.

Engineered to meet/exceed American standard ASME B30.26, the ACP-Turnado Max Length has an innovative spring mechanism that prevents the lift bail from stopping with the transversing loads, as well as a smooth moving swivel joint in the lifting ring axis.

Additionally, these lifting points have a safety factor of 4:1 and 5:1.

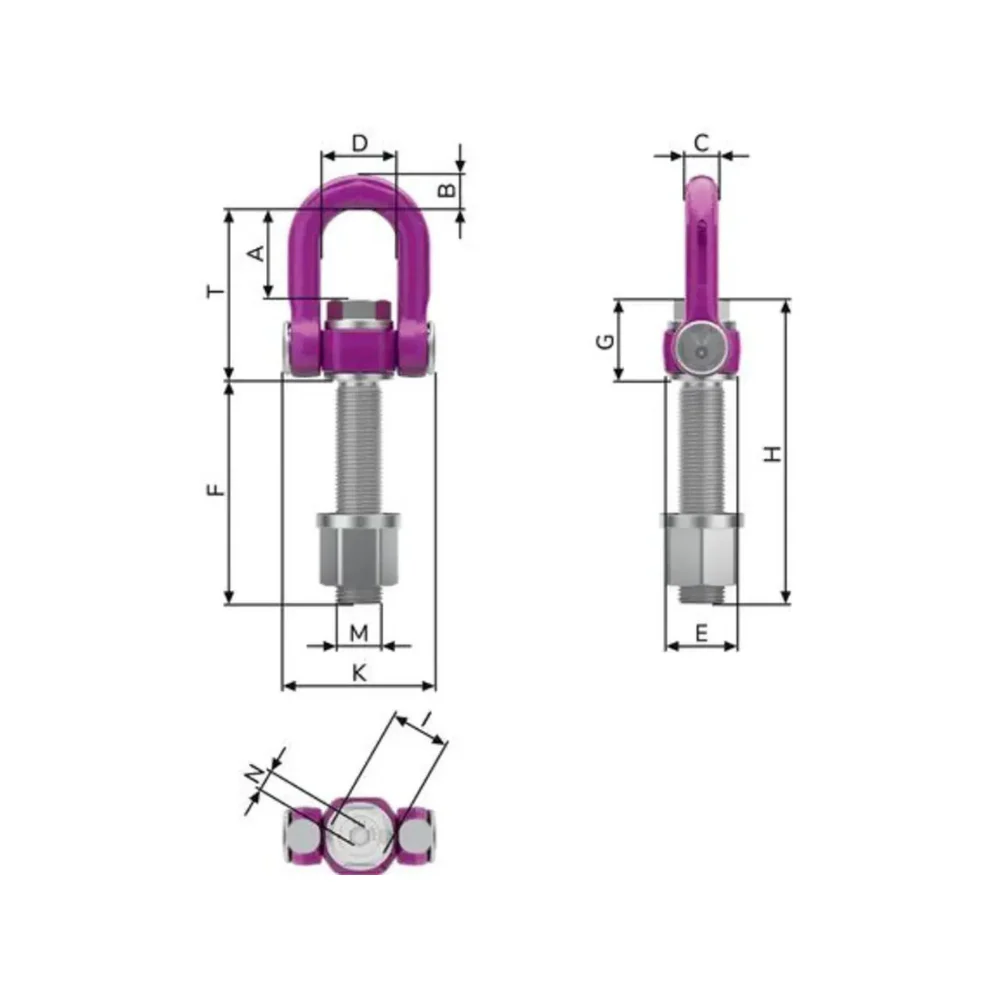

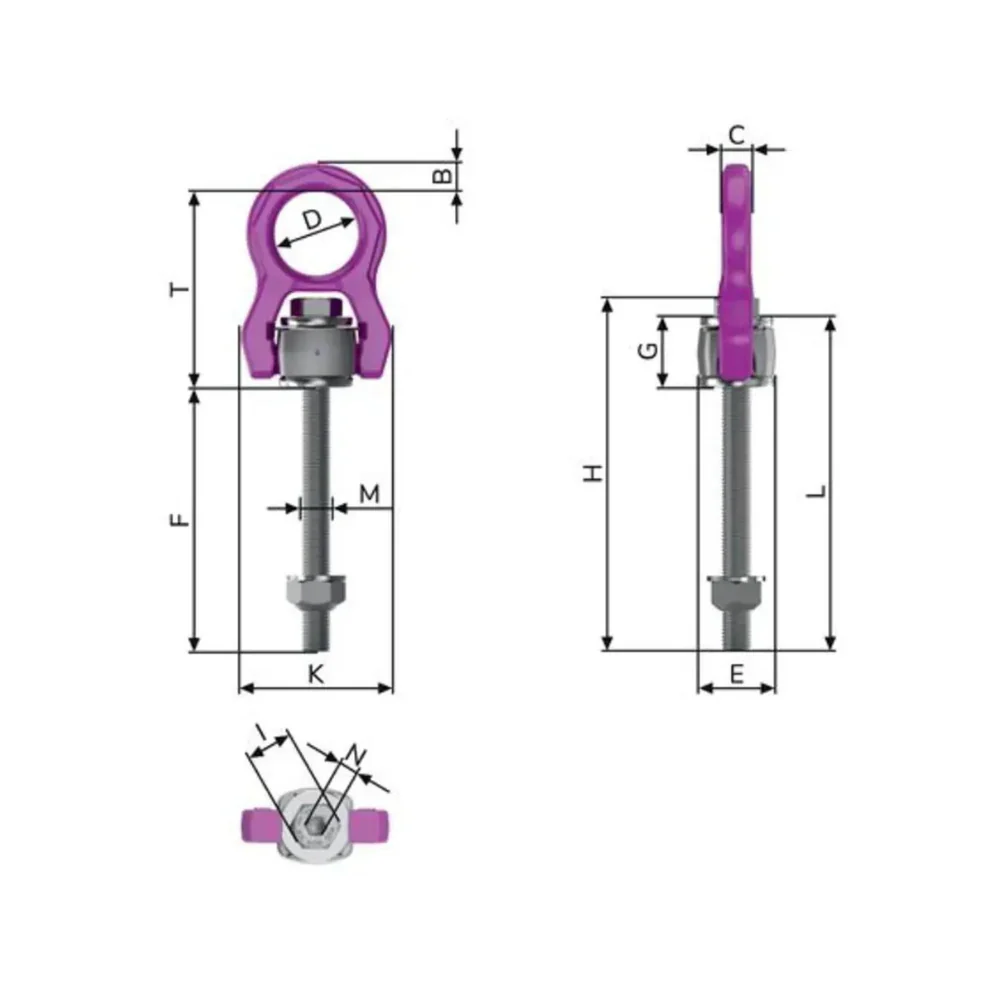

SKU	WLL (tons)	B (mm)	C (mm)	D (mm)	E (mm)	F  Max (mm)	F Min (mm)	G (mm)	H Max (mm)	H Min (mm)	I (mm)	K (mm)	L Max (mm)	L Min (mm)	M	N (mm)	Pitch T (mm)
8600632 M12	1.35	11	10.5	38	30	117	12	28	153	55	19	58	145	40	M12	8	83
8600634 M16	2.5	14	14	50	40	149	16	36	195	68	24	76	185	52	M16	10	107
8600636 M20	4	17	17	50	45	186	20	43.5	242	82	30	89	230	63	M20	12	118
8600638 M24	0	23	23	66	60	210	24	55	280	104	36	121	265	79	M24	14	154
8600640 M30	0	29	27	75	75	271	30	68.5	359	129	46	148	340	98	M30	17	183
8600642	0	32	32	82	70	240	36	60	323	128	55	168	300	105	M36	22	189
8600644	0	32	32	82	70	290	42	60	373	136	65	168	350	113	M42	24	189
