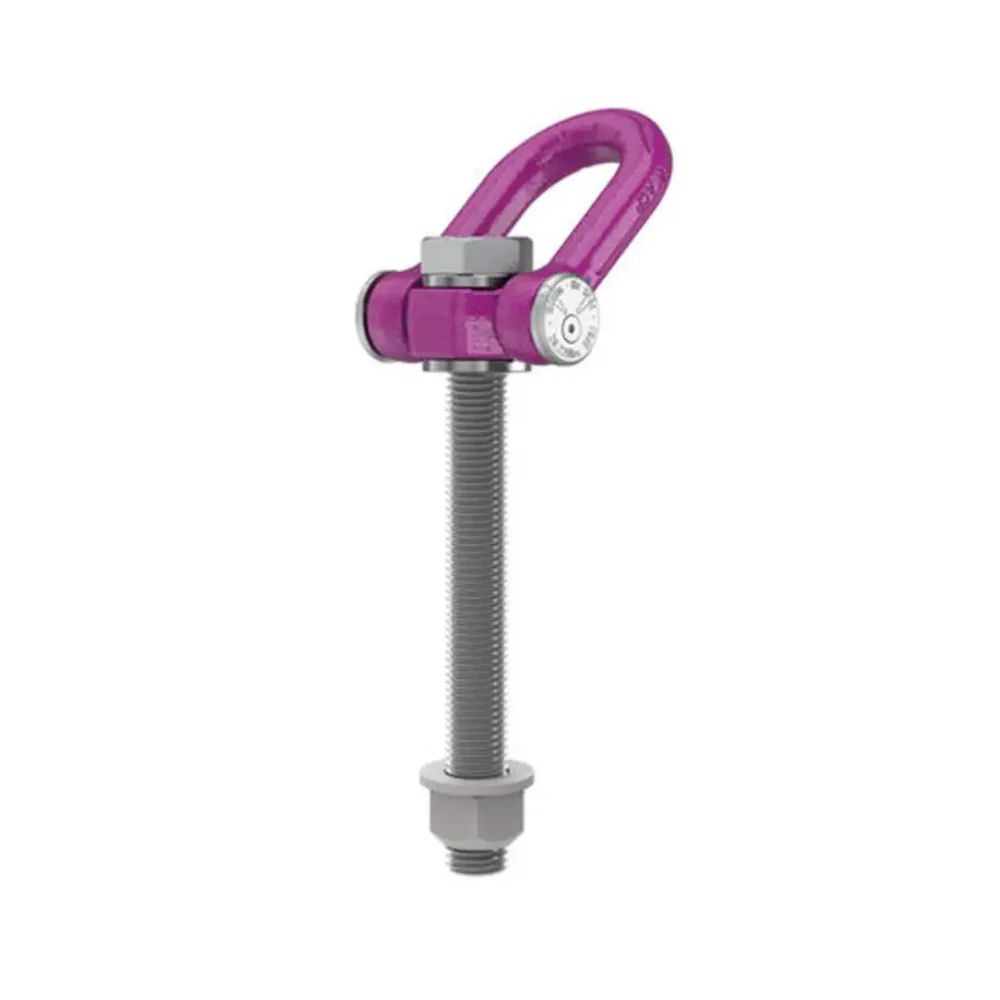

RUD ACP-Turnado, Metric Thread with Variable Length

A true RUD favorite, the ACP-Turnado, Metric Thread with Variable Length screw type lifting point is available in thread sizes from M12 up to M42.

Boasting safety factors of 4:1 and 5:1, each unit meets/exceeds the requirements of American stand ASME B30.26.

Fitted with an innovative exterior spring mechanism that prevents the lift bail from stopping with traversing loads, these boltable lifting points feature integrated RFID technology to make checks even easier.

Comes with Locknut & Washer

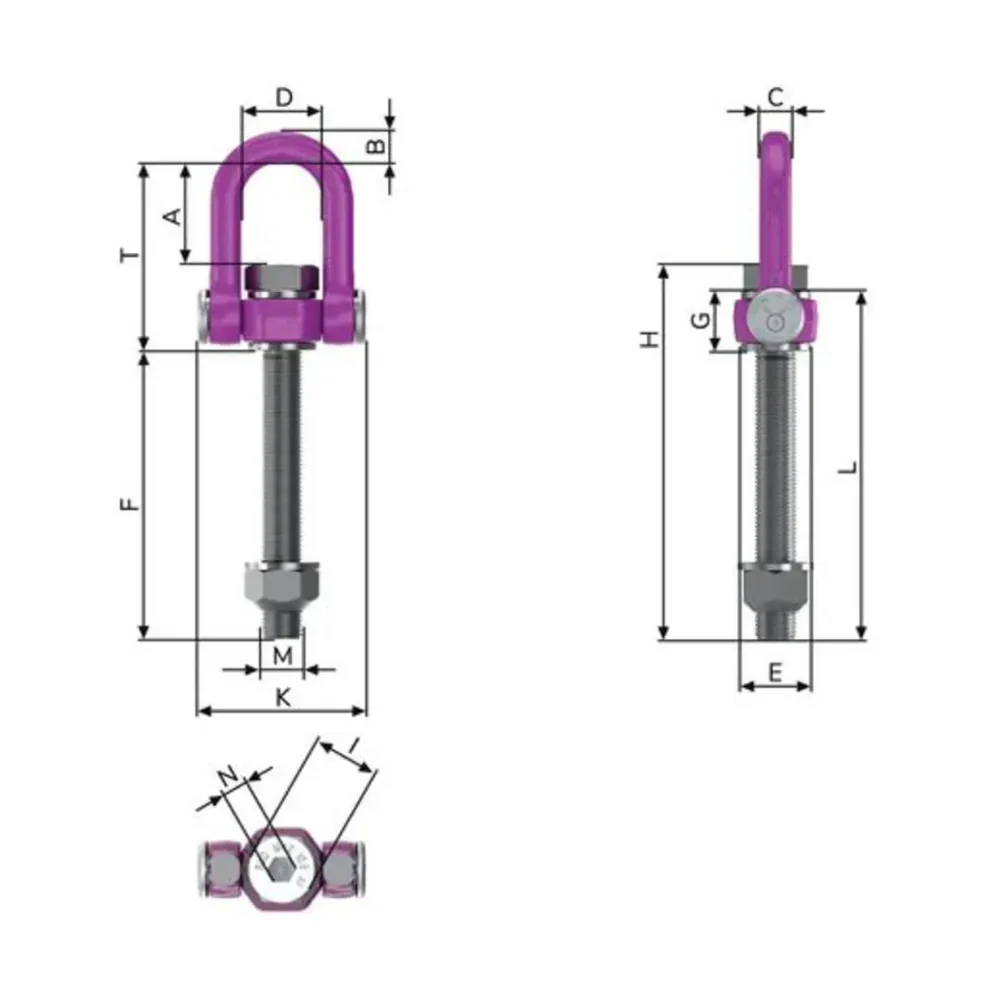

SKU	WLL (tons)	B (mm)	C (mm)	D (mm)	E (mm)	F Max (mm)	F Min (mm)	G (mm)	H Max (mm)	H Min (mm)	I (mm)	K (mm)	L Max (mm)	L Min (mm)	M	N (mm)	Pitch T  (mm)
8600632 M12	1.35	11	10.5	38	30	117	12	28	153	55	19	58	145	40	M12	8	83
8600634 M16	2.5	14	14	50	40	149	16	36	195	68	24	76	185	52	M16	10	107
8600636 M20	4	17	17	50	45	186	20	43.5	242	82	30	89	230	63	M20	12	118
8600638 M24	6.3	23	23	66	60	210	24	55	280	104	36	121	265	79	<24	14	154
8600640 M30	0	29	27	75	75	271	30	68.5	359	129	46	148	340	98	M30	17	183
8600642	0	32	32	82	70	240	36	60	323	128	55	168	300	105	M36	22	189
8600644	0	32	32	82	70	290	42	60	373	136	65	168	350	113	M42	24	189
