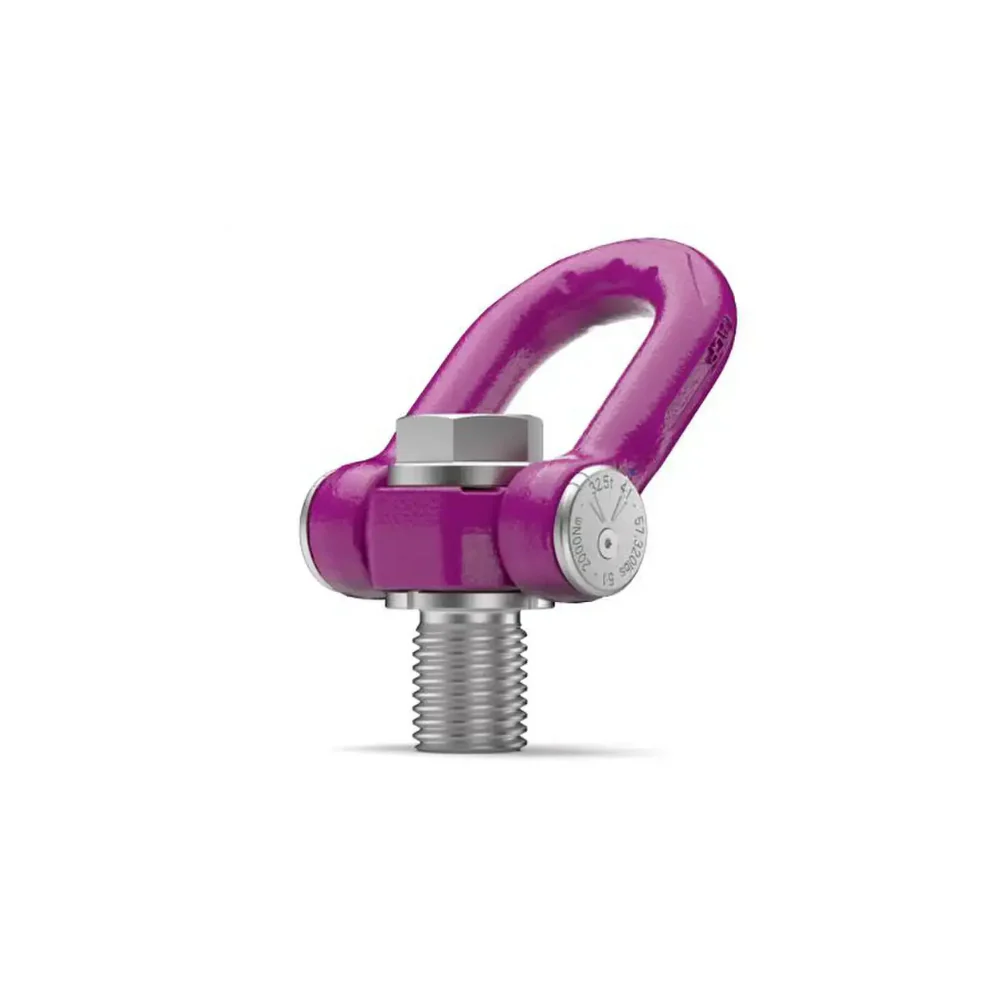

RUD ACP-Turnado Supermax, Metric Thread

One of the newest additions to the RUD catalogue, the Supermax boltable lifting point brings bigger thread sizes to the much-loved ACP-Turnado range.

Showcasing quality design and manufacturing, as well as an eye for user safety, the ACP-Turnado Supermax has a working load limit of 57320lbs and is available in threads from M64 to M100.

Fitted with a firmly connected thread rod and a smooth swivel joint in the lifting ring axis, the Supermax model has an innovative internal spring mechanism that prevents the lift bail from stopping with traversing loads.

Boasting safety factors of 4:1 and 5:1, each unit meets/exceeds the requirements of American Standard ASME B30.26, and features an integrated RFID transponder for easier traceability.

Furthermore, the deflector disc is stamped with angle marking, WLL information in both tons and lbs, safety factor, and torque moment.

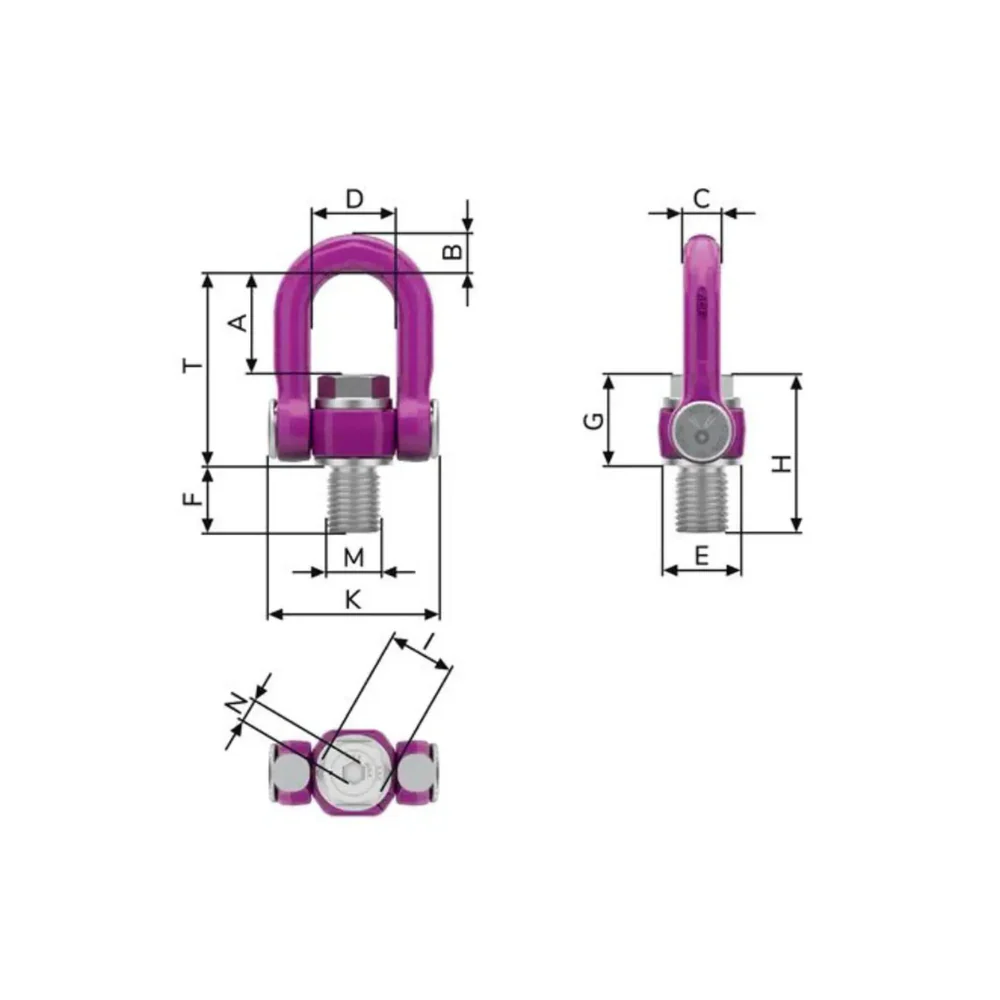

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	K (mm)	M	N (mm)	Pitch T (mm)
7912637	57320	123.5	45	45	103	120	125	116	241	75	204	M100	24	240
7912633	57320	123.5	45	45	103	95	80	108	188	75	204	M64	24	232
7912634	57320	123.5	45	45	103	95	90	108	198	75	204	M72	24	232
7912635	57320	123.5	45	45	103	100	100	108	208	75	204	M80	24	232
7912636	57320	123.5	45	45	103	110	113	116	229	75	204	M90	24	240
