RUD ACP-Turnado, UNC Thread

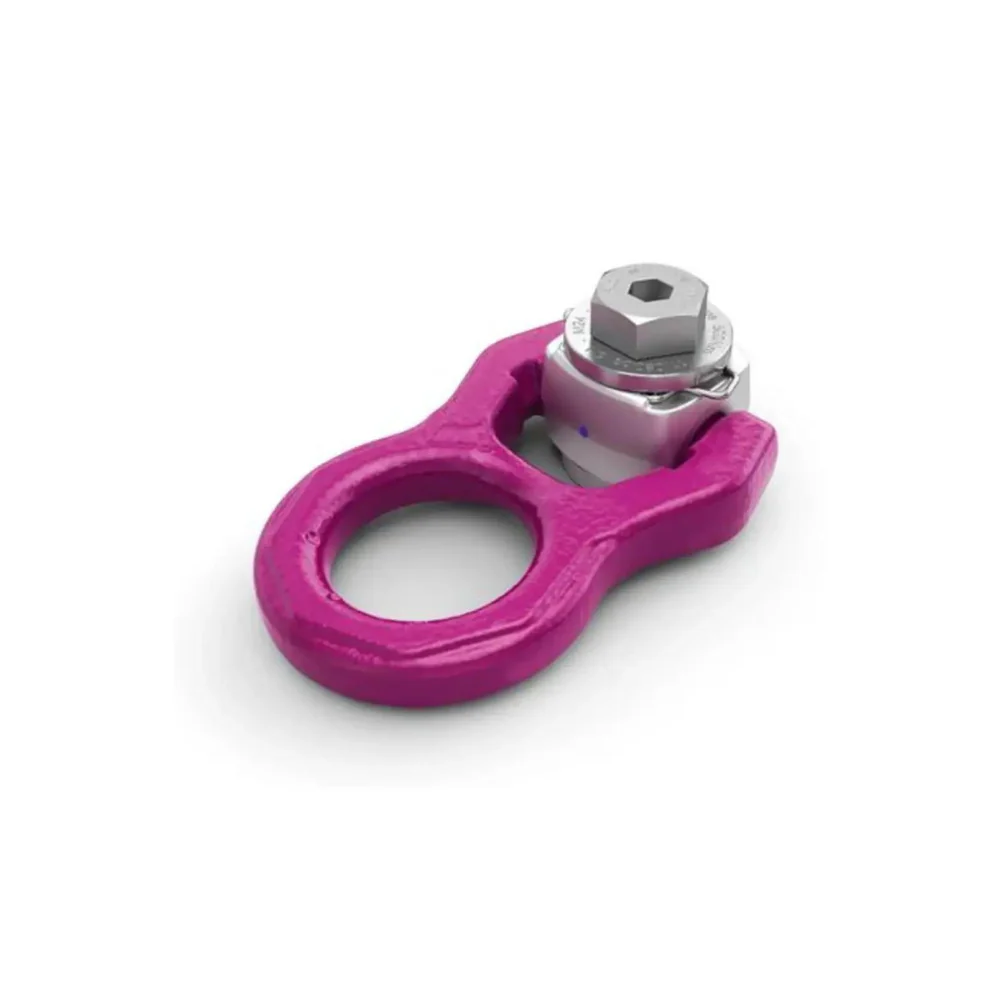

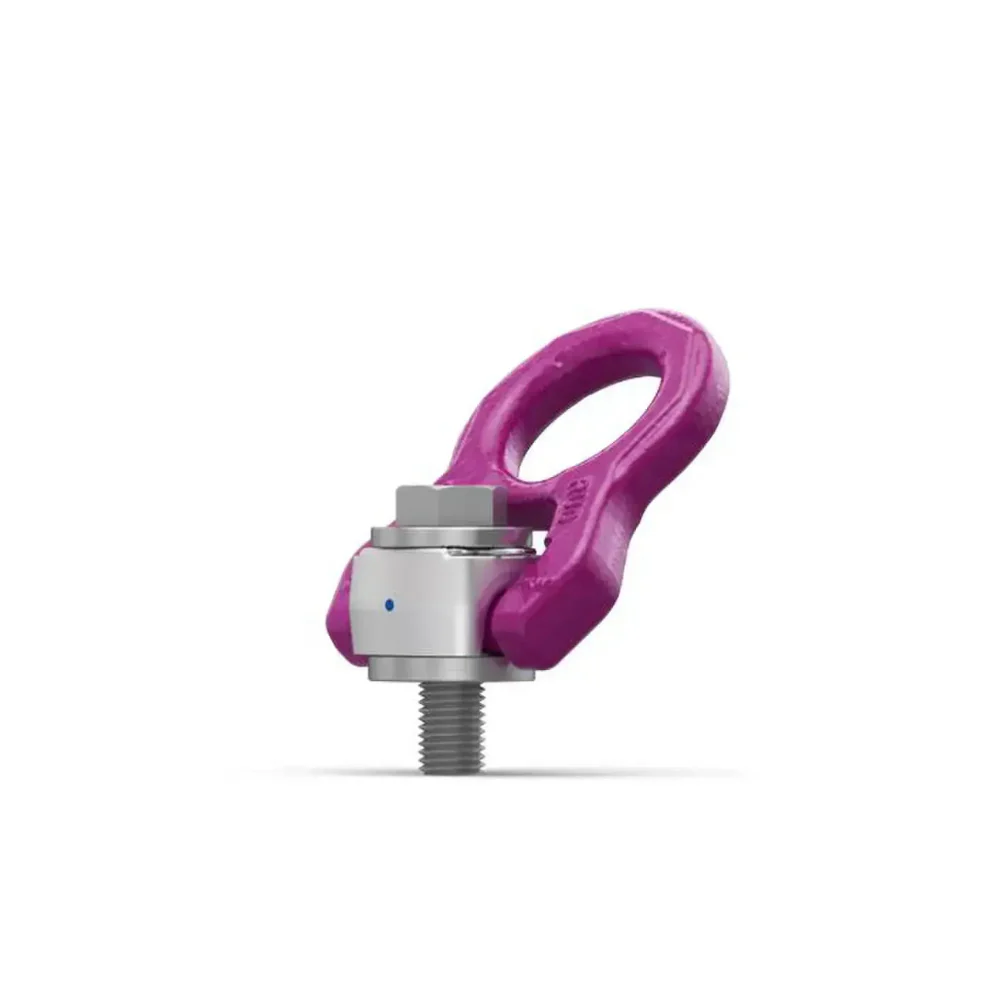

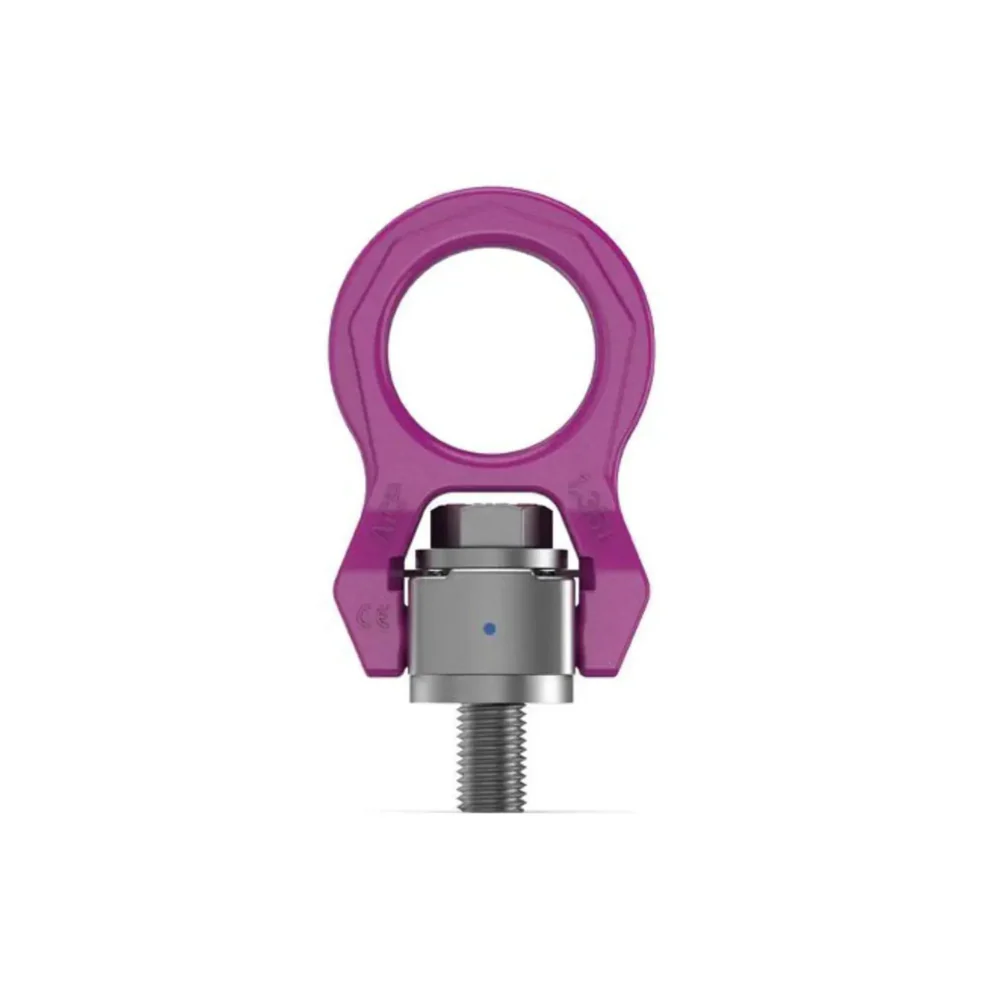

The ACP-Turnado UNC Thread from RUD has higher working load limits than comparable design sizes, available in WLL's from 1.35t up to 6t.
Designed to swivel a full 360-degrees and pivot 180-degrees, the ACP-Turnado Lifting Point features a unique spring mechanism that avoids any stuck position of the suspension ring.
Also eliminates the possibility of kinking.
|
SKU |

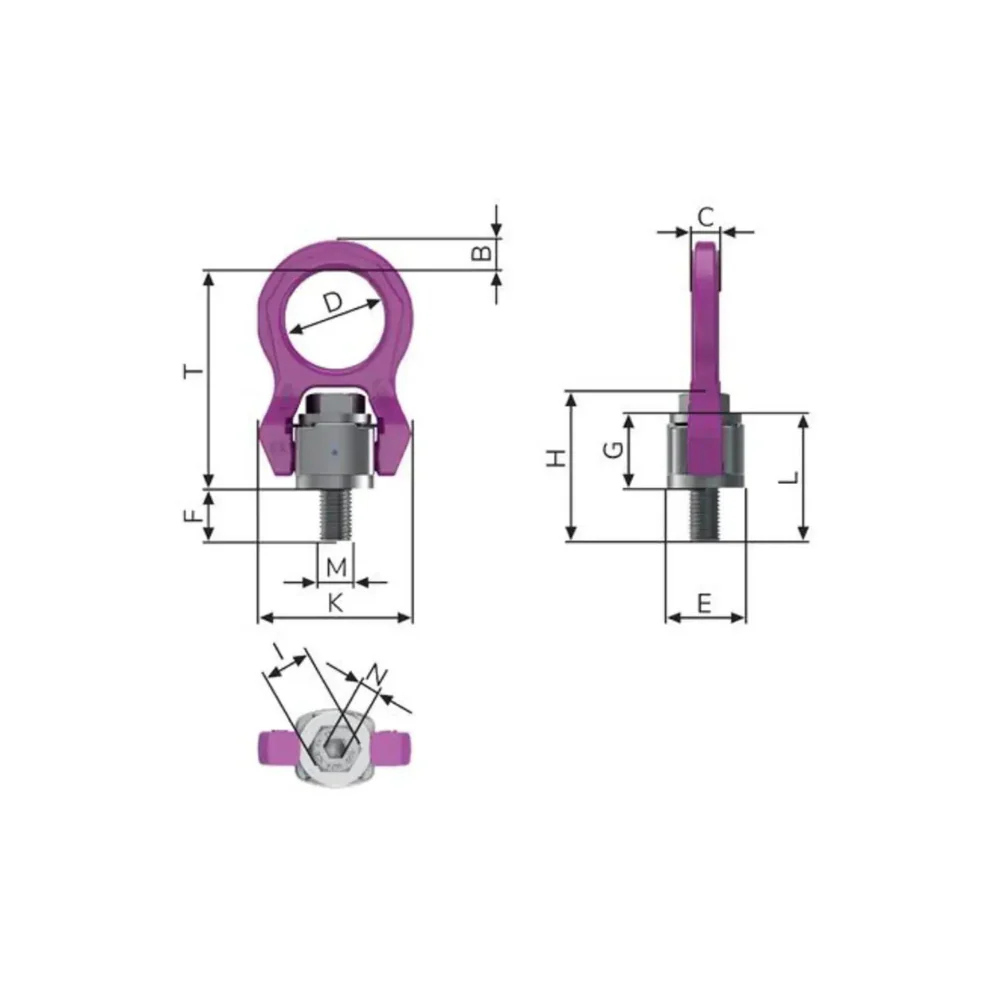

WLL (tons) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I |
K (mm) |
L (mm) |
M |
N (in.) |
Pitch T (mm) |
|
7909417 |
0 |
11 |
10.5 |
38 |
30 |
18 |
28 |
54 |
0.75 |
58 |
46 |
1/2"-13UNC |
0.31 |
83 |
|
7909418 |
4400 |
14 |
14 |
50 |
40 |
22 |
36 |
68 |
0.94 |
76 |
58 |
5/8"-11UNC |
0.38 |
107 |
|
7909419 |
7040 |
17 |
17 |
50 |
45 |
25.5 |
43.5 |
81 |
1.12 |
89 |
69 |
3/4"-10UNC |
0.5 |
118 |
|
7909420 |
0 |
23 |
23 |
66 |
60 |
36 |
55 |
105.5 |
1.5 |
121 |
91 |
1"-8UNC |
0.56 |
154 |
|
7909421 |
14080 |
29 |
27 |
75 |
75 |
46.5 |
68.5 |
134.5 |
1.88 |
148 |
115 |
1 1/4"-7UNC |
0.62 |
183 |
|
7911054 |
24690 |
32 |
32 |
82 |
70 |
48 |
60 |
131 |
2.25 |
168 |
108 |
1-1/2"-6UNC |
0.88 |
189 |
|
7911055 |
0 |
32 |
32 |
82 |
70 |
56 |
60 |
141 |
2.62 |
168 |
117 |
1-3/4"-5UNC |
1 |
189 |
|
7912638 |
38800 |
4 |
40 |
103 |
90 |
63.5 |
78.5 |
172 |
3 |
204 |
142 |
2"-4,5UNC |
1.12 |
235 |
|
7912639 |
57320 |
45 |
45 |
103 |
95 |
79 |
108 |
187 |
3 |
204 |
142 |
2 1/2"-4,5UNC |
1.12 |
232 |
|
7912640 |
57320 |
45 |
45 |
103 |
95 |
95 |
108 |
203 |
3 |
204 |
142 |
3"-4UNC |
1.12 |
232 |
|
7912641 |
57320 |
45 |
45 |
103 |
110 |
111 |
116 |
227 |
3 |
204 |
142 |
3 1/2"-4UNC |
1.12 |
232 |
