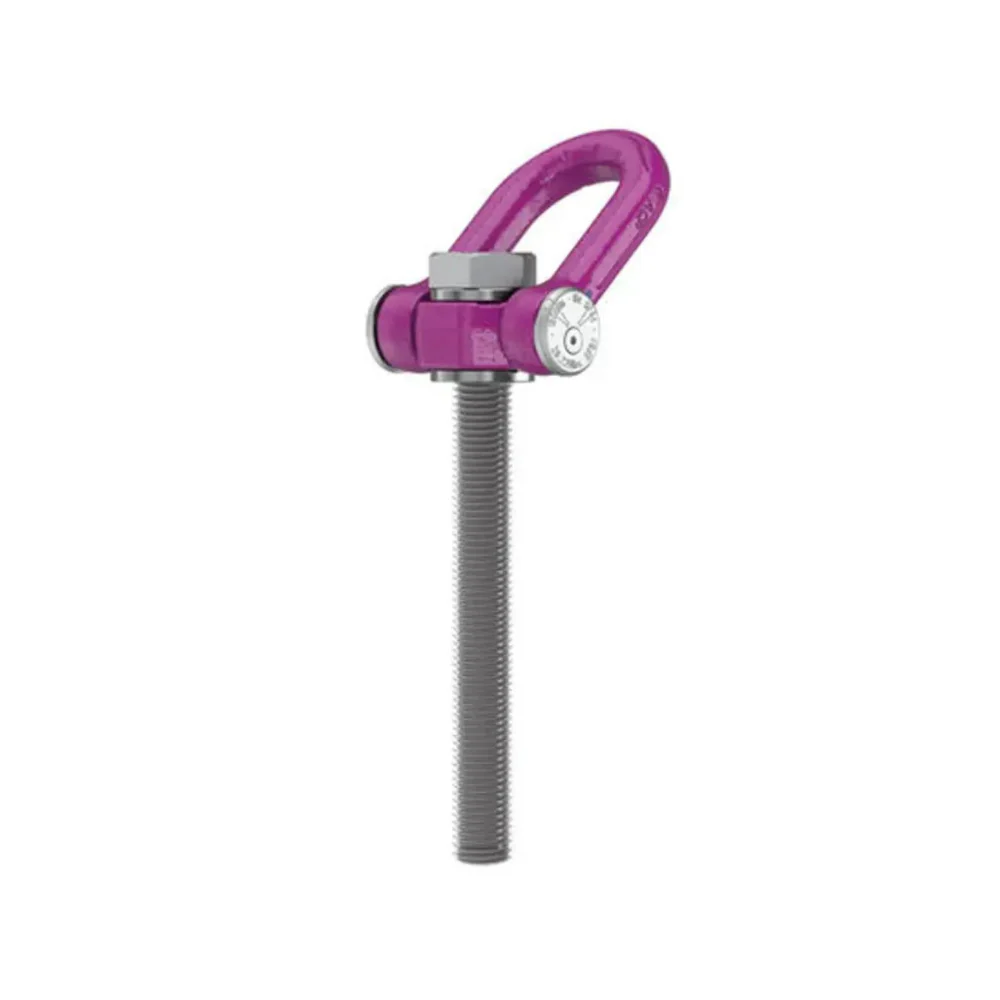

RUD ACP-Turnado, UNC Thread with Max. Length
Offering higher working load limits than comparable products, RUD ACP-Turnado UNC Thread with Max Length is available in WLL's from 1,35t up to 8t.
Fitted with a unique RUD spring mechanism that avoids stuck positions of the suspension ring, this model eliminates the risk of kinking.
Designed to swivel 360-degrees and pivots through 180-degrees.
|

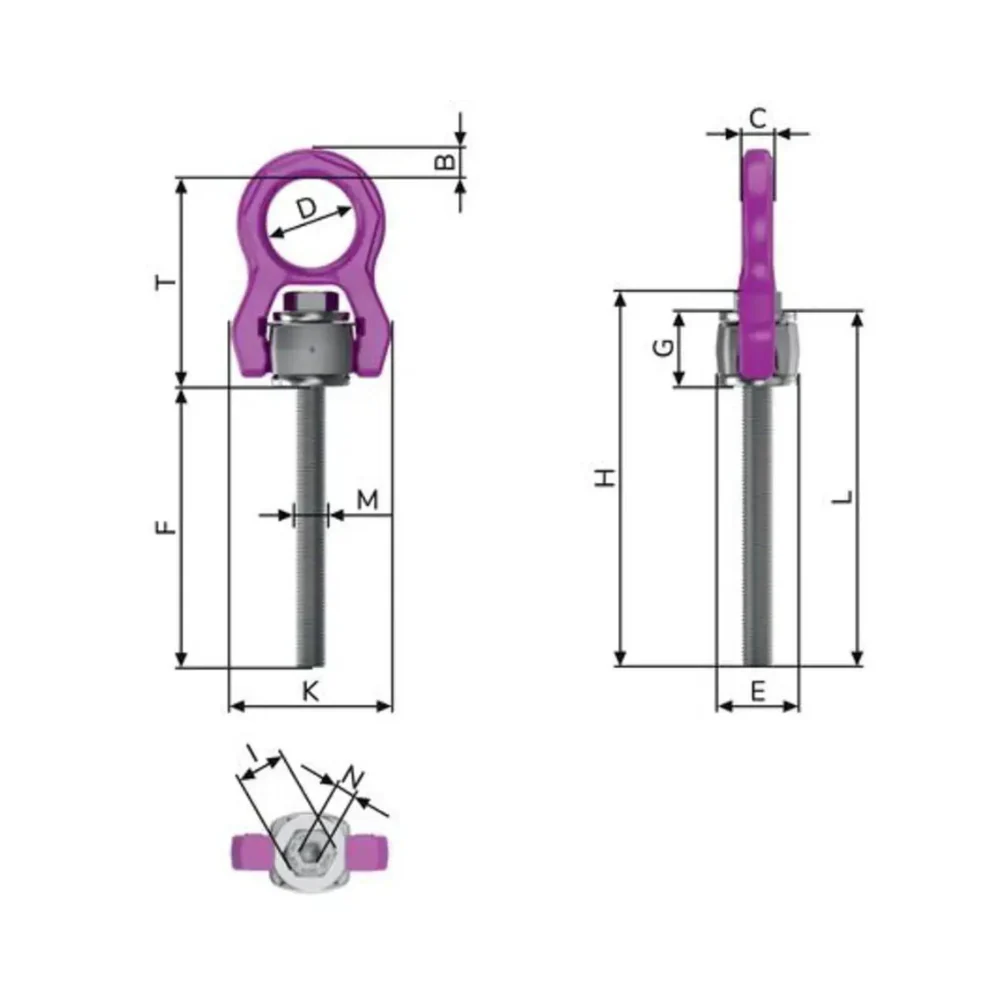

SKU |
WLL (tons) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
H Max (mm) |
H Min (mm) |
I (mm) |
K (mm) |
L Max (mm) |
L Min (mm) |
M |
N (mm) |
Pitch T (mm) |
|
8600632 1/2 UNC |
1.35 |
11 |
10.5 |
38 |
30 |
124 |
18 |
28 |
160 |
54 |
0.75 |
58 |
152 |
40 |
1/2"-13UNC |
0.31 |
83 |
|
8600634 5/8-11NC |
2.5 |
14 |
14 |
50 |
40 |
148 |
16 |
36 |
194 |
68 |
0.94 |
76 |
184 |
52 |
5/8"-11UNC |
0.38 |
107 |
|
8600636 3/4-10 |
4 |
17 |
17 |
50 |
45 |
185 |
20 |
43.5 |
240 |
81 |
1.12 |
89 |
228 |
64 |
3/4"-10UNC |
0.5 |
118 |
|
8600638 1-8 UNC |
6.3 |
23 |
23 |
66 |
60 |
199 |
25 |
55 |
270 |
107 |
1.5 |
121 |
254 |
80 |
1"-8UNC |
0.56 |
154 |
|
8600640 1 1/4-7 UNC |
8 |
29 |
27 |
75 |
75 |
271 |
32 |
68.5 |
359 |
135 |
1.88 |
148 |
339 |
100 |
1 1/4"-7UNC |
0.62 |
183 |
Original: $388.00
-65%$388.00
$135.80
