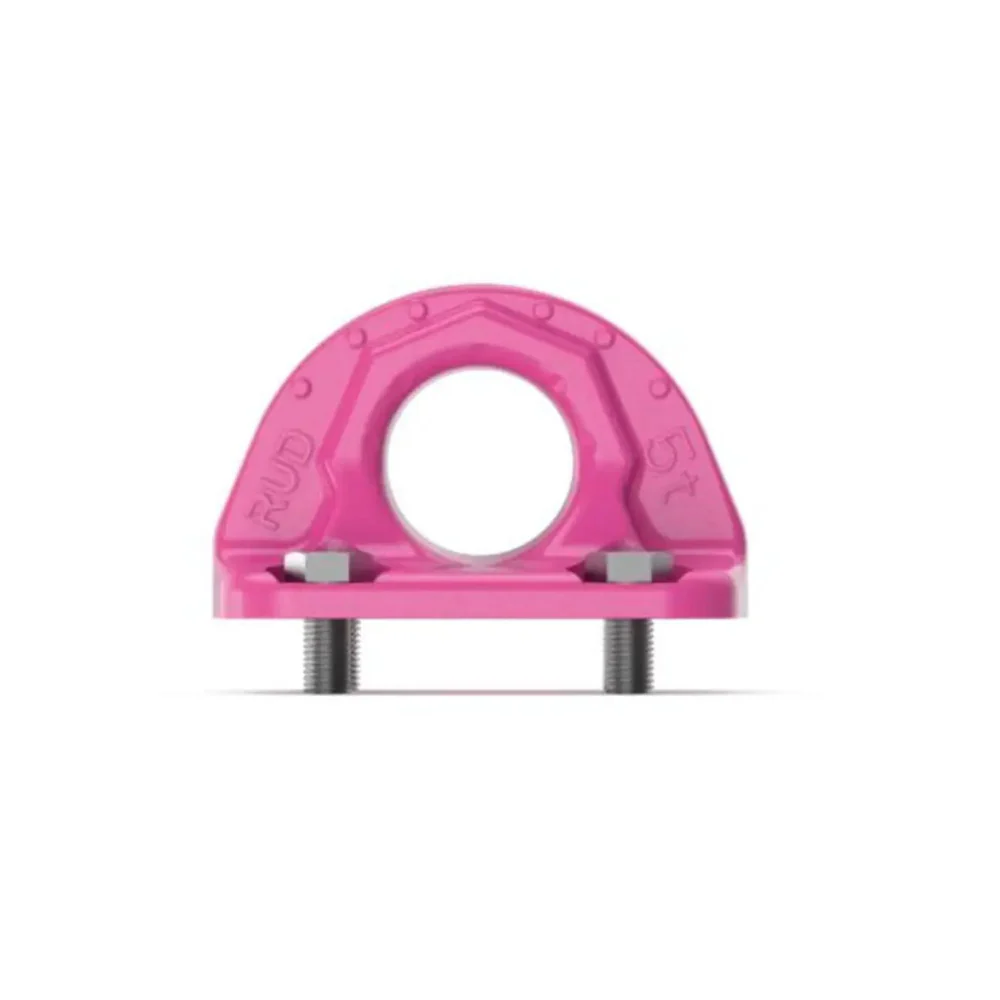

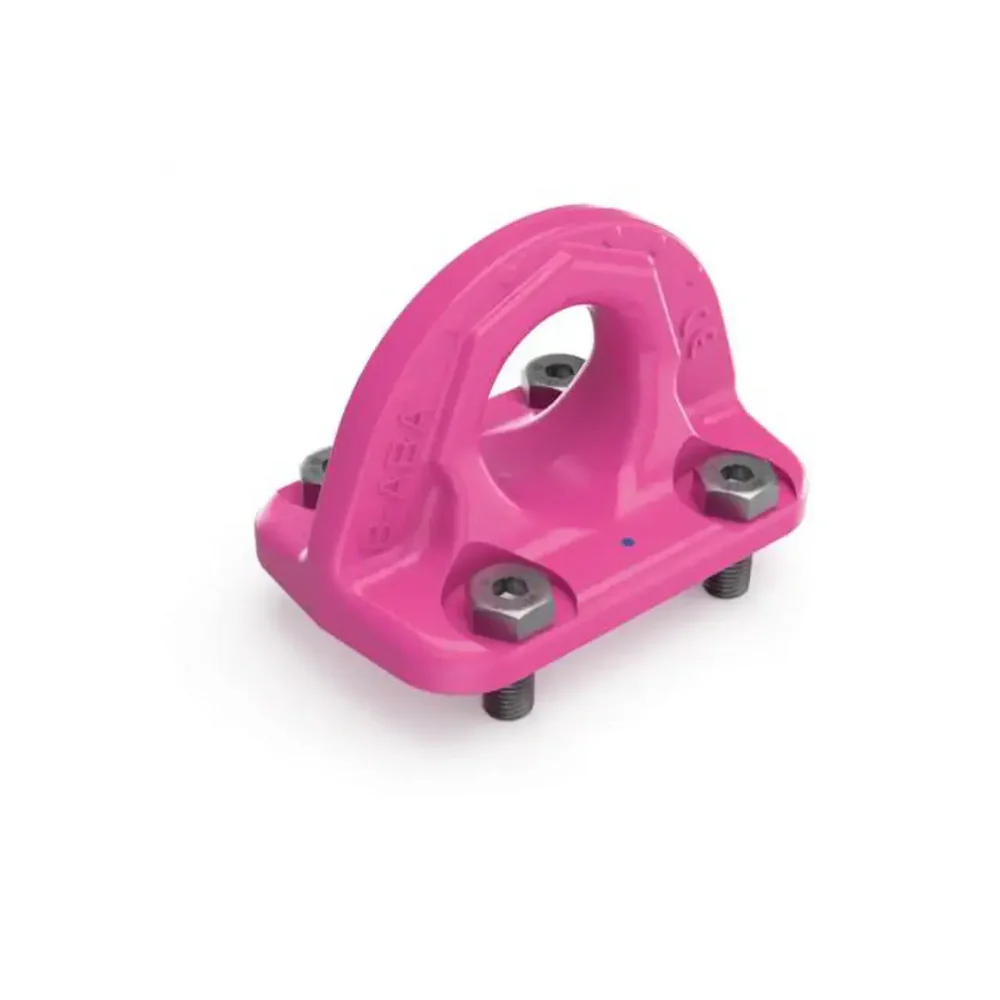

RUD B-ABA Lifting Point

RUD B-ABA Boltable Lifting Points are available in working load limits from 1.6t right up to 31.5t (M10 - M30).

Engineered so no rattling noise or shaking is apparent event with strong vibrations or shock loads, the B-ABA provides the easiest possible connection method.

Featuring a patented steel ICE-Bolt, which is suitable for deep temperature usage, the improved toughness allows for higher bending strength and lower wear occurrence.

These lifting points also feature patented wear markings, bot inside and out, as well as clear makings stating the minimum working load limit.

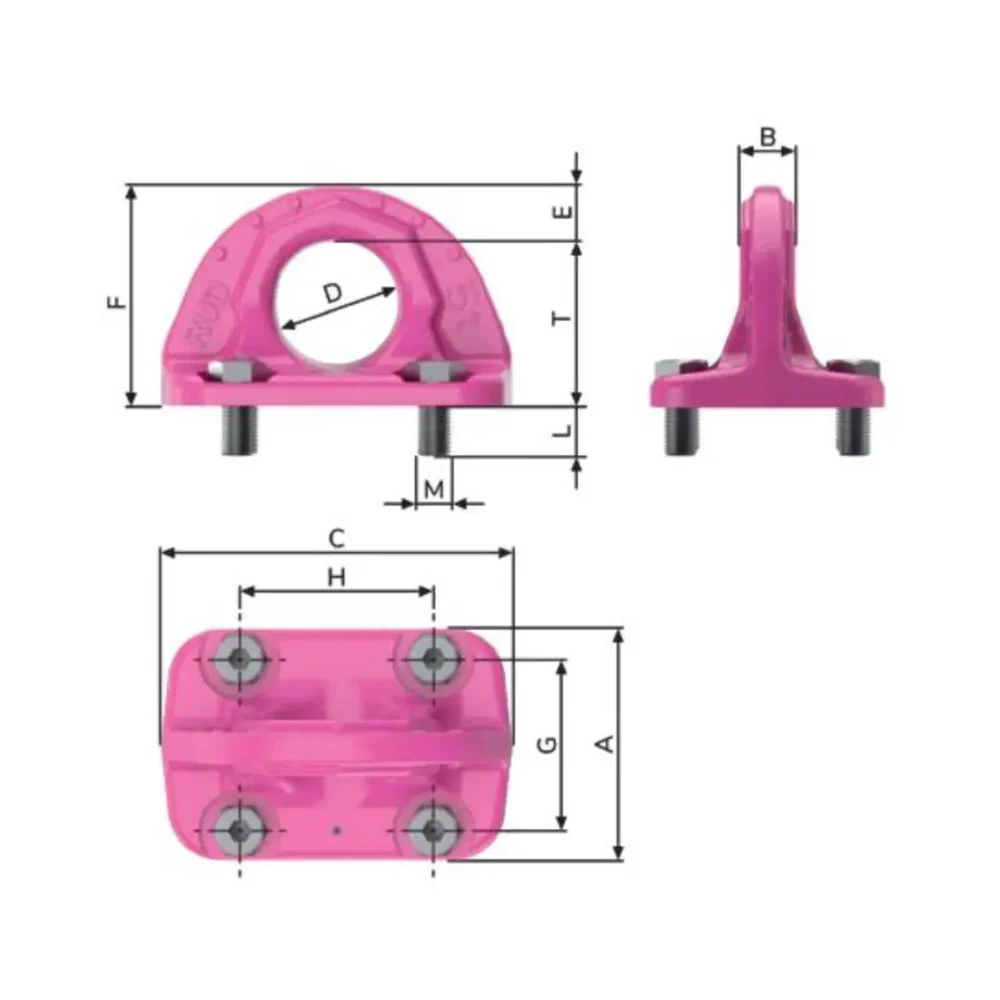

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	L (mm)	M	Pitch T (mm)
7906266	3520	75	16	100	35	16	62	55	55	13	M10	47
7906269	22040	146	38	228	80	36	141	110	125	25	M20	105
7906270	44090	200	52	272	115	40	188	150	75	30	M24	148
7906267	7050	92	23	137	50	21	86	70	75	16	M12	65
7906271	69440	230	64	320	130	50	220	175	87.5	40	M30	170
7906268	11000	113	27	172	60	28	108	84	95	24	M16	80
