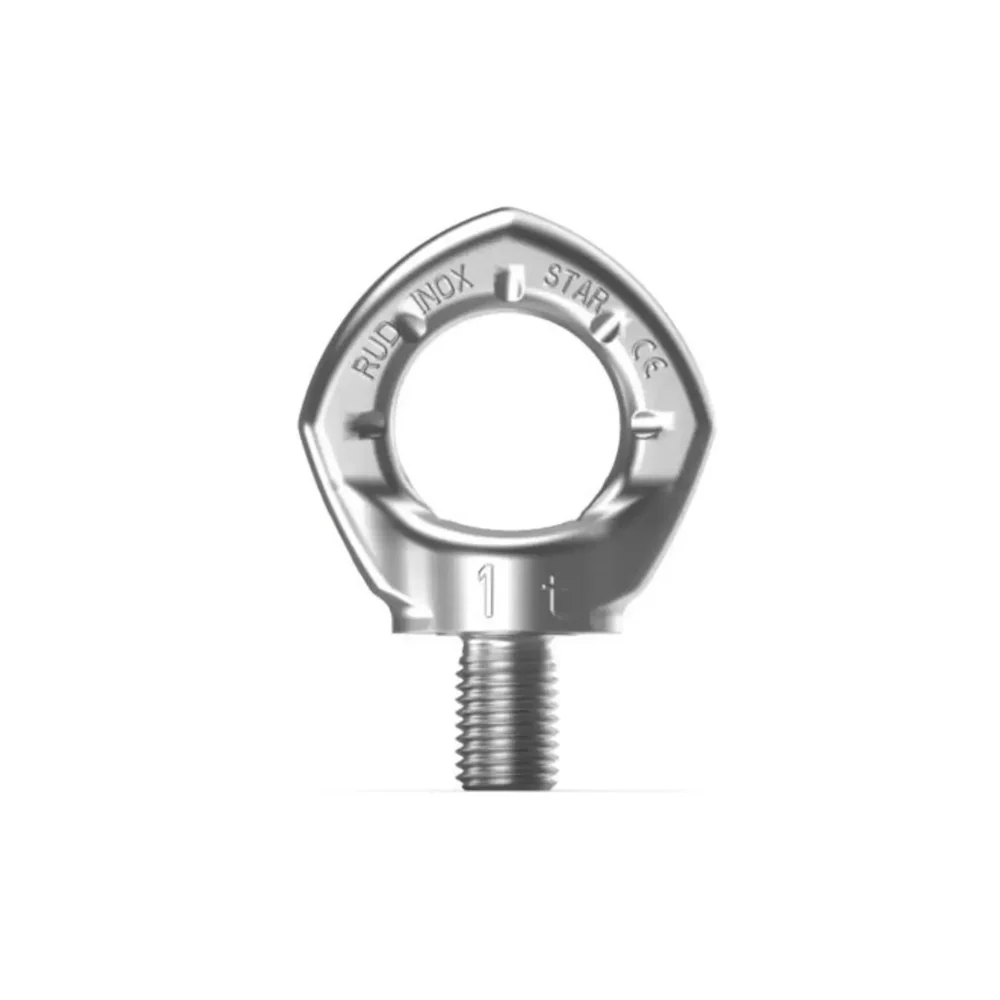

RUD INOX-Star, Metric Thread
Fast and simple to install, RUD's INOX-Star, Metric Thread, lifting point is available in working load limits from 1100lbs to 5500lbs (0.5t - 2.5t).

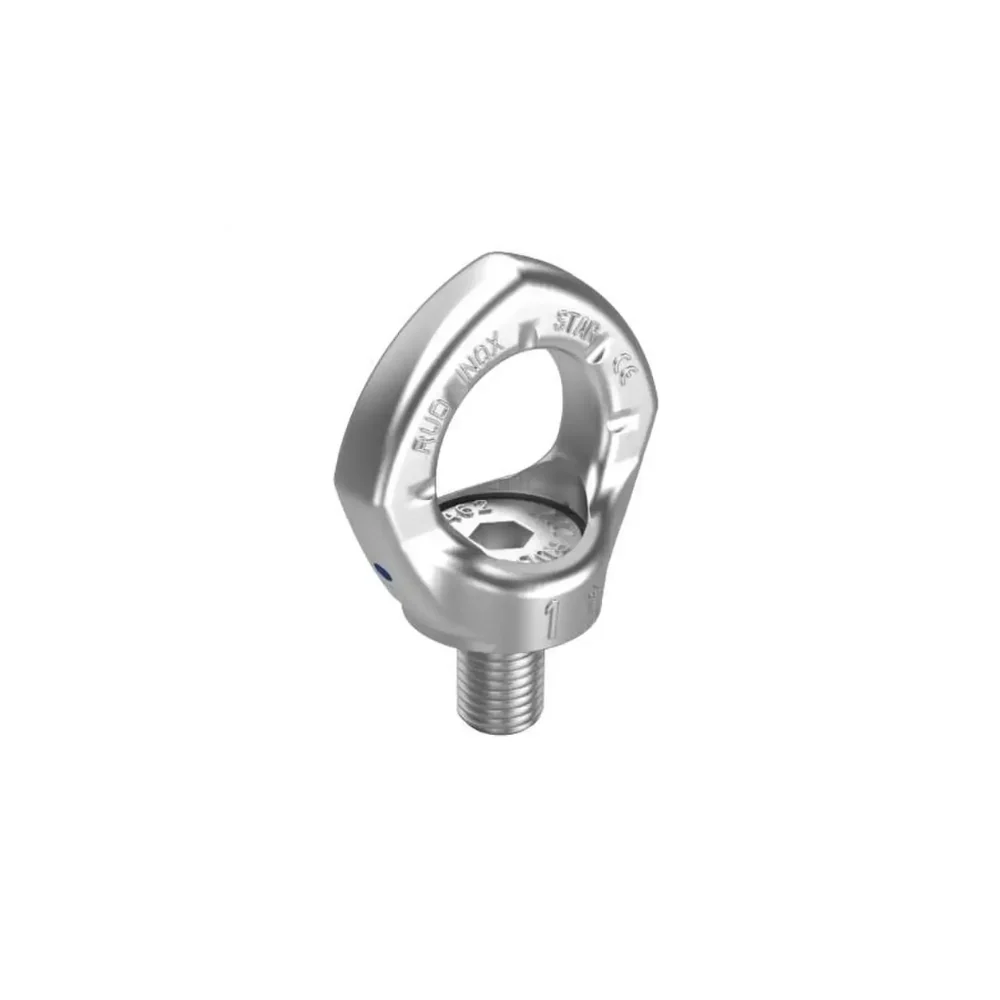

Distinguished from a conventional lifting point via the Penta shape, these eyebolts can be loaded from all sides and are rotatable through 360-degrees.
Manufactured from duplex steel 1.4462, they boast a high resistance to sea water and other environments with a high concentration of chlorine ions.
Variable bolt lengths are available for certain thread diameters,
|

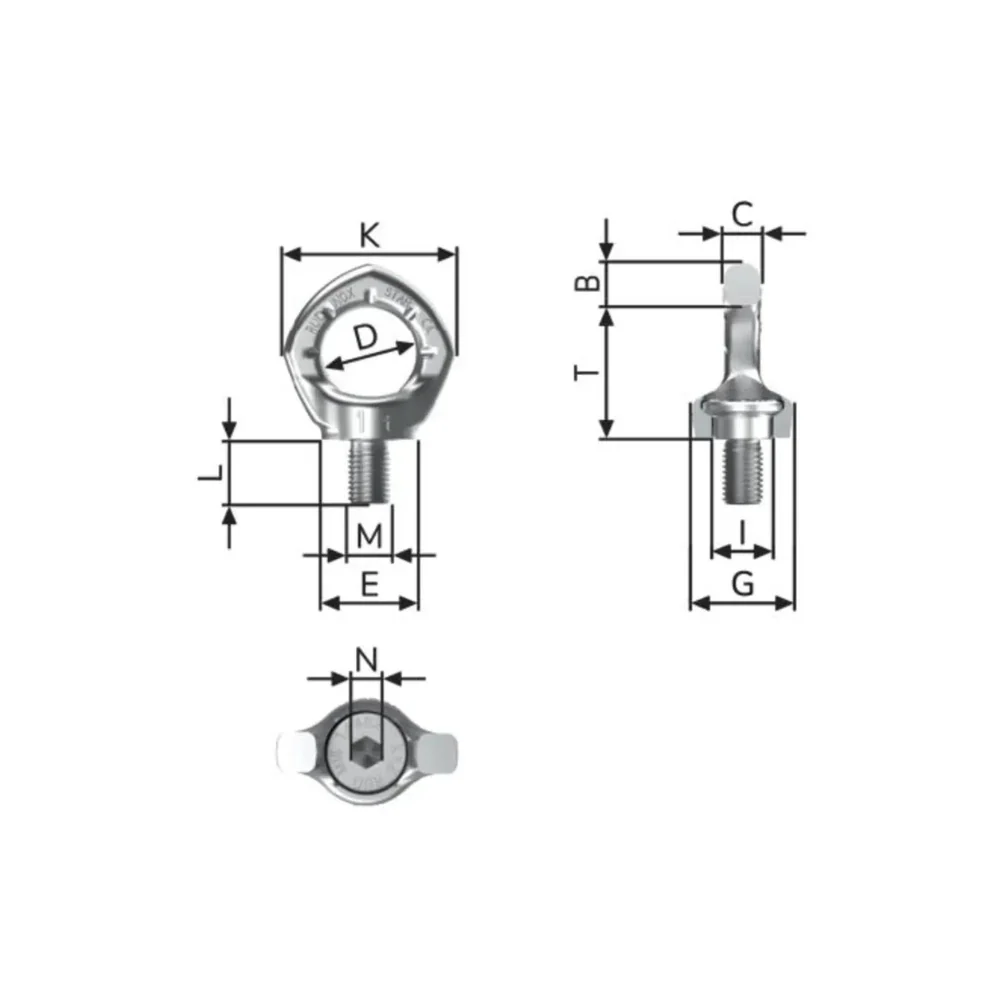

SKU |
WLL (lbs) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
Pitch T (mm) |
|
7993835 |
1100 |
14 |
12 |
30 |
30 |
32 |
18 |
56 |
18 |
M12 |
8 |
43 |
|
7997822 |
1100 |
14 |
12 |
30 |
30 |
32 |
18 |
56 |
50 |
M12 |
8 |
43 |
|
7993836 |
2200 |
16 |
14 |
35 |
36 |
38 |
22 |
65 |
24 |
M16 |
10 |
50 |
|
7993837 |
4400 |
19 |
16 |
40 |
43 |
47 |
27.5 |
74 |
30 |
M20 |
12 |
58 |
|
7993838 |
5500 |
24 |
19 |
48 |
51 |
56 |
33 |
92 |
36 |
M24 |
14 |
70 |
