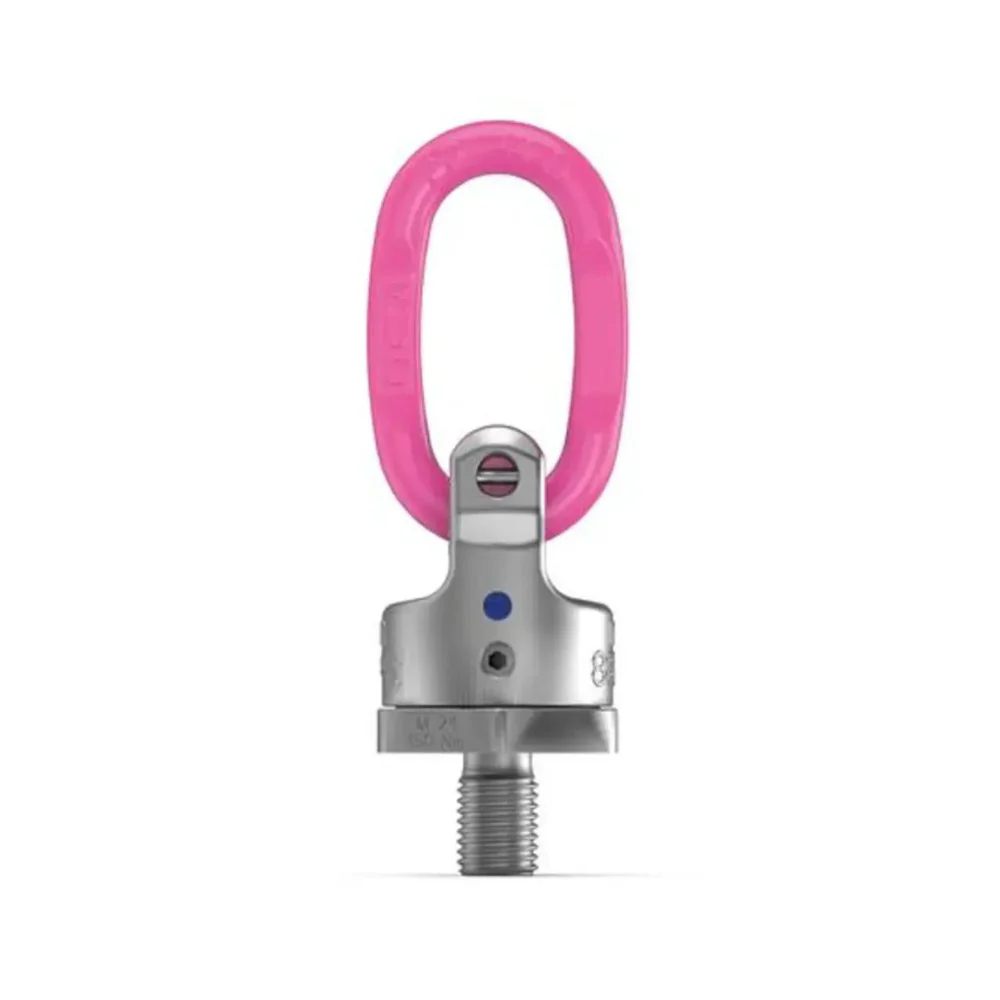

RUD PP-B Powerpoint Ring Connection, Metric Thread

The perfect option if you're in the market for a sturdy, easy rotating ring connection, the PP-B Powerpoint from RUD is just the ticket.

Capable of handling large loads from 0.63t up to 8t (model dependant), these lifting points offer the lowest kinking possibility due to the innovative cardan joint.

Available in various threads from M12 through to M30, the PP-B Powerpoint Ring Connection is rotatable 90-degrees to the bolt-on direction under stated working load limit.

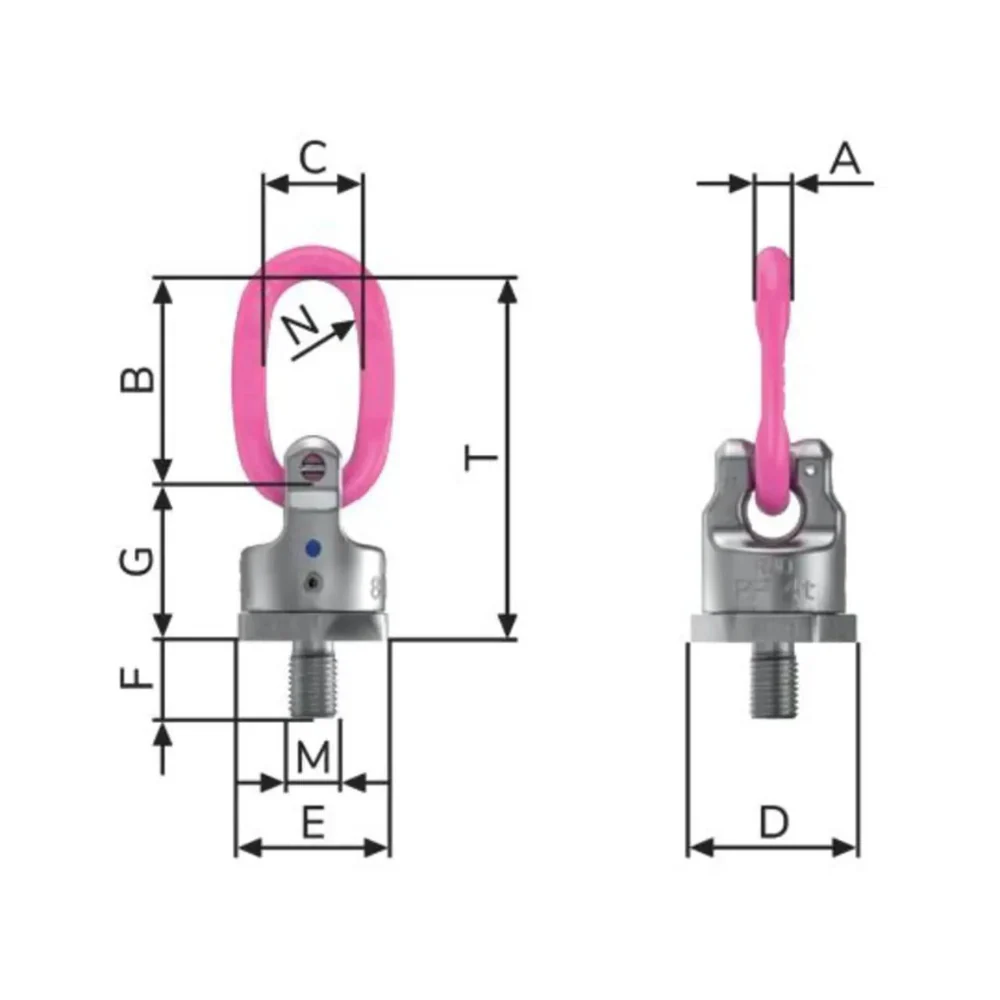

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M	N (mm)	Pitch T (mm)
7989522	1390	9	65	35	40	36	18	41	M12	15	106
7989523	3300	11	65	35	46	41	24	49	M16	15	115
7989081	5500	13	75	40	61	55	30	61	M20	18	136
7989082	8820	16	95	45	78	70	36	77	M24	20	172
7989524	11000	21	130	60	95	85	45	93	M30	25	223
7989083	17630	24	140	65	100	90	54	102	M36	28	242
