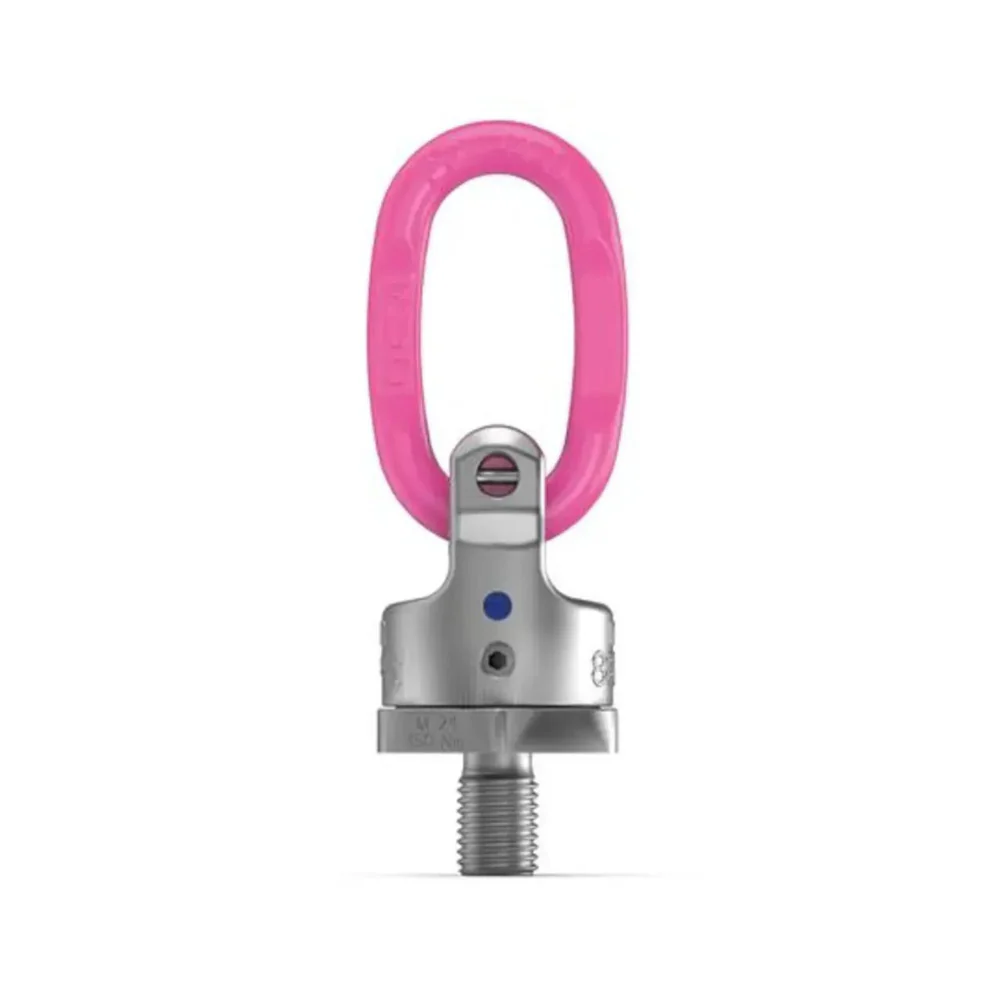

RUD PP-B Powerpoint Ring Connection, UNC Thread
The perfect option if you're in the market for a sturdy, easy rotating ring connection, the PP-B Powerpoint from RUD is just the ticket.
Capable of handling large loads from 0.63t up to 5t (model dependant), these lifting points offer the lowest kinking possibility due to the innovative cardan joint.
Available in various threads from1/2"-12BSW to 1 1/4"-7UNC, the PP-B Powerpoint Ring Connection is rotatable 90-degrees to the bolt-on direction under stated working load limit.
|

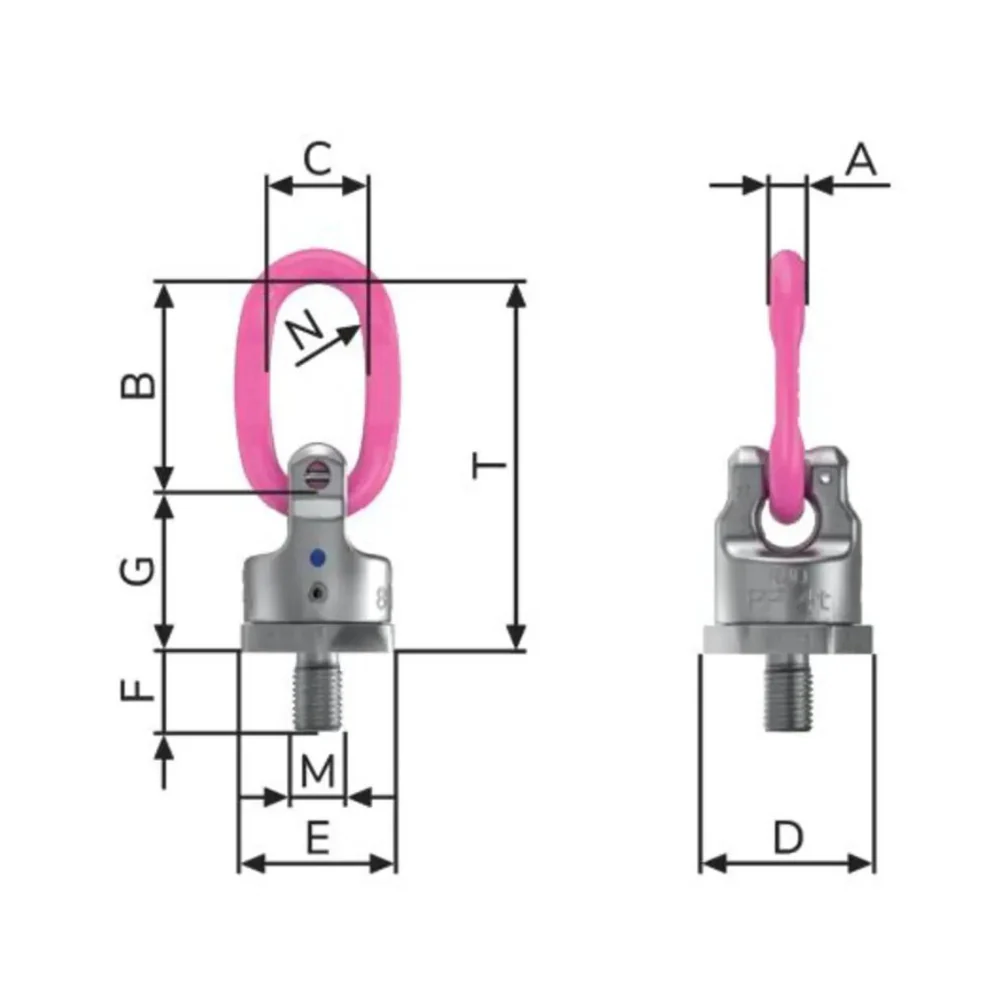

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
M |
N (mm) |
Pitch T (mm) |
|
8600591 |
0.63 |
9 |
65 |
35 |
40 |
36 |
18 |
41 |
15 |
106 |
|
|
8600592 |
1.5 |
11 |
65 |
35 |
46 |
41 |
24 |
49 |
5/8"-11UNC |
15 |
115 |
|
8600593 |
2.5 |
13 |
75 |
40 |
61 |
55 |
30 |
61 |
3/4"-10BSW |
18 |
136 |
|
8600594 |
4 |
16 |
95 |
45 |
78 |
70 |
36 |
77 |
1"-8BSW |
20 |
172 |
|
8600595 |
5 |
21 |
130 |
60 |
95 |
85 |
45 |
93 |
1 1/4"-7UNC |
25 |
223 |
Original: $328.00
-65%$328.00
$114.80
Description
The perfect option if you're in the market for a sturdy, easy rotating ring connection, the PP-B Powerpoint from RUD is just the ticket.
Capable of handling large loads from 0.63t up to 5t (model dependant), these lifting points offer the lowest kinking possibility due to the innovative cardan joint.
Available in various threads from1/2"-12BSW to 1 1/4"-7UNC, the PP-B Powerpoint Ring Connection is rotatable 90-degrees to the bolt-on direction under stated working load limit.
|
