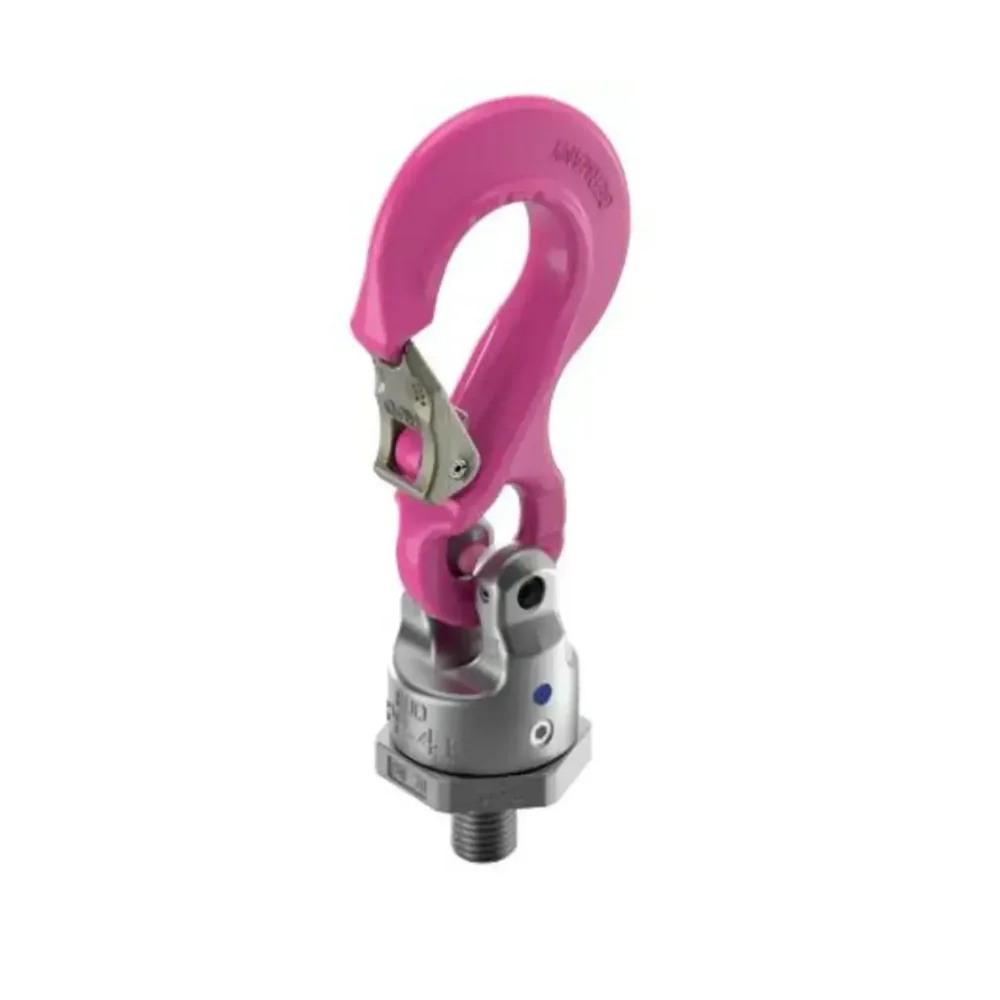

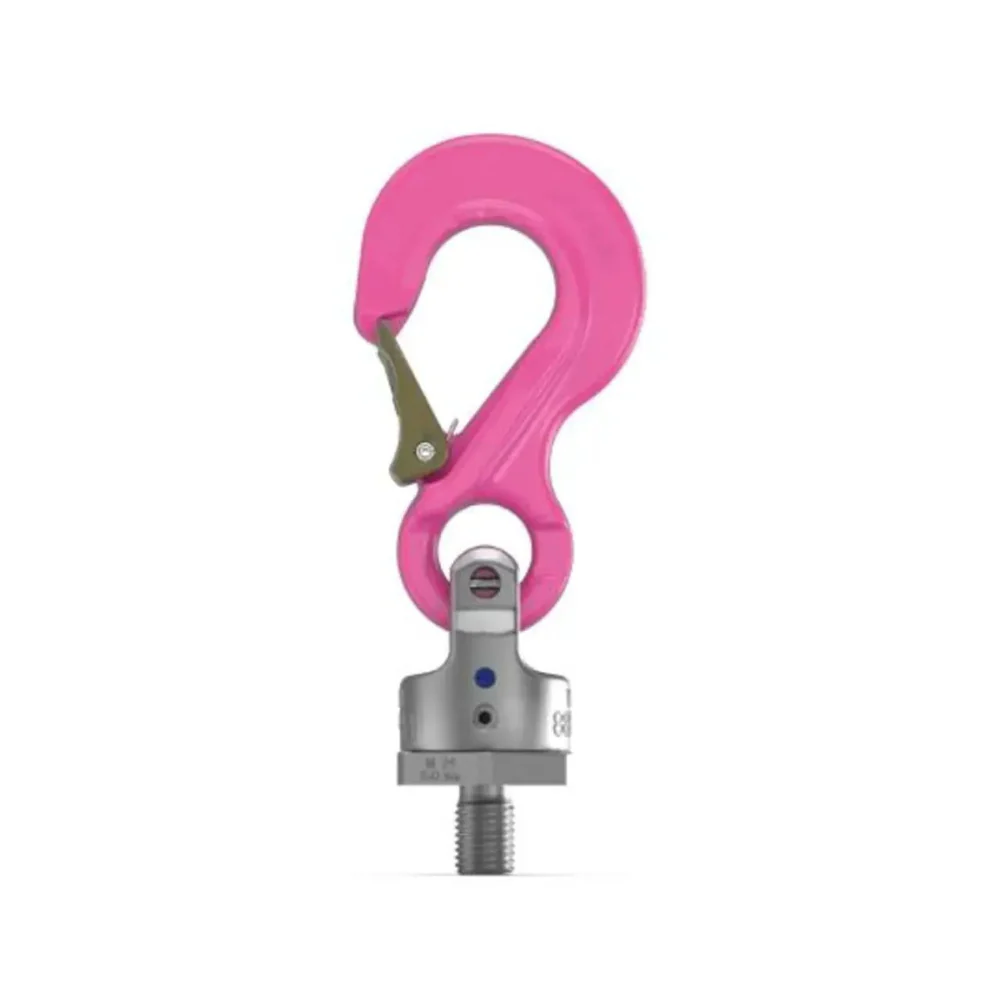

RUD PP-S Powerpoint Universal Connection, Metric Thread

Boasting an excellent working load limit range of 0.63t to 8t (M12 - M36 thread), RUD's PP-S Powerpoint Universal Connection, Metric Thread, is suitable for ring assemblies, round slings, wire ropes, and hook assemblies - it's pretty much always the right connection.

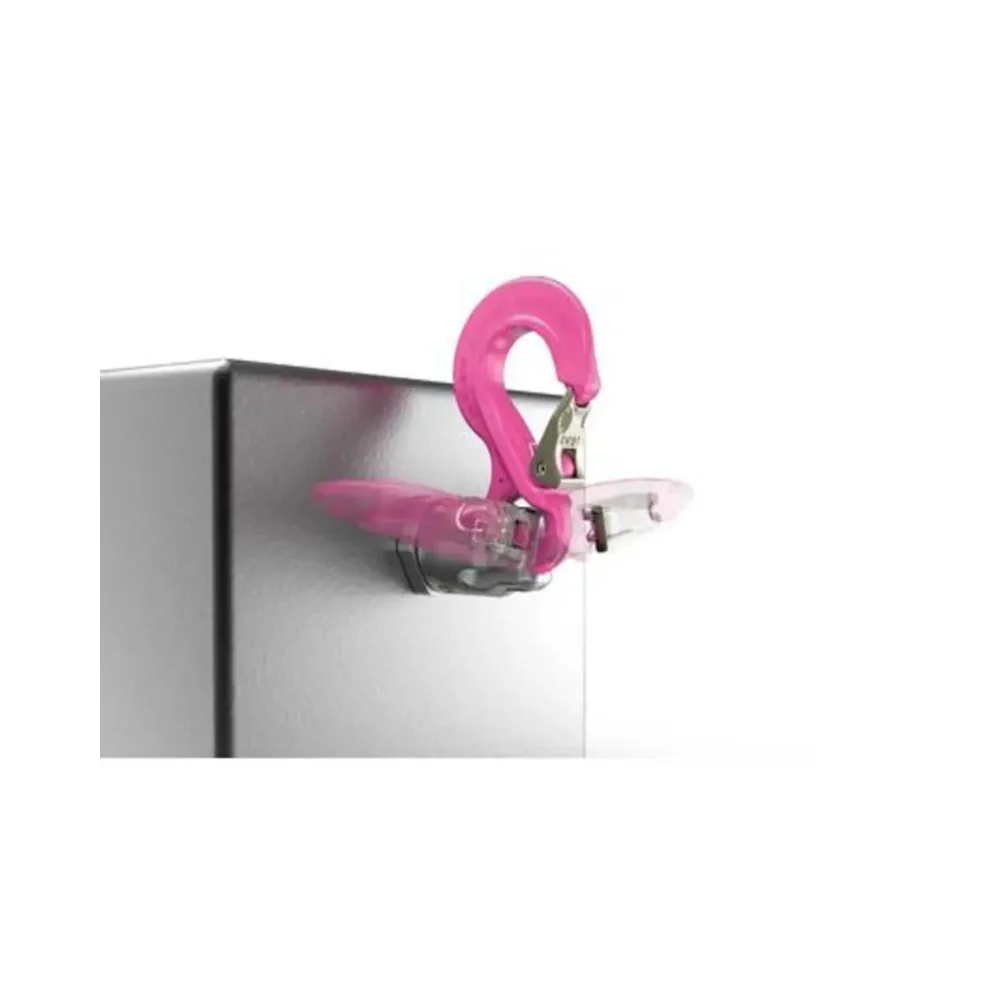

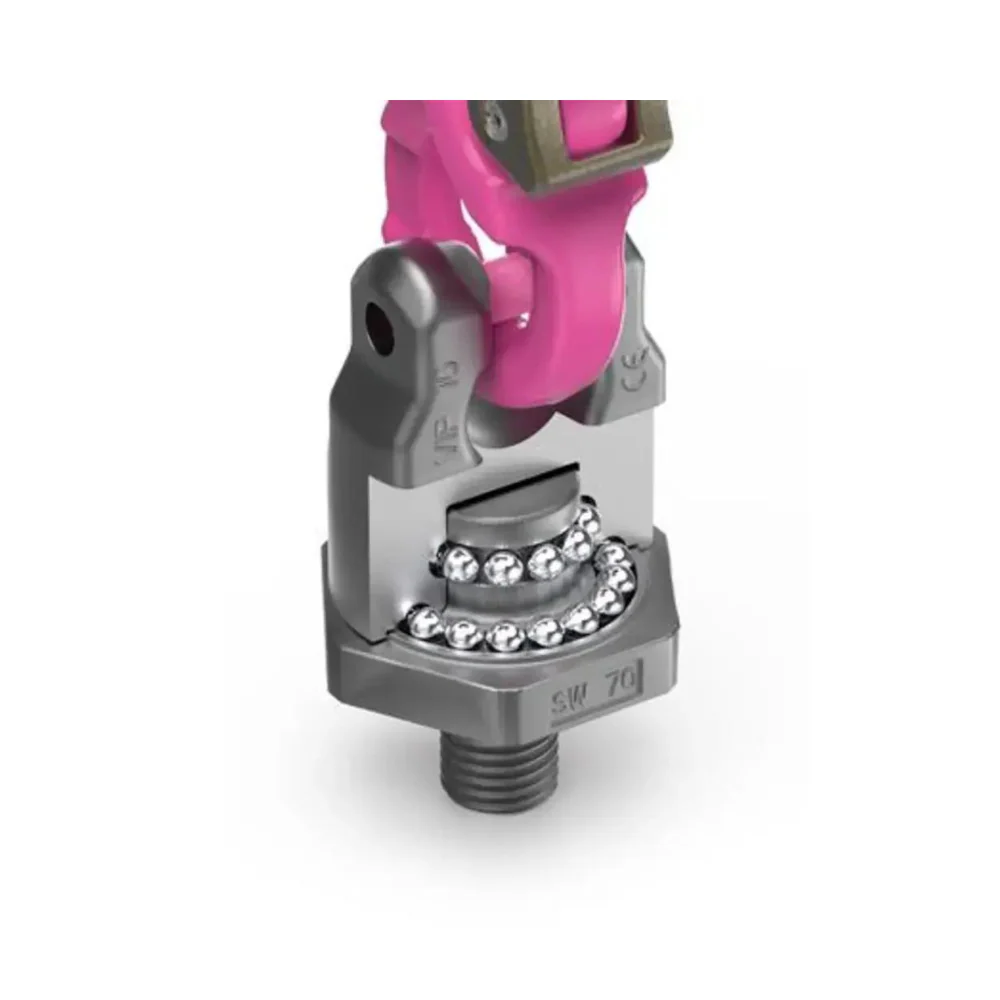

Extremely easy to rotate, rotating a full 360-degrees, thanks to the double ball bearing, these lifting points also pivot 230-degrees, as well as achieving the lowest kinking possibility due to a cardan joint.

Each of these lifting points is fitted with a robust forged safety latch for optimal safety, while the shape of the hook tip prevent hinging in small opening. Stamped with WLL rating for easy identification.

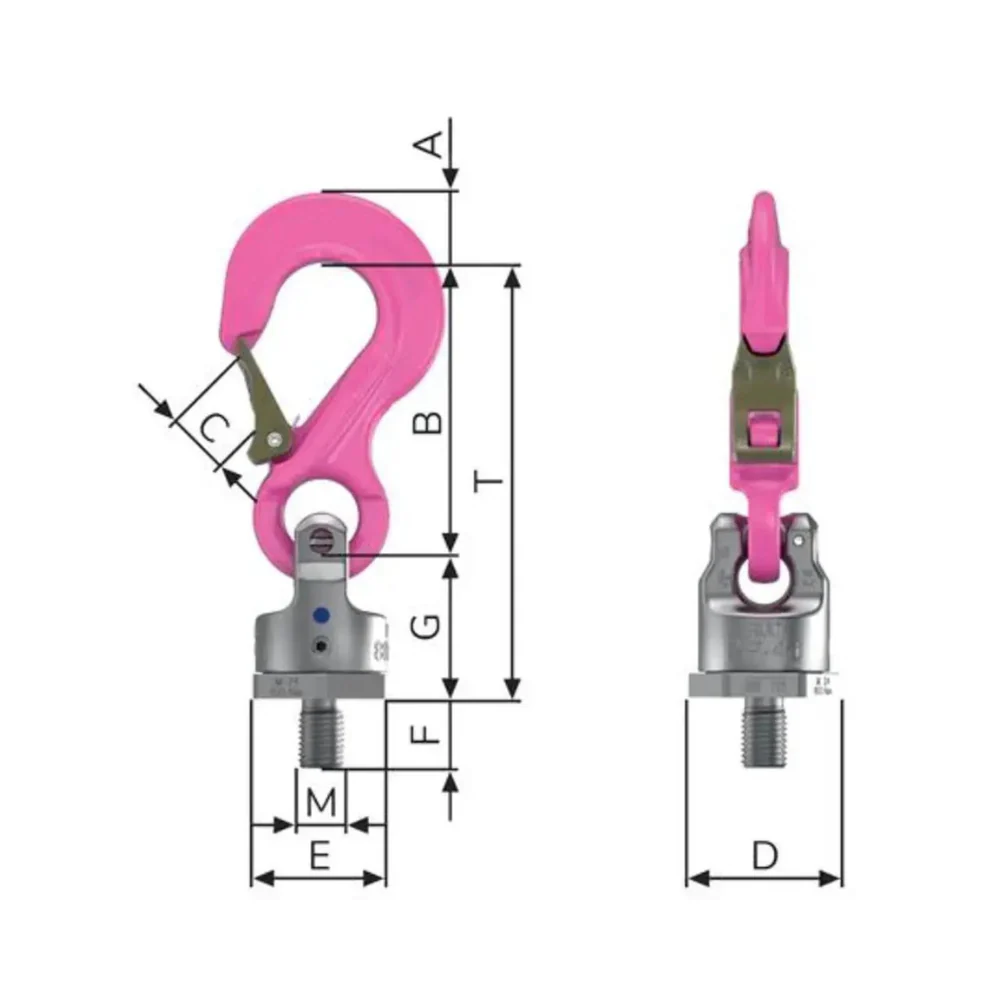

SKU	WLL (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M	Pitch T (mm)
7990719	0.63	13	75	18	40	36	18	41	M12	116
7989719	1.5	20	97	25	46	41	24	49	M16	146
7989075	2.5	28	126	30	61	55	30	61	M20	187
7989076	4	36	150	35	78	70	36	77	M24	227
7989720	5	37	174	40	95	85	45	93	M30	267
7989077	8	49	208	48	100	90	54	102	M36	310
