RUD PP-S Powerpoint Universal Connection, UNC Thread

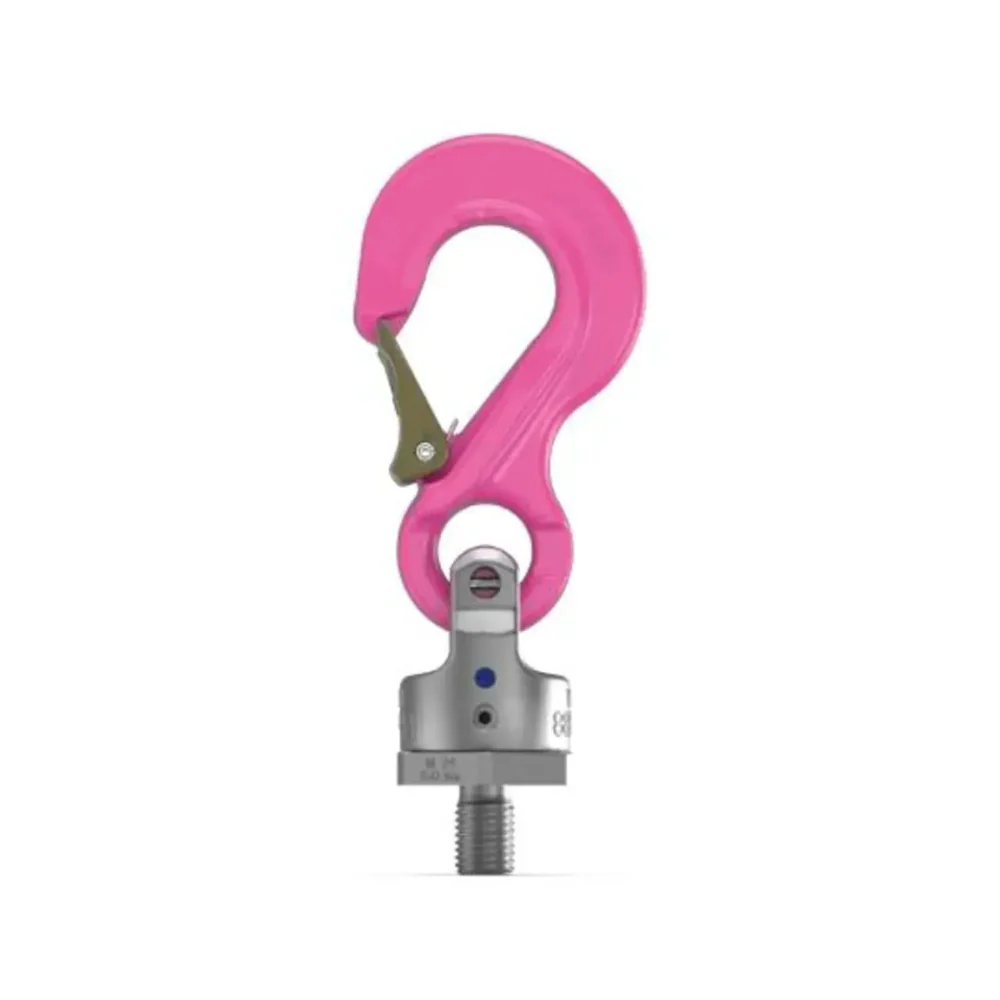

Boasting an excellent working load limit range of 1.5t to 8t (5/8"-11UNC- 1 1/2"-6BSWthread), RUD's PP-S Powerpoint Universal Connection, UNC Thread, is suitable for ring assemblies, round slings, wire ropes, and hook assemblies - it's pretty much always the right connection.

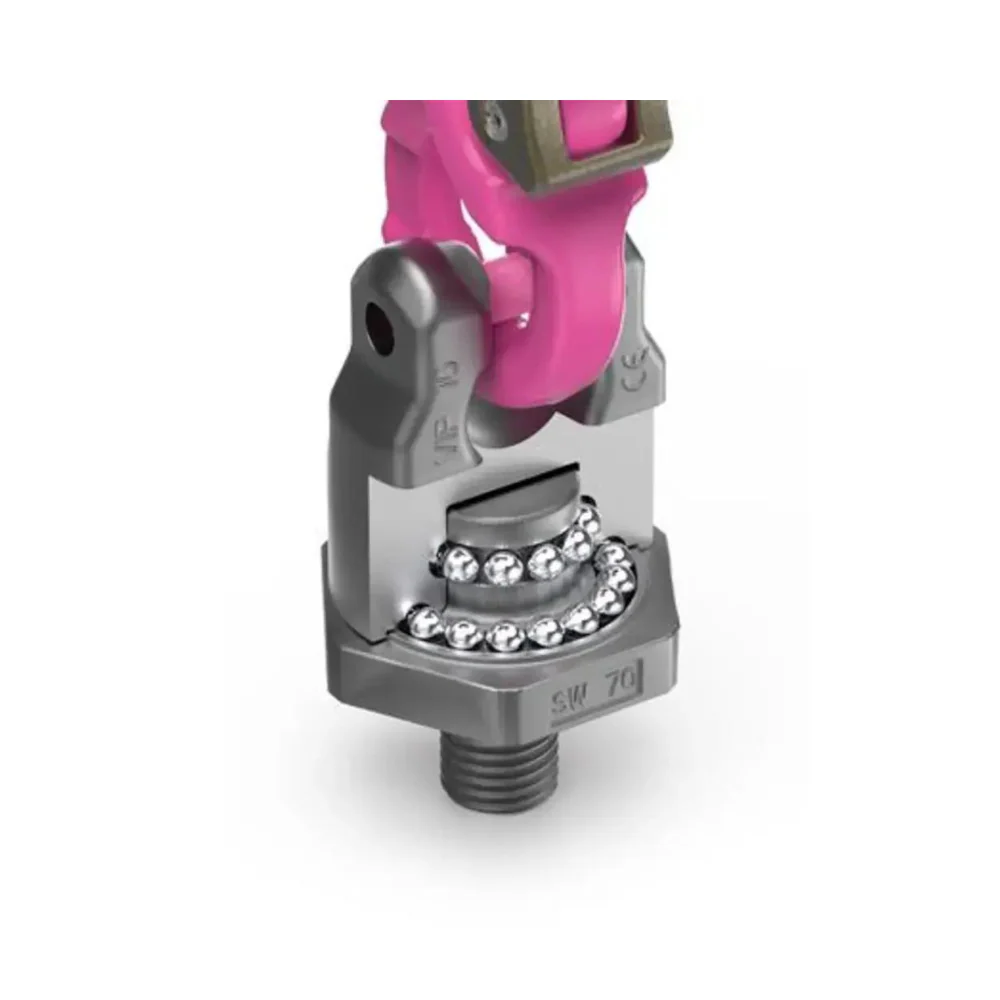

Extremely easy to rotate, rotating a full 360-degrees, thanks to the double ball bearing, these lifting points also pivot 230-degrees, as well as achieving the lowest kinking possibility due to a cardan joint.
Each of these lifting points is fitted with a robust forged safety latch for optimal safety, while the shape of the hook tip prevent hinging in small opening. Stamped with WLL rating for easy identification.
|

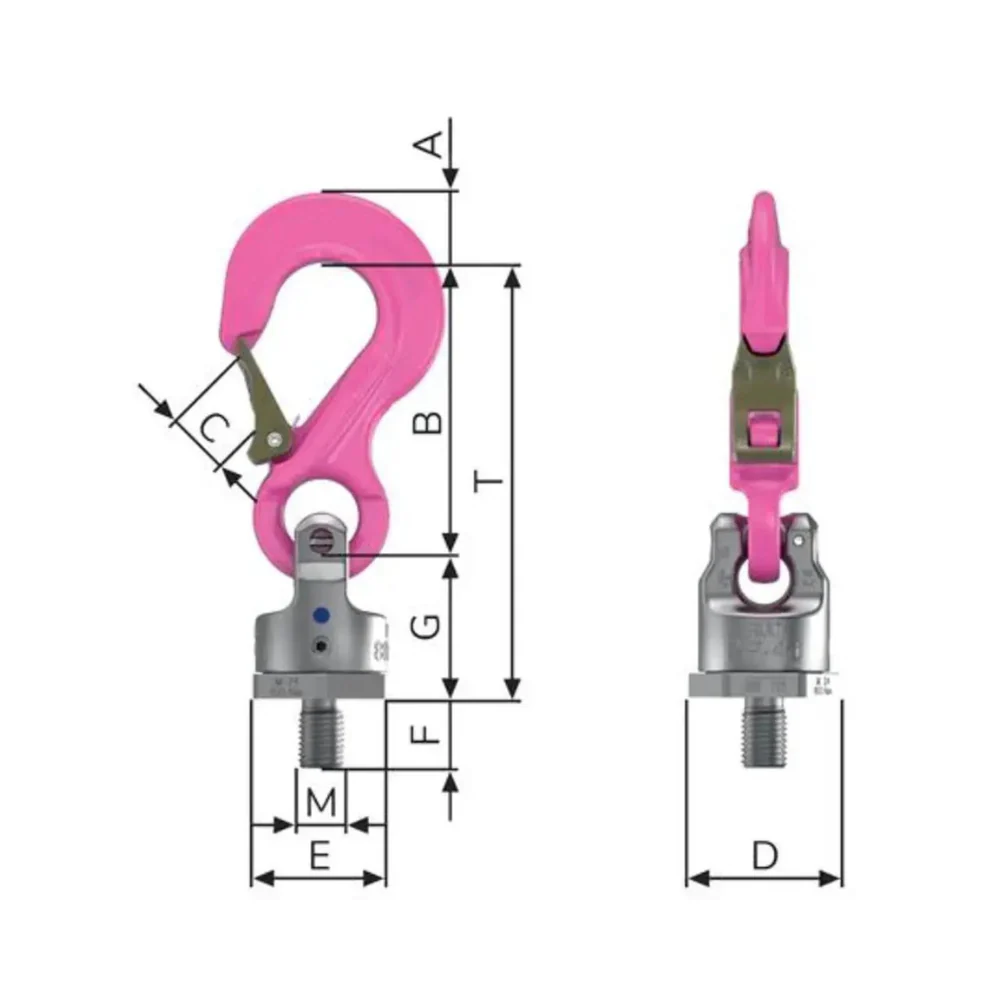

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
M |
Pitch T (mm) |
|
8600582 |
1.5 |
20 |
97 |
25 |
46 |
41 |
24 |
24 |
16 |
49 |
5/8"-11UNC |
146 |
|
8600583 |
2.5 |
28 |
126 |
30 |
61 |
55 |
30 |
30 |
20 |
61 |
3/4"-10BSW |
187 |
|
8600526 |
8 |
49 |
208 |
48 |
100 |
90 |
54 |
300 |
36 |
102 |
1 1/2"-6BSW |
310 |
Original: $447.00
-65%$447.00
$156.45
Description
Boasting an excellent working load limit range of 1.5t to 8t (5/8"-11UNC- 1 1/2"-6BSWthread), RUD's PP-S Powerpoint Universal Connection, UNC Thread, is suitable for ring assemblies, round slings, wire ropes, and hook assemblies - it's pretty much always the right connection.
Extremely easy to rotate, rotating a full 360-degrees, thanks to the double ball bearing, these lifting points also pivot 230-degrees, as well as achieving the lowest kinking possibility due to a cardan joint.
Each of these lifting points is fitted with a robust forged safety latch for optimal safety, while the shape of the hook tip prevent hinging in small opening. Stamped with WLL rating for easy identification.
|
SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
M |
Pitch T (mm) |
|
8600582 |
1.5 |
20 |
97 |
25 |
46 |
41 |
24 |
24 |
16 |
49 |
5/8"-11UNC |
146 |
|
8600583 |
2.5 |
28 |
126 |
30 |
61 |
55 |
30 |
30 |
20 |
61 |
3/4"-10BSW |
187 |
|
8600526 |
8 |
49 |
208 |
48 |
100 |
90 |
54 |
300 |
36 |
102 |
1 1/2"-6BSW |
310 |
