RUD PP-VIP Powerpoint Direct VIP Chain Connection, Metric Thread

Super easy to rotate and always in the right direction, RUD's PP-VIP Powerpoint Chain Connection (Metric Thread) is available in thread sizes from M12 - M36 (0.63t - 8t)

This universal and on-mix up clevis connection is suitable for chains, hooks, and eyes, with a double ball bearing being optimal for turning and flipping operations under full load (NOTE: not suitable for permanent turning under load).

This lifting pint pivots 360° and features a large distance between the bolt-on surface and load to avoid any damage.

Tested and certified by DGUV, the easy single bolt installation makes the PP-VIP a must.

Furthermore, for easy identification, each unit is clearly marked with the minimum WLL for all loading directions.

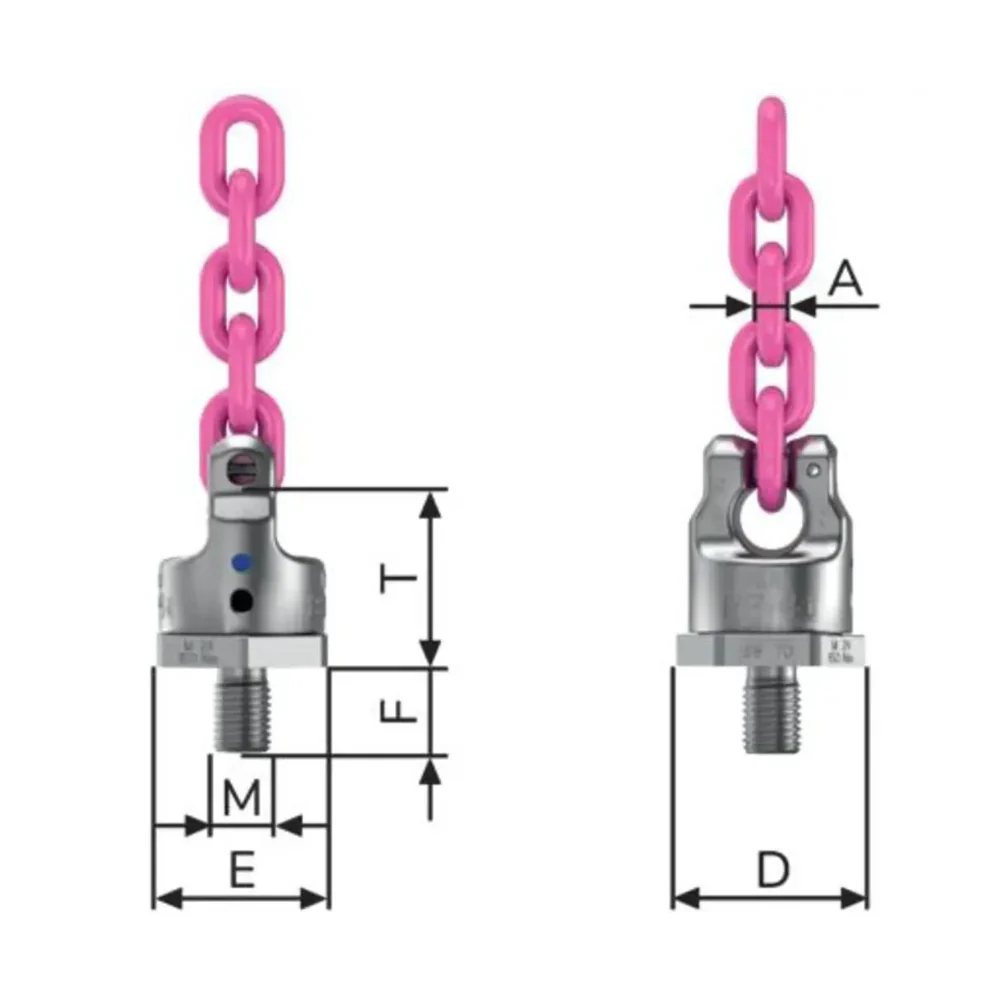

SKU	WLL (tons)	A (mm)	D (mm)	E (mm)	F (mm)	M	Pitch T (mm)
7989525	0.63	4	40	36	18	M12	41
7989526	1.5	6	46	41	24	M16	49
7989527	2.5	8	61	55	30	M20	61
7989528	4	10	78	70	36	M24	77
7989529	5	13	95	85	45	M30	93
7989530	8	16	100	90	54	M36	102
